Home » Rheem » Compressors » 55-107225-01 - LG Scroll Compressor – 23,500 BTU - 1 Phase - R410A - 230V
Rheem

55-107225-01 - LG Scroll Compressor – 23,500 BTU - 1 Phase - R410A - 230V

In stock
SKU: 55-107225-01
$815.00

Free Shipping on all orders over $89

Most orders ship same day!

Order by phone or Questions? (800) 468 5997

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

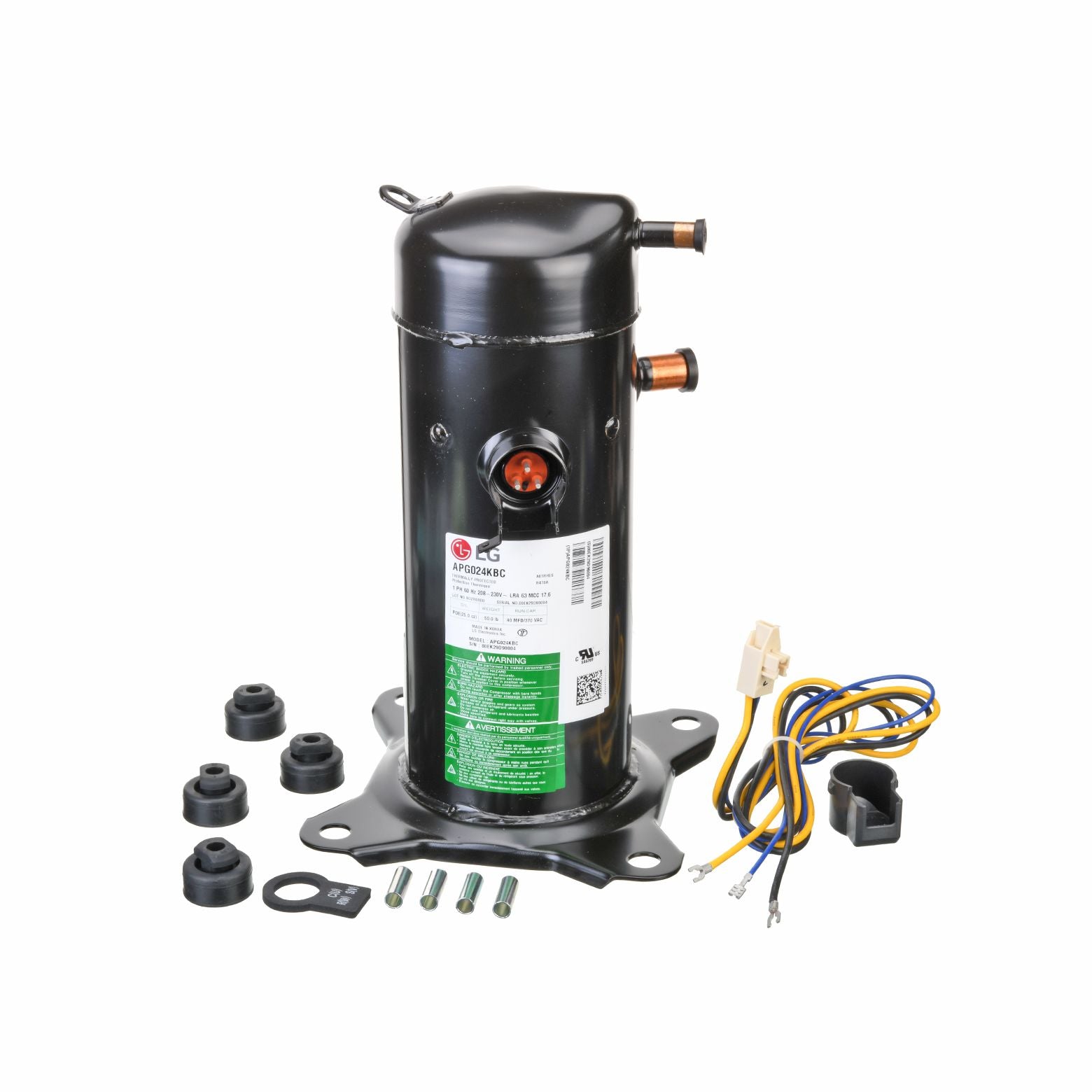

Rheem 55-107225-01 - LG Scroll Compressor – 23,500 BTU - 1 Phase - R410A - 230V

With a focus on reliability and performance, LG designed Gen 3 scroll compressors with significant improvements to motor efficiency and friction reduction to bring the future to the present.

Features

  • LG Electronics APG024KBC.A61RHES
  • Features internal bypass valve system
  • Improved scroll and seal design
  • Apply reliable oil

Technical Data

  • Capacity (BTU/HR): 23500
  • Type: Scroll
  • Refrigerant: R-410A
  • Input Voltage (V): 208
  • Input Voltage (V): 230
  • No. of Phases: 1
  • Freq. (Hz.): 60
  • Run Capacitor (uF/V): 40/370
  • Kick Start: 42-TO5
  • Rated Load Current (A): 11.3
  • Max. Continuous Current (A): 17.6
  • Locked Rotor Current (A): 63.0
  • Crankcase Heater Included?: No
  • Crankcase Heater Part Number: 44-17402-44
  • Soundwrap (Brinmar): 68-25217-10
  • Refrigerant Oil: POE (85-32CST)
  • Suction Line Location: 2
  • Suction Line Height (in.): 10-1/2
  • Suction Line Configuration: Stub Out
  • Suction Line Size (in.): 3/4
  • Discharge Line Location: 3
  • Discharge Line Height (in.): 14-3/8
  • Discharge Line Configuration: Stub Out
  • Discharge Line Size (in.): 1/2
  • Overall Compressor Height (in.): 15-3/8
  • Mounting Base Dimensions (in. x in.): 7-1/2 x 7-1/2
  • Shipping Weight: 53.0 lbs
