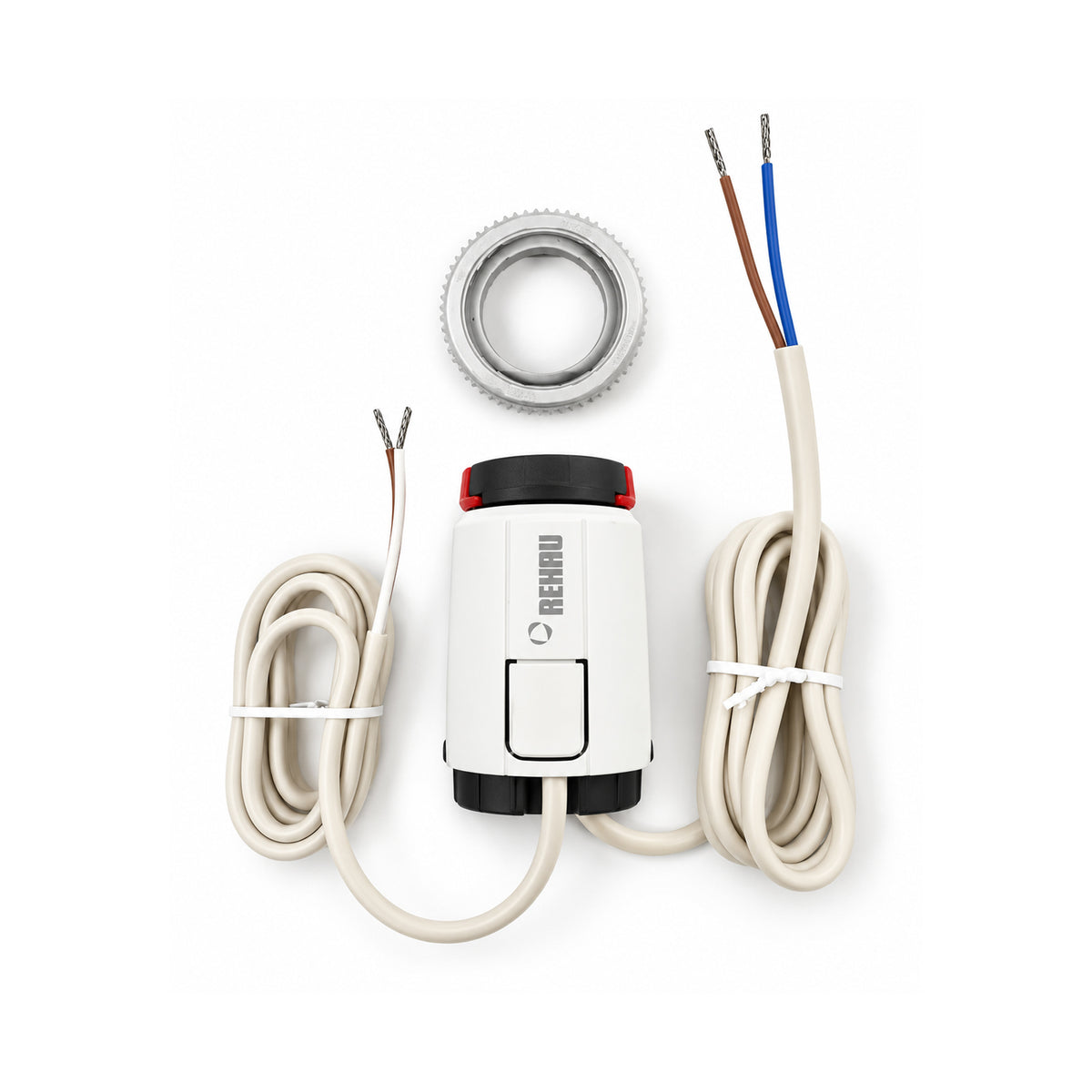

REHAU 803028-001 - PRO-BALANCE Swivel 4-Wire Actuator

The REHAU PRO-BALANCE Swivel 4-Wire Actuator is designed to provide automatic control of individual heating and cooling circuits on compatible PRO-BALANCE manifolds. Featuring a 4-wire configuration with an integrated end switch, this actuator allows coordinated operation of manifold valves, circulation pumps, and other system components. Its normally closed design opens the valve when energized and closes it when power is removed. The swivel design simplifies installation and servicing, while the compact construction makes it ideal for residential and commercial radiant heating and cooling systems.

Features

Designed for use with compatible REHAU PRO-BALANCE manifolds
4-wire configuration provides automatic valve operation and end-switch functionality
Integrated dry-contact end switch supports coordinated pump and system control
End switch allows circulation pumps to activate when the actuator is fully open
Normally closed operation shuts off water flow when power is removed
Thermal actuator provides reliable opening and closing of manifold circuit valves
Designed for connection to compatible REHAU thermostats and electronic controls
Helps regulate water flow through individual radiant heating and cooling zones
Compact design simplifies installation and servicing
Ideal for residential and commercial hydronic heating and cooling applications

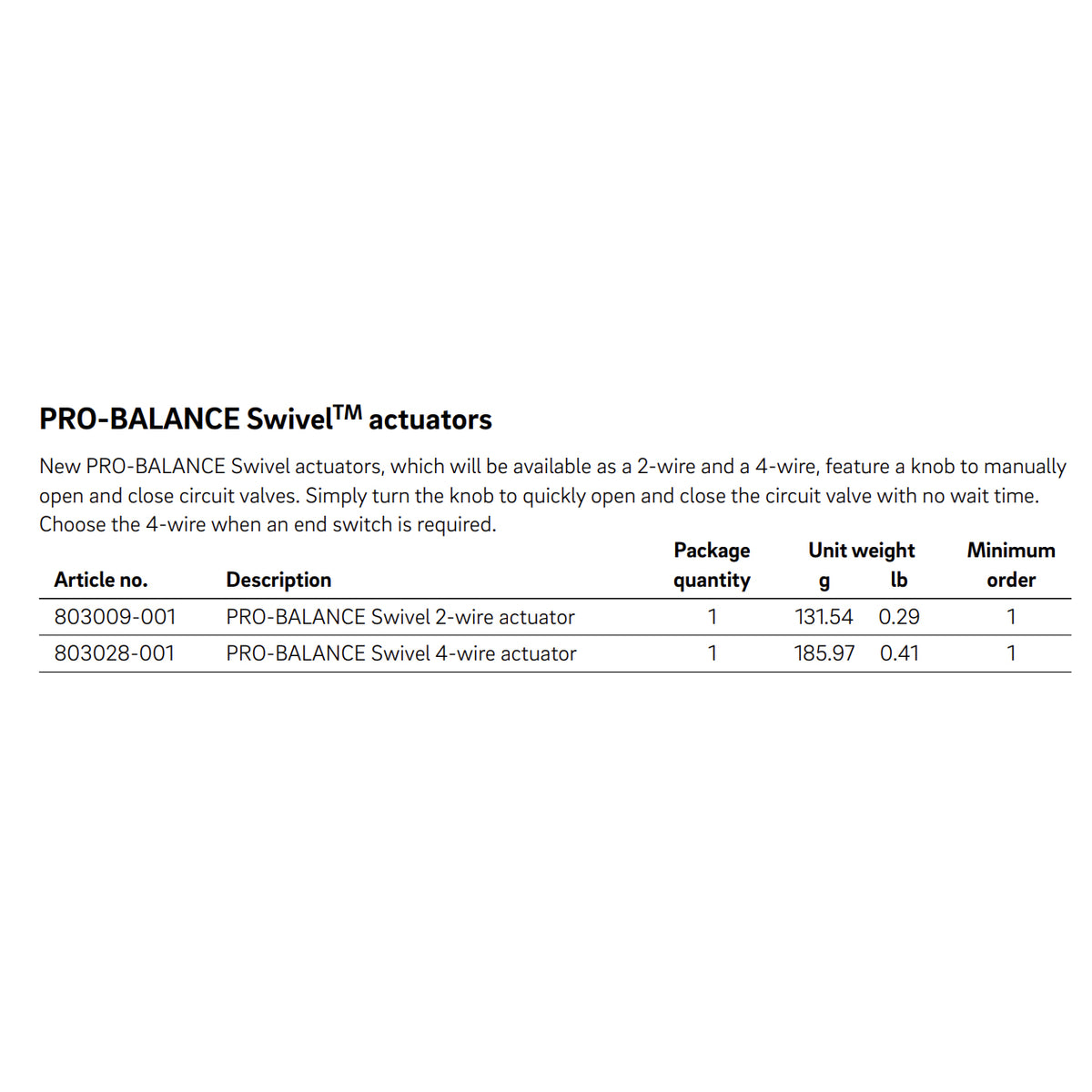

Specifications

Manufacturer Part Number: 803028-001
Product Type: Manifold Valve Actuator
Series: PRO-BALANCE Swivel
Wiring Configuration: 4-Wire
End Switch: Integrated
Operating Voltage: 24 VAC
Valve Operation: Normally Closed
Compatible System: REHAU PRO-BALANCE Manifolds
Product Weight: 0.41 lb
