3082675 - Regal 186 XL Manual Urinal Flushometer - Top Spud - 1.0 GPF
1 review
In stock
Regular price
$124.99
Free Shipping on all orders over $89
Most orders ship same day!
Order by phone or Questions? (800) 468 5997
S
Steve P. 3082675 - Regal 186 XL Manual Urinal Flushometer - Top Spud - 1.0 GPF

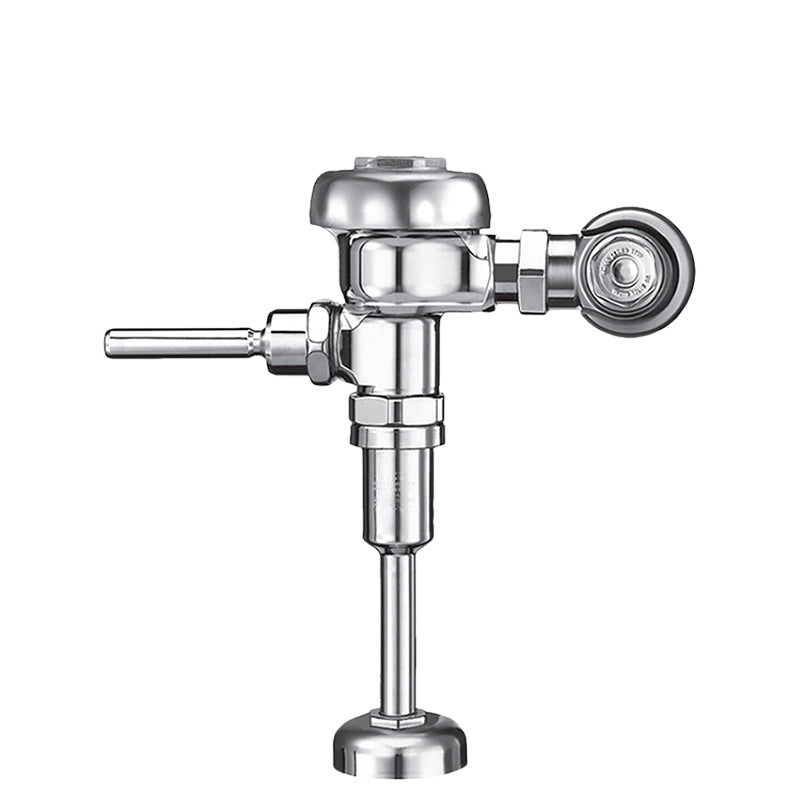

Sloan 3082675 - Regal 186 XL Manual Urinal Flushometer - Top Spud - 1.0 GPF
1.0 gpf, Polished Chrome Finish, Fixture Connection Top Spud, Single Flush, Regal Exposed Manual Urinal Flushometer.
Features
- ADA Compliant Metal Oscillating Non-Hold-Open Handle
- Control Stop Plug
- Sweat Solder Adapter with Cover Tube
- Cast Wall Flange with Set Screw
- Vacuum Breaker Flush Connection
- Spud Coupling Wall and Spud Flange for 3/4" Top Spud
- Non-Hold-Open Handle and No External Volume Adjustment to
- Ensure Water Conservation
- 3/4" I.P.S. Wheel Handle Bak-Chek Angle Stop
Specifications
- Flush Volume: 1.0 gpf (3.8 Lpf)
- Finish: Polished Chrome (CP)
- Valve: Diaphragm
- Valve Body Material: Semi-red Brass
- Fixture Type: Urinal
- Fixture Connection: Top Spud
- Rough-In Dimension: 11-1/2" (292mm)
- Spud Coupling: 3/4" (19mm)
- Supply Pipe: 3/4" (19mm)
