Specification Sheet

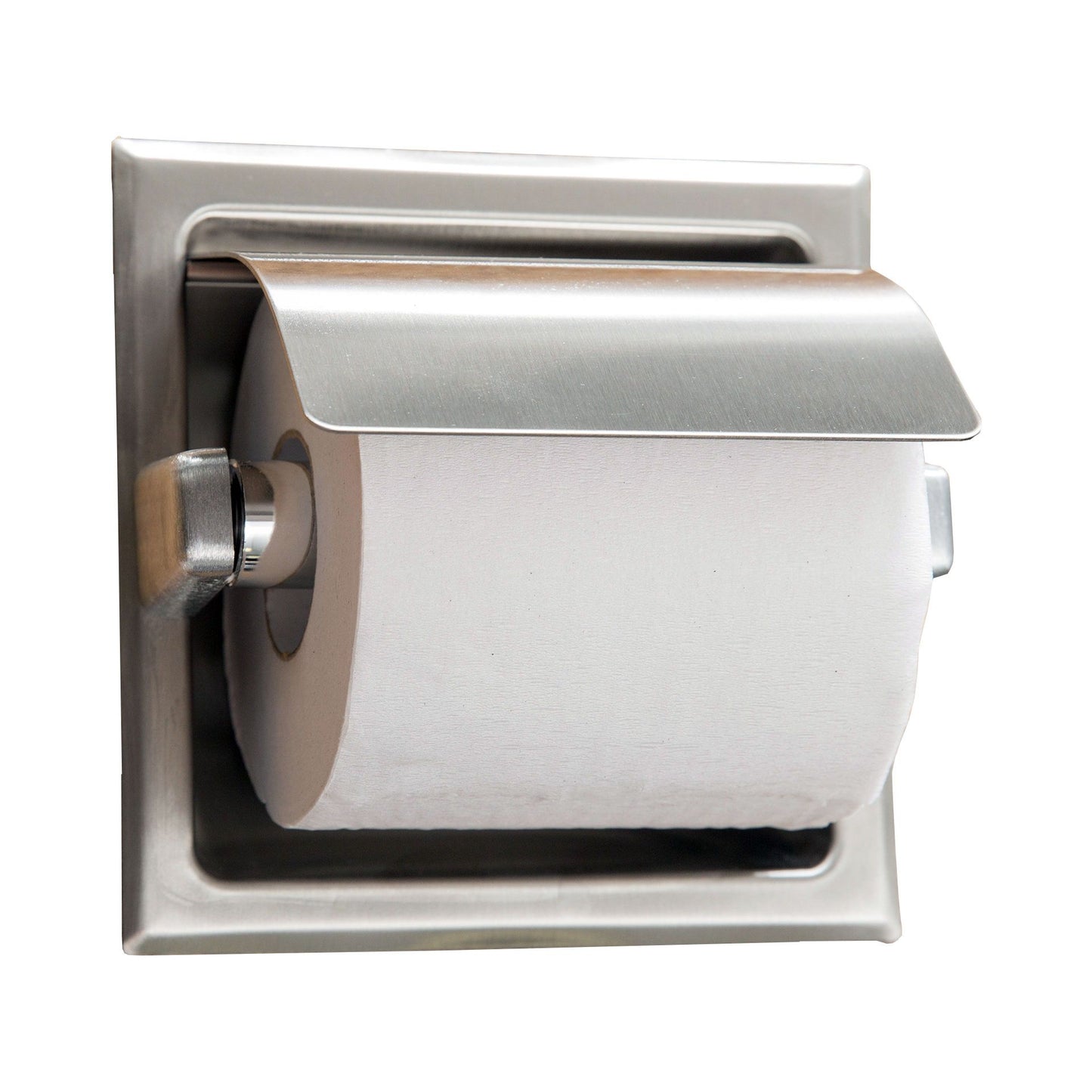

Recessed Toilet Tissue Dispenser with Hood and Mounting Clamp, Satin Finish

Features:

• Type 304 stainless steel with one-piece seamless construction
• Chrome-plated plastic spindle equipped with heavy-duty internal spring
• Spindle holds rolls up to 5-1/8" diameter
• Mounting clamps for securing to stud walls or countertop aprons
• Measures 6-1/8" width by 6-1/8" height

Materials:

• Shell and Flange — 18-8, Type-304, 22-gauge (0.8mm) stainless steel. Drawn and beveled, one-piece, seamless construction with two countersunk mounting holes.
• Support Posts (2) — Heavy-duty cast zamac with chrome-plated finish.
• Hood — 18-8 Type-304, 18-gauge (1.2mm) stainless steel. Hood hinged to shell.
• Mounting Bracket — Plated-steel mounting clamp attaches to back of unit with two sheet-metal screws for installation in stud walls or countertop aprons.
• Spindle — Chrome-plated plastic. Equipped with heavy-duty internal spring.
• Designer's Note: Theft-resistant toilet tissue spindle, which is removable only with special key provided, is available as an optional accessory - part no. 283-604.

Installation:

• Provide framed rough opening 5-1/2" wide x 5-1/4" high (140 x 135mm). Minimum recessed depth required from finish face of wall or apron is 3-3/8" (86mm).
• For installation in stud walls or countertop aprons without backing, loosely attach mounting clamp to back of unit with mounting screws. Insert into rough opening. Adjust mounting clamp so it grips surface inside rough opening. Secure in place by tightening two mounting screws.
• For installation in stud walls or countertop aprons with backing, discard mounting clamp furnished with unit. Insert unit only into rough opening and secure with sheet-metal screws furnished. Backing must comply with local building codes
