Specification Sheet

Recessed Multi-Roll Toilet Tissue Dispenser

Features:

• Satin-finish stainless steel unit with all-welded construction.
• Unit is theft resistant and equipped with a tumbler lock keyed like other Bobrick washroom accessories.
• Dispenser holds two standard-core toilet tissue rolls up to 5-1/8" (130mm) diameter (1500 sheets).

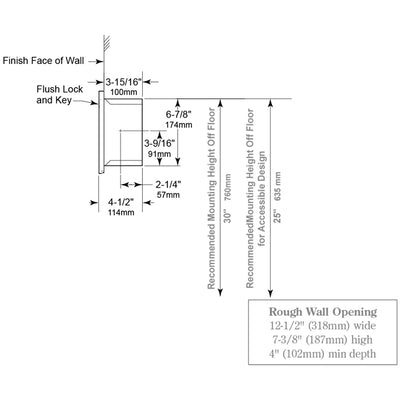

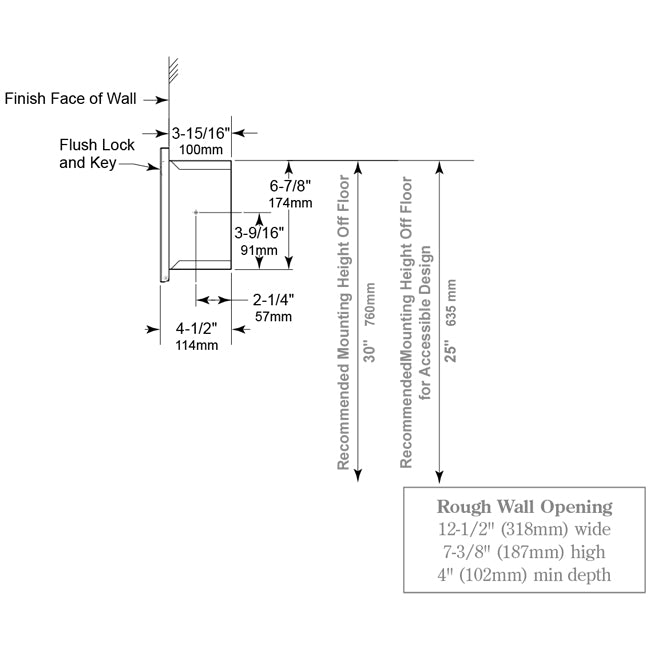

• Rough Wall Opening: 12-1/2" W x 7-3/8" H x 4" min. depth (3/8 x 187 x 1/2mm).

Materials:

• Cabinet — 18-8, Type-304, heavy-gauge stainless steel. All-welded construction.
• Exposed surfaces have satin-finish.
• Door — 18-8, Type-304, 20-gauge (0.9mm) stainless steel with satin-finish.
• Secured to cabinet with two rivets.
• Equipped with a tumbler lock keyed like other Bobrick washroom accessories.
• Tumbler lock flush with the door - no protrusion.
• Spindle — 18-8, Type-304, 18-gauge (1.2mm), 1" diameter (25mm) stainless steel tubing with plastic end caps.
  Theft resistant. Removable withkey provided.

Operation:

• Unit holds two standard-core toilet tissue rolls up to 5-1/8" (130mm) diameter (1500 sheets).

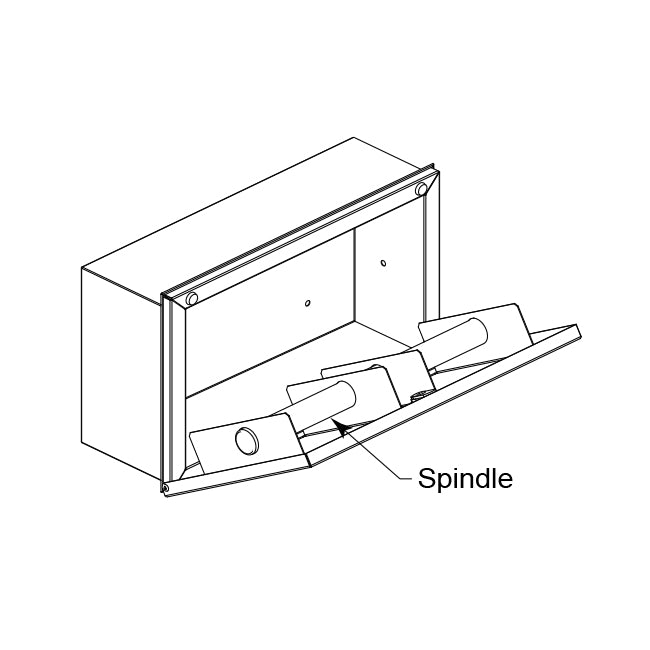

• To service toilet tissue dispenser, unlock door with key provided and slide spindle out on any direction.
