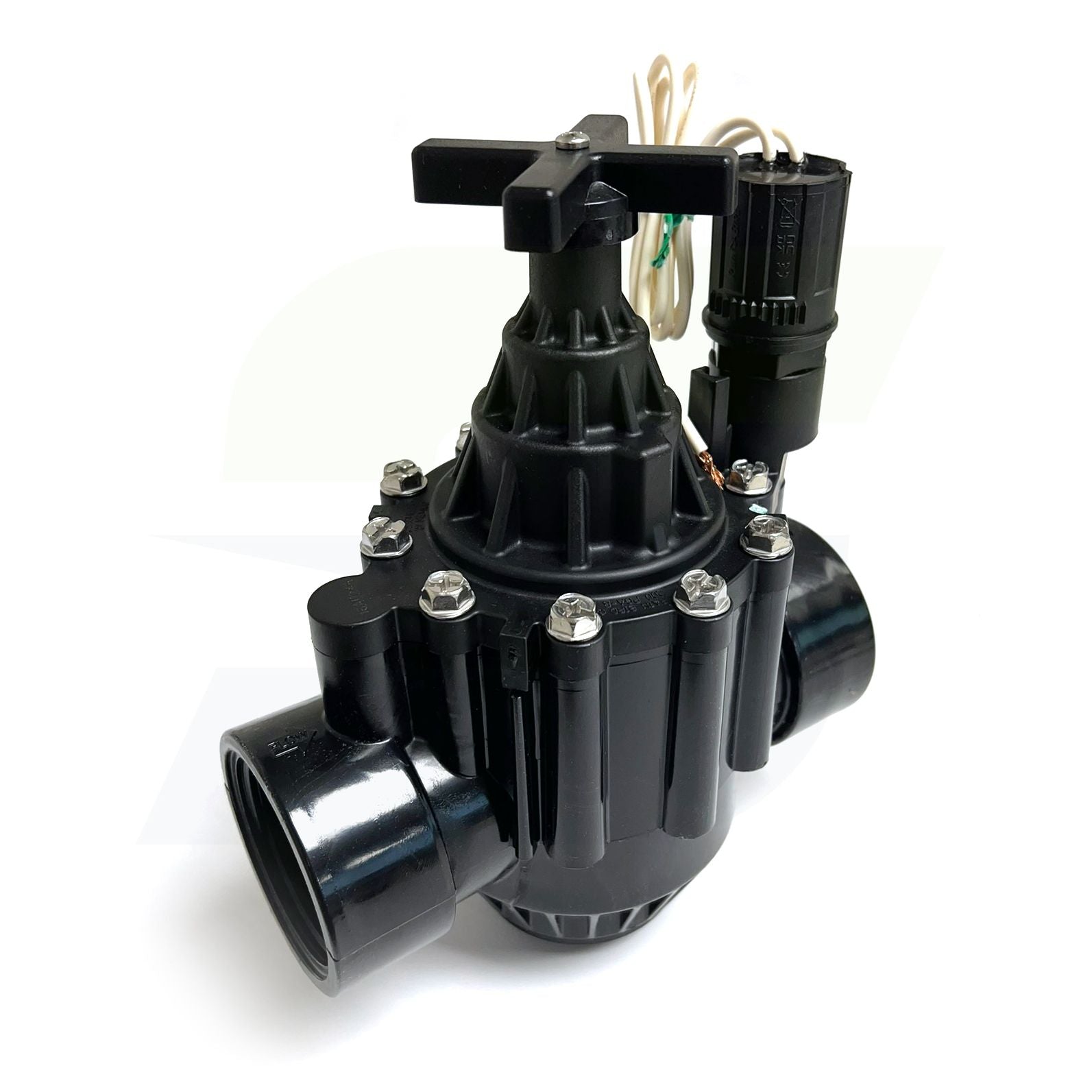

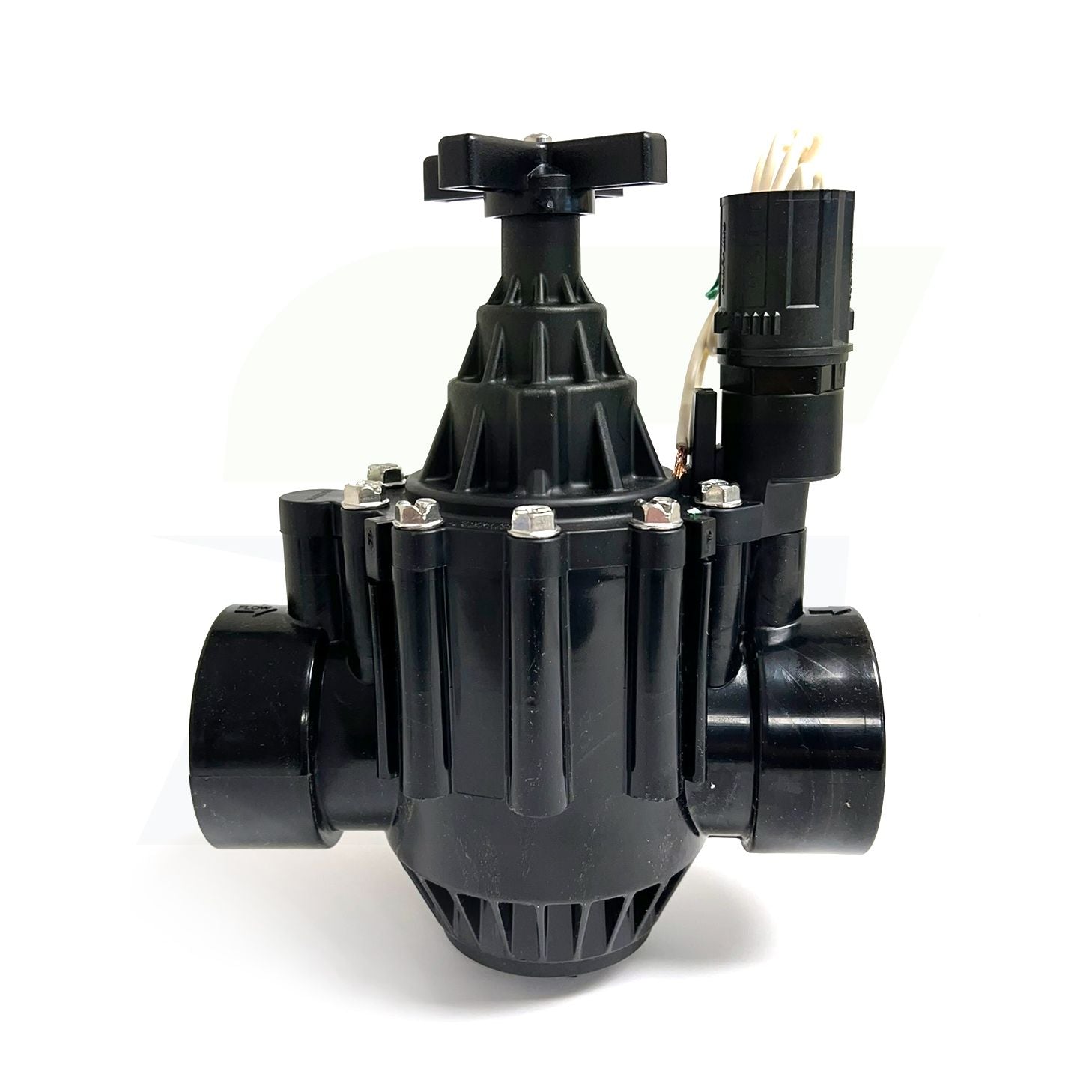

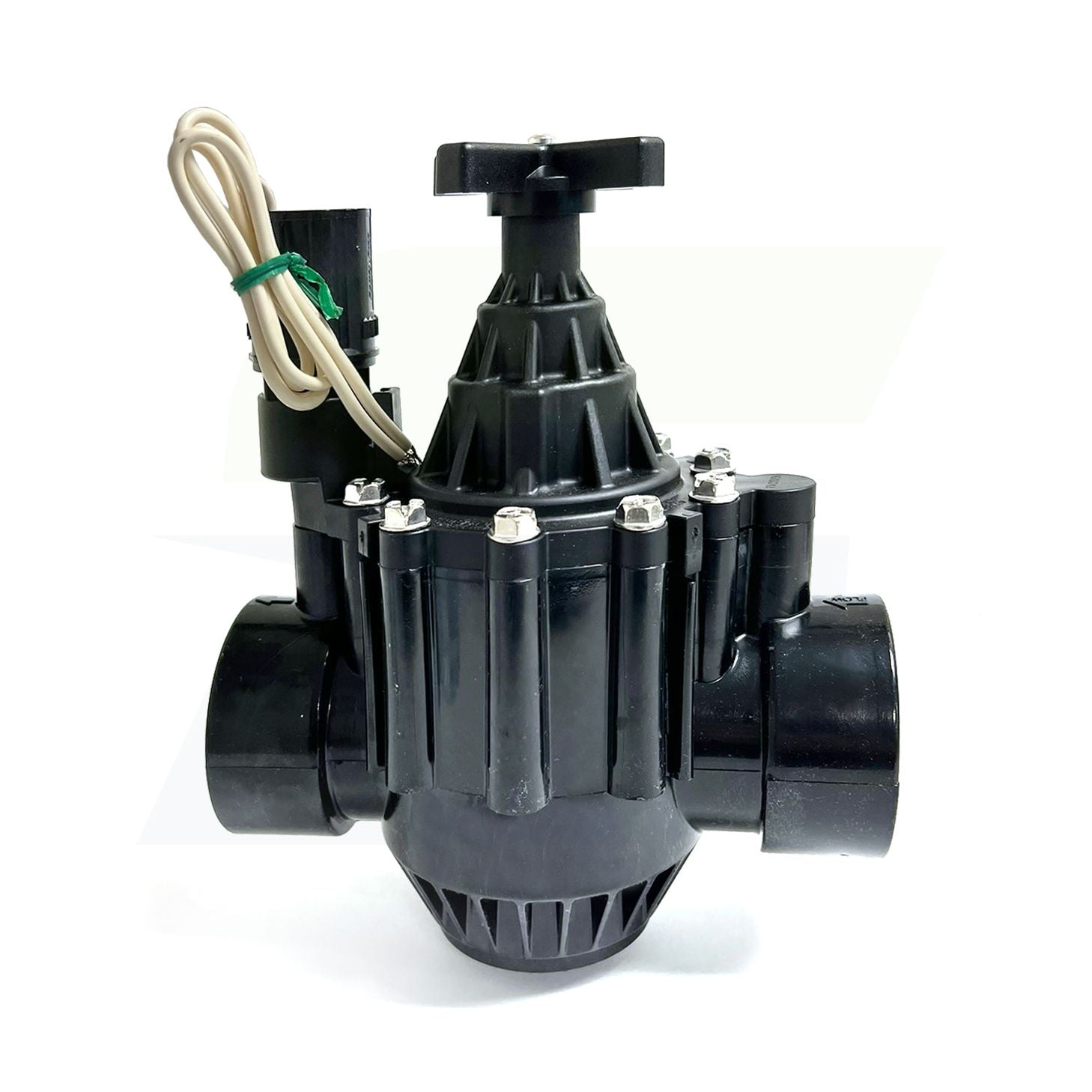

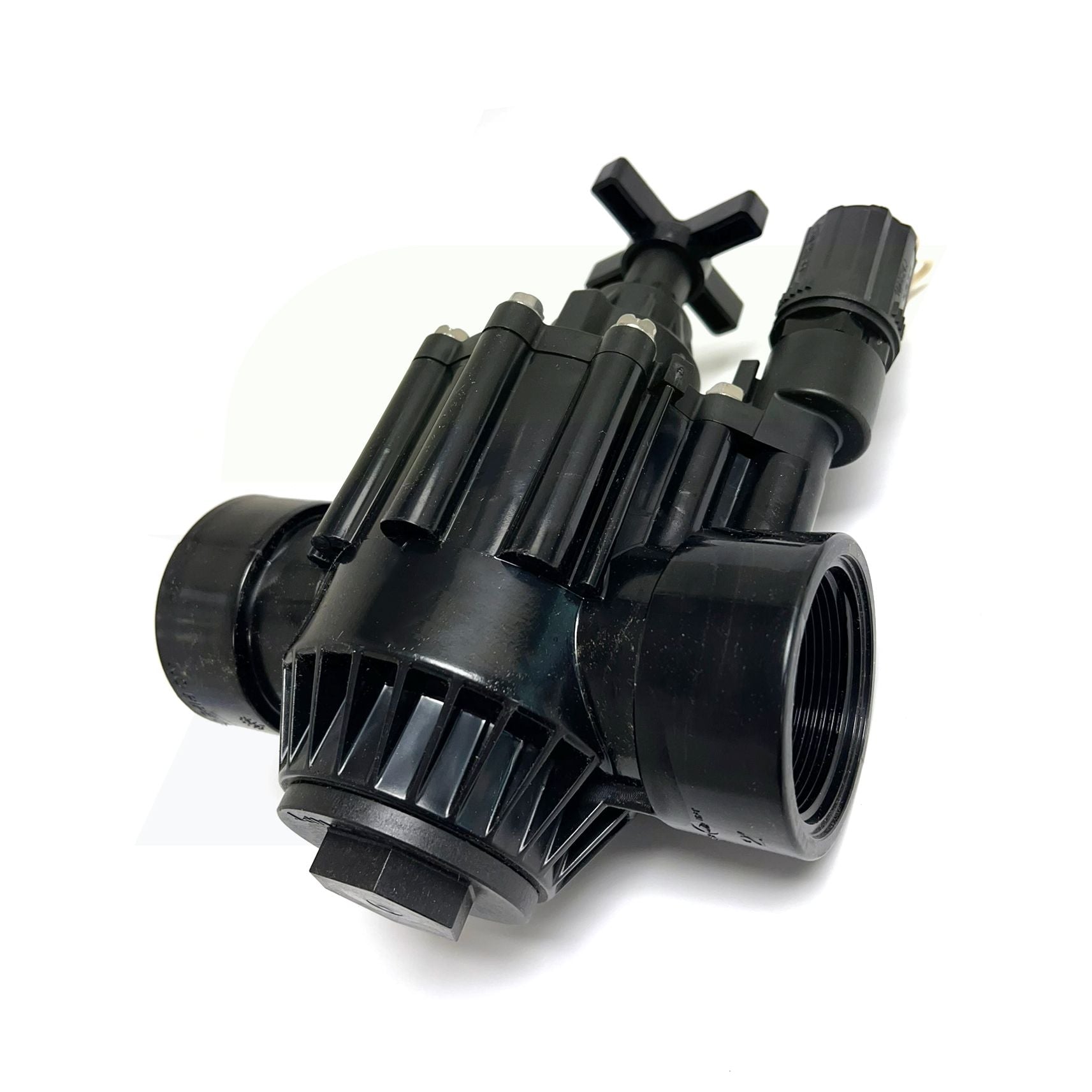

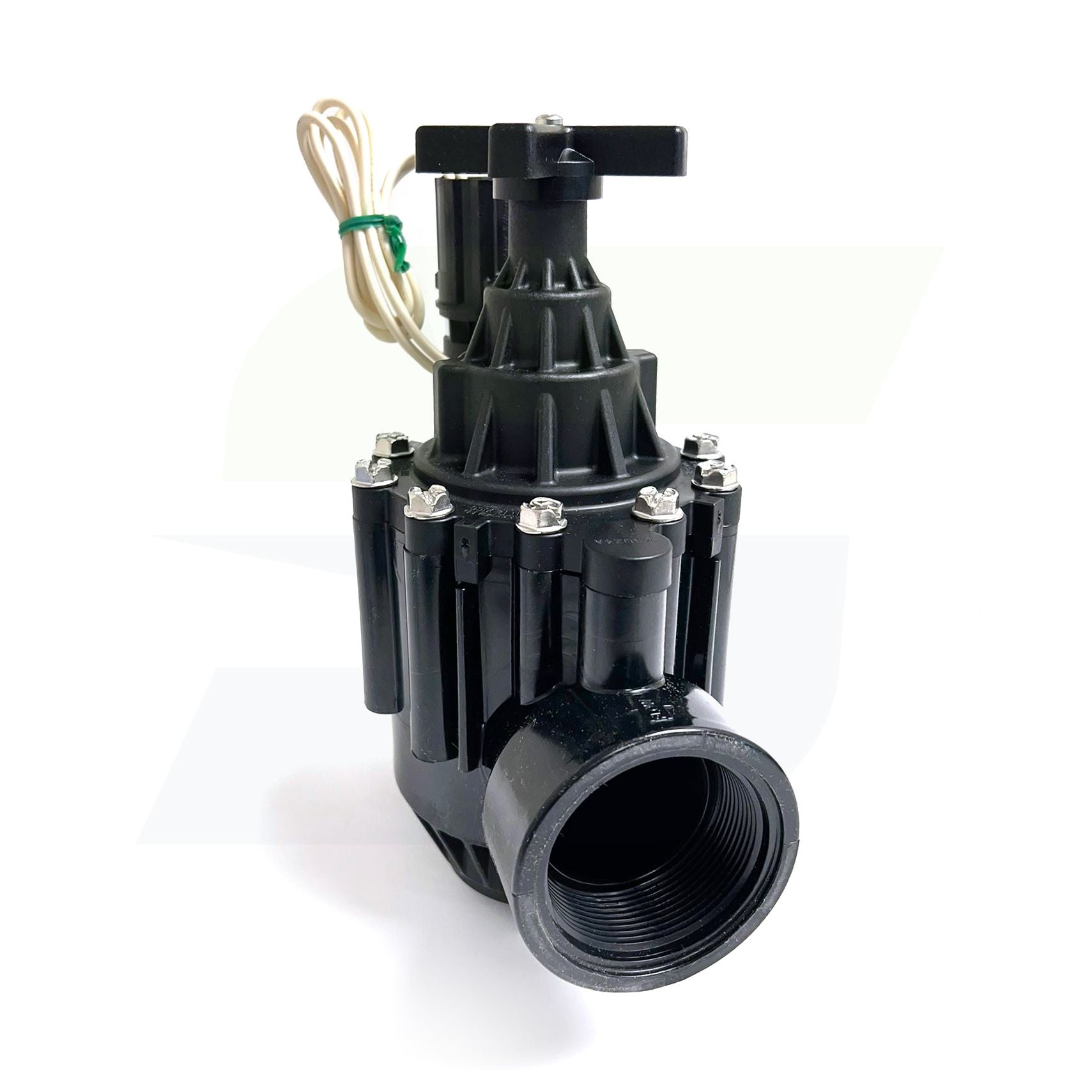

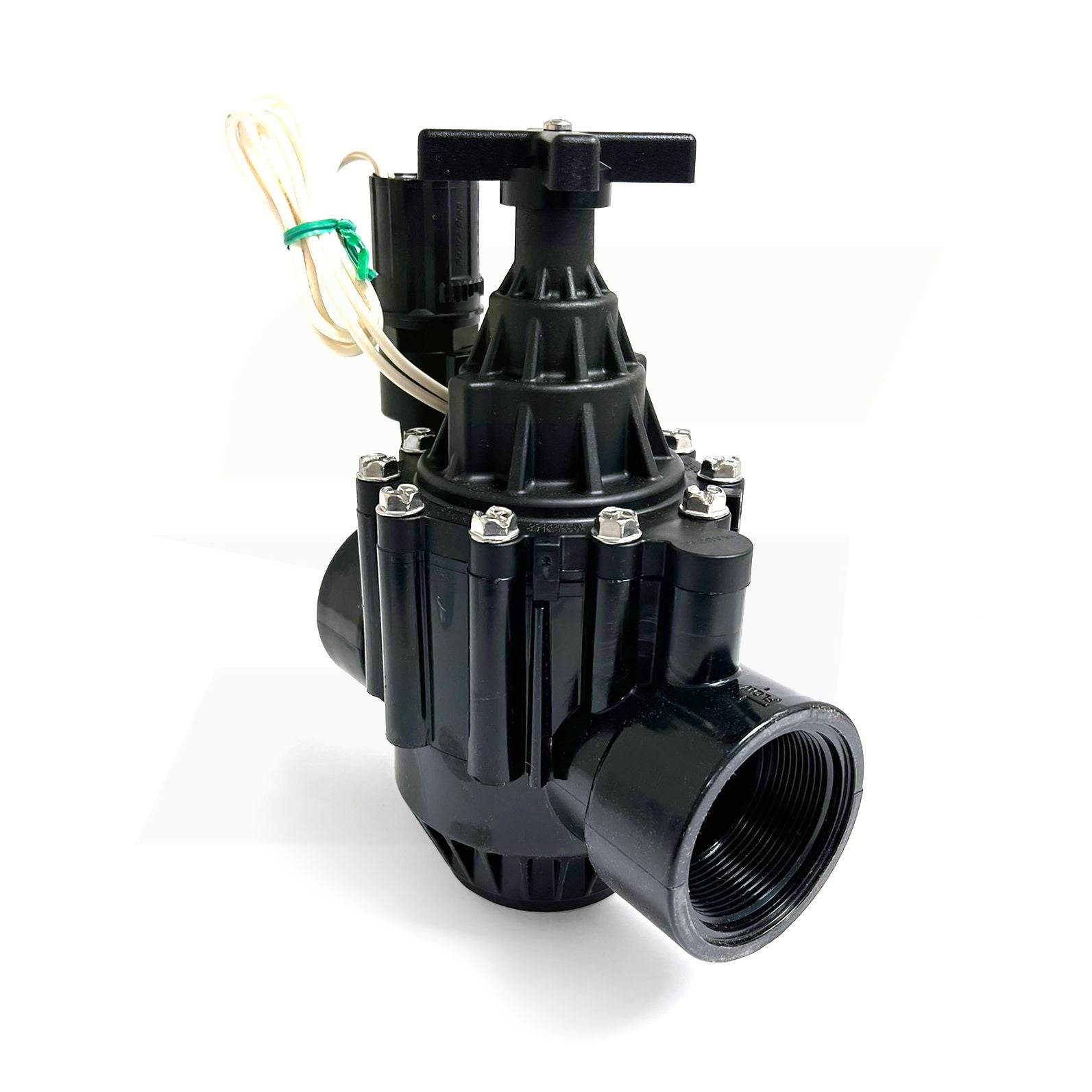

Rain Bird 200PGA - 2" FPT Heavy Duty Irrigation Valve - PGA Series

Built for high-end residential and light commercial applications, Rain Bird PGA series valves are the toughest, most reliable valves in their class. These long-lasting, easy-to-service valves are proven to perform at the highest level, even under harsh temperatures and intense pressure. For maximum peace of mind, PGA series valves also offer a best-in-class, three-year trade warranty. Because you care about your reputation—and so do we.

Extreme Durability

  • The PGA valve maintains a strong, worry-free seal between the body and bonnet, no matter the conditions. In Thermal Cycle Testing, hundreds of PGA valves were exposed to extreme temperature swings and intense pressures. The result—zero leaks.*

Pressure-Resistant Seal

  • The PGA valve’s body-to-bonnet seal is built to overcome the intense water pressure common on many commercial sites. Faced with repeated pressure surges well into the triple digits, our valves outlasted the nearest competitor more than 2-1/2 times to 1 in Cycle Surge Testing.

Easy Maintenance

  • Multi-drive screws make servicing the PGA valve simple. With the option of flathead, Phillips or hexagonal, you have the freedom and convenience you need to get things done faster. *Currently available on 2" PGA models only.

Quiet Performance

  • With a robust electrical design, the PGA valve greatly reduces noise and delivers years of reliable performance. So not only will you have peace of mind, you'll have peace and quiet.


  • Water-tight seal between the body and bonnet for maximum confidence, even in the most extreme conditions
  • Robust construction and electrical design for quiet performance you can count on
  • Filtered pilot flow to resist debris and clogging
  • Slow closing to prevent water hammer and subsequent system damage
  • Normally closed, forward flow design Accepts latching solenoid for use with Rain Bird battery-operated controllers
  • Multi-drive screws (Phillips, flathead, hexagonal) for easy maintenance
  • Manual internal bleed operates the valve without allowing water into the valve box. This allows the pressure regulator to be adjusted without turning the valve on at the controller
  • One-piece solenoid design with captured plunger and spring for easy servicing. Prevents loss of parts during field service Three-year trade warranty
  • Accommodates optional, field-installed PRS-D pressure regulating dial to ensure optimum sprinkler performance
  • Accepts latching solenoid for use with Rain Bird battery-operated controllers


  • Pressure: 15 to 150 psi
  • Flow without PRS-D option: 2 to 150 gpm
  • Flow with PRS-D option: 5 to 150 gpm
  • Water temperature: Up to 110 degrees F
  • Ambient temperature: Up to 125 degrees F
  • 24VAC 50/60Hz (cycles/sec) solenoid power requirement
  • Inrush current: 0.41A (9.9VA) at 50/60Hz
  • Holding current: 0.14A (3.43VA) at 50/60Hz
  • Solenoid coil resistance: 30-39 Ohms, nominal
  • Height: 10"
  • Length: 7-3/4"
  • Width: 5"
