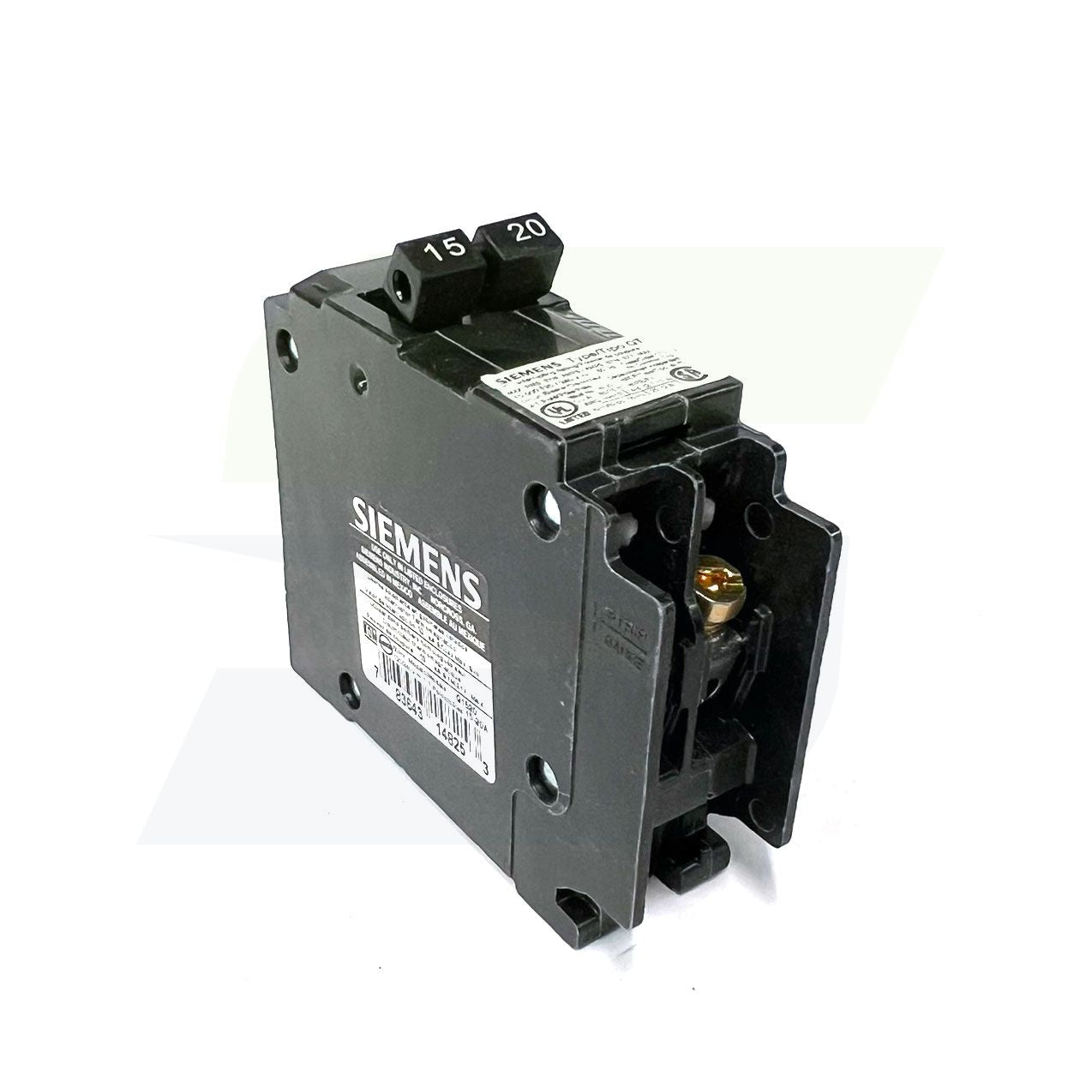

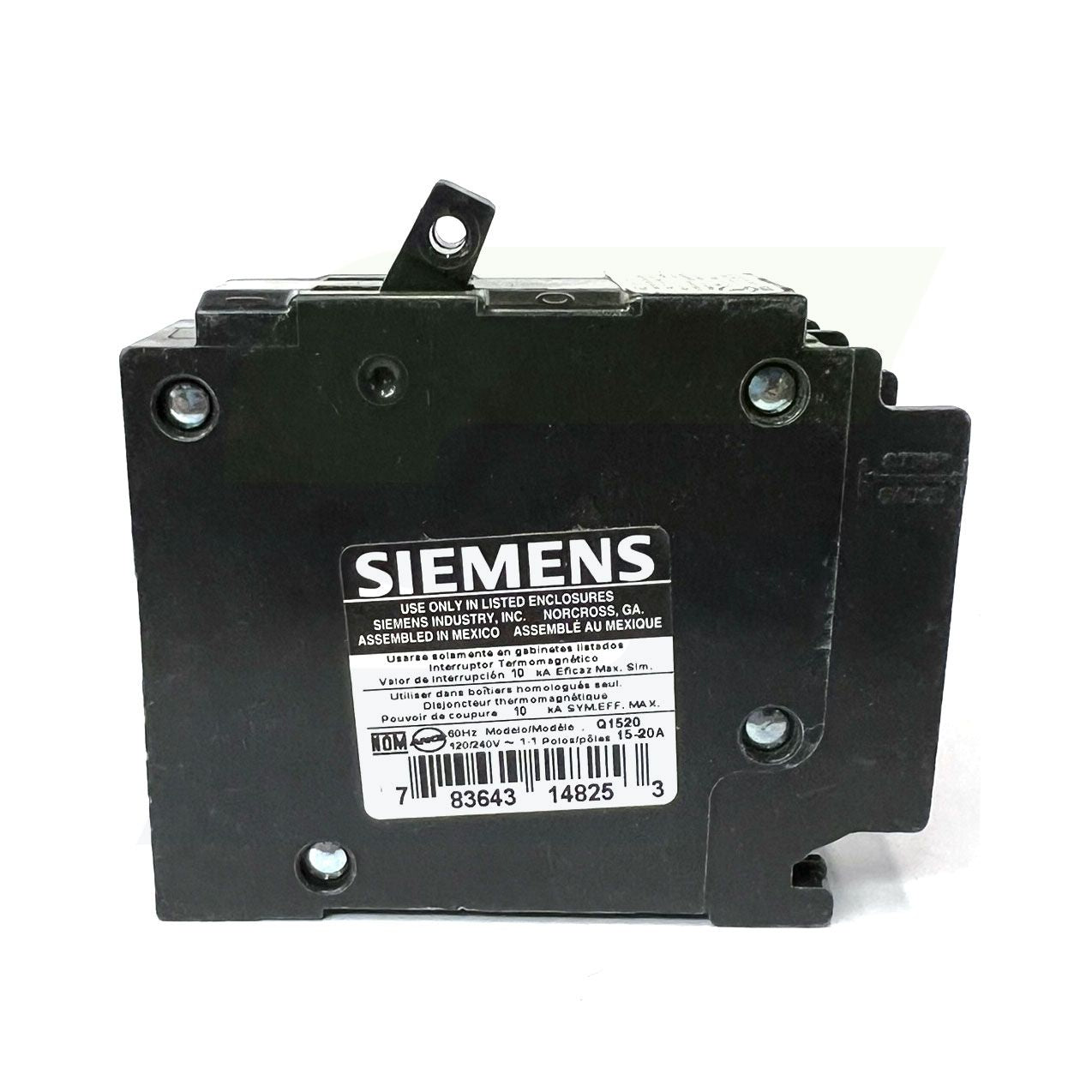

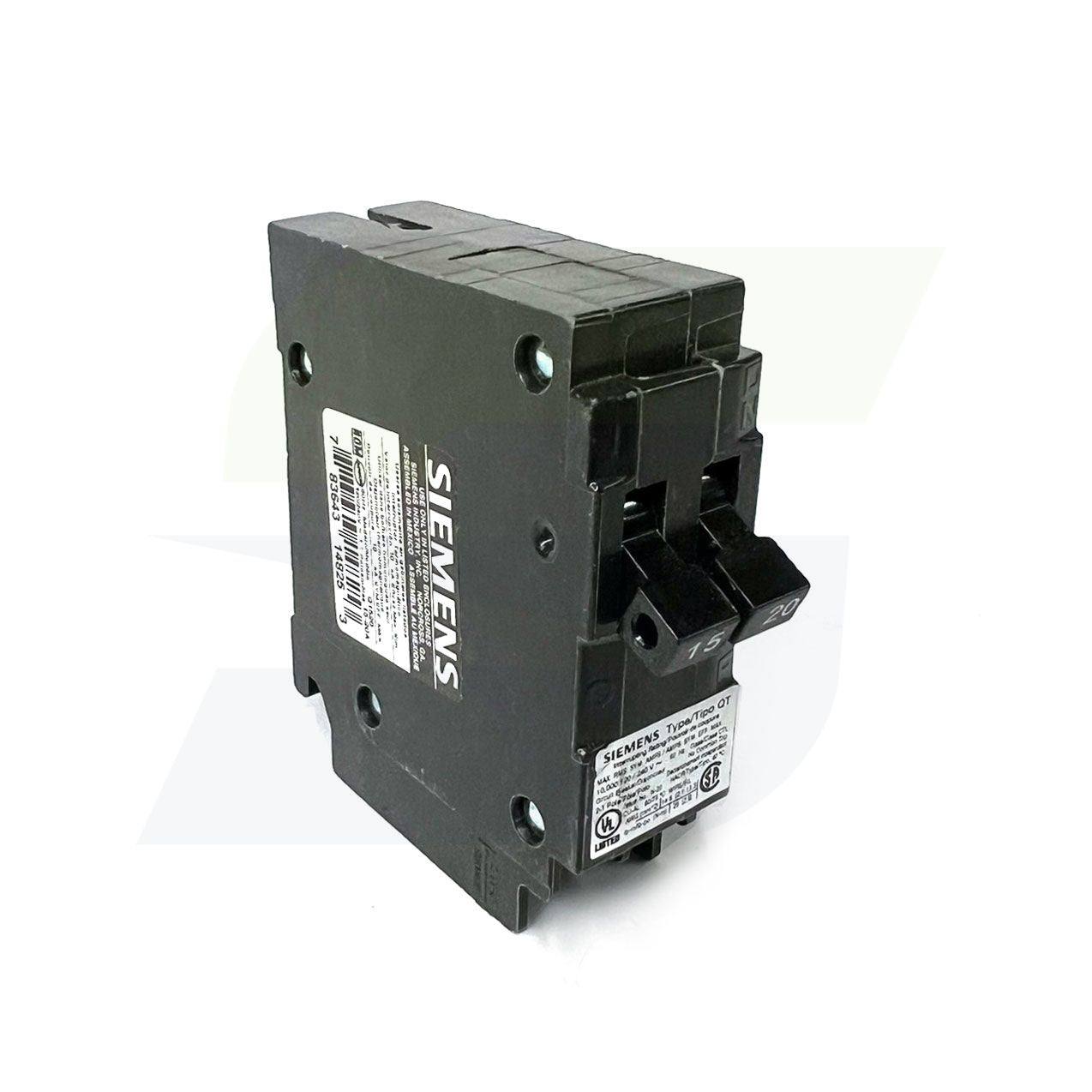

Siemens Q1520 15/20A Tandem Single-Pole Circuit Breaker 120V Type QT

The Siemens Q1520 is a tandem (duplex) single-pole circuit breaker designed to provide two separate circuits in the space of one standard breaker. It combines a 15A and a 20A breaker within a single 1-inch frame, making it an ideal solution for load centers with limited space. This breaker is compatible with Siemens Type QT load centers and offers reliable thermal-magnetic protection for 120V AC systems.​

Features

• Amperage: 15A and 20A
• Voltage: 120V AC
• Poles: 1 (Tandem)
• Mounting Style: Plug-In
• Breaker Type: Thermal Magnetic
• Interrupt Rating: 10 kAIC
• Wire Range: #14–#6 AWG (Copper or Aluminum)
• Certifications: UL Listed, CSA Approved, HACR Rated, SWD Rated
• Compatible Load Centers: Siemens Type EQ, EQL, SEQ, EQG, PL, and ES series
• Manufacturer: Siemens​
