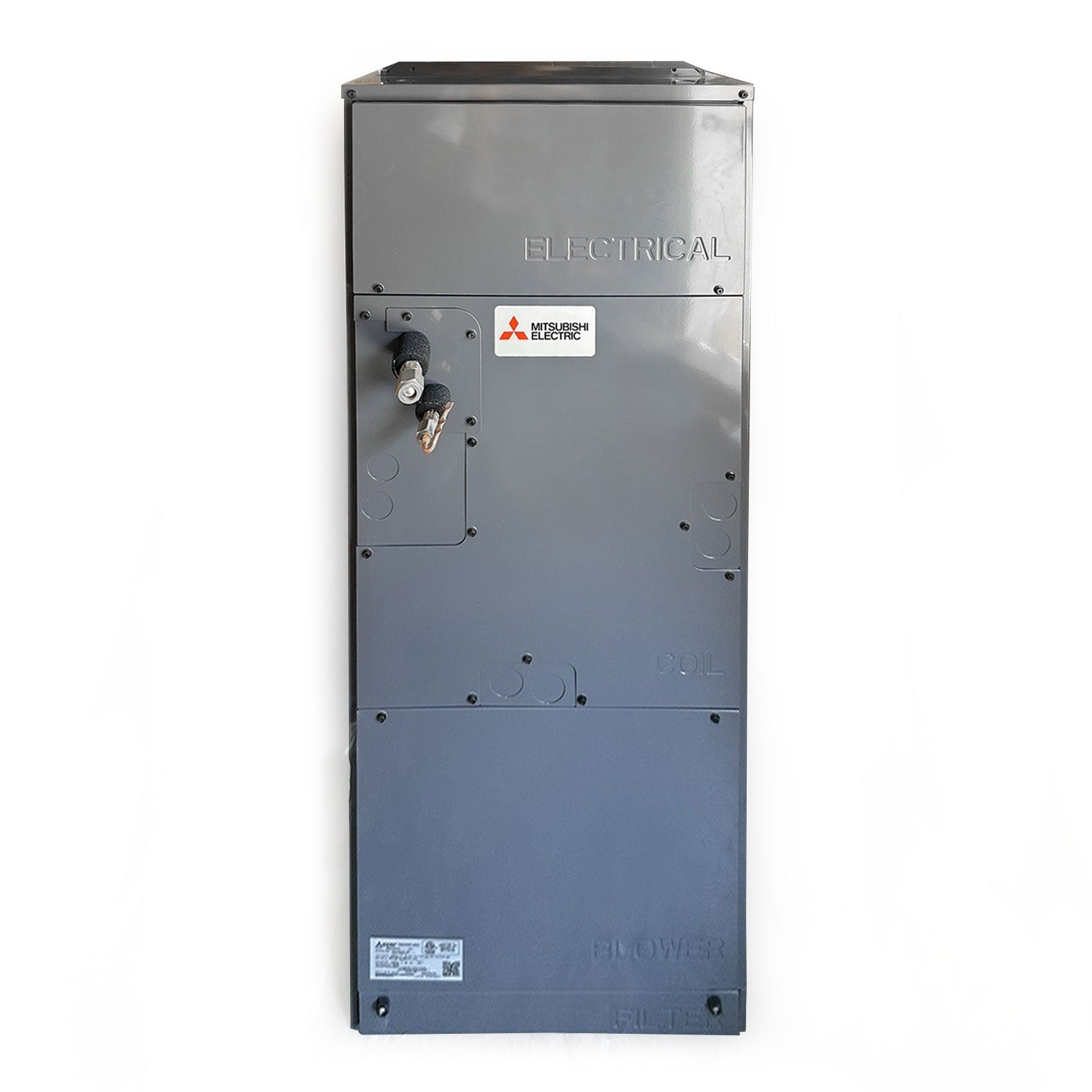

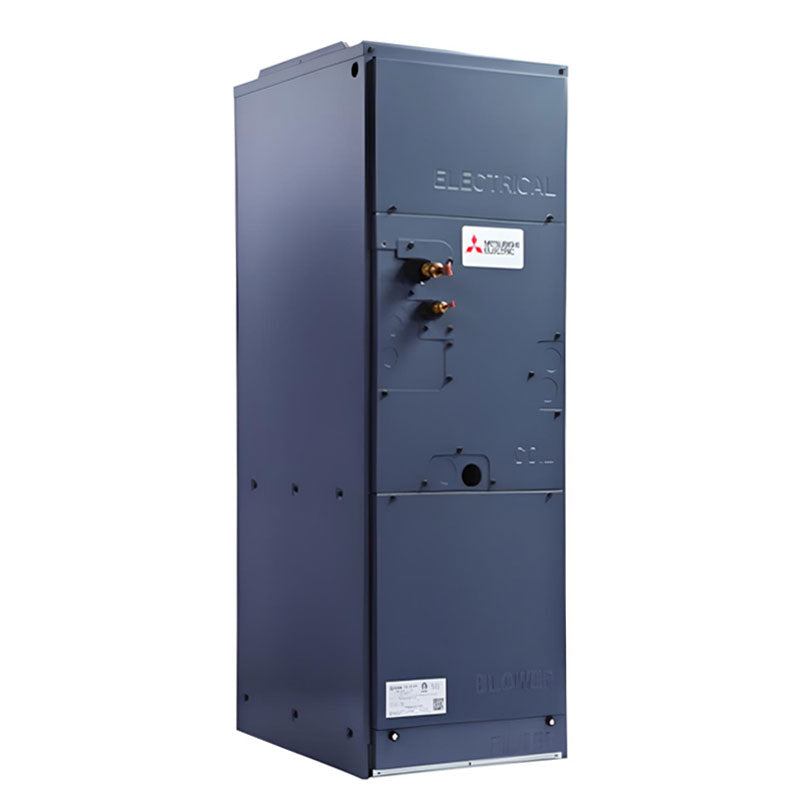

Mitsubishi PVFY-P54NAMU-E1 - 4.5-Ton Multi-Position Air Handler - Indoor Unit
The Mitsubishi PVFY-P54NAMU-E1 is a 4.5-ton, multi-position air handler designed for use in residential or light commercial ducted applications. With a high-efficiency DC motor, selectable static pressure settings, and a compact, insulated cabinet, it delivers powerful yet quiet performance. Its versatile design supports vertical or horizontal installation without additional kits, making it ideal for a range of spaces including closets, attics, and mechanical rooms. When paired with a compatible Mitsubishi outdoor unit, it offers reliable, energy-efficient comfort year-round.
Features
- Cooling capacity: 54,000 BTU/h (4.5 Ton); Heating capacity: 60,000 BTU/h
- Electrical: Single-phase 208/230 V, 60 Hz. Max fuse: 15 A; Min. circuit ampacity: 5.63 A
- Dimensions / Weight: 59-1/2" × 25" × 21-5/8" (H × W × D); 172 lb
- Fan system: High-efficiency DC motor with forward-curved sirocco fan; three fan speeds—CFM range: Low 1,040 / Mid 1,262 / High 1,485
- External static pressure: Selectable at 0.30, 0.50, or 0.80 in. WG
- Noise levels: Low–Mid–High: 36–40–44 dB(A) measured in anechoic chamber
- Cabinet & insulation: Heavy-gauge powder-coated steel; 1″ R‑4.2 fiberglass-free insulation; positive-pressure cabinet design with <1% leakage (ASHRAE 193)
- Refrigerant: R‑410A; piping: 3/8" liquid, 5/8" gas; 3/4" FPT drain connection
- Multi‑Position Flexibility: Designed for vertical (upflow/downflow) or horizontal installations without additional kits—ideal for closets, attics, or equipment rooms
- Comfort & Efficiency: Variable static pressure and three-speed airflow options allow for precise comfort control. Insulated cabinet improves energy efficiency and minimizes condensation
- Quiet Operation: Sirocco fan and DC motor provide smooth, low-noise airflow at just 36–44 dB(A)
- Safety & Quality: UL 1995 listed and compliant with ASHRAE 193 air leakage standards (<1%)
- Expandability: Supports optional electric heat kits, humidifier/ERV connections, and third-party control via BACnet, Modbus, or Kumo Cloud Wi-Fi interface
Electrical & Installation Specs
- Voltage / Phase: 208/230 V, single-phase, 60 Hz
- Full Load Amps (FLA): ~4.5 A
- Minimum Circuit Ampacity: 5.63 A
- Maximum Fuse/Breaker: 15 A
- Refrigerant Compatibility: R‑410A; 3/8″ liquid and 5/8″ gas lines (brazed)
- Drain Connection: 3/4" FPT for reliable condensate removal
- Warranty Impact: Professional installation may be required for full manufacturer warranty—please verify with your licensed installer
