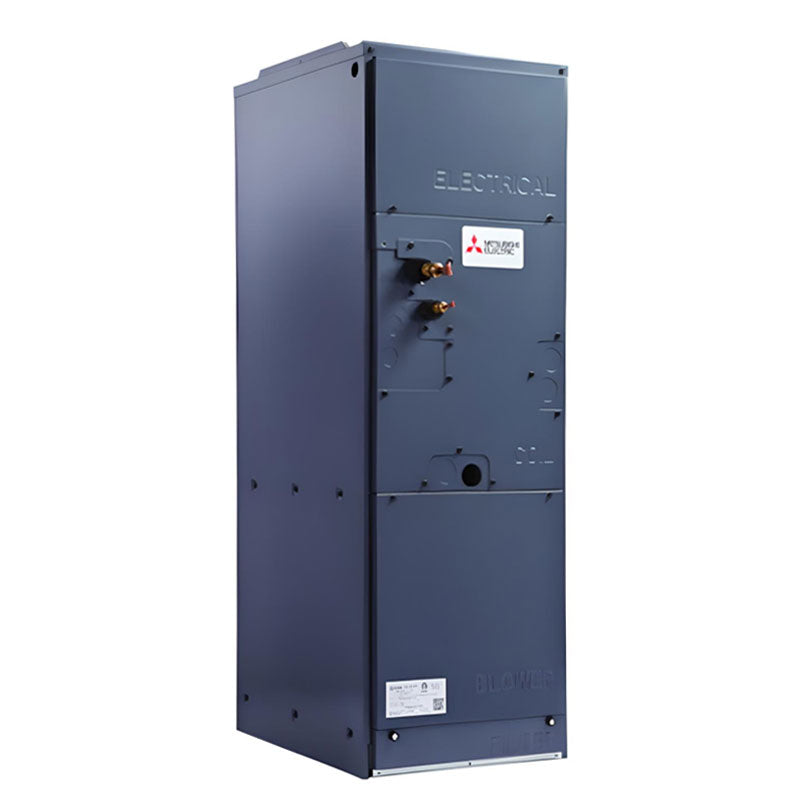

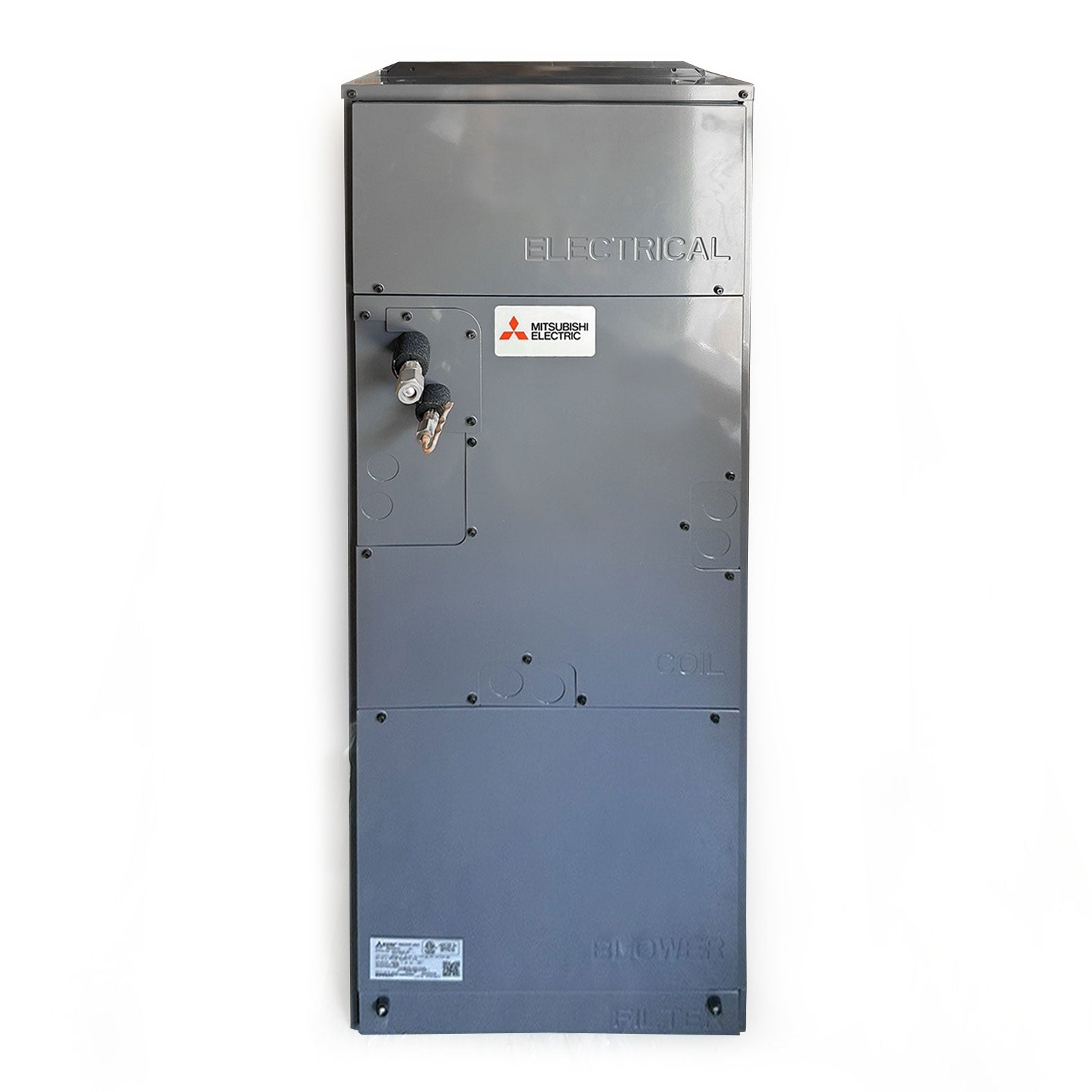

Mitsubishi City Multi PVFY‑P48NAMU‑E1 Air Handler – 48 000 BTU

Features

• Cooling capacity: 48,000 BTU/h (4 Ton); Heating capacity: 54,000 BTU/h
• Electrical: Single‑phase 208/230 V, 60 Hz. Max fuse: 15 A; Min. circuit ampacity ~5.6 A
• Dimensions / Weight: 59-1/2" × 25" × 21-5/8" (H × W × D); 172 lb
• Fan system: High-efficiency DC motor with sirocco fan and three fan speeds—CFM range 980–1400. External static pressure selectable at 0.30, 0.50, or 0.80 in. WG
• Noise levels: Low–Mid–High: 35–39–43 dB(A) measured in anechoic chamber
• Cabinet & insulation: Heavy-gauge steel, powder-coated; 1" R‑4.2 fiberglass-free insulation & positive-pressure design with <1% leakage per ASHRAE 193
• Refrigerant: R‑410A; piping: 3/8" liquid, 5/8" gas; 3/4" FPT drain
• Multi‑Position Flexibility: Install horizontally or vertically (upflow/downflow) without extra kits—perfect for closets, attics, or equipment rooms
• Comfort & Efficiency: Adjustable static pressure + three-speed DC fan lets you fine-tune airflow. Insulated cabinet prevents condensation and improves efficiency
• Quiet Operation: Sirocco fan and DC motor deliver smooth airflow with low noise levels (35–43 dB(A))
• Safety & Quality: Meets UL 1995 safety standards and ANSI/ASHRAE 193 leakage limits. Tested for <1% air leakage
• Expandability: Supports optional electric heat kits, humidifier and ERV controls, and BACnet/Modbus or Kumo Cloud interfaces

Electrical & Installation Specs

• Voltage / Phase: 208/230 V, single-phase, 60 Hz
• Full Load Amp (FLA): ~4.5 A
• Minimum Circuit Ampacity: 5.63 A
• Maximum Fuse/Breaker: 15 A
• Refrigerant Compatibility: R-410A, with 3/8" liquid & 5/8" gas pipes
• Drain Connection: 3/4" FPT for reliable condensate handling
• Warranty Impact: Professional installer certification may enhance warranty coverage—check with installer
