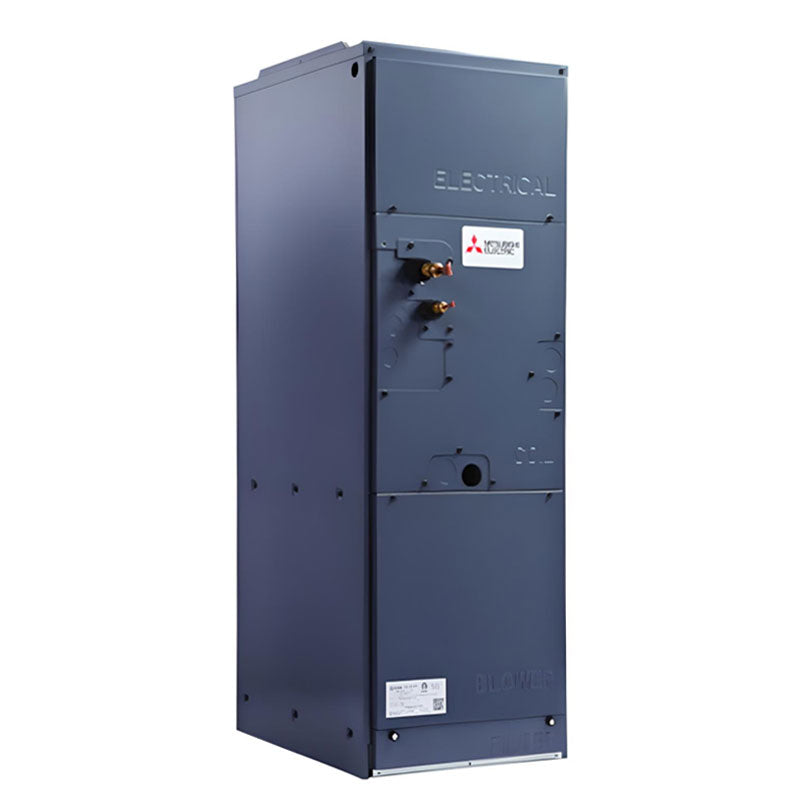

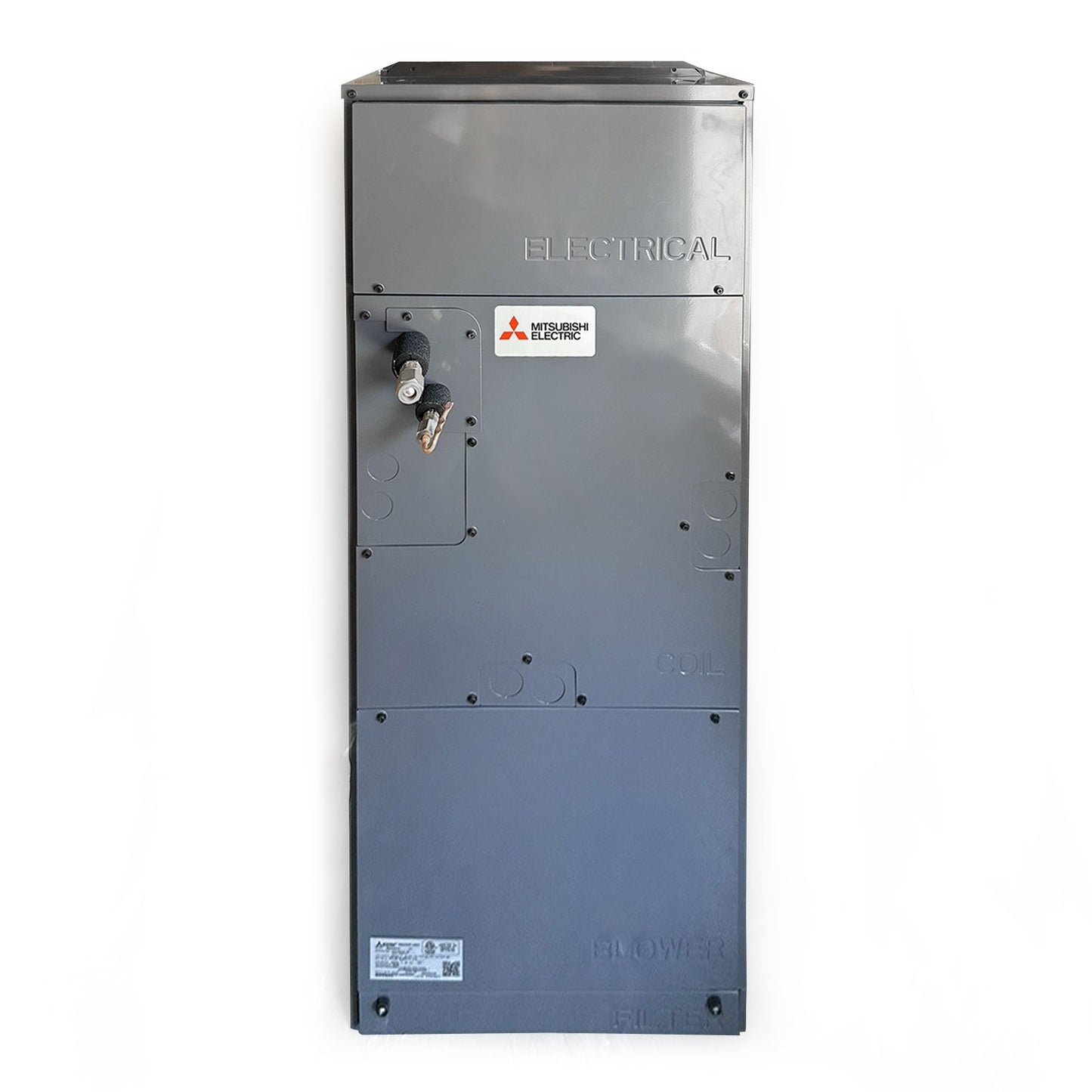

Mitsubishi PVFY-P36NAMU-E1 - 3-Ton Multi-Position Air Handler - Indoor Unit

The Mitsubishi PVFY-P36NAMU-E1 is a 36,000 BTU (3-ton) multi-position air handler designed for use with City Multi VRF systems. Built for flexibility, this unit can be installed in upflow, downflow, or horizontal configurations without additional kits, making it ideal for closets, attics, or mechanical rooms. With adjustable external static pressure and multiple fan speeds, it delivers consistent airflow and comfort across a wide range of ducted applications. The durable, insulated cabinet and advanced fan control ensure quiet, efficient performance for both residential and light commercial installations.

Features

• Manufacturer: Mitsubishi Electric Trane HVAC
• Part Number: PVFY-P36NAMU-E1
• Type: Multi-position air handler (indoor unit)
• Capacity: 36,000 BTU/h cooling (3 ton), approx. 40,000 BTU/h heating
• Voltage: 208/230V, 1-phase, 60 Hz
• Airflow: Approx. 767 to 1,095 CFM depending on fan speed
• Design: Multi-position (upflow, downflow, horizontal) installation without additional kits
• Static Pressure: Adjustable up to 0.80 in. w.g. for duct flexibility
• Fan Speeds: Multiple selectable fan speeds for optimized comfort
• Construction: Heavy-gauge steel cabinet with high-gloss powder-coated finish and internal insulation
• Insulation: 1" R4.2 foam insulation for improved efficiency and noise reduction
• Refrigerant: R-410A compatible
• Application: Designed for ducted heating and cooling in residential or light commercial VRF systems
• Installation: Ideal for closets, attics, and mechanical rooms
• Additional Features: Quiet operation, consistent airflow, and compatibility with Mitsubishi control systems

HMIT205520
