Home » Rheem » Condenser Fan Motors » 51-23055-11 - PROTECH Condenser Motor - 1/5 HP, 1 Phase, 1 Speed, 208/230V, 1075 RPM
Rheem

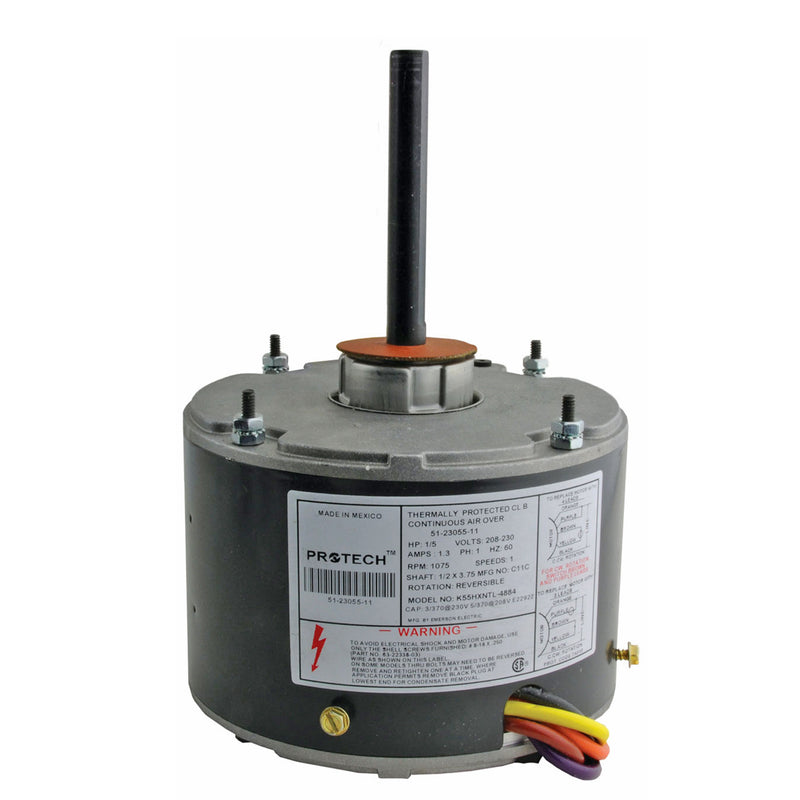

51-23055-11 - PROTECH Condenser Motor - 1/5 HP, 1 Phase, 1 Speed, 208/230V, 1075 RPM

In stock
SKU: 51-23055-11
$146.90

Free Shipping on all orders over $89

Most orders ship same day!

Order by phone or Questions? (800) 468 5997

Customer Reviews

Based on 2 reviews
100%
(2)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
P
Peter B. (Phoenix, US)
Condenser fan motor.

The price was fair, cheaper where I live. Shipping was fast. And it was exact match from my old one. Hope it last 20years like the old one .

J
John B. (San Bernardino, US)

Motor worked great

Rheem 51-23055-11 PROTECH Condenser Motor - 1/5 hp 208-230/1/60 (1075 rpm/1 speed)

Specifications

  • HP: 1/5
  • No. of Speeds: 1
  • High Speed (RPM): 1075
  • Input Voltage (V): 208
  • Input Voltage (V): 230
  • No. of Phases: 1
  • Frequency (Hz): 60
  • Rotation Direction (OSE): Reversible
  • Run Capacitor (uF/V): 3/370 (230V), 5/370 (208V)
  • FLA at 230V (A): 1.30
  • Shaft Diameter (in.): 1/2
  • Motor Body Diameter (in.): 5-5/8
  • Keyed/Flat Shaft Length (in.): 3-1/4
  • Overall Shaft Length (in.): 4-1/4
  • Motor Body Length (in.): 3-9/16
  • Overall Motor Length (in.): 7-13/16
  • Mounting: Shell-band
  • Mounting: Thru-bolt
  • Mounting: Shell-screw
  • Frame Size: 48
  • Bearing Type: Sleeve
  • Application: Condenser
  • Drive Type: Direct Drive

Where Used

  • SAKA
  • RAKA
  • RAMB
  • RPMC
  • RPML
  • RQLA
  • RQMA
  • RQKA
  • RRKA-A
  • RRMA-A
  • RRNA-A
  • RSNA-A
  • RPKA
  • RPLA
  • FADC
  • RSMA
  • RSKA

Replaces

  • 51-21829-02
  • 51-21834-01
  • 51-20820-01
  • 8101-5589
  • 51-20684-01
  • 51-17555-01
  • 51-21853-06
  • 51-20686-01
  • 51-21854-02
  • 51-21855-01
  • 8101-555
  • 51-21855-02
  • 51-20680-01
  • 8101-5682
  • 51-21827-01
  • 51-21830-01
  • 51-20819-01
  • 51-21832-01
  • 51-17169-01
  • 8101-5663
  • 51-17967-01
  • 51-20672-01
  • 51-21854-08
  • 51-20674-01
  • 51-21186-01
  • 8101-126
  • 51-20678-01
  • 51-21831-01
  • 8101-5664
  • 51-21856-02
  • 8101-5564
  • 51-20685-01
  • 51-20119-01
  • 51-21190-01
  • 51-20673-01
  • 51-20677-01
  • 8101-416
  • 51-20680-02
  • 51-21856-01
  • 51-21854-01
  • 51-20681-01
  • 8101-5668
  • 51-21826-01
  • 51-19064-01
  • 51-21854-07
  • 51-20821-01
  • 51-20683-01
  • 51-21856-06
  • 51-20679-01
  • 51-21184-01
  • 8101-5618
  • RED-219
  • 8101-5597
  • 51-20675-01
  • 51-21853-82
  • 8101-193
  • 51-21854-06
  • 51-21829-01
  • 51-21835-01
  • 51-21188-01
  • 51-17966-01
  • 51-21853-07
  • 51-21833-01
  • 51-21853-02
  • 51-20679-11
  • 51-20676-01
  • 51-21828-01
  • 51-20682-01
  • 51-17173-01
  • 51-21853-01
  • 8101-5620
  • 51-21834-02
