Home » Rheem » Blower Motors » 51-23022-41 - PROTECH Trip Saver Air Handler Motor - 1/6 to 1/2 HP - 1 Phase - 4 Speed - 1075 RPM - 208/230V
Rheem

51-23022-41 - PROTECH Trip Saver Air Handler Motor - 1/6 to 1/2 HP - 1 Phase - 4 Speed - 1075 RPM - 208/230V

Only 1 left
SKU: 51-23022-41
$247.00

Free Shipping on all orders over $89

Most orders ship same day!

Order by phone or Questions? (800) 468 5997

Customer Reviews

No reviews yet
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

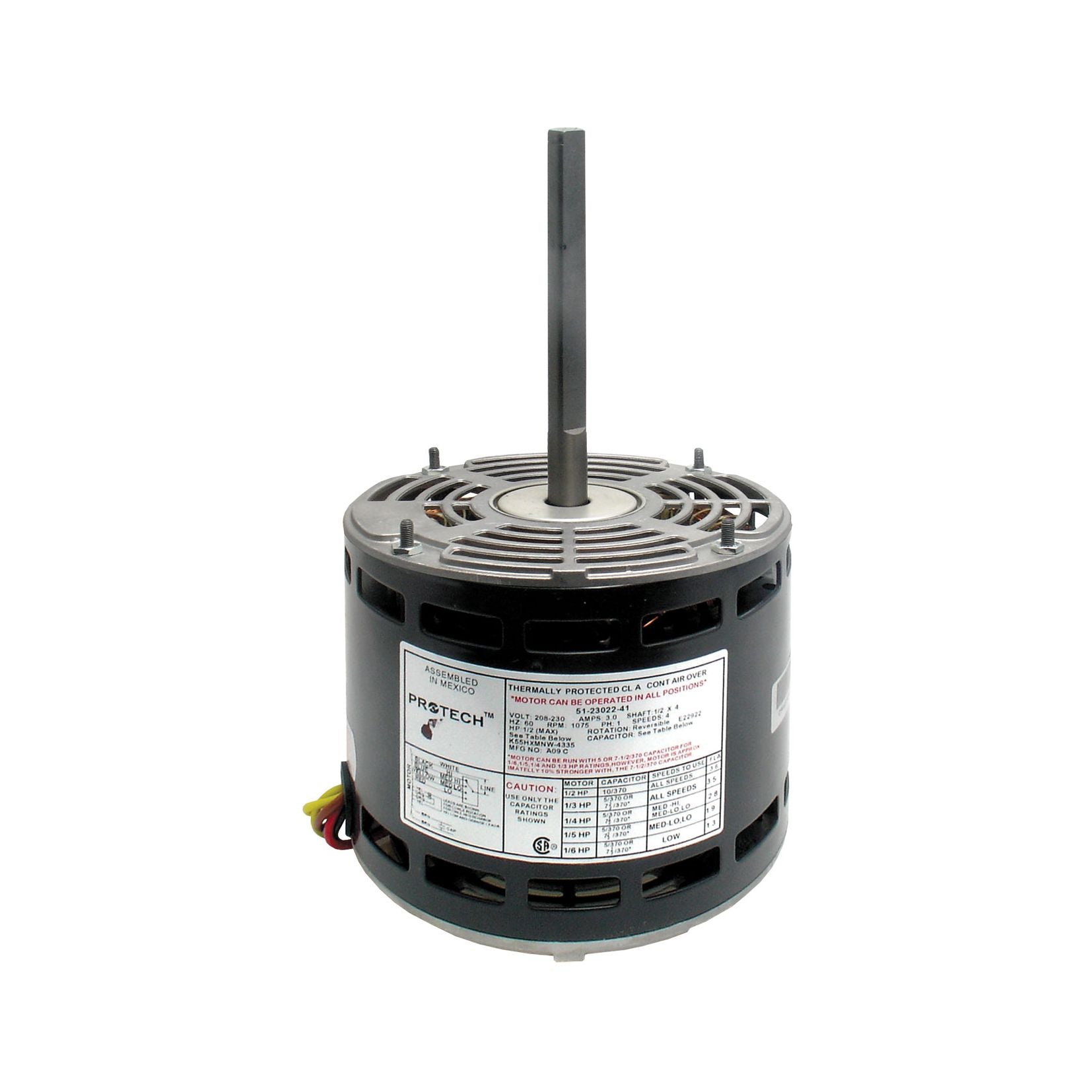

Rheem 51-23022-41 - PROTECH Trip Saver Air Handler Motor - 1/6 to 1/2 HP - 1 Phase - 4 Speed - 1075 RPM - 208/230V

Capacitor and motor speed selection for various HP applications: 1/2 HP: All Speeds, 10/370 uF/V, 3.6 FLA 1/3 HP: All Speeds, 5/370 uF/V 3.5 FLA, 7.5/370 uF/V 3.5 FLA 1/4 HP: Med-Hi, Med-Lo or Lo Speeds, 5/370 uF/V 2.8 FLA, 7.5/370 2.8 FLA 1/5 HP: Med-Lo or Lo Speeds, 5/370 uF/V 1.9 FLA, 7.5/370 uF/V 1.9 FLA 1/6 HP: Lo Speed, 5/370 uF/V 1.3 FLA, 7.5/370 uF/V 1.3 FLA

Features

  • TRIPSAVER motors are designed with a high degree of versatility; they will cover the vast majority of service applications requiring a direct drive motor.
  • Replaces 208-230V motors from 1/6 to 1/2 horsepower
  • 4 speed taps / Reversible rotation
  • Operates in all positions

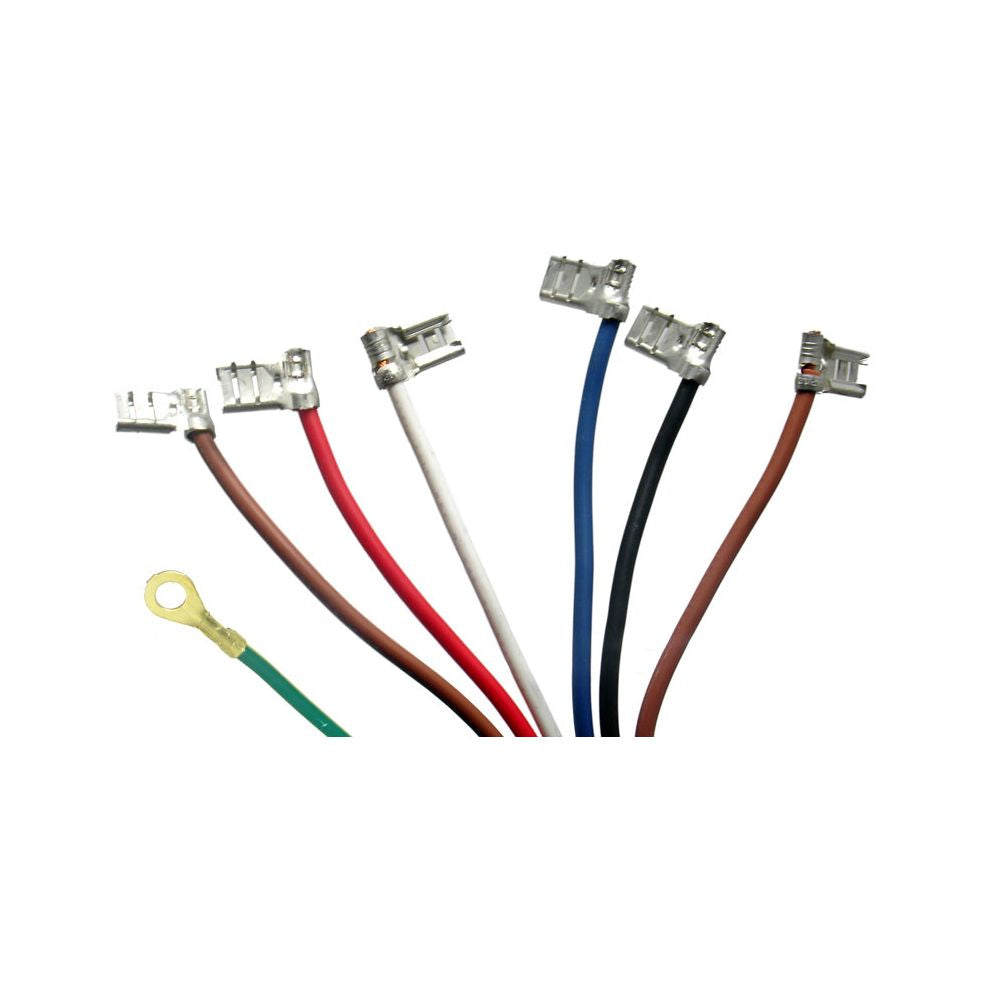

  • 36 inch leads with easy to use quick-connect flag terminals

Technical Data

  • HP: 1/6 to 1/2
  • Number of Speeds: 4
  • High Speed (RPM): 1075
  • Input Voltage (V): 208
  • Input Voltage (V): 230
  • Number of Phases: 1
  • Frequency (Hz): 60
  • Rotation Direction (OSE): Reversible
  • Run Capacitor (uF/V): 5/370, 7.5/370, or 10/370
  • FLA at 230V (A): 3.60
  • LRA at 230V (A): 6.40
  • Shaft Diameter (in.): 1/2
  • Motor Body Diameter (in.): 5-5/8
  • Keyed/Flat Shaft Length (in.): 4
  • Overall Shaft Length (in.): 5
  • Motor Body Length (in.): 4-5/8
  • Overall Motor Length (in.): 9-5/8
  • Mounting: Shell-band
  • Mounting: Thru-bolt
  • Frame Size: 48
  • Bearing Type: Sleeve
  • Application: Blower
  • Drive Type: Direct Drive
  • Shipping Weight: 14.29

Where Used

  • RSMA
  • RSKA
  • RQLA
  • RQMA
  • RQKA
  • RQNA-B
  • RQNL-B
  • RRNA-A
  • RSNA-A

Replaces

  • 51-20660-01
  • 51-20828-01
  • 51-20118-01
  • 51-20170-01
  • 51-20178-01
  • 8101-6027
  • 51-17920-01
  • 51-22262-01
  • 51-22118-01
  • 51-20020-01
  • 51-20175-01
  • 51-20395-01
  • 51-19957-01
  • 51-20036-01
  • 51-20171-01
  • 51-20830-01
  • RED-210
  • 51-20415-01
  • 51-19987-01
  • 51-20174-01
  • 51-18887-01
  • 51-19964-01
  • 51-19613-01
  • 8101-5676
  • 51-20826-01
  • 51-18886-02
  • 51-23645-02
  • 51-18886-01
  • 51-20015-01
  • 51-20459-01
  • 51-20452-01
  • 51-20172-01
  • 51-20417-01
  • 51-20293-01
  • 8101-5624
  • 8101-5543
  • 51-20179-01
  • 51-20117-01
  • 51-20168-01
  • 51-20167-01
  • 51-21793-01
  • 51-19777-01
  • 51-19908-01
  • 8101-5562
  • 51-19941-01
  • 51-20401-01
  • 51-22027-01
  • 51-19914-01
  • 51-20166-01
  • 51-20176-01
  • 51-21922-01
  • 51-19958-01
