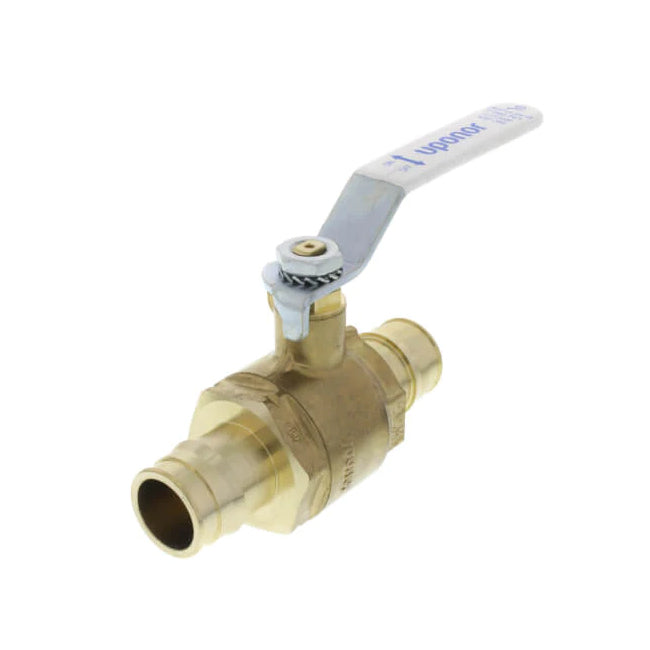

ProPEX to ProPEX LF Brass (quarter-turn) Ball Valve is intended as an in-line shutoff valve for 3/4" and 1" Uponor AquaPEX tubing. These valves are not compatible with applications using glycol.
Use the Uponor ProPEX® Lead-free Brass Ball Valve for all plumbing and radiant heating applications. Both ends are manufactured with the ProPEX Fitting for connections to Uponor AquaPEX® tubing or Wirsbo hePEX™ tubing. These valves are not compatible with applications using glycol.
Material: C69300 Brass
Maximum Temperature (no pressure): 250°F (121°C)
Maximum Working Pressure: 250 psi
Installation: Install valve according to local building code. Do not dismantle. Refer to the AquaPEX Professional Plumbing Installation Guide or the Radiant Floor Heating Installation Handbook for additional information.
Standards: CSA B137.5 and B125; ASTM F877; ASTM F1960; ASME A112.18.1
Codes: IPC; UPC; NSPC; NPC of Canada
Listings: ANSI/NSF 14- and 61-certified; U.P. Code, Annex G
Related Applications: PEX-a Plumbing Systems
Radiant Heating and Cooling Systems
Snow and Ice Melting Systems
Permafrost Protection Systems
Turf Conditioning Systems
PUPON00067
