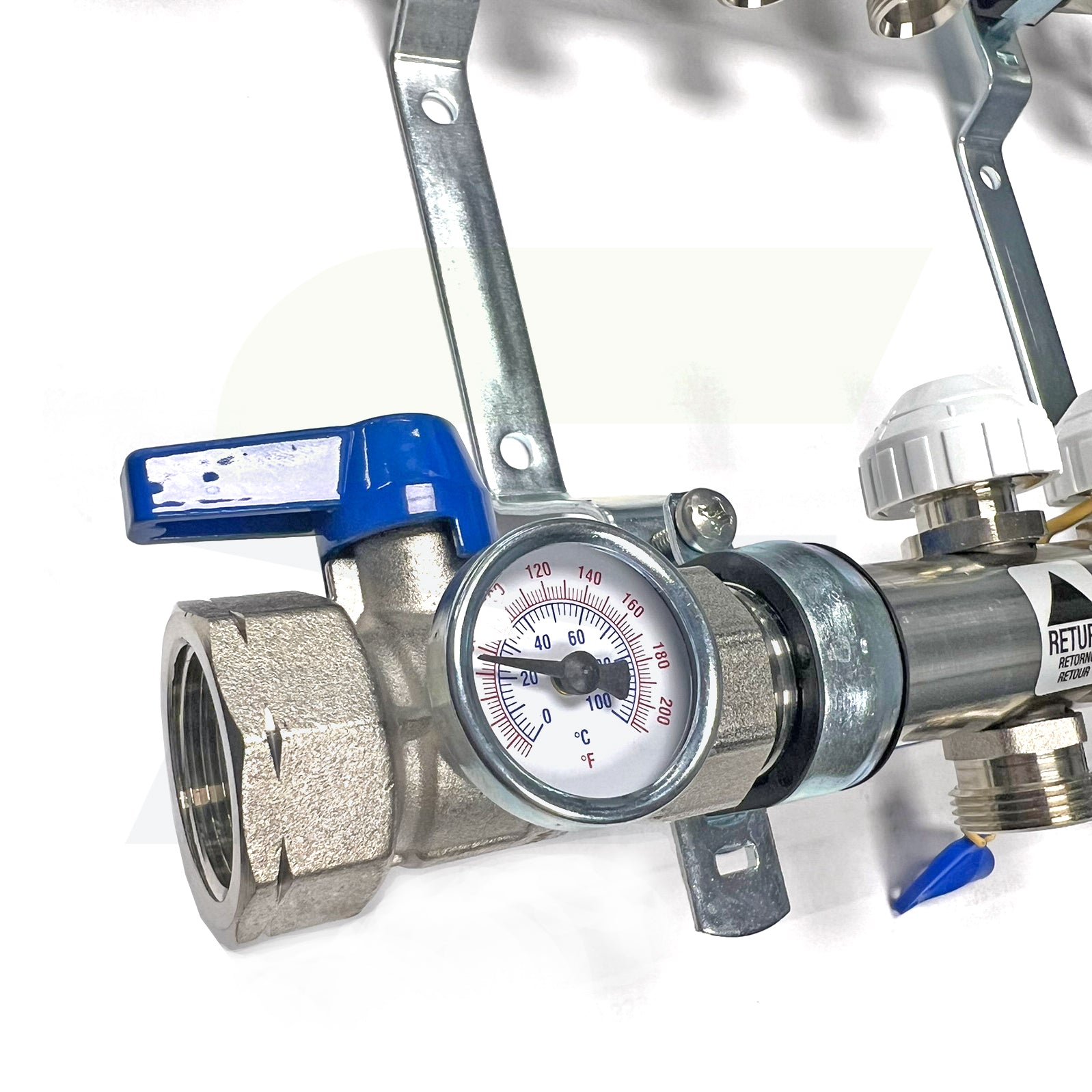

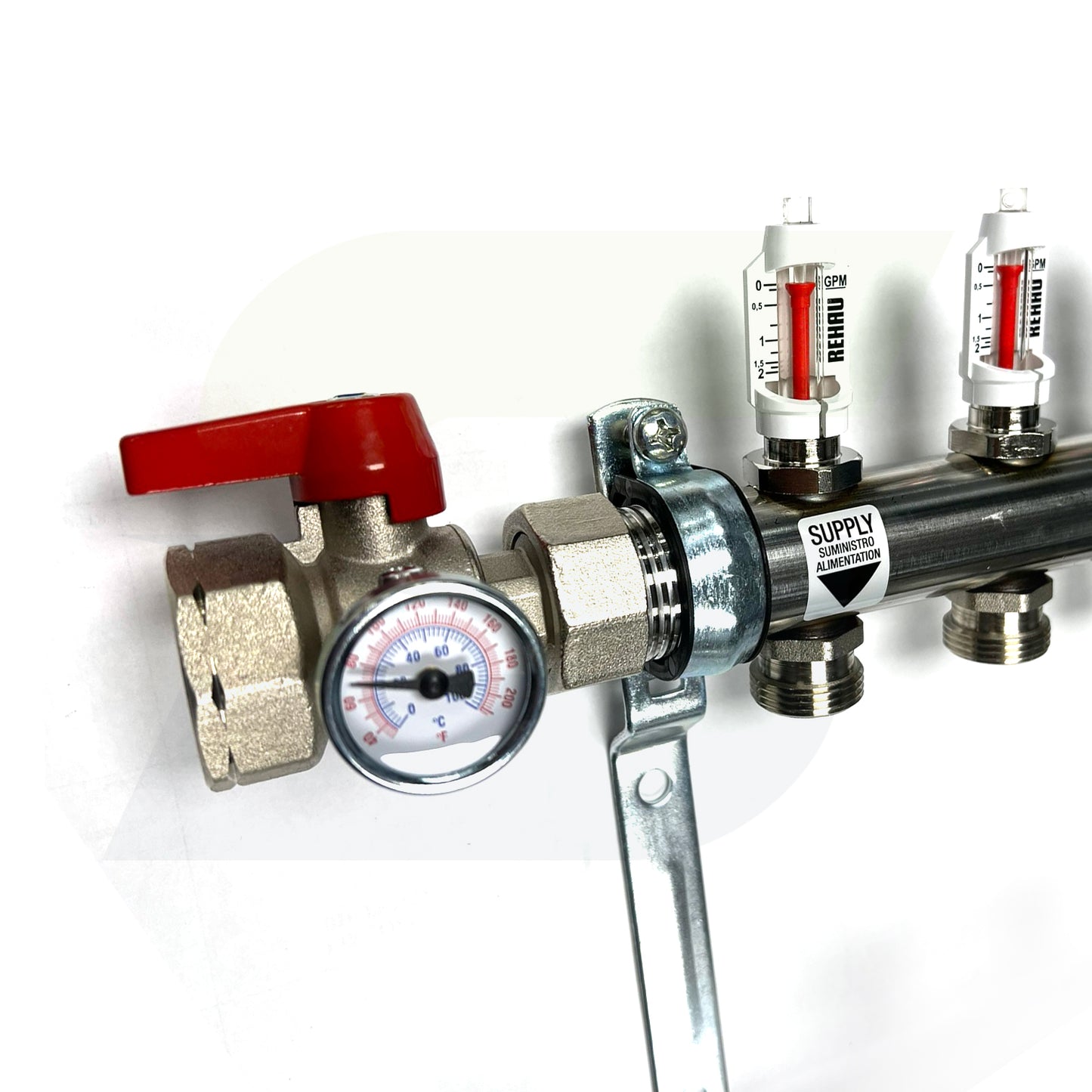

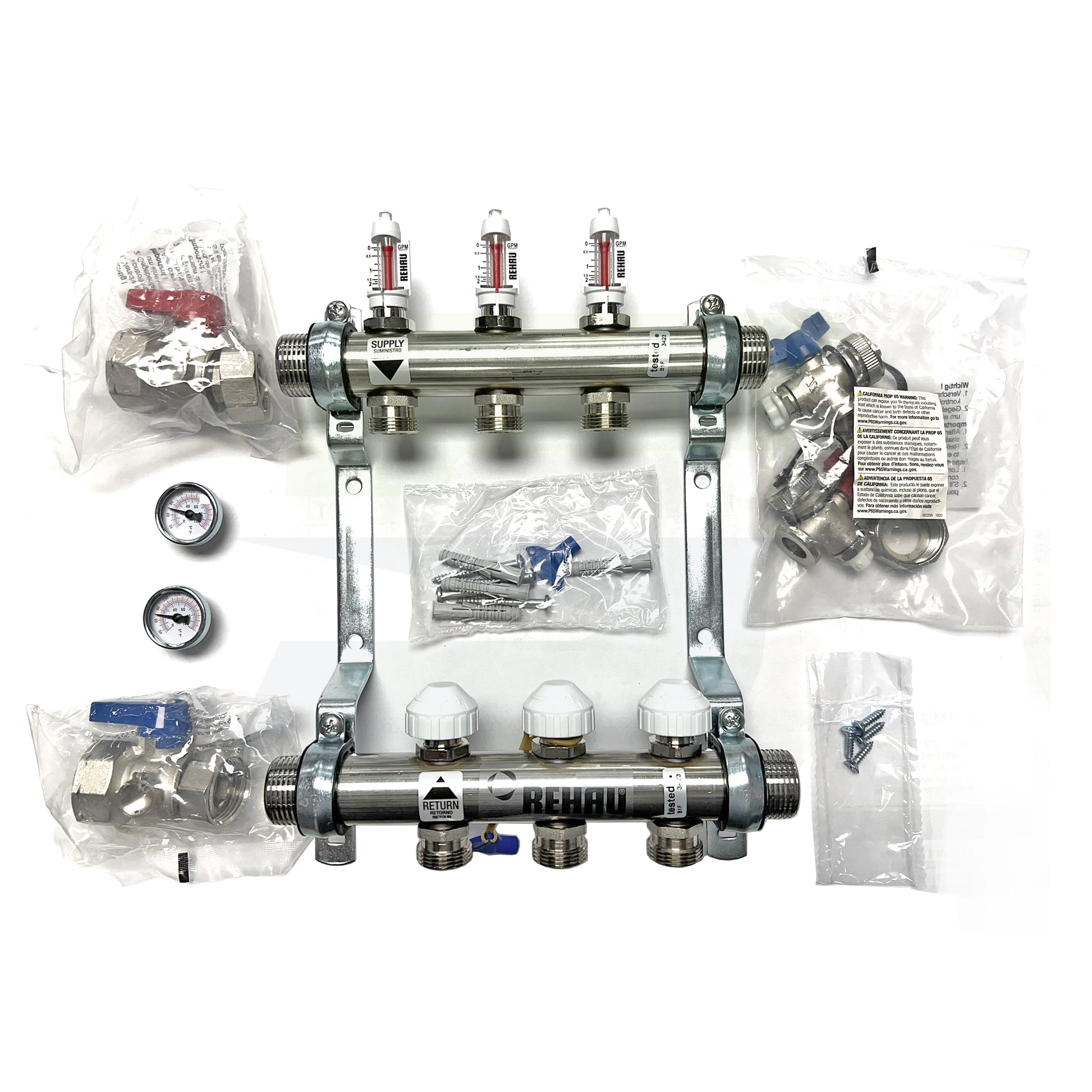

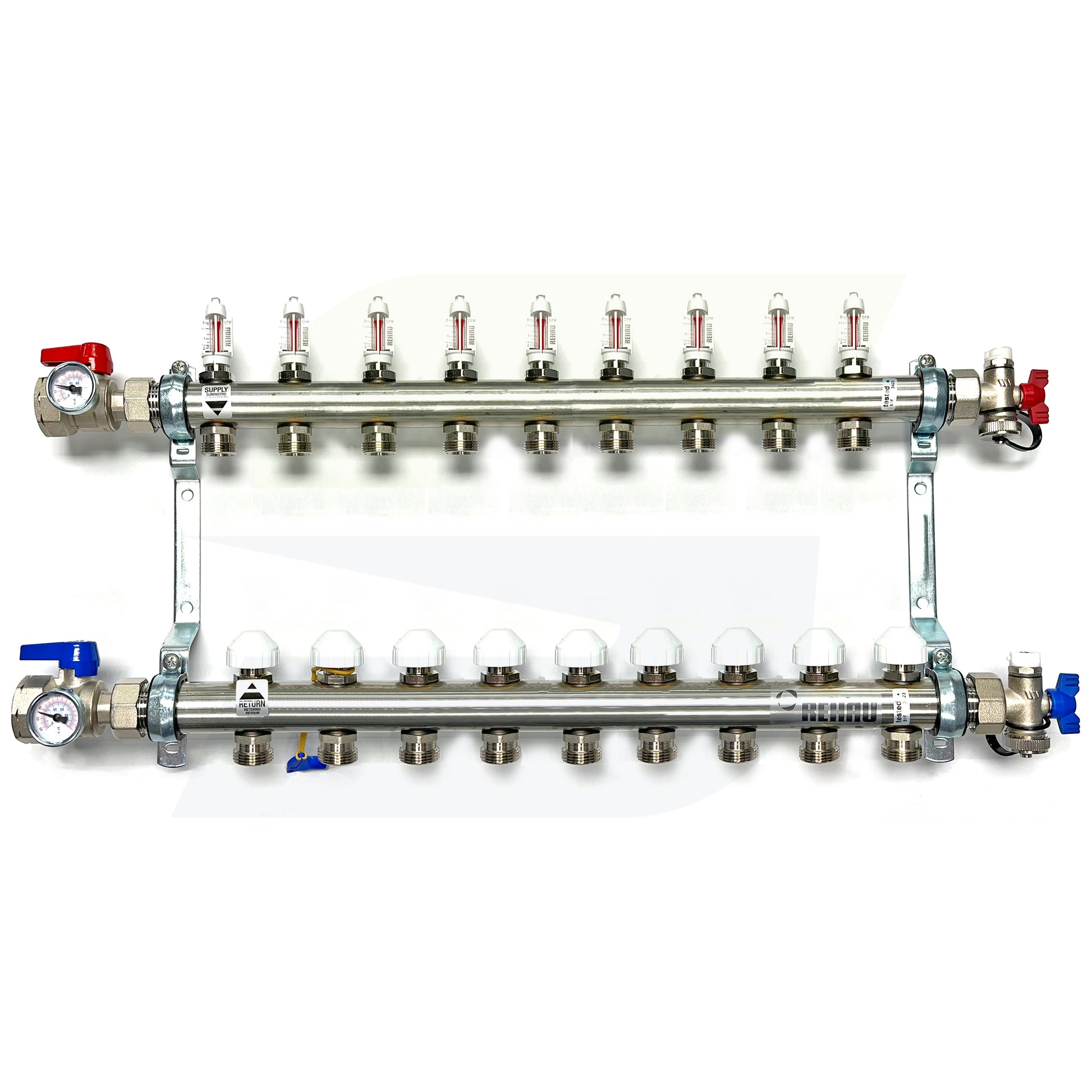

REHA 381109-001 SS PRO BALANCE PRO-BALANCE 1 in. Stainless Steel Manifold With Gauges Delivered pre-assembled and ready to install. Use with 10.1 mm and 3/8, 1/2, 5/8 and 3/4 in. RAUPEX pipe. Compatible with REHAU manifold valve actuator (Art. 260166). Order manifold-to-pipe connectors separately (see R-20 compression-style manifold connections below). Each PRO-BALANCE 1 in. manifold comes complete with the following: 1 in. NPT supply and return manifold isolation valves with gaskets and mini thermometers Visual flow gauges/isolation valves (0 to 2 GPM) on stainless steel supply header Circuit balancing/isolation valves on stainless steel return header Air vent drain valves with gaskets Mounting brackets Vent key and holder Installation instructions Manifold circuit chart Notes: Manifold lengths above include the isolation ball valve 2.44 in (62 mm) and the air vent/boiler drain valves 2.24 in (57 mm) Maximum flow is 2.0 GPM (0.13 l/s) per circuit; and a total manifold flow of no more than 20 GPM (1.26 l/s) Depth of manifold is 3.9 in (10.0 cm) with bracket, valve and mini thermometer installed Can be joined to other manifold sections using 1 in. BSPP unions (Art. 316258-002)
