Rehau 381101-001 - PRO-BALANCE 1" Stainless Steel Manifold With Gauges - 1 Outlet

A manifold for any application. PRO-BALANCE manifolds make circuit balancing easy.  You can visually check flow rates and adjust the circuits with the key that comes in the box. These manifolds look professional, which is important, since in most radiant heating, cooling or snow and ice melting projects, the manifold is the only piece of equipment that is visible. PRO-BALANCE manifolds provide all this and more.

Features

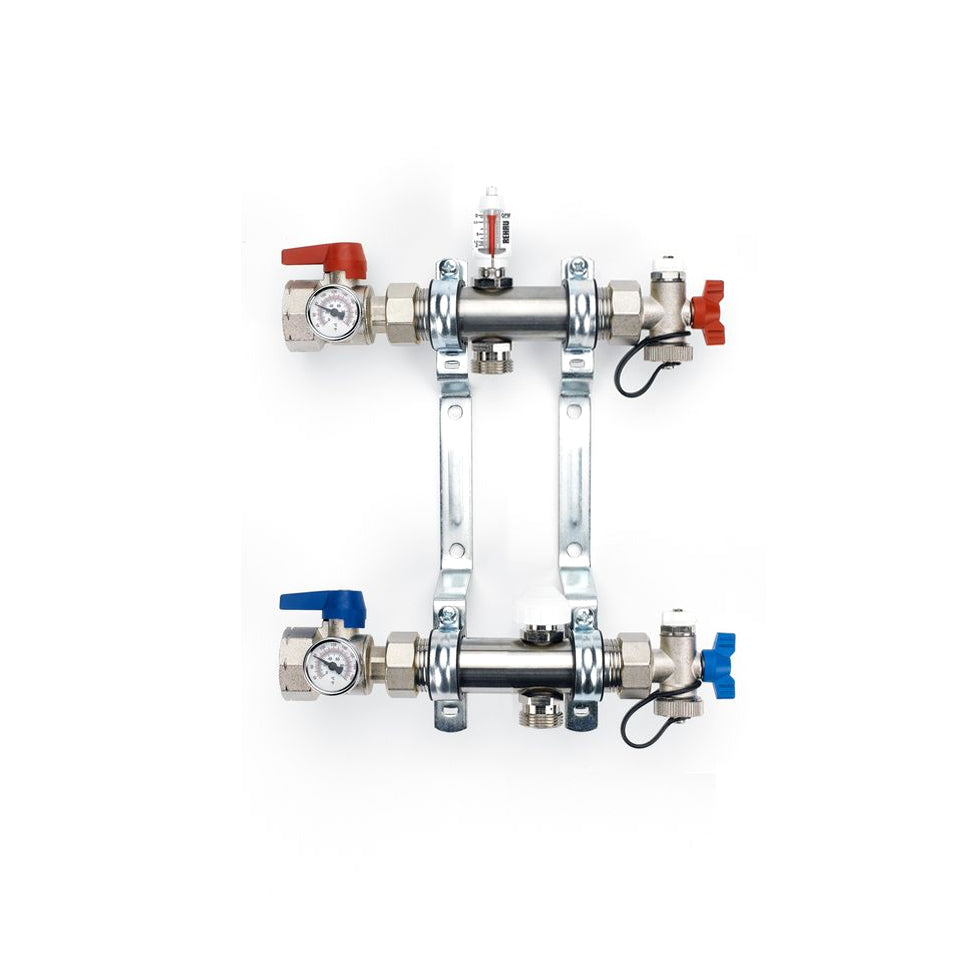

• PRO-BALANCE 1 in. stainless steel manifold

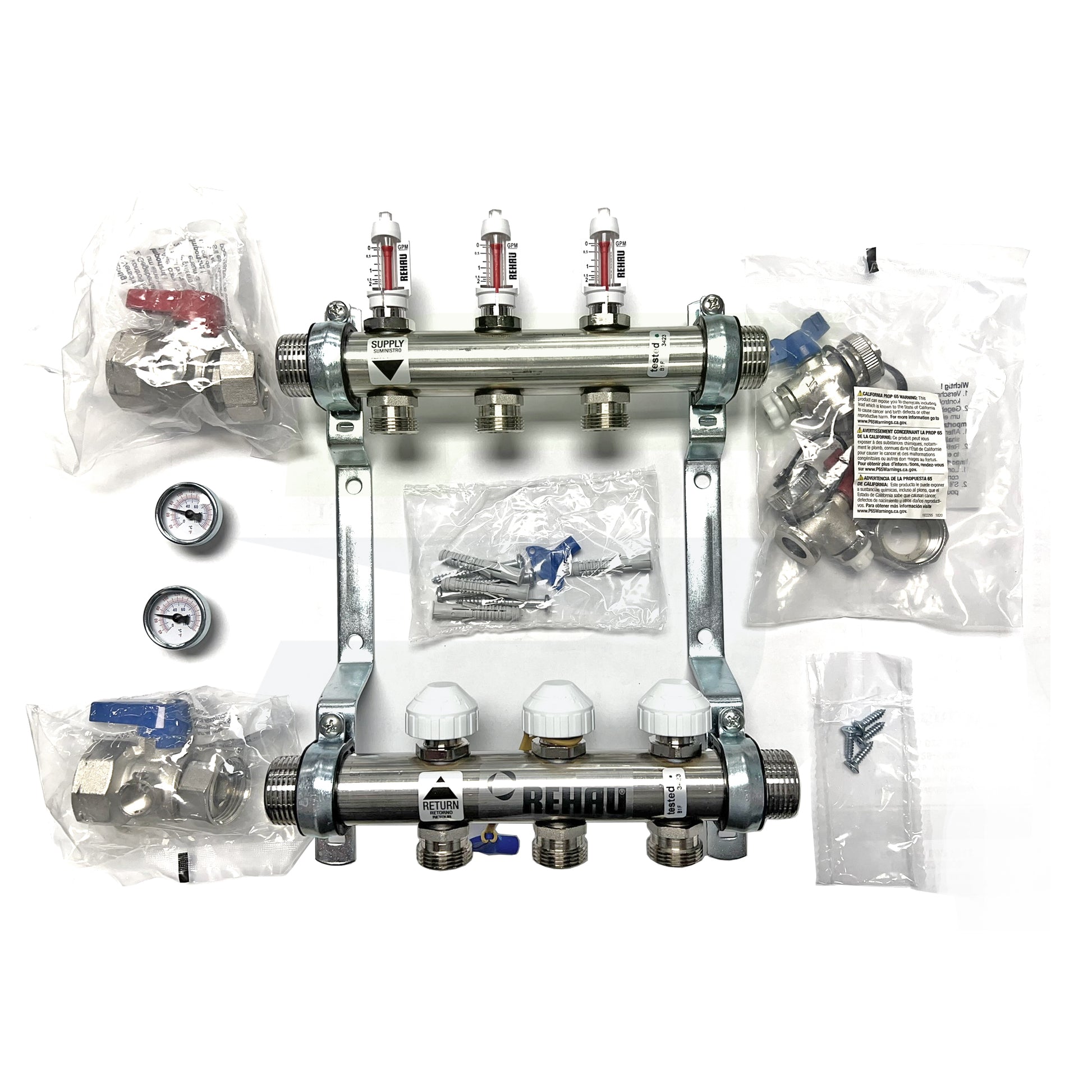

• Each manifold is ready for installation and includes:
  • Supply/return manifold isolation valves with mini-thermometers
  • Air vent/boiler drain valves

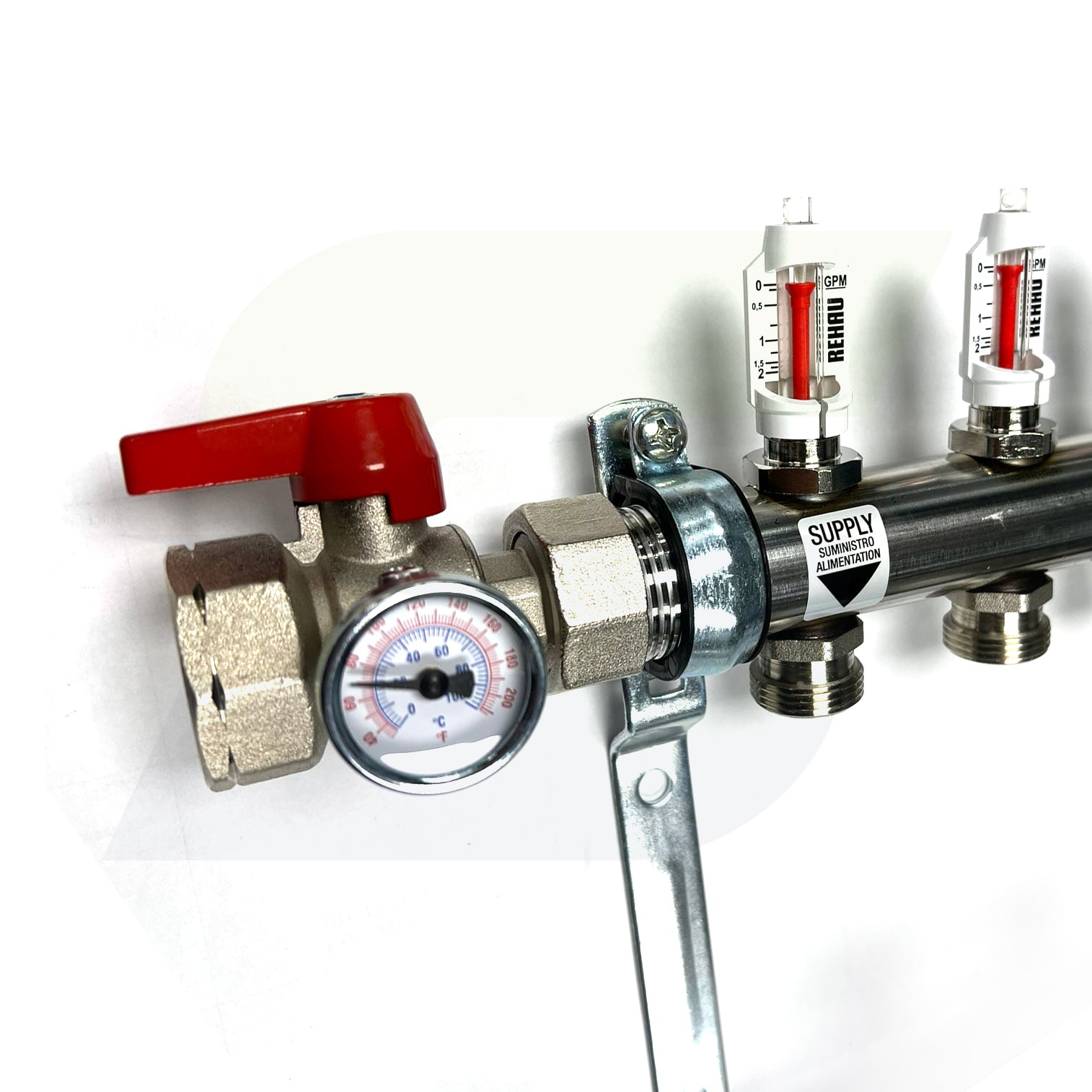

  • Visual flow gauges on the supply header

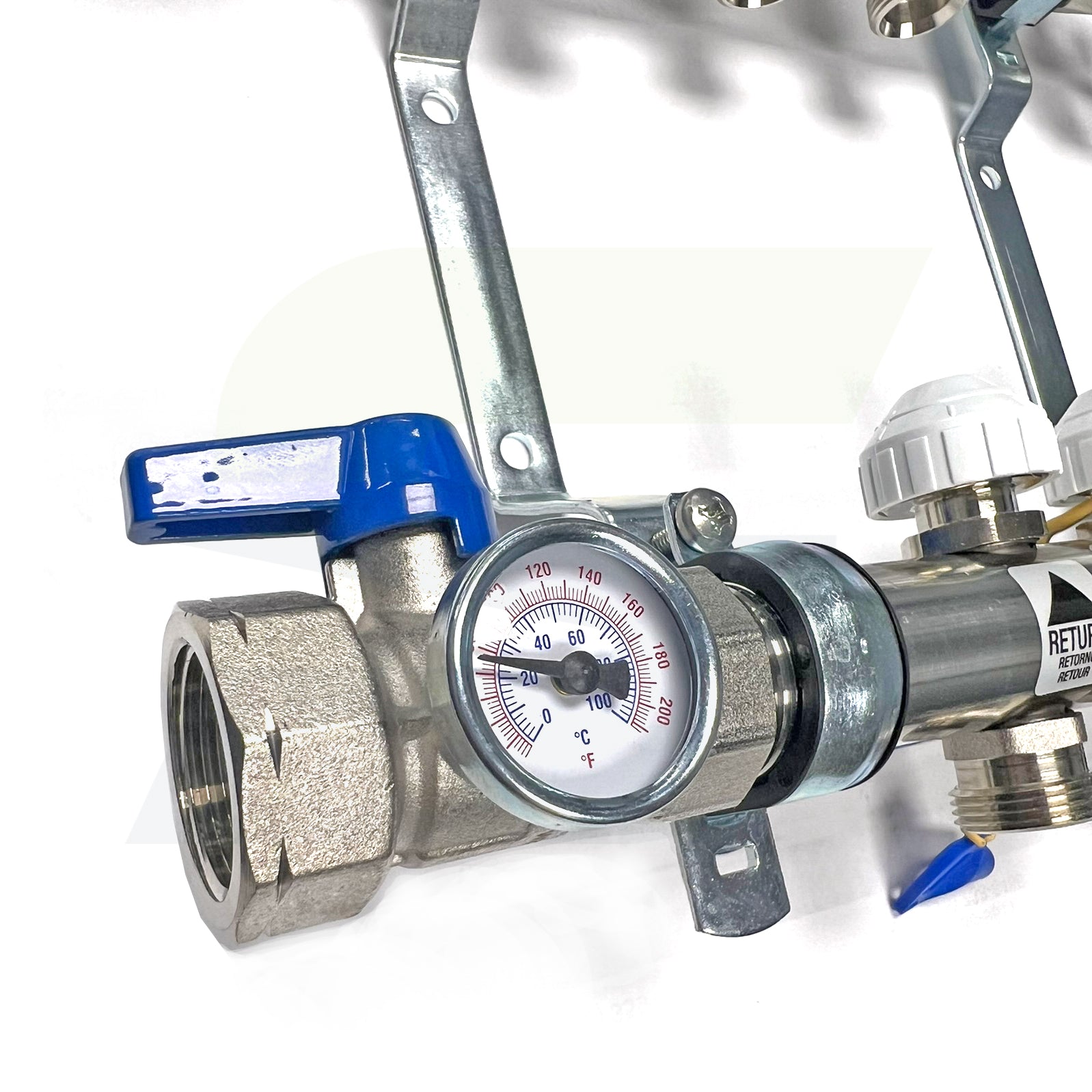

  • Circuit balancing/isolation valves on the return header
  • Mounting brackets
  • Vent key and holder
  • Circuit chart
• R-20 connections are available for pipe drops from 3/8 to 3/4 in. circuits with either EVERLOC+ compression-sleeve connections or compression nut style connections.

Material

• Headers: Stainless steel DIN 1.430 (eq. ANSI 304)
• Gaskets: Gaskets AFM 34 synthetic fiber-based material
• Isolation valves: Nickel-plated and chrome-plated brass, PTFE, EPDM
• Flow gauges: Nickel-plated brass, EPDM, polyamide, polyoxymethylene
• Air vent drain valves: Nickel-plated and chrome-plated brass, PTFE, EPDM
• Circuit balancing valves: Nickel-plated brass, brass, polyamide, EPDM
• Circuit inlets, outlets: Nickel-plated brass, EPDM

Connections

• Header ends: 1 in. BSP parallel (straight) threads
• Outlets: R-20 BSP parallel (straight) outside threads
• Isolation valve: 1 in. NPT female threads
• Temperature / Pressure Capabilities
• Maximum operating temperature for 100% water: 180 degrees F (82.2 degrees C) @ 87 psi (6 bar)
• Minimum operating temperature: 14 degrees F (-10 degrees C)
• Maximum water test pressure: 150 psi (10.3 bar)
• Maximum allowable differential pressure: 44 psi (3 bar)

Flow Rates

• Maximum flow rate: 2.0 USGPM per circuit; 20 USGPM total (0.13 l/s per circuit; 1.27 l/s total)
