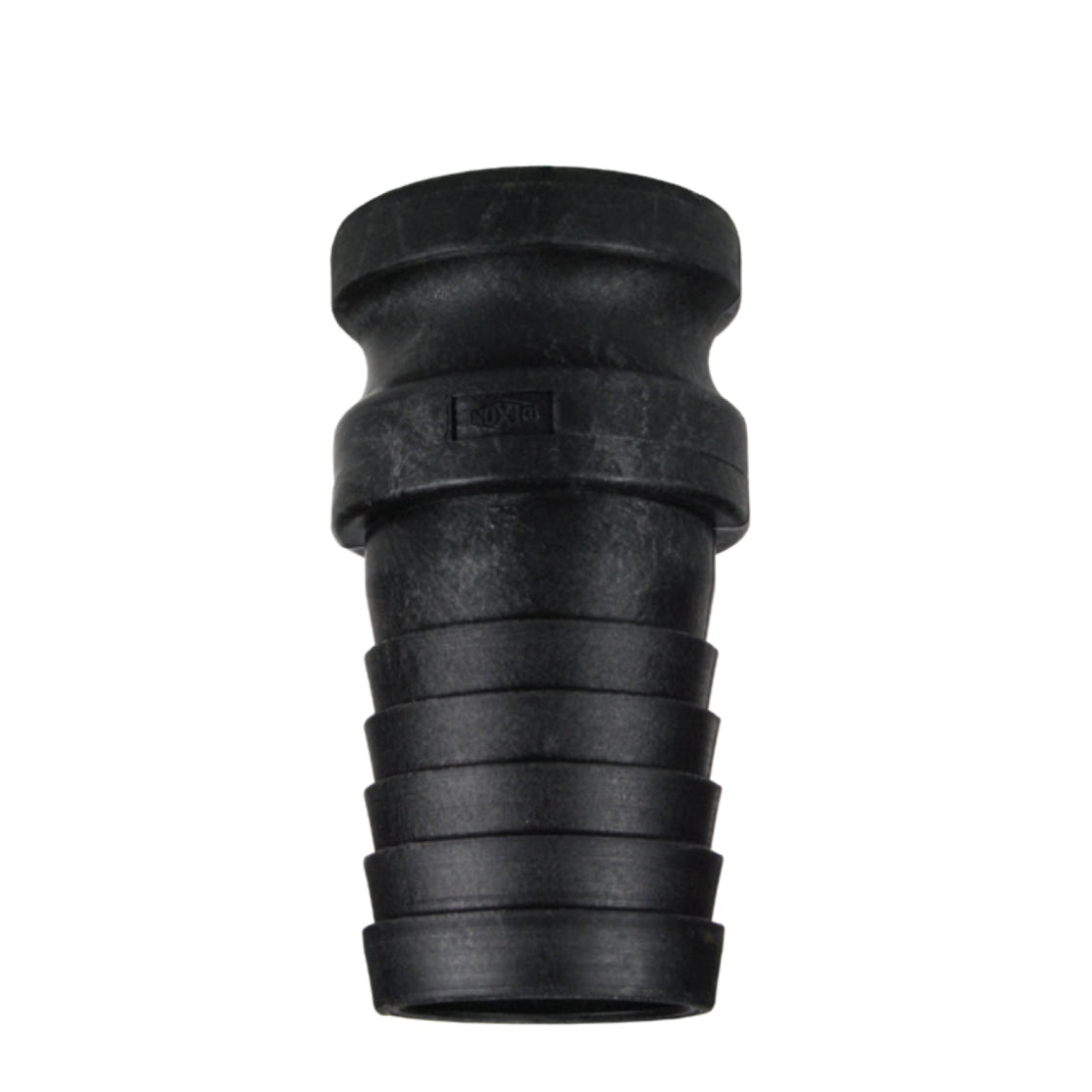

Dixon Valve PPE200 - 2" Glass-Filled Polypropylene Type E Adapter x Hose Shank
Features
- Cam & Groove Type E Adapter
- Adapter x Hose Shank
- Manufactured from glass-filled polypropylene
- To make a connection, simply slide the adapter into the coupler and with normal hand pressure, press the cam levers down.
- Uncoupling is as quick and simple as coupling. Just lift the cam arms and remove the adapter.
- Under no circumstances should cam and groove couplings be used for compressed air or steam service!
- Pressure rating is based on the seal of the mating part
- Pressure rating recommendations are based on the use of mating Dixon® fittings at ambient temperature 70 degrees F with a standard seal installed. For use at elevated temperature or other unusual operating conditions, consult Dixon.
- Polypropylene cam and groove should not be mixed with metal fittings.
- NOT recommended for use with PTFE gaskets
- Maximum Operating Pressure: 100 PSI
- Weight: 0.28 lb
- Size: 2"
- Material: Glass-Filled Polypropylene
EZZSPE0200
