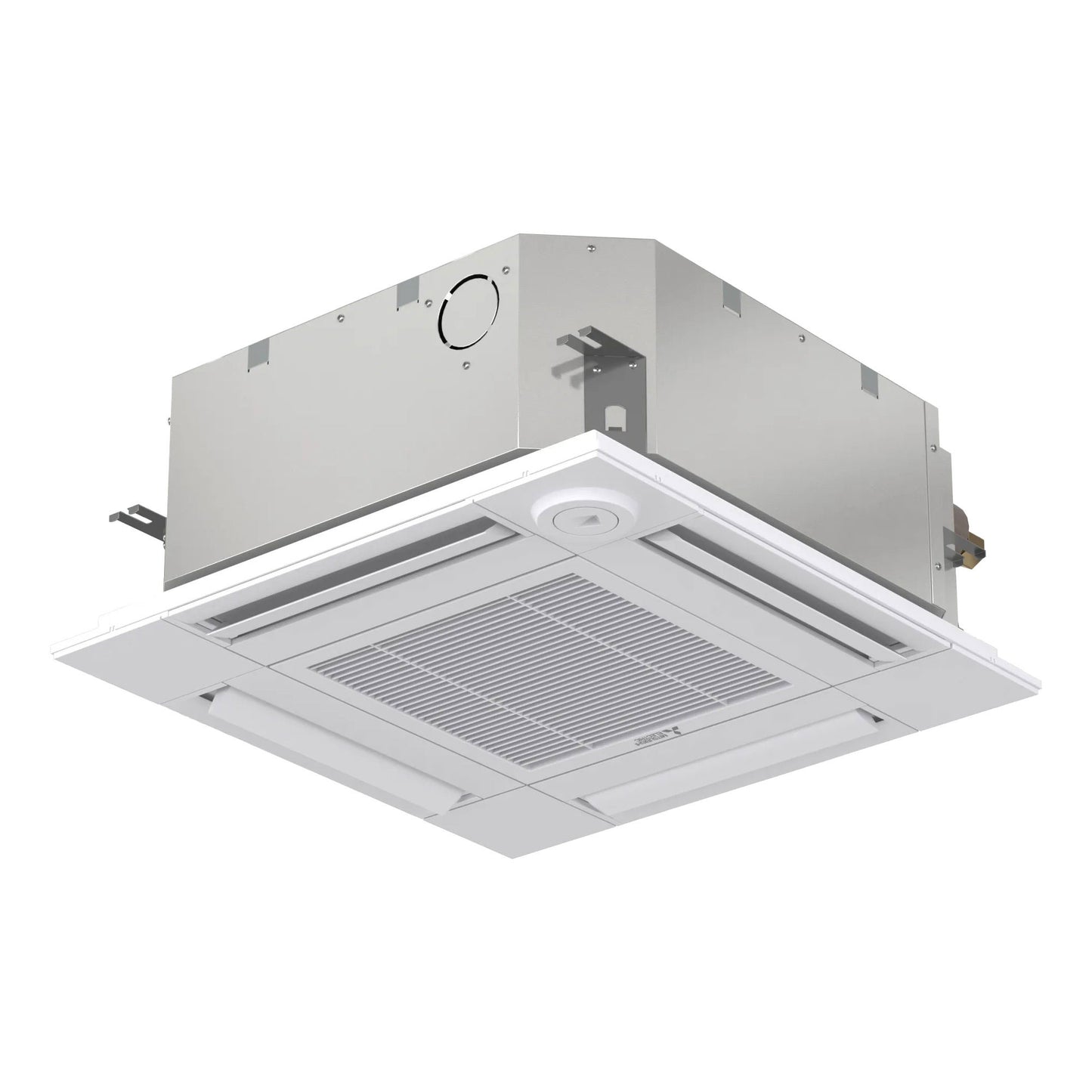

Mitsubishi PLFY-EP24NEMU-E - 24,000 BTU 2 Ton 4-Way Ceiling Cassette Indoor Unit - R-410A

The Mitsubishi PLFY-EP24NEMU-E is a 24,000 BTU, 2-ton 4-way ceiling cassette indoor unit designed for compatible Mitsubishi Electric CITY MULTI systems. Its ceiling-recessed design provides broad, customizable airflow while keeping the indoor equipment largely out of sight. A 3D turbo fan, four fan speeds, individual vane control, ventilation air intake capability, and a built-in condensate lift mechanism provide flexible comfort and installation options for commercial applications. The required PLP-41EAEU ceiling grille is sold separately.

Features

• 24,000 BTU/H nominal cooling capacity
• 27,000 BTU/H nominal heating capacity
• 2 Ton 4-way ceiling cassette indoor unit
• Designed for compatible Mitsubishi Electric CITY MULTI systems
• Ceiling-recessed design provides a clean, low-profile installation
• 4-way airflow provides broad air distribution throughout the space
• 3D turbo fan provides increased airflow and improved room coverage
• Four fan speeds including Auto fan mode
• Individual vane control allows airflow direction to be customized for occupant comfort
• Supports ventilation air intake for introducing outside air
• Built-in condensate lift mechanism provides up to 33-7/16" of lift
• Long-life, anti-bacterial PP honeycomb air filter
• Cooling/Heating Airflow: 636 / 671 / 742 / 812 CFM
• Sound Pressure Level: 28 / 30 / 32 / 34 dB(A)
• Power Supply: 208/230V, 1 Phase, 60 Hz
• Minimum Circuit Ampacity: 0.54A
• Recommended Fuse Size: 15A
• Refrigerant: R-410A
• Liquid Line Connection: 3/8" OD Flare
• Gas Line Connection: 5/8" OD Flare
• Drain Connection: 1-1/4" OD
• Indoor Unit Dimensions: 33-3/32" W x 33-3/32" D x 11-3/4" H
• Indoor Unit Weight: 55 lb
• Required Grille: PLP-41EAEU, sold separately
• Grille Dimensions: 37-13/32" W x 37-13/32" D x 1-9/16" H
• Manufacturer: Mitsubishi Electric
• Part Number: PLFY-EP24NEMU-E

HMIT205625
