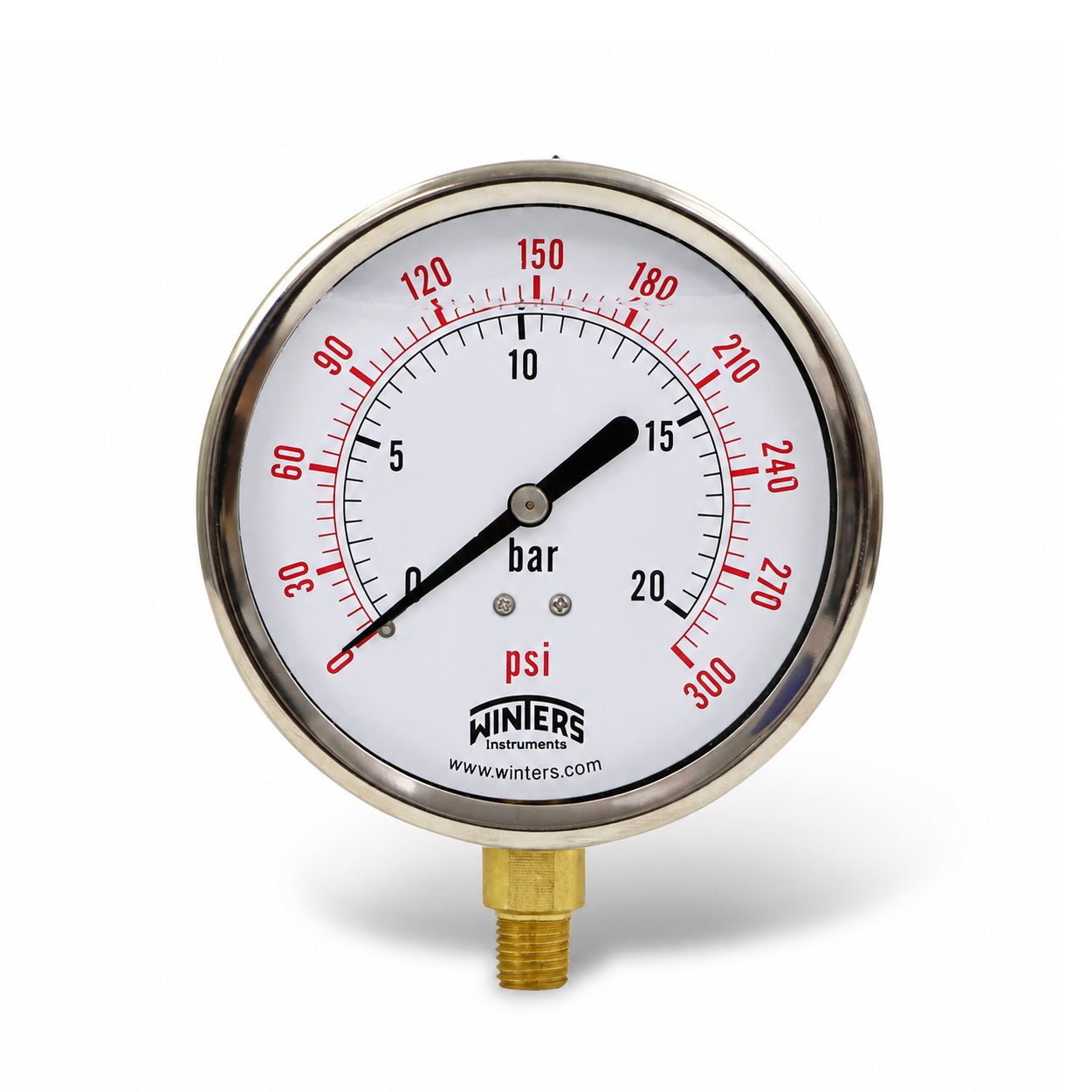

Winters PFP607 - 4" Dial Liquid-Filled Pressure Gauge - Stainless Steel - 0-300 PSI

The Winters PFP607 Premium Stainless Steel Liquid-Filled Pressure Gauge is designed for reliable pressure measurement in demanding industrial and commercial applications. Its 4" dial provides easy-to-read dual-scale pressure readings from 0-300 PSI, while the glycerin-filled stainless steel case helps dampen vibration and pulsation for stable readings and extended gauge life. The PFP607 features brass wetted components, a bottom-mounted 1/4" NPT connection, and ±1% full-scale accuracy.

Features

• Premium liquid-filled pressure gauge
• Pressure Range: 0-300 PSI / kPa dual scale
• Dial Size: 4" (100 mm)
• Glycerin-filled design helps dampen vibration and pulsation
• Durable AISI 304 stainless steel case
• 1/4" NPT male bottom connection
• Brass movement, socket and tube
• White aluminum dial with easy-to-read markings
• Polycarbonate lens
• Accuracy: ±1% of full scale, ANSI/ASME Grade 1A
• Maximum recommended working pressure of 75% of full scale
• Suitable for pumps, compressors, hydraulic equipment, pressure washers and process systems
• Designed for outdoor, severe ambient and process conditions
• ASME B40.100 compliant
• Manufacturer: Winters Instruments
• Part Number: PFP607
• UPC: 628311241877
