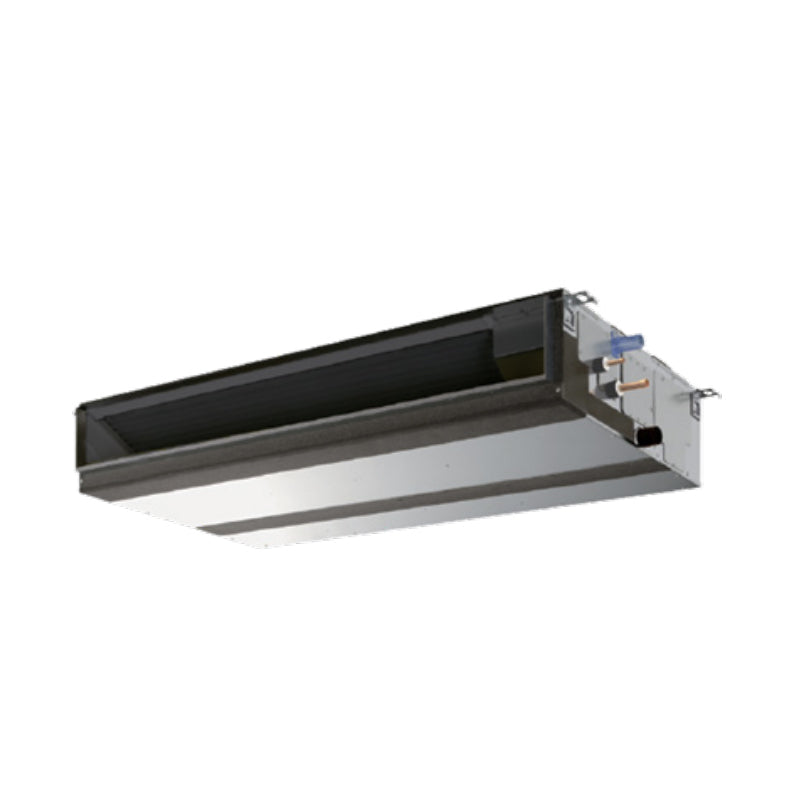

Mitsubishi PEFY-P54NMAU-E4 - 54,000 BTU 4.5 Ton Medium-Static Ceiling-Concealed Ducted Indoor Unit - R-410A

The Mitsubishi PEFY-P54NMAU-E4 is a 54,000 BTU, 4.5-ton medium-static ceiling-concealed ducted indoor unit designed specifically for compatible Mitsubishi Electric CITY MULTI systems. Its slim 9-7/8" cabinet provides a concealed solution for installations with limited ceiling space, while selectable external static pressure and three fan speeds provide flexibility for a variety of duct configurations. A high-efficiency DC fan motor, built-in condensate lift mechanism, and fresh-air intake capability make it well suited for commercial and larger ducted heating and cooling applications.

Features

• 54,000 BTU/H nominal cooling capacity
• 60,000 BTU/H nominal heating capacity
• 4.5 Ton medium-static ceiling-concealed ducted indoor unit
• Designed specifically for compatible Mitsubishi Electric CITY MULTI outdoor units
• Slim 9-7/8" high cabinet is ideal for installations with limited ceiling space
• Selectable External Static Pressure: 0.14 / 0.20 / 0.28 / 0.40 / 0.60 in. W.G.
• Factory-set external static pressure of 0.20 in. W.G.
• Three fan speeds for flexible airflow control
• Airflow: 989 / 1,201 / 1,413 CFM
• High-efficiency DC fan motor
• Three Sirocco fans provide ducted airflow
• Built-in condensate lift mechanism provides up to 27-9/16" of lift
• Fresh-air intake capability
• Dual setpoint functionality
• IT Terminal (CN105) for compatible control interfaces
• PP honeycomb air filter included
• Power Supply: 208/230V, 1 Phase, 60 Hz
• Minimum Circuit Ampacity: 4.38A
• Maximum Fuse/Breaker Size: 15A
• Refrigerant: R-410A
• Liquid Line Connection: 3/8" OD Brazed
• Gas Line Connection: 5/8" OD Brazed
• Drain Connection: 1-1/4" OD
• Dimensions: 63" W x 28-7/8" D x 9-7/8" H
• Unit Weight: 102 lb
• Manufacturer: Mitsubishi Electric
• Part Number: PEFY-P54NMAU-E4
