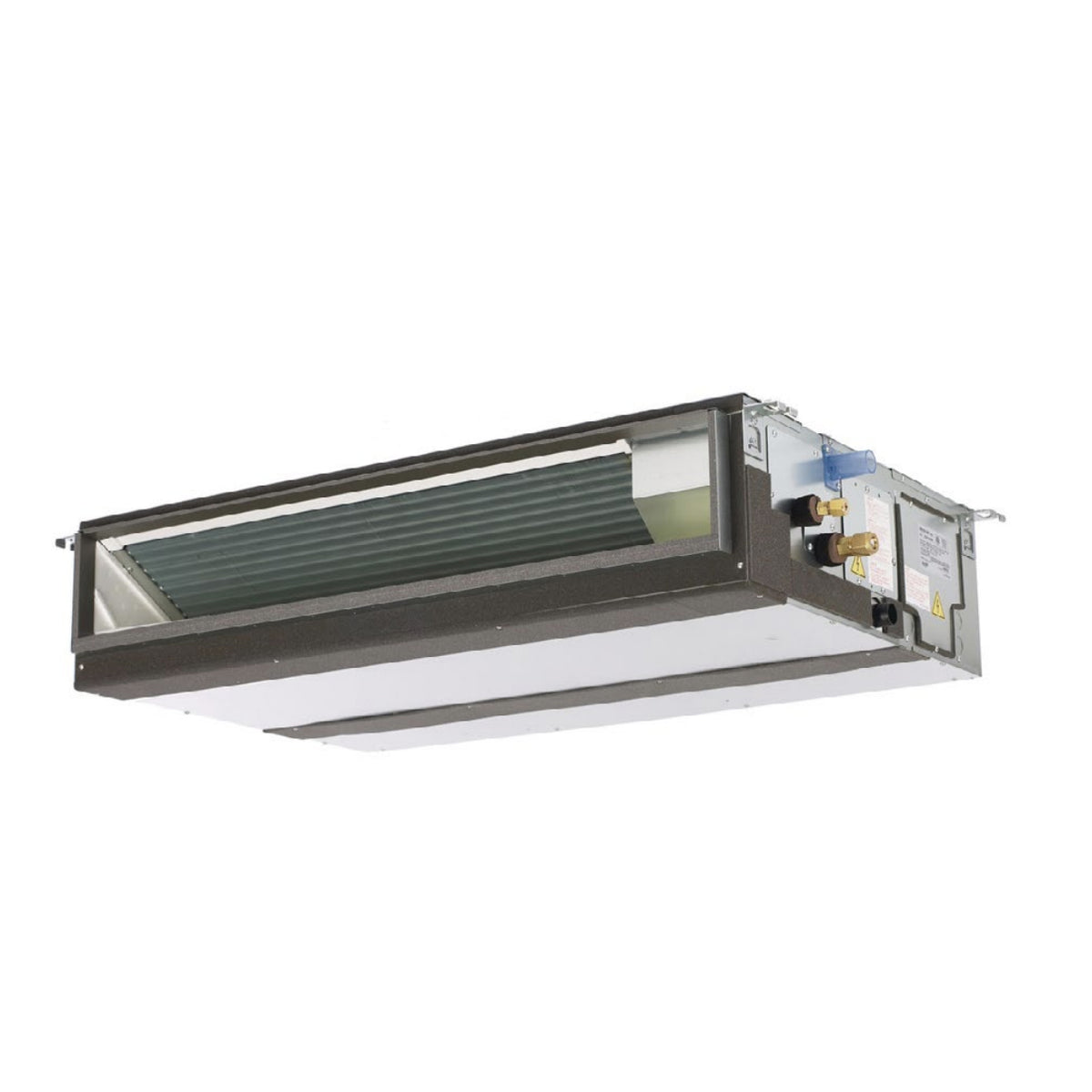

Mitsubishi PEAD-A24AA7 - 24,000 BTU 2 Ton Horizontal Ducted Indoor Unit - R-410A

The Mitsubishi PEAD-A24AA7 is a 24,000 BTU, 2-ton horizontal ducted indoor unit designed for concealed installation with compatible Mitsubishi Electric heat pump systems. Its slim 9-7/8" cabinet is well suited for installations with limited ceiling space, while a wide range of selectable external static pressure settings provides flexibility for short-run ductwork. The unit also features an integrated condensate lift mechanism, automatic fan speed control, and multiple optional control solutions for residential and light commercial applications.

Features

• 24,000 BTU/H nominal cooling capacity
• 26,000 BTU/H nominal heating capacity
• 2 Ton horizontal mid-static ducted indoor unit
• Ceiling-concealed design provides discreet installation with only supply and return registers visible
• Slim 9-7/8" high cabinet is ideal for installations with limited ceiling or mechanical space
• Wide range of selectable external static pressure settings for flexible duct design
• External Static Pressure: 0.14 / 0.20 / 0.28 / 0.40 / 0.60 in. W.G.
• Three airflow settings with automatic fan speed mode
• Dry Airflow: 512 / 635 / 741 CFM
• Wet Cooling Airflow: 461 / 572 / 667 CFM
• Quiet operation with sound levels as low as 30 dB(A)
• Built-in condensate lift mechanism provides up to 27-9/16" of lift
• Optional FB Series filter boxes provide convenient filter access and servicing
• Suitable for residential and light commercial ducted applications
• Multiple optional control solutions available, including kumo cloud, wired and wireless controllers, and third-party interfaces
• Power Supply: 208/230V, 1 Phase, 60 Hz
• Minimum Circuit Ampacity: 2.63A
• Refrigerant: R-410A
• Liquid Line Connection: 3/8" OD Flare
• Gas Line Connection: 5/8" OD Flare
• Drain Connection: 1-1/4"
• Dimensions: 43-5/16" W x 28-7/8" D x 9-7/8" H
• Unit Weight: 69 lb
• Manufacturer: Mitsubishi Electric
• Part Number: PEAD-A24AA7
