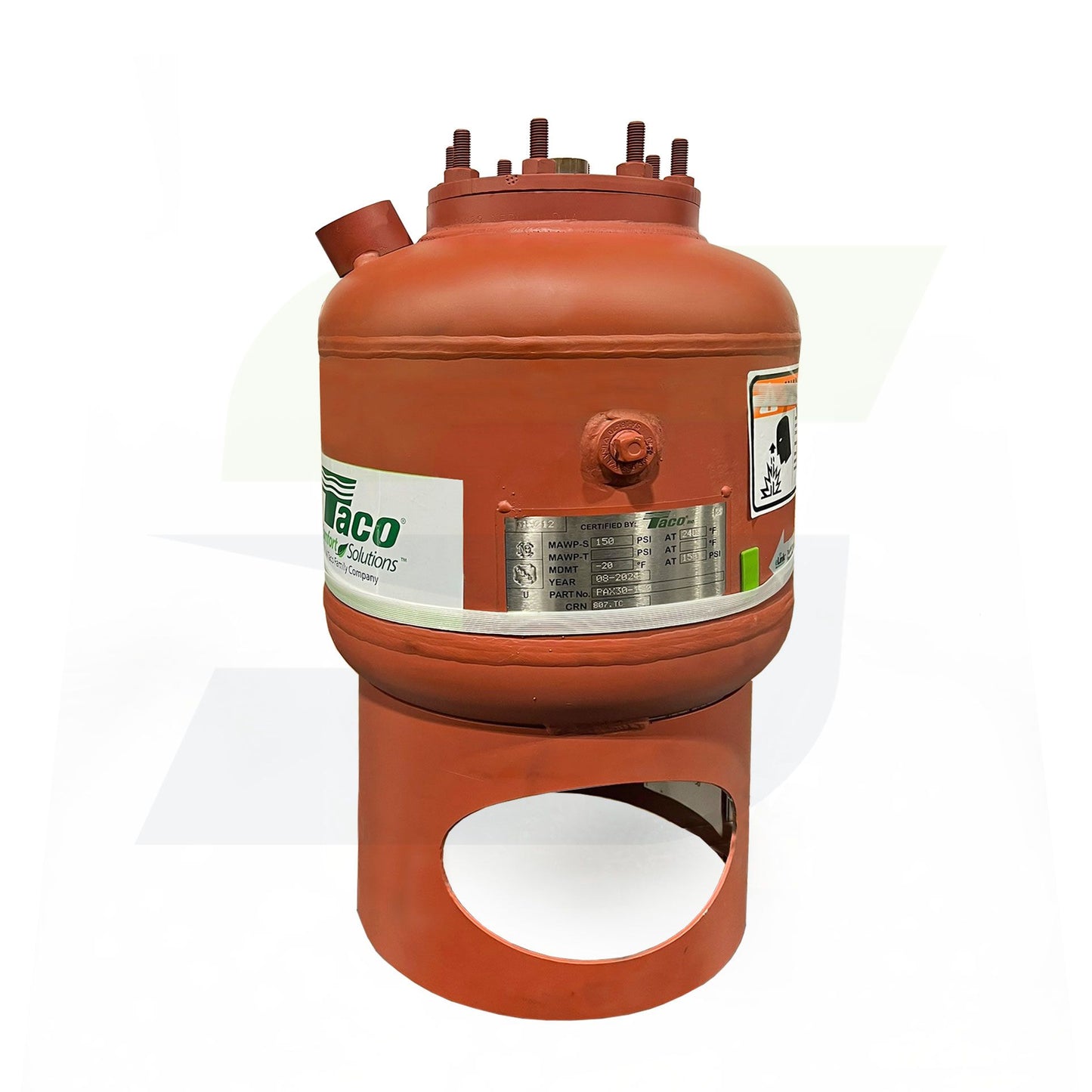

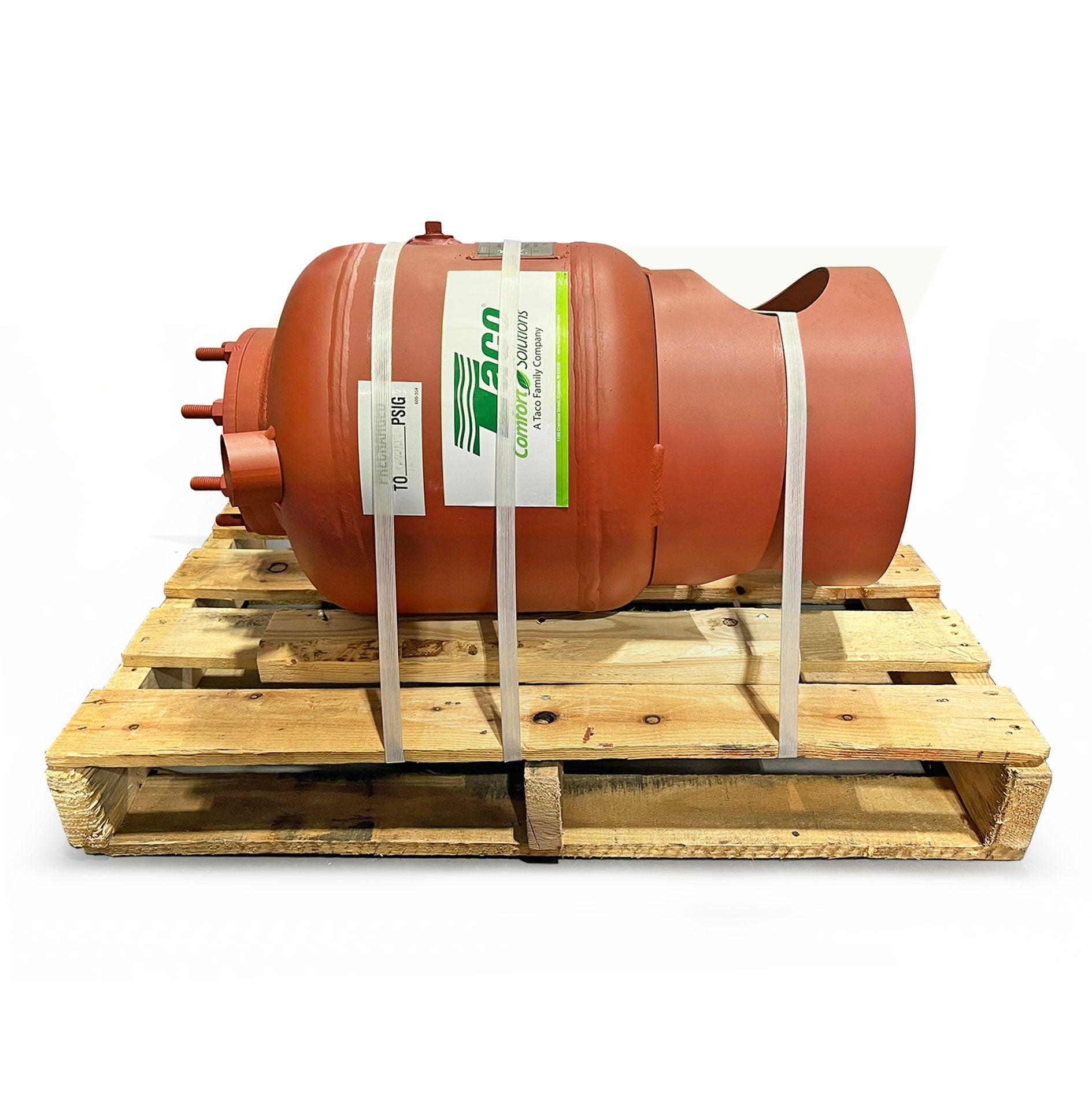

Taco PAX30-150 - Potable Water Expansion Tank - 8 Gallon

The Taco PAX Series expansion tanks are engineered for commercial and residential potable water systems. Designed per ASME Section VIII, Div. 1, these vertical bladder-style tanks feature a field-replaceable heavy-duty butyl bladder that separates air from water to manage thermal expansion effectively. The precharged air chamber reduces tank size requirements by up to 80% compared to standard steel tanks, while eliminating internal corrosion risks.

Key Features

• ASME-certified steel shell with epoxy coating for long-term durability
• Heavy-duty butyl bladder is removable for inspection and replacement
• 304 stainless steel system connection resists corrosion
• Factory precharged to 40 psi for immediate job-site readiness (adjustable)
• 150 PSI standard working pressure; higher ratings available upon request
• Vertical installation only for optimal performance
• NSF/ANSI 61-G certified models available (denoted with “P” suffix)

Applications

• Residential and commercial potable hot water systems
• Backflow preventer or PRV protection zones
• Systems requiring code-compliant thermal expansion control
• Use with Taco pressure reducing valves and hot water recirculation setups

MTAC003270
