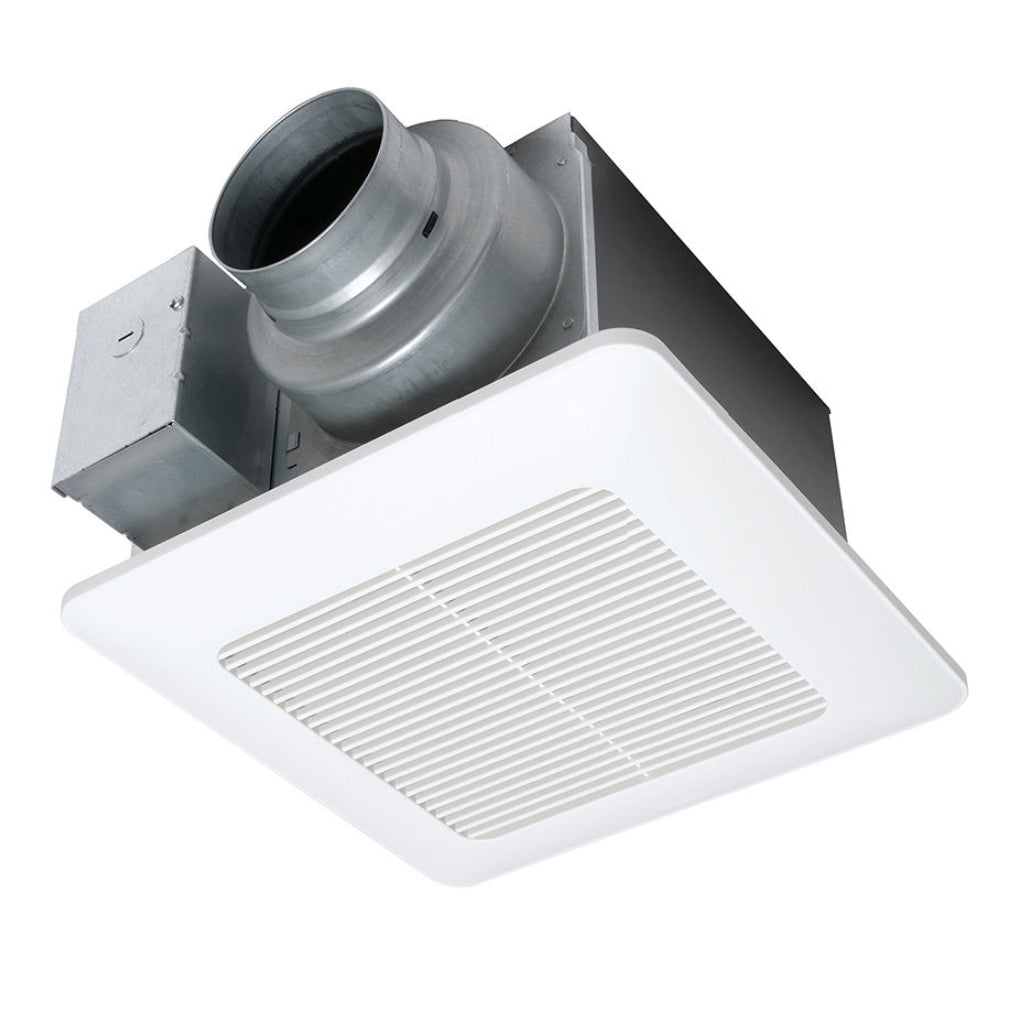

Panasonic FV-0511VQ1 - WhisperCeiling DC, SmartFlow 50-80-110 CFM Ventilation Fan

WhisperCeiling DC Precision Spot Ventilation Fan with built-in Pick-A-Flow speed selector switch allows you to select your required airflow (50-80-110 CFM). Features a ECM Motor with SmartFlow technology and a Flex-Z Fast installation bracket. Can be used to comply with the latest codes and standards.

Features

• Precision spot ventilation fans ideal for use in the bathroom, laundry room, sun room, basement or garage
• Revolutionary ECM motor with SmartFlow™ technology for optimum CFM output
• Pick-A-Flow Airflow Selector (50-80-110 or 110-130-150 CFM models) combined with SmartFlow Technology simplifies the selection process and ensures optimum performance to meet code
• Single-hinged Flex-Z Fast bracket provides flexible, fast and easy installation, even from below the ceiling
• Elegant grille design compliments the aesthetics of any room
• Can be used to comply with ASHRAE 62.2, LEED, ENERGY STAR IAP, EarthCraft, CA Title 24 and WA state code

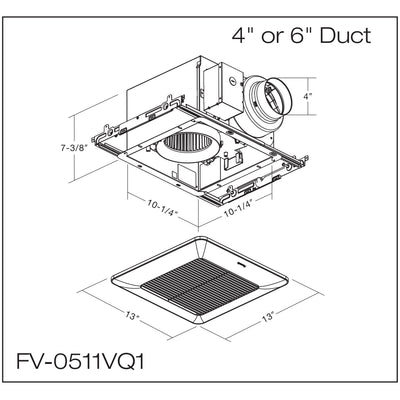

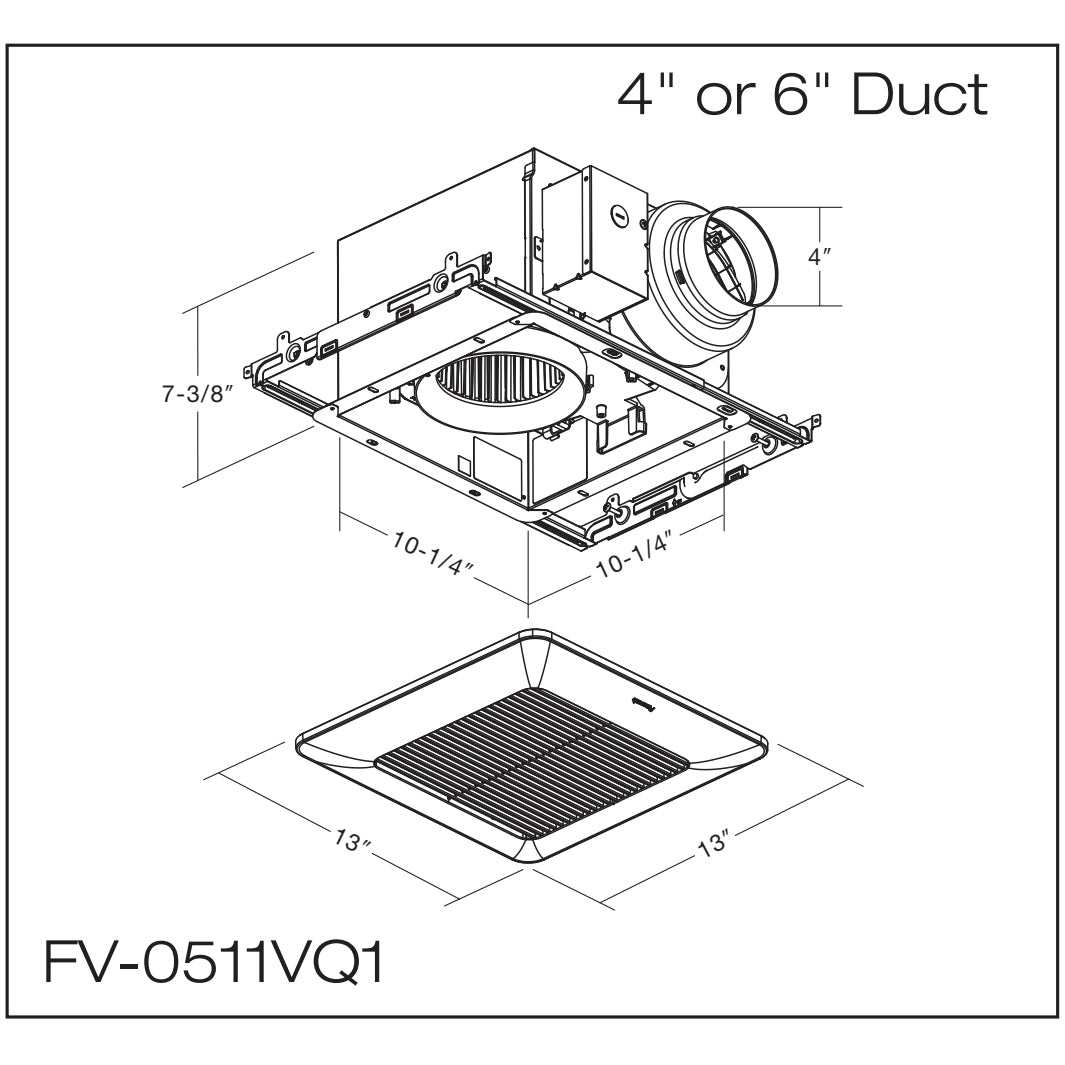

• Integrated 4" or 6" dual duct adapter enhances installation options
• UL listed for tub/shower enclosure when GFCI protected
• Built-in metal flange provides blocking for penetrations through drywall as an Air Barrier, and assists with the decrease in leakage in the Building Envelope during blower door testing
• Built-in damper reduces back drafting and helps with blower door testing
• Warranty: 6 years ECM Motor, 5 years LED, 3 years all other parts
