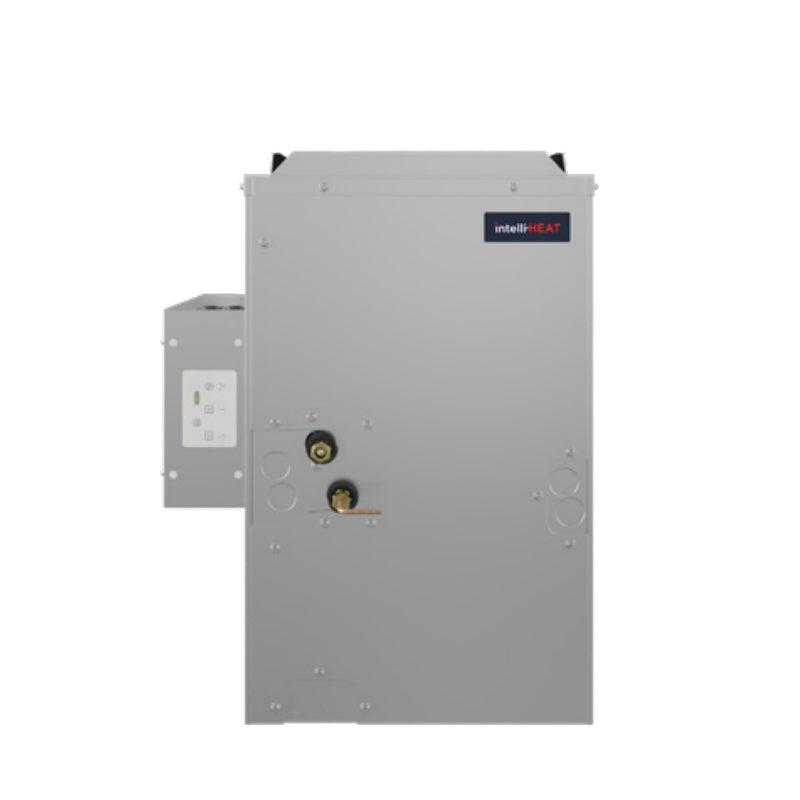

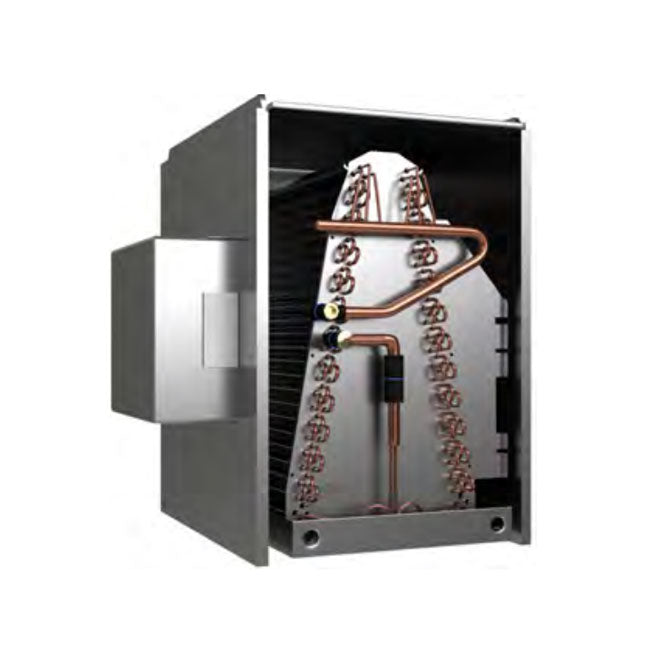

Mitsubishi PAA-A36BA1 - 3 Ton intelli-HEAT Multi-Position Cased Coil - 36,000 BTU

The Mitsubishi PAA-A36BA1 intelli-HEAT Cased Coil is a 3-ton, 36,000 BTU indoor coil designed to integrate a compatible Mitsubishi Electric heat pump system with a thermostatically controlled natural gas or LP furnace. The intelli-HEAT system provides intelligent comfort control with automatic switchover between the heat pump and furnace, allowing the system to select the appropriate heating source based on operating conditions. Its multi-position design supports horizontal left, horizontal right, upflow, and downflow installations for flexible retrofit and new-construction applications.

Features

• 3 Ton nominal cooling capacity
• Cooling Capacity: 36,000 BTU/H
• Heating Capacity: 38,000 BTU/H
• intelli-HEAT technology integrates a Mitsubishi Electric heat pump with a compatible natural gas or LP furnace
• Compatible with thermostatically controlled 24VAC natural gas or LP furnaces that meet applicable ANSI Z21.47/CSA 2.3 requirements
• Intelligent Comfort Control provides automatic switchover between heat pump and furnace operation
• Multi-position installation supports horizontal left, horizontal right, vertical upflow, and vertical downflow configurations
• Includes drain pans for all supported installation positions
• Includes cased coil and control box
• Optimized heat exchanger design for efficiency and long service life
• Oxygen-free copper coil construction
• High-quality drain pan material offers high heat tolerance and low moisture absorption
• Flared refrigerant piping connections
• Refrigerant: R-410A
• Rated Airflow: 1,050 CFM
• Airflow Range: 800-1,201 CFM
• Power Supply: 208/230V, 1 Phase, 60 Hz
• Liquid Line Connection: 3/8" OD Flare
• Gas Line Connection: 5/8" OD Flare
• Drain Connection: 3/4"
• Cabinet Width: 17.5"
• Dimensions: 17.5" W x 21.7" D x 31.9" H
• Cased Coil Weight: 67 lb
• Supports optional humidifier and ERV controls
• Compatible with kumo cloud, third-party interfaces, and wired or wireless control options when properly configured
• Manufacturer: Mitsubishi Electric
• Part Number: PAA-A36BA1
