Home » Rheem » Blower Motors » 51-23012-41 - PROTECH TripSaver 1/6 to 1/2 HP Blower Motor - 1 Phase - 4 Speed - 1075 RPM - 120V
Rheem

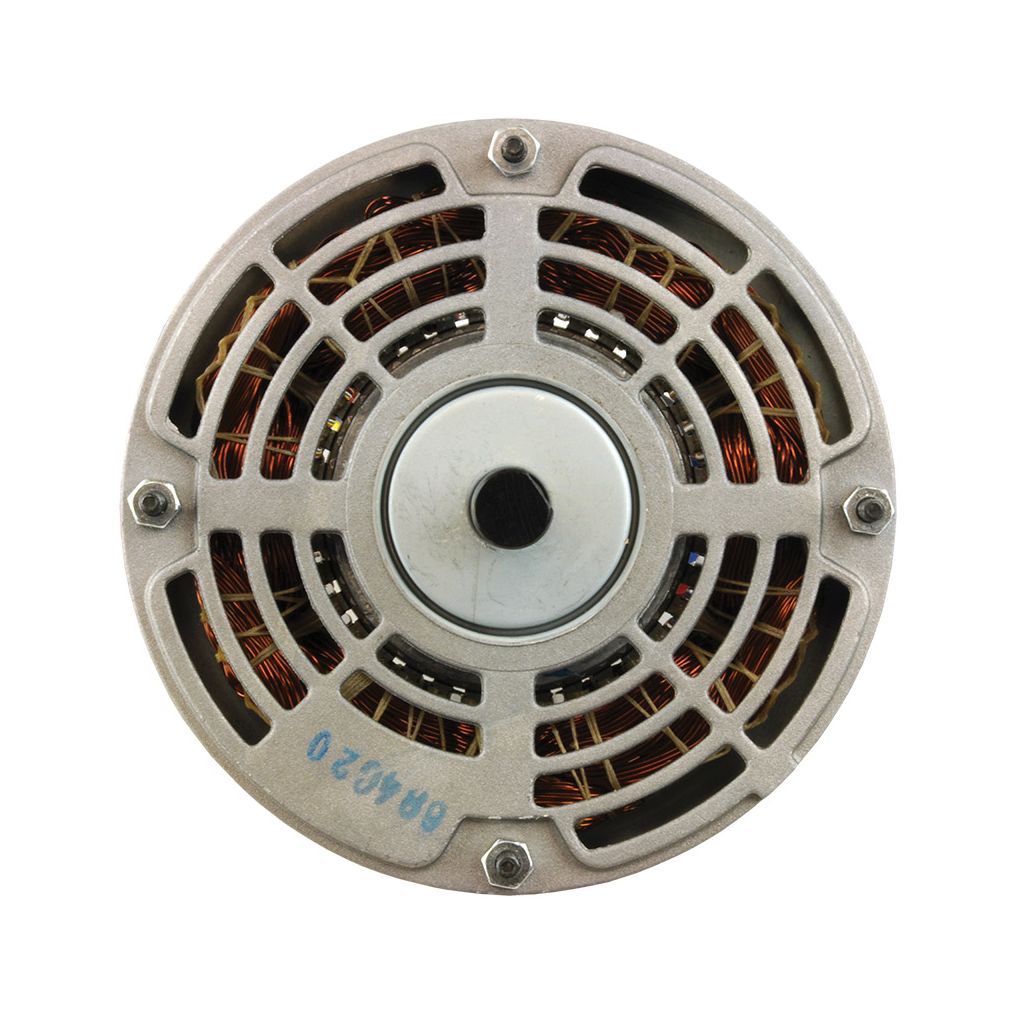

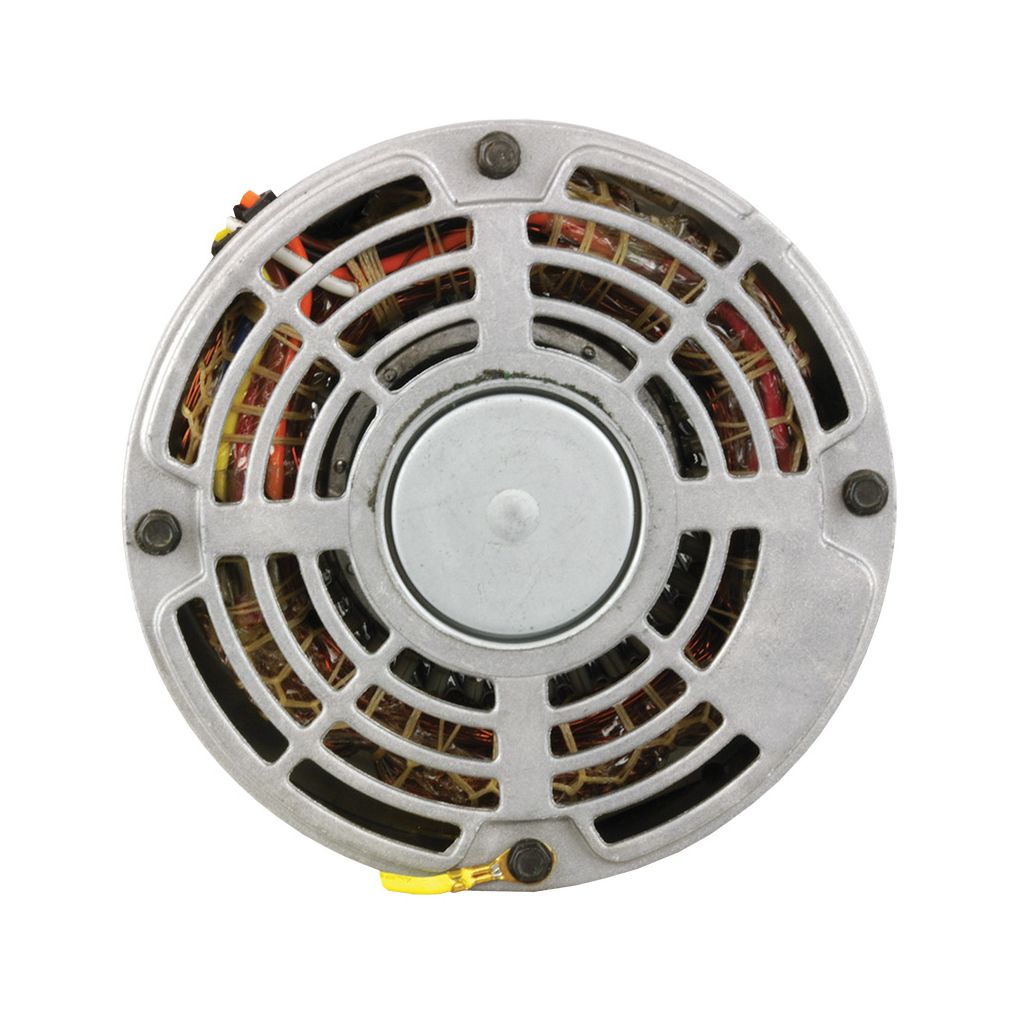

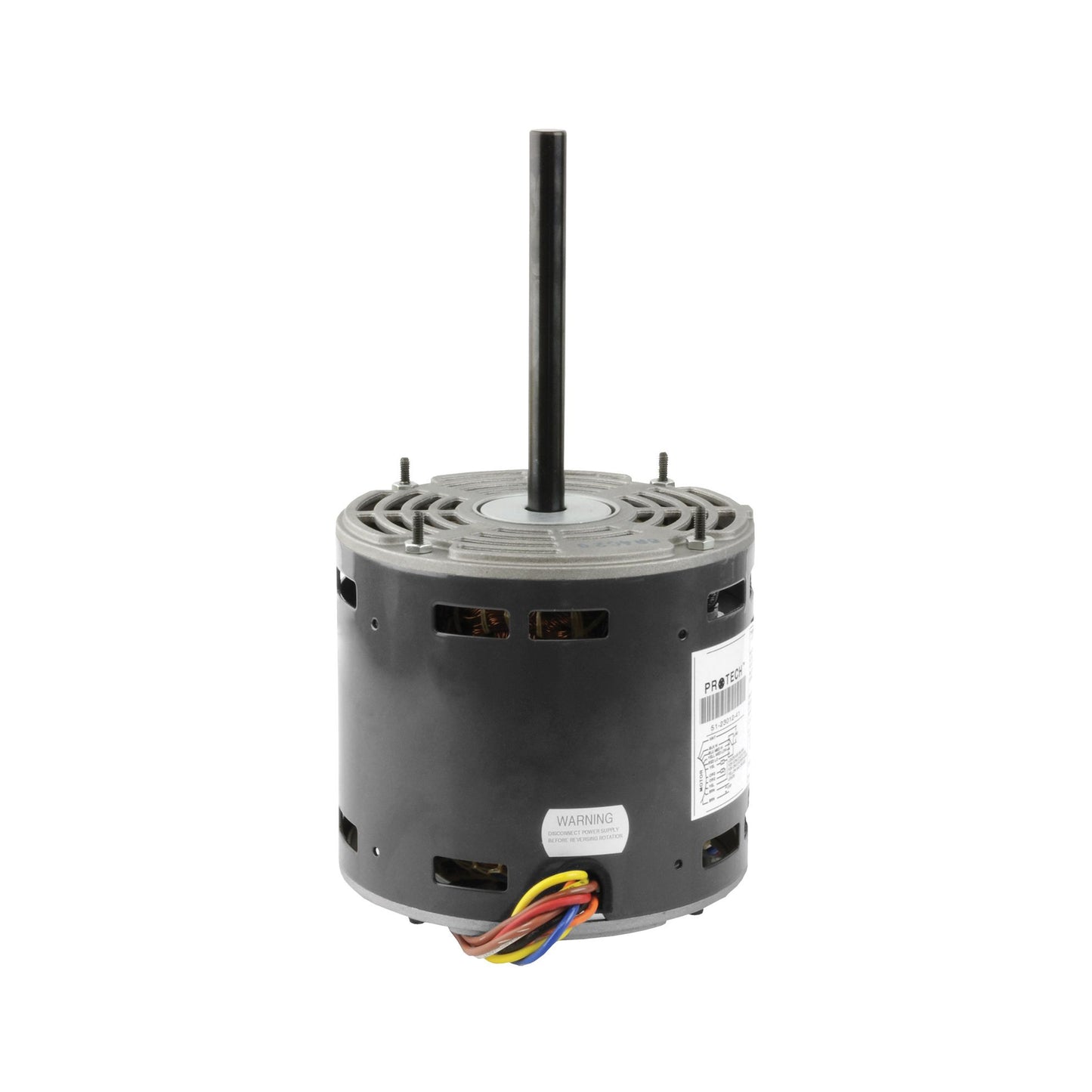

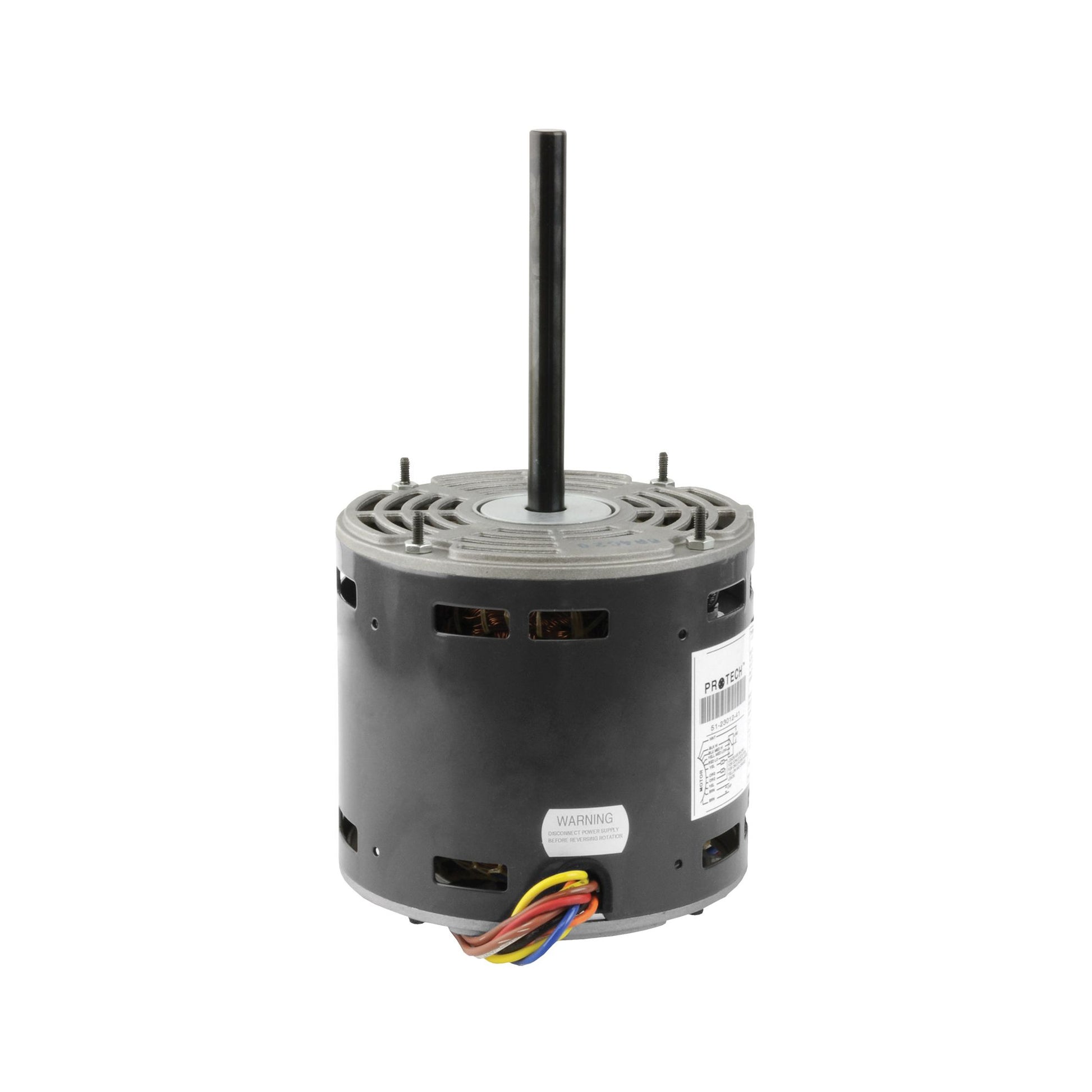

51-23012-41 - PROTECH TripSaver 1/6 to 1/2 HP Blower Motor - 1 Phase - 4 Speed - 1075 RPM - 120V

In stock
SKU: 51-23012-41
$240.00

Free Shipping on all orders over $89

Most orders ship same day!

Order by phone or Questions? (800) 468 5997

Customer Reviews

No reviews yet
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

Rheem 51-23012-41 - PROTECH TripSaver 1/6 to 1/2 HP Blower Motor - 1 Phase - 4 Speed - 1075 RPM - 120V

Capacitor and Motor Speed Selection for Various HP Applications. 1/2 HP - All Speeds, 10/370 (uF/V), 7.3 FLA 1/3 HP - All Speeds, 5/370 and 7.5/370 (uF/V), 6.9 FLA 1/4 HP - Med-Hi, Med-Lo, Lo, 5/370, 7.5/370 (uF/V), 5.5 FLA 1/5 HP - Med-Lo, Lo, 5/370, 7.5/370 (uF/V), 3.6 FLA 1/6 HP - Lo, 5/370, 7.5/370 (uF/V), 2.8 FLA

Features

  • TRIPSAVER motors are designed with a high degree of versatility; they will cover the vast majority of service applications requiring a direct drive motor.
  • Replaces 120V motors from 1/6 to 1/2 horsepower
  • 4 speed taps / Reversible rotation
  • Operates in all positions

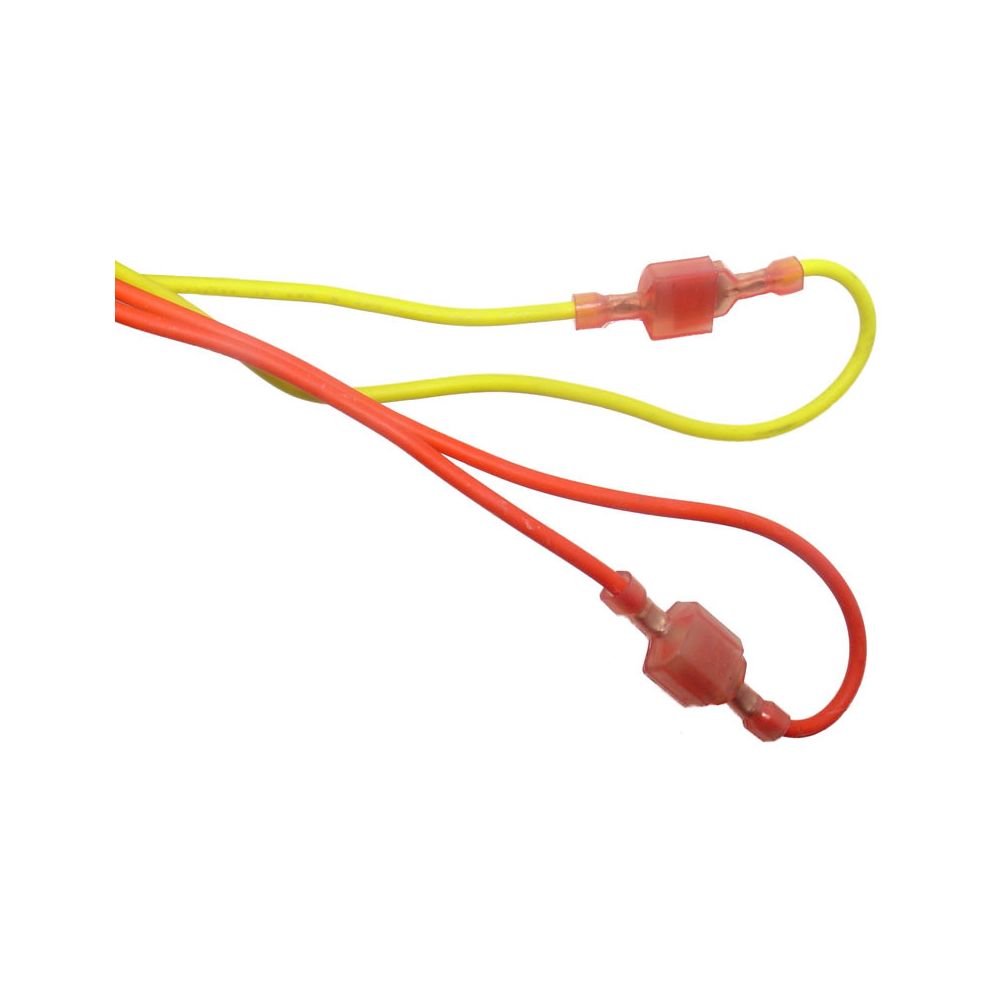

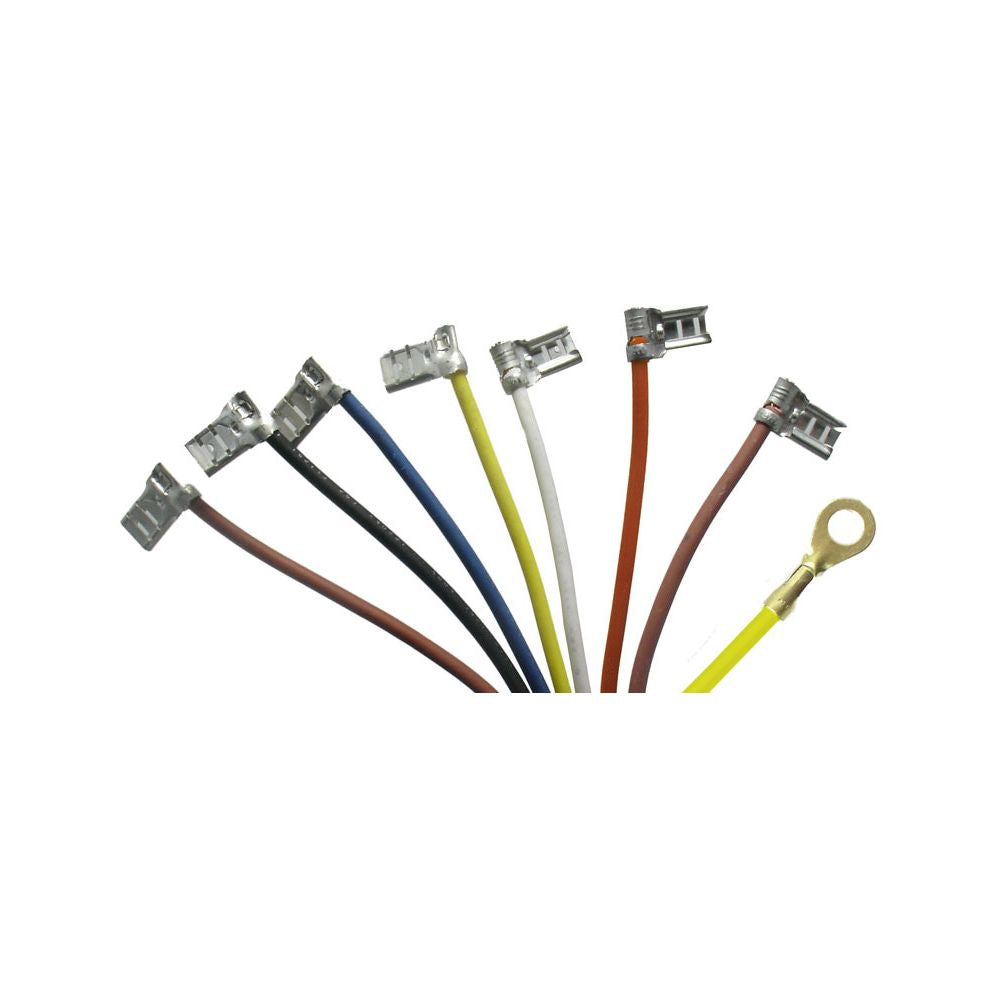

  • 36 inch leads with easy to use quick-connect flag terminals

Technical Data

  • HP: 1/6 to 1/2
  • Number of Speeds: 4
  • High Speed (RPM): 1075
  • Input Voltage (V): 120
  • Number of Phases: 1
  • Frequency (Hz): 60
  • Rotation Direction (OSE): Reversible
  • Run Capacitor (uF/V): 5/370, 7.5/370, or 10/370
  • FLA at 120V (A): 7.30
  • Shaft Diameter (in.): 1/2
  • Motor Body Diameter (in.): 5-5/8
  • Keyed/Flat Shaft Length (in.): 4
  • Overall Shaft Length (in.): 5
  • Motor Body Length (in.): 4-11/16
  • Overall Motor Length (in.): 9-11/16
  • Mounting: Shell-band
  • Mounting: Thru-bolt
  • Mounting: Shell-screw
  • Frame Size: 48
  • Bearing Type: Sleeve
  • Application: Blower
  • Drive Type: Direct Drive
  • Shipping Weight: 14.6 lbs

Where Used

  • RGED
  • RGDG
  • RGVG
  • RGDJ
  • RGLG
  • RGLH
  • RGLJ
  • RGLN
  • RGPH
  • RGPJ
  • RGPN
  • RGPP
  • RGVH
  • RGVJ
  • 80LJ
  • 80LS
  • 80PJ
  • RGLS
  • ROBD
  • ROBF
  • 80BD
  • 80BF

Replaces

  • 51-19571-01
  • 51-17918-01
  • 51-20550-02
  • 51-18830-21
  • 8101-5607
  • RED-206
  • 51-18830-01
  • 51-22686-01
  • 51-20550-03
  • 51-20644-01
  • 51-21503-01
  • 51-19572-01
  • 51-20814-11
  • 51-19670-01
  • 51-26158-01
  • 51-20550-01
  • 8101-5558
  • 51-22648-01
  • 51-20812-01
  • 51-22636-02
  • 51-20650-01
  • 8101-5506
  • 51-20359-01
  • 51-21752-01
  • 51-22636-01
  • 51-20814-01
  • 51-20811-01
  • 51-22650-01
  • 8101-5556
  • 51-22873-01
  • 51-20813-01
  • 51-17933-01
  • 8101-5550
