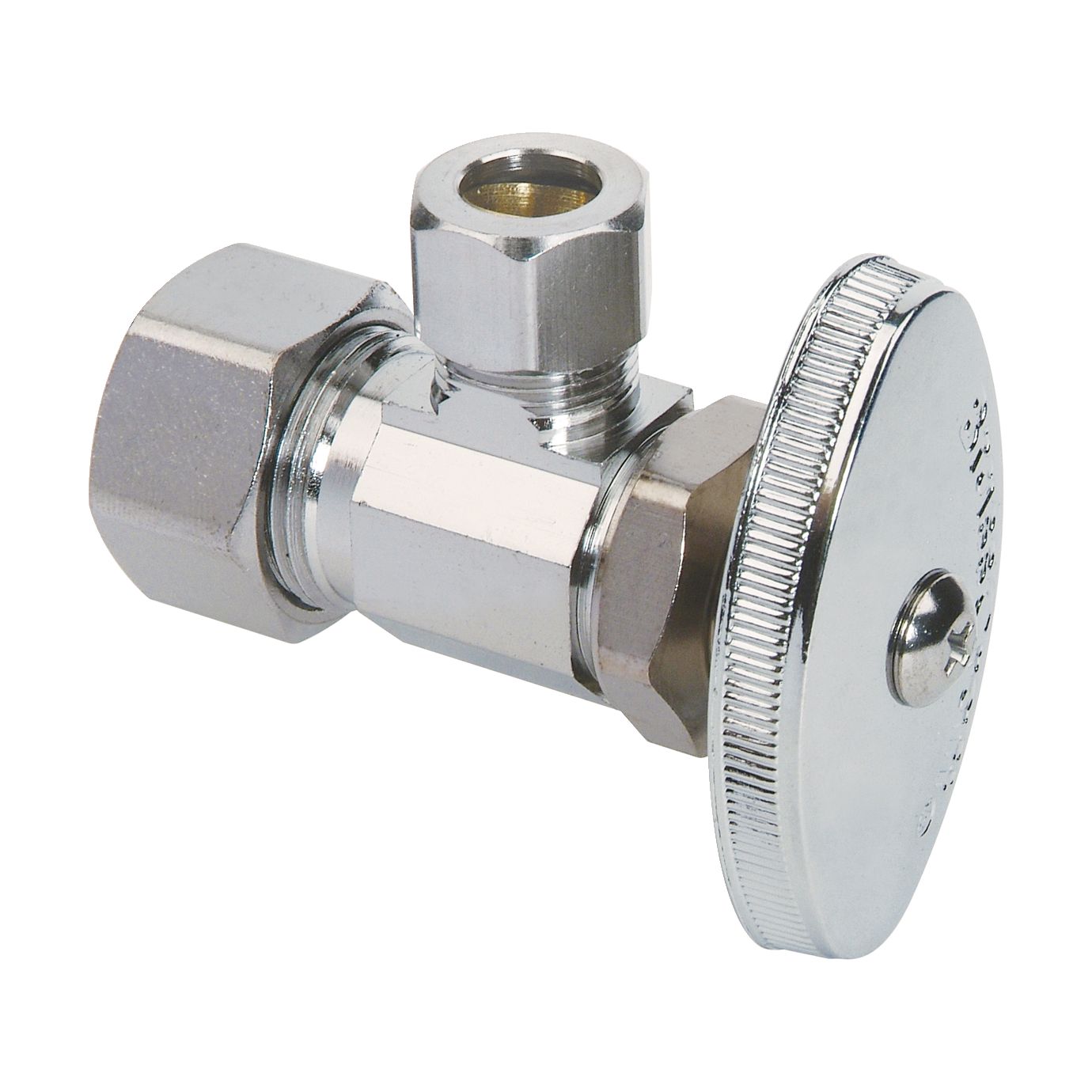

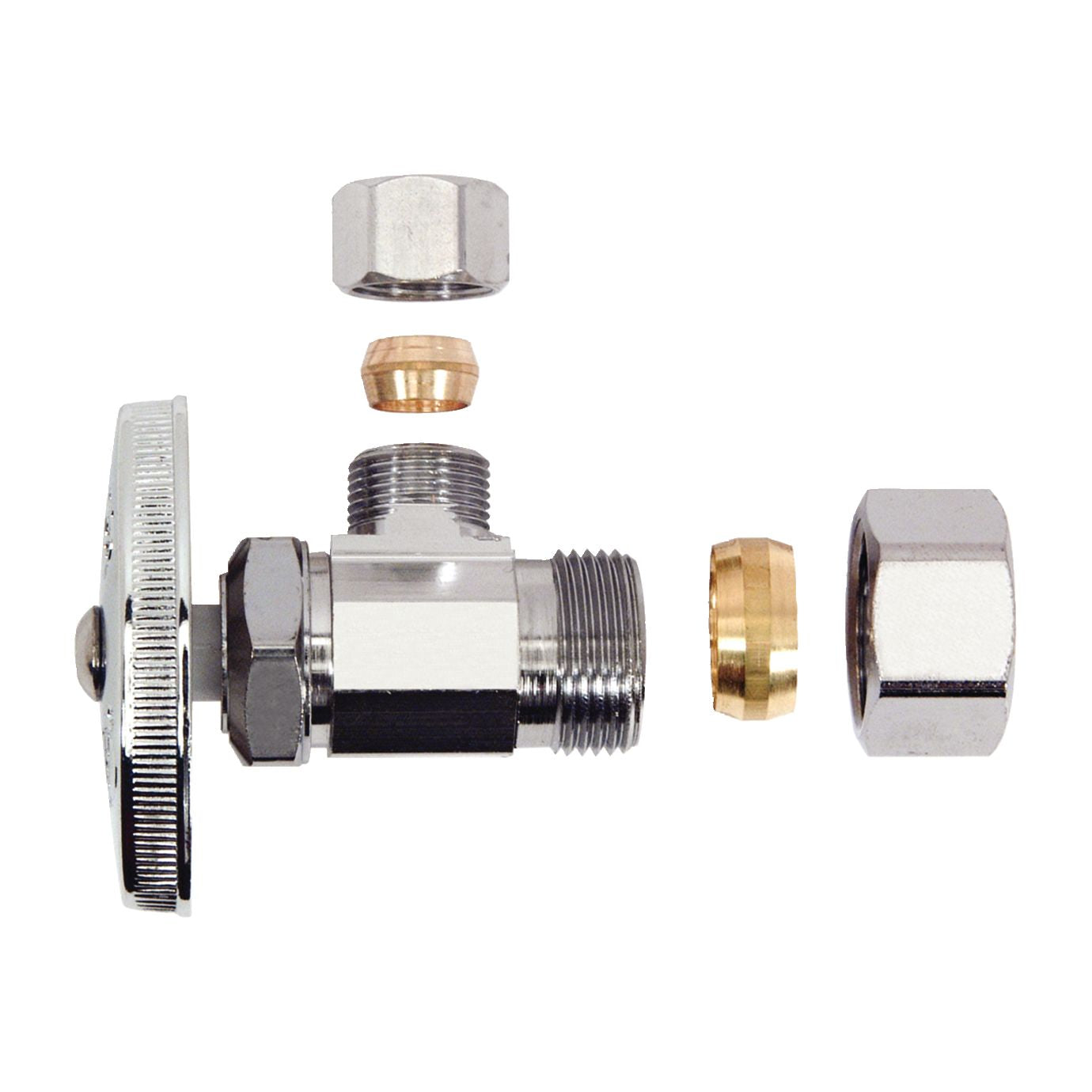

OCR19X C - 1/2" Nom Comp x 3/8" O.D. Comp, Chrome Plated
Couldn't load pickup availability
Free Shipping on all orders over $89
Most orders ship same day!
Order by phone or Questions? (800) 468 5997
Water Stops Installation Guide
BrassCraft 1/2 in. Nominal Compression Inlet x 3/8 in. OD Compression Outlet Multi-Turn Angle Valve controls water flow to household plumbing fixtures – faucets, toilets, dishwashers, icemakers, washing machines, etc. The angle valve is most often used where the water pipe enters the room from the wall. With a few turns of the valve handle, you are able to stop the flow of water leading to the plumbing fixture, allowing for maintenance and repair without turning off water to the entire home.
Features:
- Machined, 1-piece body construction for strength, durability and long-lasting performance
- 1/2 in. Nom Comp Inlet x 3/8 in. OD Comp Outlet Multi-Turn Angle Stop
- Compatible with copper piping
- For use in potable water distribution systems. Not intended for recirculating water systems that produce continuous use temperatures above 115° F. For those applications, use our KT™ series ball stops.
- Multi-turn operation means water flow control with only a few turns of the handle
- Easy-to-remove handle protects against accidental operation during rough-ins
- One-piece shut-off mechanism provides smooth on-off operation
- Chrome and Brass finish
- For indoor use
- Temperature rating: 40° to 160°F
- Pressure rating: 125 psi maximum
- IAPMO listed to ASME A112.18.1 / CSA B125.1
- Designed, machined and assembled in the USA
