Oatey 24" to 30" QuikDrain Drain Body

In stock
SKU: PVC2430D20
Regular price $209.00

Free Shipping on all orders over $89

Most orders ship same day!

Order by phone or Questions? (800) 468 5997

Customer Reviews

Based on 1 review
Susan S.
QUIK Drain Review

Great Service; good timing & good follow up

QuickDrain Brochure

Technical Specifications

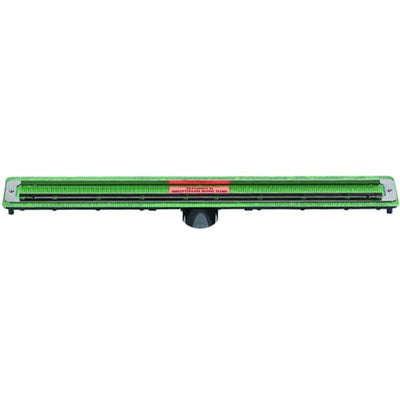

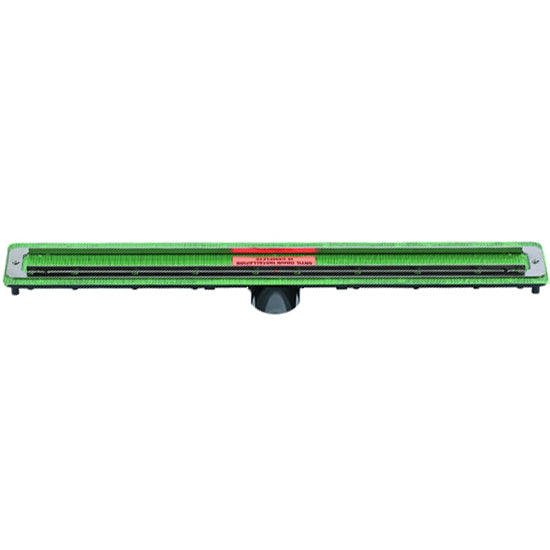

Oatey 24" to 30" QuikDrain Drain Body

QuickDrain ShowerLine linear shower drains offer the same flexible solution for both new and retrofit applications. It’s the perfect choice for tub-to-shower conversions and for projects that need to maximize the return on investment. With ShowerLine, you can achieve a high-end look and still stay within your budget. Elevate your shower design with QuickDrain.


  • QuickDrain ShowerLine linear shower drain bodies are made of PVC material, making it a very cost-effective option
  • Ideal choice for residential and hospitality markets and offered in multiple waste outlet orientations
  • Internally sloped trough ensures no stagnant water sitting in the trough at any time, eliminating hard water build up
  • Length adjustability of drain trough with use of trough extensions to accommodate finished openings from 26 in. to 72 in.
  • To accommodate larger showers, ShowerLine linear shower drains can be linked together
  • Recommend the shower drain cover extend the entire length of the shower pan, which would span from vertical to vertical surface (wall to wall, wall to curb, or wall to partition/glass
  • ShowerLine linear drain body waterproofing accessory kits are sold separately. Available options include topical sheet, topical liquid, hot mop and CPE/PVC liner
  • Drain capacity for 2" outlet is 12 GPM in a shower pan with curb and 5 GPM in a shower pan drain placed across entry.
  • Note: Actual volume is limited by the plumbing lines and P-trap

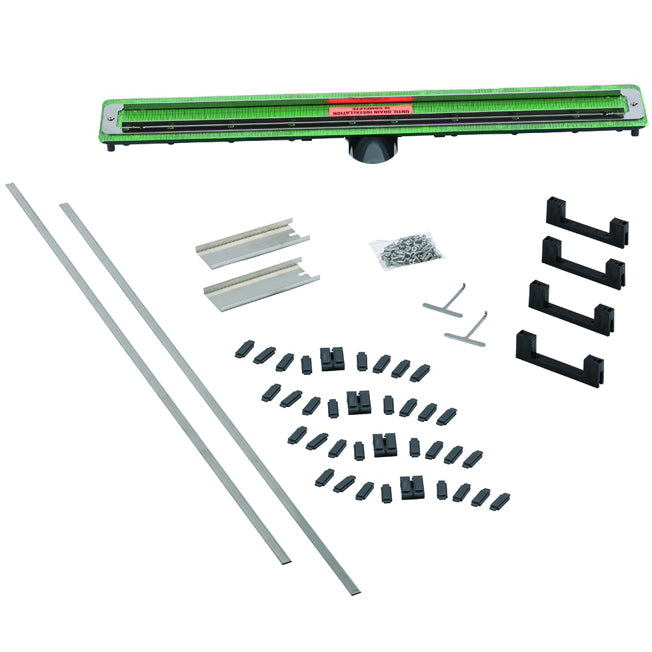

  • Kit includes cover channel with appropriate finish to match decorative drain cover
  • Drain Orientation: Vertical
  • Length: 26"
  • Brand: QuickDrain
  • Connection Type: Solvent Weld


Related Video: How to Install a Complete Linear Shower Drain
