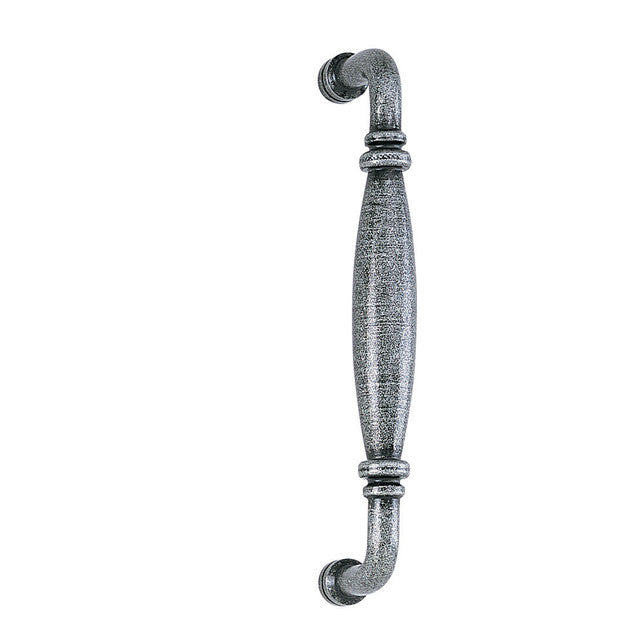

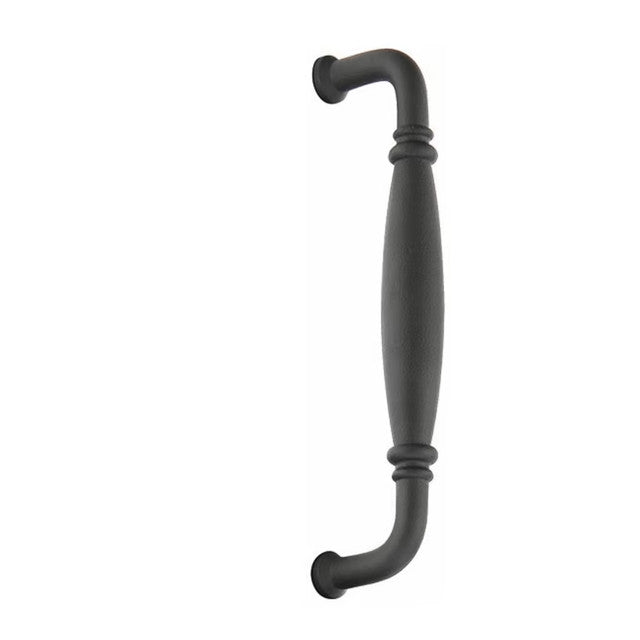

Emtek Normandy Door Pull

Emtek door pulls offer versatile and stylish solutions for enhancing your doors' functionality and aesthetics. With the option to install them using a thru-bolt, concealed surface, or back-to-back mounting, they provide flexibility to suit different door types and design preferences. Crafted with meticulous attention to detail and available in various finishes, Emtek door pulls are the perfect combination of durability, convenience, and elegance for any interior or exterior door.

Appliance/Door pulls are drilled and tapped for 3/8"-16 thread to accommodate thread adapters. Fits standard door thickness of 1-3/4". Specify if thicker.

Features

• Solid brass construction
• Height: 8-13/16"
• Width: 1"
• Projection: 2-1/2"

Configuration Options

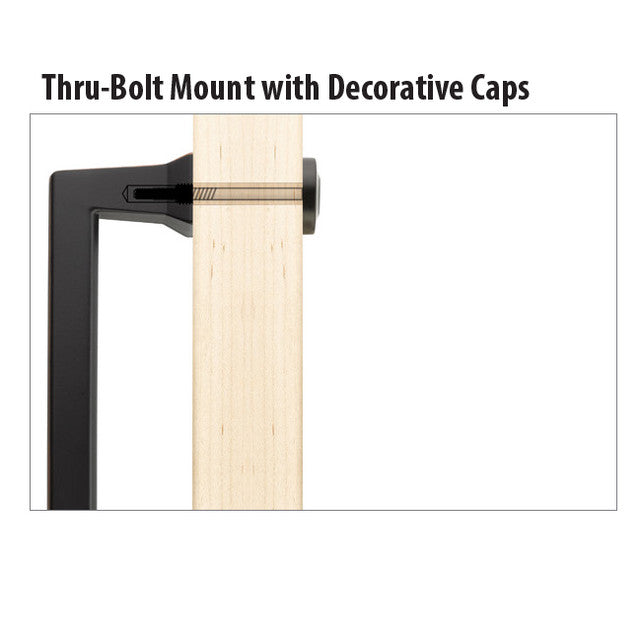

• Thru-Bolt with Decorative Cap
  • Supplied with:
    • (2) Thread adapters for ¼ -20 thread
    • (2) 1/4-20 Flat head machine screws x 1" long
    • (2) Thread adapters for 10-32 thread
    • (2) 10-32 Flat head machine screws x 1" long
    • (2) 10-32 Flat head machine screws x 2" long
    • (2) Threaded Washers
    • (2) Decorative Caps

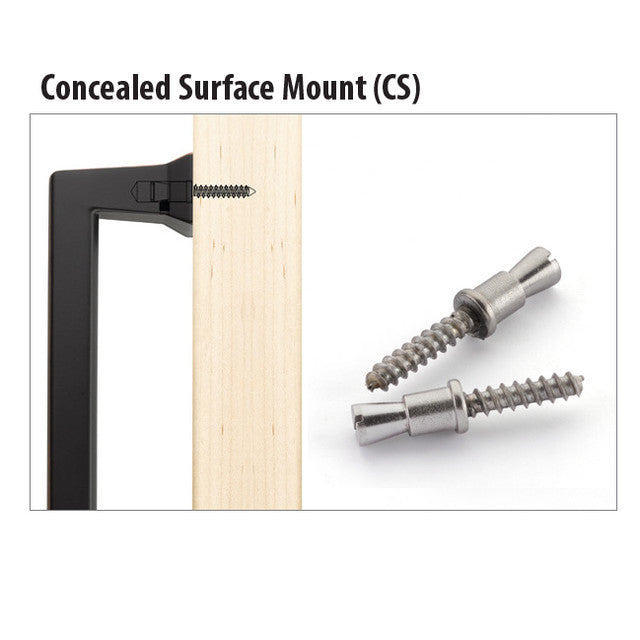

• Concealed Surface Mount (CS)
  • Supplied with:
    • (1) grip with 3/8" diameter hole in the stem
    • (2) #10, 1" bevel head wood screws
    • (2) 1-32 set screws

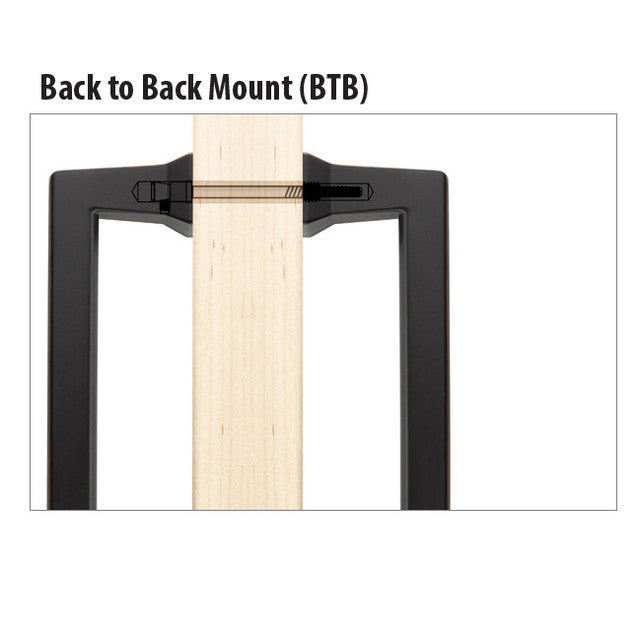

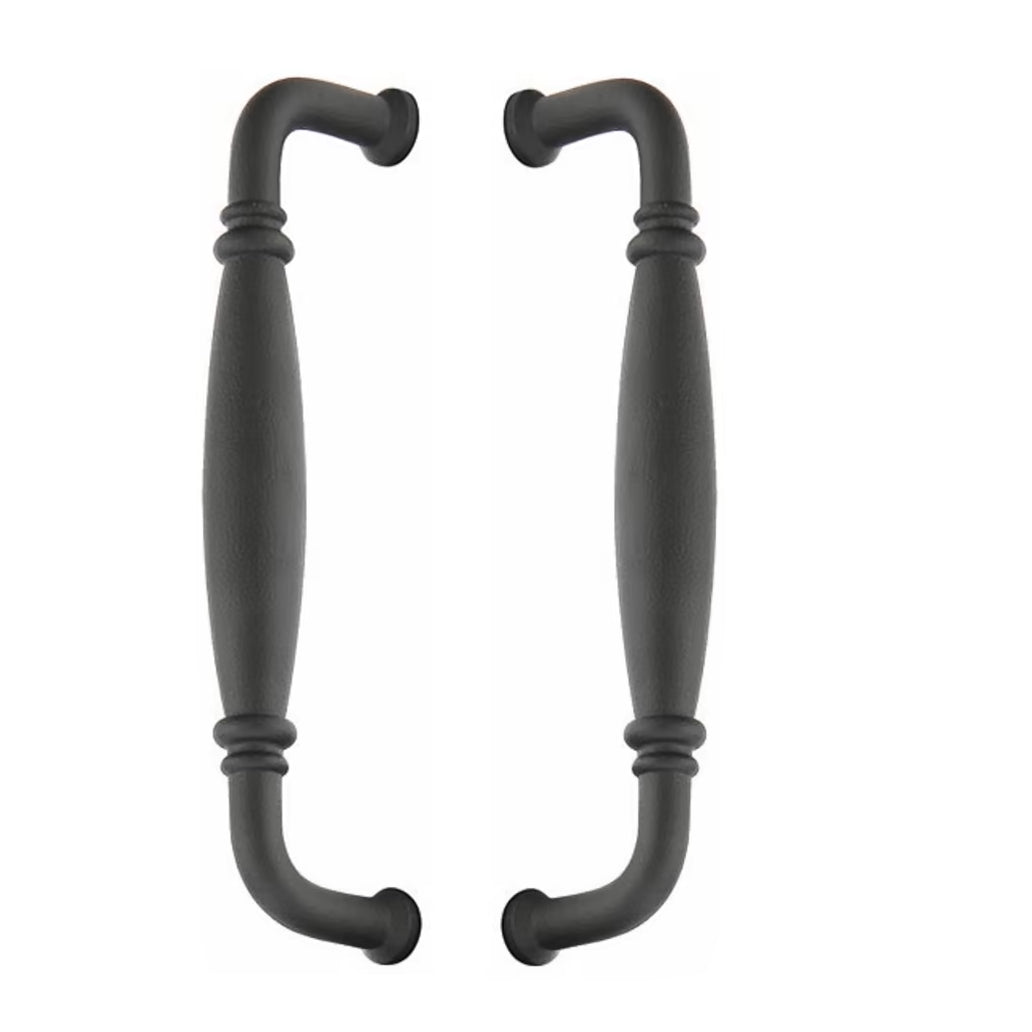

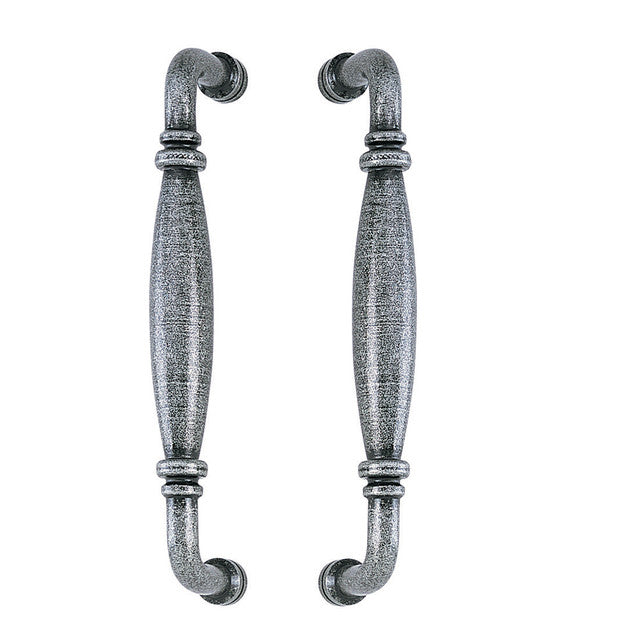

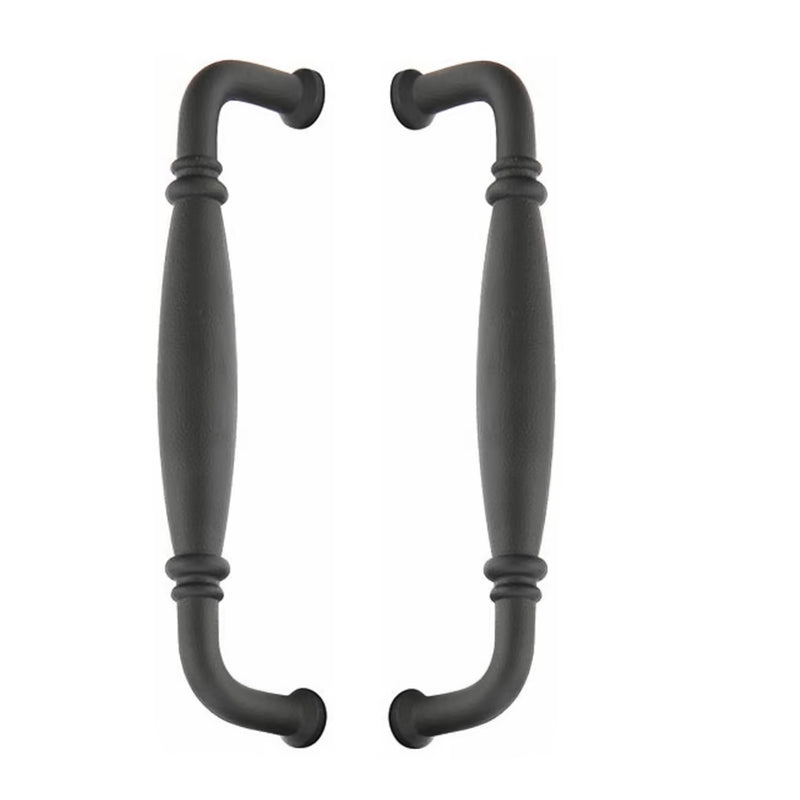

• Back to Back Mount (BTB)
  • Supplied with:
    • (1) Grip with 10-32 threads in the stem
    • (1) Mating grip with 3/8" diameter hole in the stem
    • (2) 3/8" Diameter bevel head screw with 10-32 shaft by 2-1/2" long
    • (2) 10-32 Set screws
