NLGL15T - LD-1000 Ductile Iron Lug Type Butterfly Valve - Gear Operator - 14"
NLGL15T - LD-1000 Ductile Iron Lug Type Butterfly Valve - Gear Operator - 14"
No reviews
Out of stock
Regular price
$3,699.99
Free Shipping on all orders over $89
Most orders ship same day!
Order by phone or Questions? (800) 468 5997

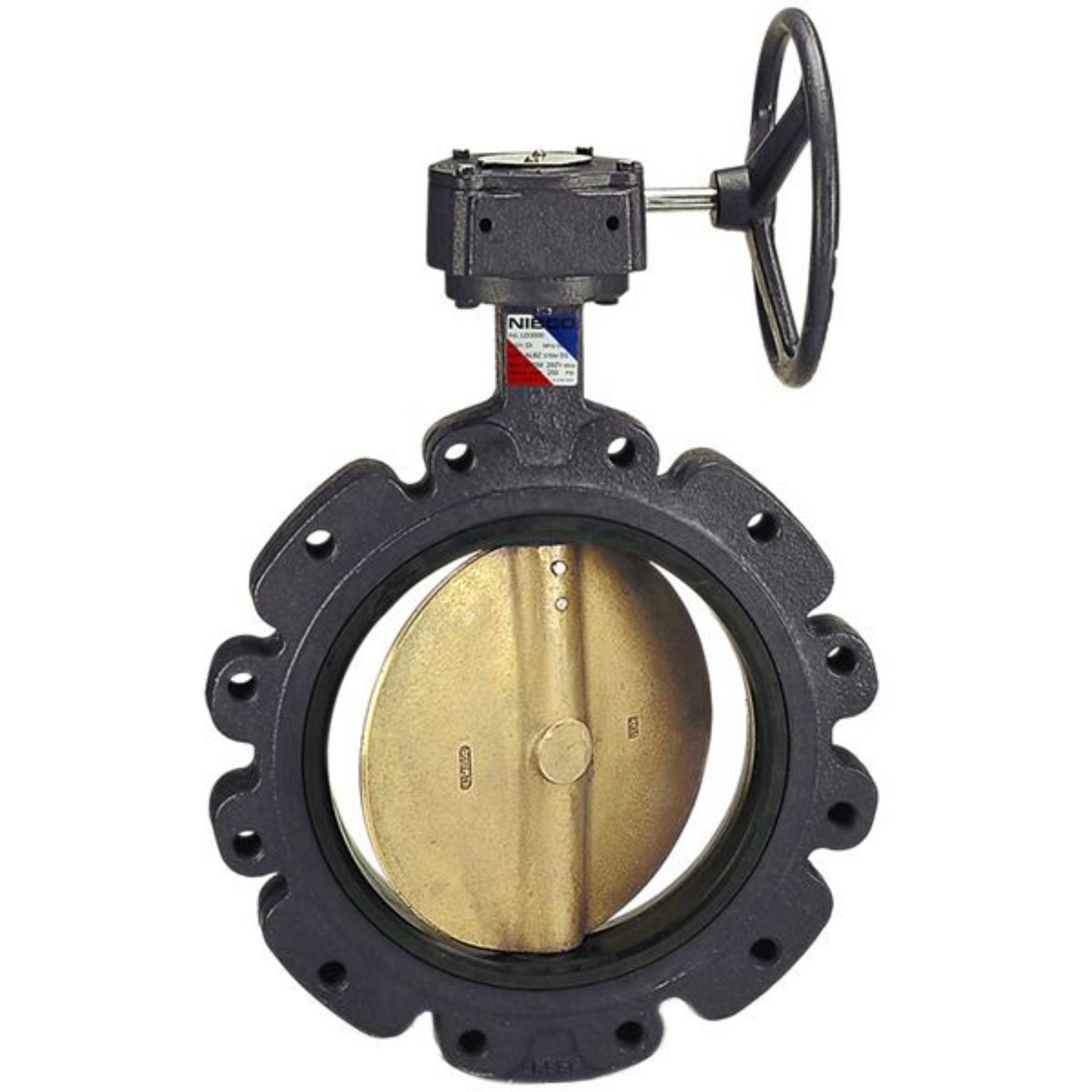

Nibco NLGL15T - LD-1000 Ductile Iron Lug Type Butterfly Valve - Gear Operator - 14"
The NIBCO® lug type butterfly valve provides bubble-tight shutoff at 150 PSI and bi-directional dead-end service without a downstream flange to 150 PSI. The valve is recommended for commercial and some light industrial process applications, in addition to HVAC and hot and cold potable water.
The NIBCO® ductile iron butterfly valve provides ease of operation with quarter-turn (90 degrees) open to close. The EPDM cartridge liner with aluminum bronze disc is recommended for most water applications. An extended neck allows for insulation up to 2 inches. Please refer to NIBCO technical data sheets, chemical resistance guides and catalogs for engineering and installation information. Choose NIBCO® ductile iron butterfly valves for the most specified, versatile and economical valve option in commercial, mechanical and industrial applications. NIBCO® butterfly valves are backed by the NIBCO 5-year 125% limited warranty.
Specifications
- 150 PSI Butterfly Valve
- Type: Butterfly Valve
- Connection Type: L - Lug
- Stem Material: Stainless Steal Stem with Bronze Bushings
- Valve Size: 14"
- Material: DI Ductile Iron
- Disc Material: Aluminum Bronze
- Valve Operator: Gear Operator
- Turns/Operation: Quarter-Turn
- Weight: 154 lbs
