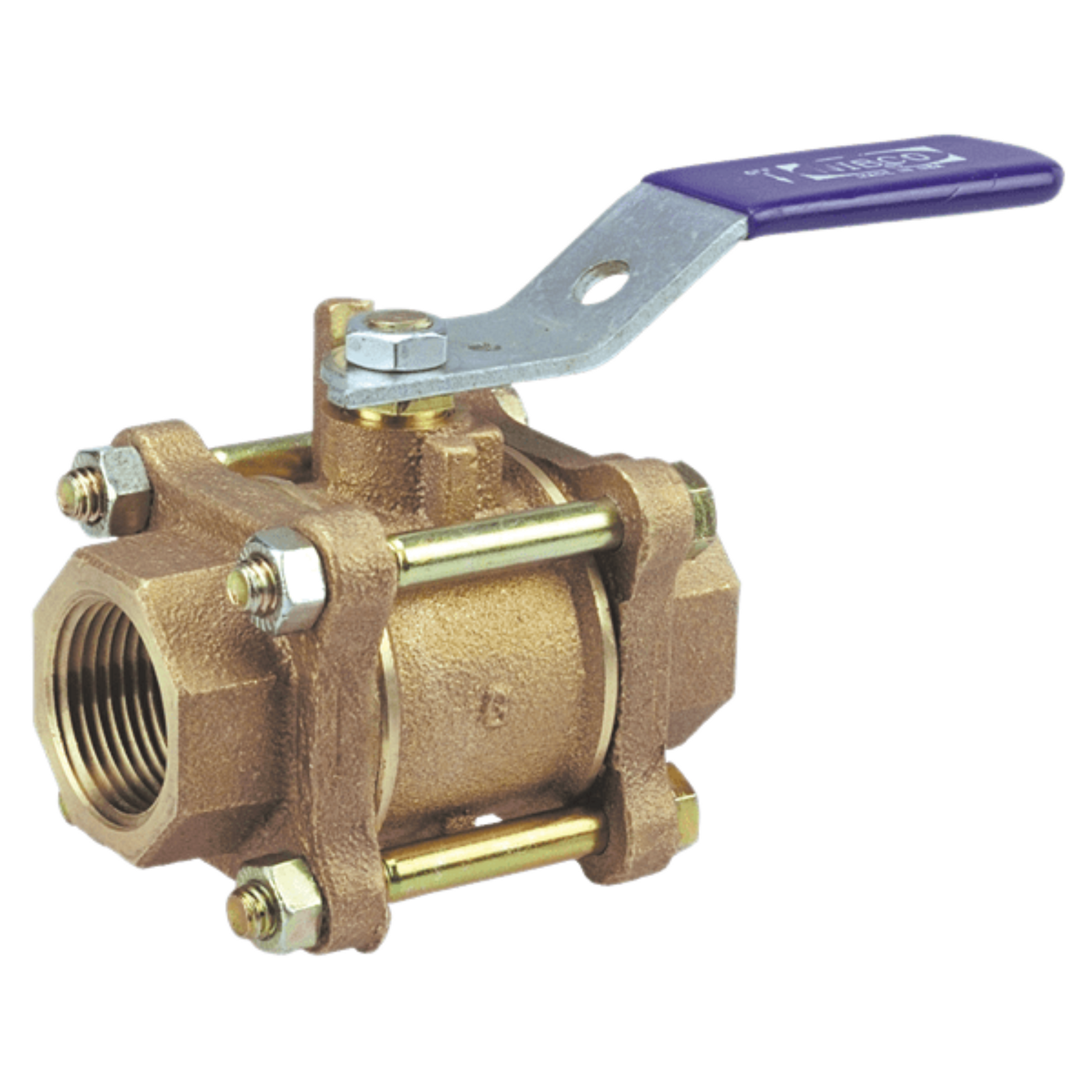

Nibco NL99508 (T-595-Y) - Three-Piece Bronze Ball Valve - Full Port, Threaded End Connections

The Nibco NL99508, also known as the T-595-Y, is a durable three-piece bronze ball valve designed for reliable shutoff and long service life. Featuring full-port flow and threaded end connections, this valve ensures maximum flow with minimal pressure drop. Its three-piece design allows easy disassembly for maintenance without removing the valve body from the pipeline, making it ideal for both commercial and industrial fluid systems.

Features

• Material Number / Model: NL99508 (T-595-Y)
• Valve Type: Three-piece, full-port ball valve
• Material: Dezincification-resistant bronze body
• End Connections: Female NPT (threaded) x Female NPT
• Connection Size: 3/4"
• Port Type: Full port for unrestricted flow
• Pressure Rating: 600 PSI (Cold Working Pressure)
• Temperature Rating: Up to 400 degrees F
• Ball Material: Chrome-plated brass
• Seat/Seal Material: PTFE for tight shutoff
• Stem Material: Silicon bronze
• Operation: Manual lever handle (quarter-turn)
• Design Advantage: Three-piece body allows servicing without pipeline removal
• Performance: Bubble-tight shutoff and low torque operation
• Applications: Water, air, oil, and non-corrosive gas systems
• Compliance: Lead-free compliant for potable water systems
