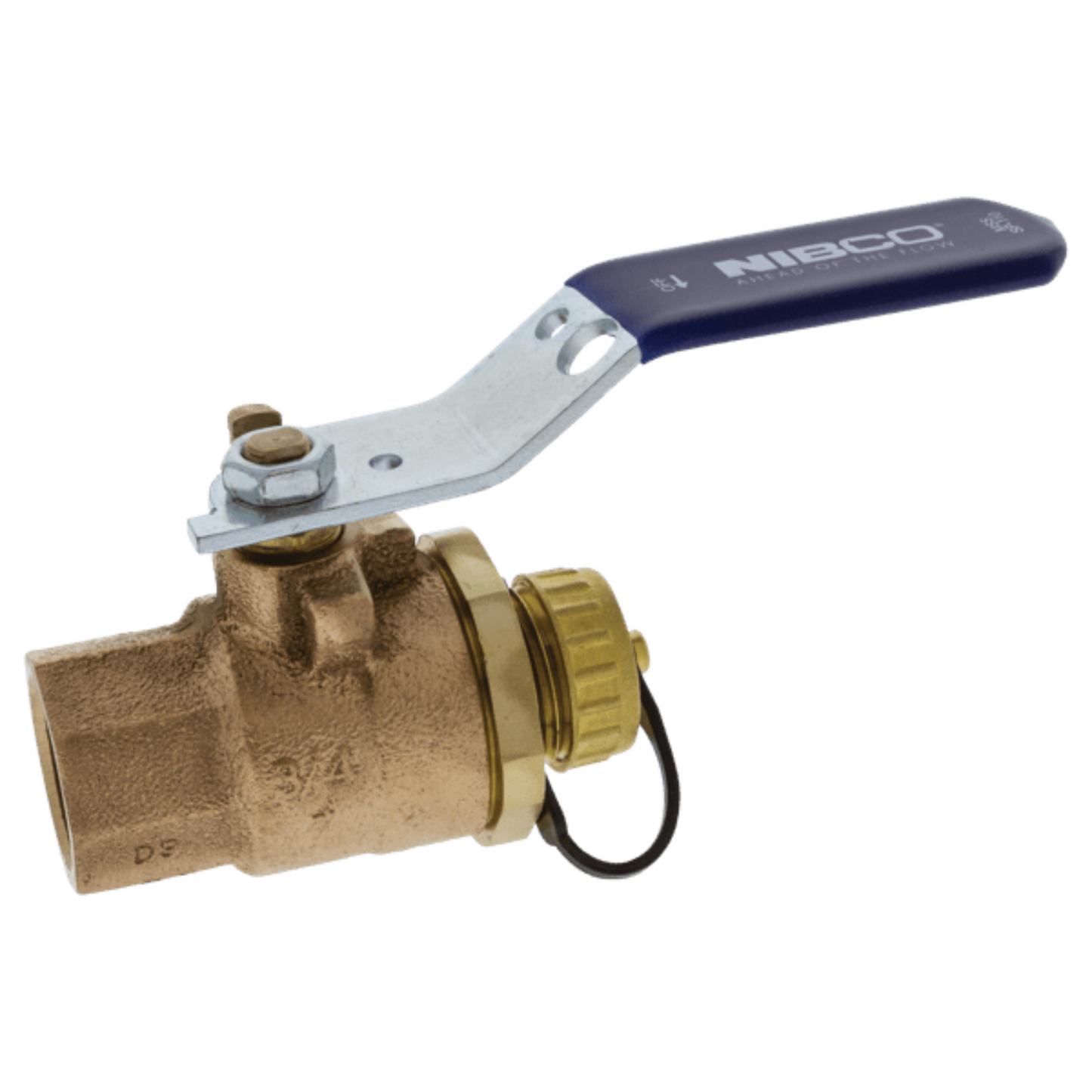

Nibco NL95808 (T-585-70-HC) – Two-Piece Bronze Ball Valve (Threaded & Hose Connection)

The Nibco NL95808, also designated T-585-70-HC, is a two-piece bronze ball valve with threaded and hose-end (hose cap) connections. Designed for dependable shutoff and serviceability, this valve offers full-port flow, quarter-turn operation, and reliable sealing performance. Its construction and connection options make it suitable for many plumbing, mechanical, and industrial systems where a combination of threaded and hose-cap ends is needed.

Features

• Model: NL95808 (T-585-70-HC)
• Valve Design: Two-piece body
• Port Style: Full port (unrestricted flow)
• Connection Types: Female NPT (threaded) end + hose cap (with chain)
• Connection Size: 3/4"
• Body Material: Cast bronze (dezincification-resistant)
• Seat / Seal Material: Reinforced PTFE (RPTFE)
• Ball Material: Brass with hard chrome plating
• Operation: Manual lever handle, quarter-turn
• Pressure Rating: 600 psi (cold working pressure)
• Shutoff Performance: Bubble-tight sealing
• Maintenance / Serviceability: Two-piece body allows internal servicing (seat/ball replacement)
• Applications: Suitable for water, HVAC, mechanical systems, and areas needing a hose-cap connection
• Hose Cap Feature: Includes hose cap and chain for securing cap when not in use
