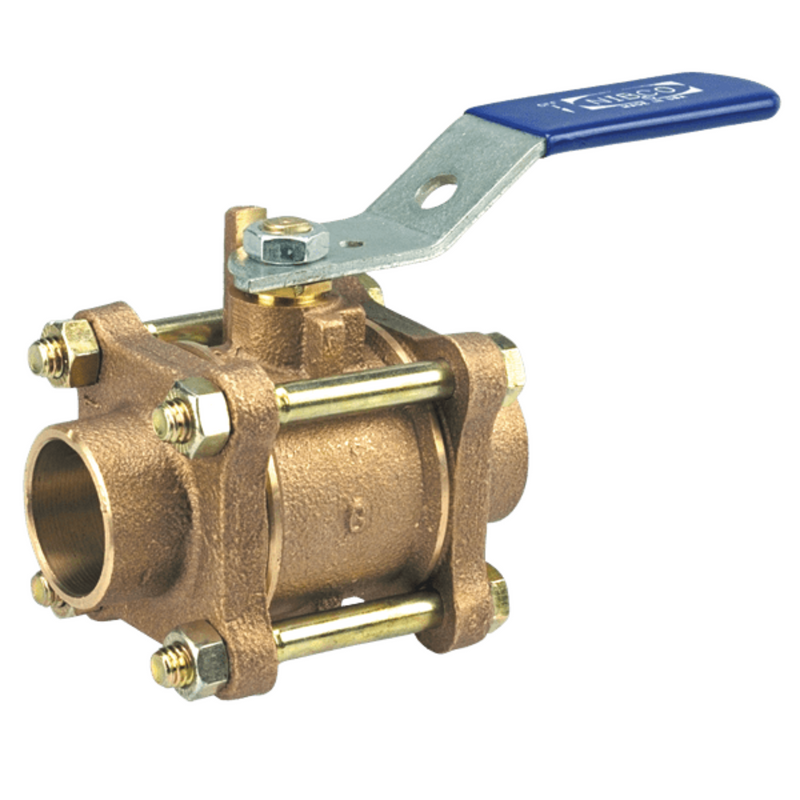

3" S-590-Y Nibco Ball Valve with Blue Handle
3" S-590-Y Nibco Ball Valve with Blue Handle
Nibco

NJ9100F - 3" Solder Three-Piece Ball Valve - S-590-Y - Silicon Bronze

Special Order - Normally ships in 3-4 weeks
SKU: NJ9100F
$528.52

Free Shipping on all orders over $89

Most orders ship same day!

Order by phone or Questions? (800) 468 5997

Nibco NJ9100F - 3" Solder Three-Piece Ball Valve - S-590-Y - Silicon Bronze

The NIBCO bronze ball valve features solder end connections for easy installation. The three-piece valve is ideal for hot/cold water, numerous gas applications, compressed air, vacuum service, condenser and chilled water. May be used for isolation and throttling (half open to full open only). The valve is repairable in-line.

Features:

  • Rated for 600 psi (41.4 bar) non-shock cold working pressure
  • Can handle temperatures up to 400 degrees F
  • Features a conventional port
  • Made with a chrome-plated brass ball and a silicon bronze stem
  • Equipped with a blowout-proof stem for added safety
  • Comes with a standard lever handle
  • Has solder end connections for easy installation
  • Resistant to dezincification, ensuring durability
  • Note: It’s no longer approved for use in U.S. drinking water applications after January 3, 2014
  • Meets the standards of MSS SP-110
  • Connection Type: Sweat / Solder
  • Connection Size: 3"
