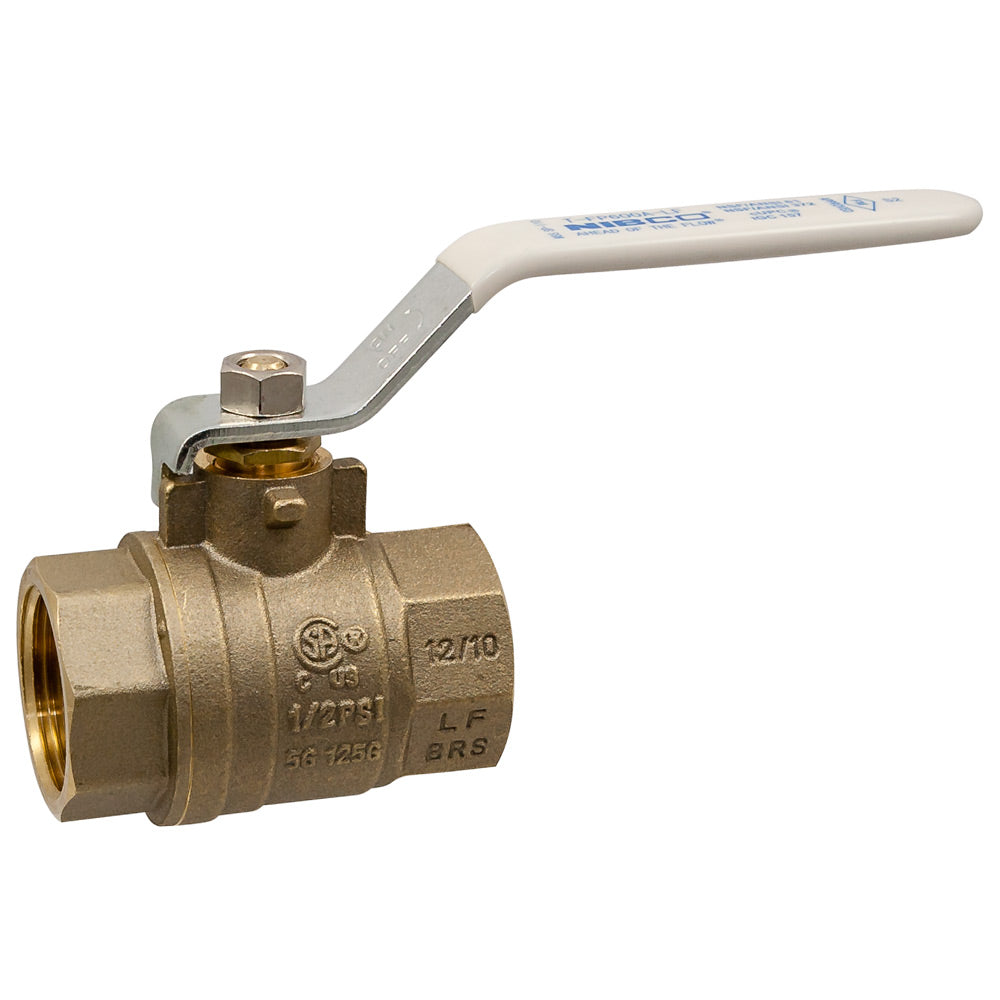

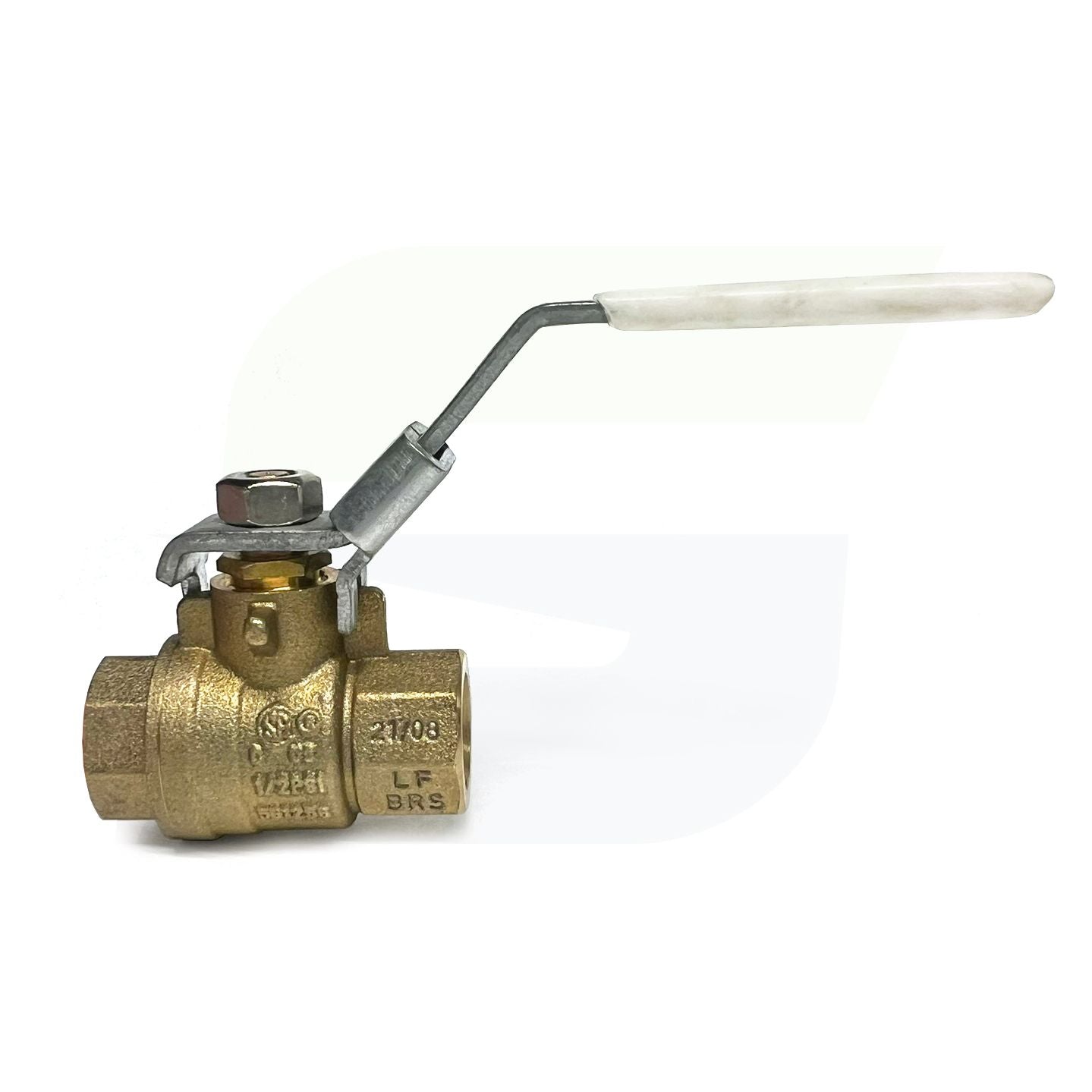

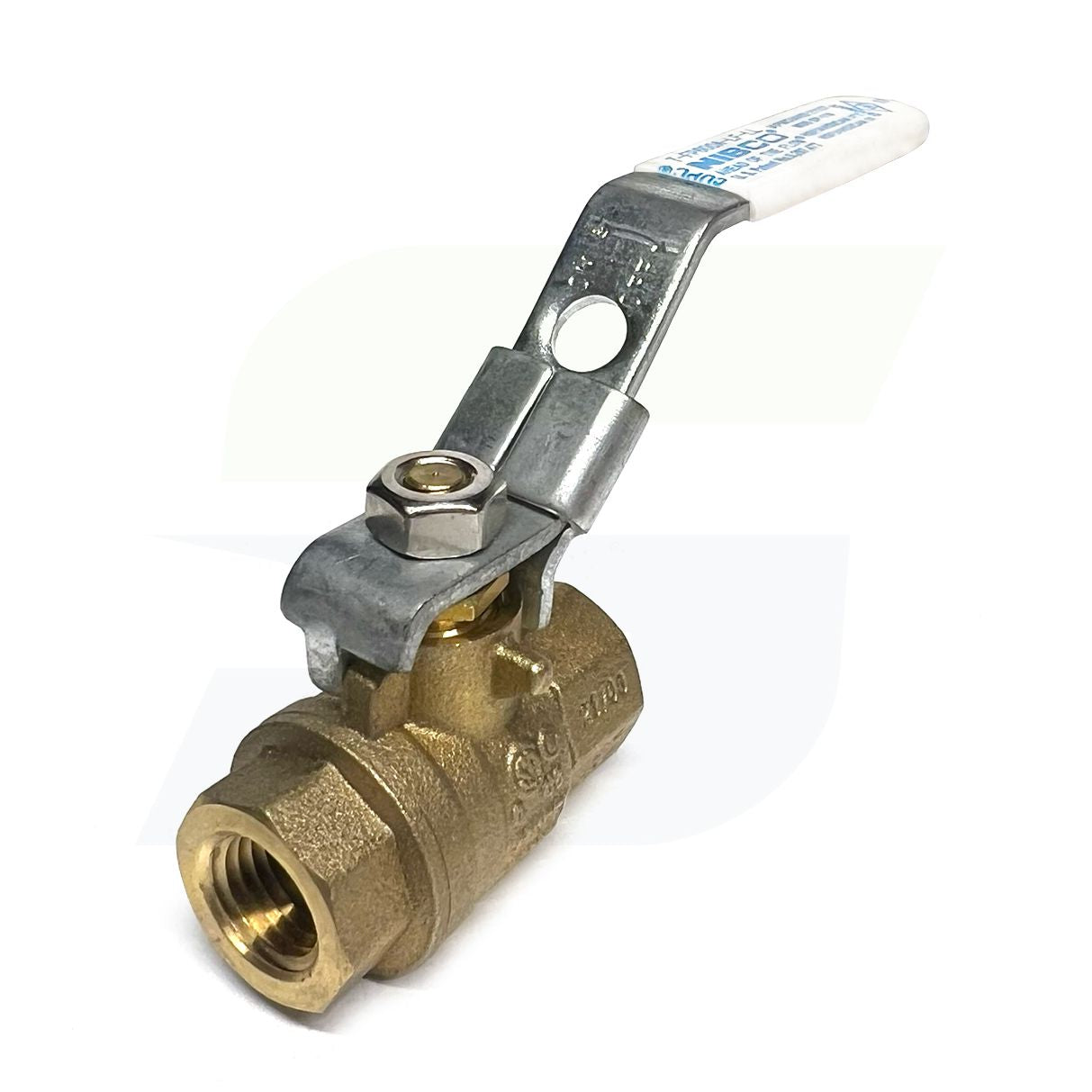

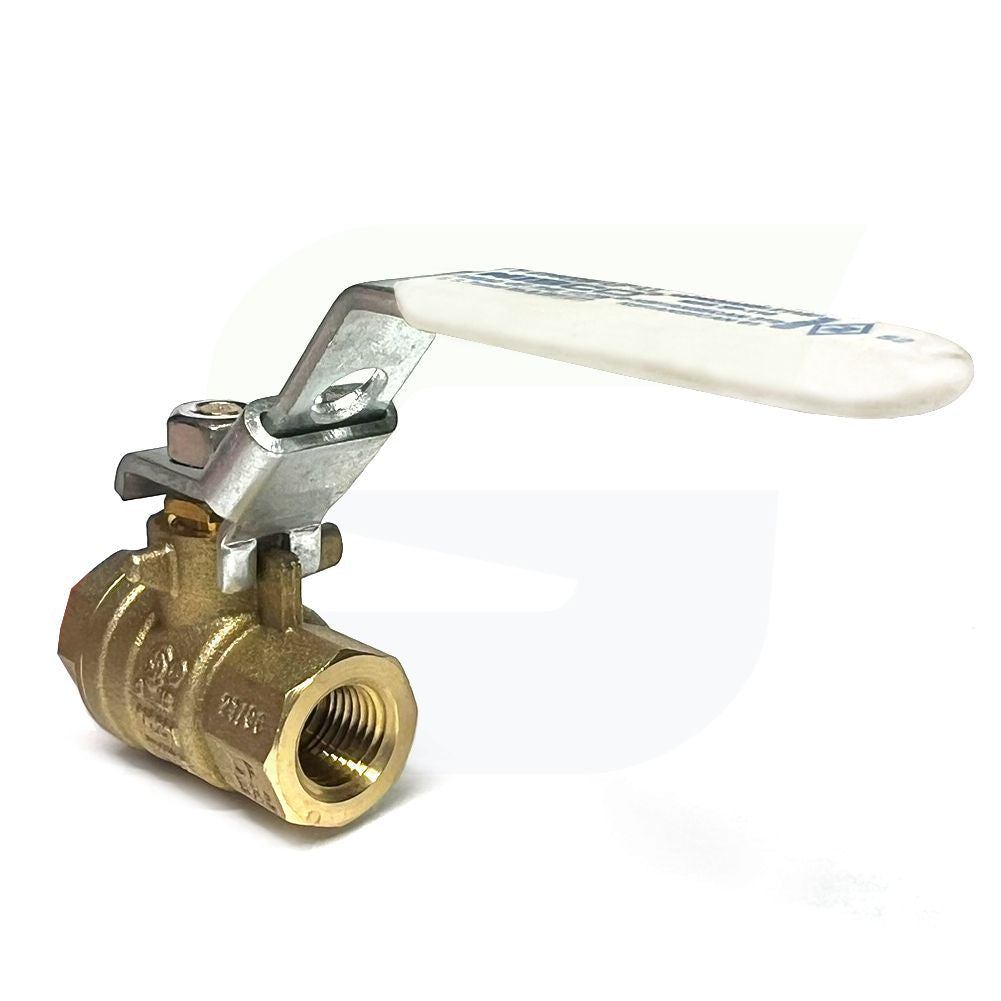

NL998X6 - TFP600A-LF 1/2" Threaded Full Port Ball Valve
No reviews
In stock
Regular price
$16.30
Couldn't load pickup availability
Free Shipping on all orders over $89
Most orders ship same day!
Order by phone or Questions? (800) 468 5997
The NIBCO lead-free brass ball valve provides ease of operation with quarter-turn (90 degrees) open to close. The two-piece valve features threaded end connections for easy installation. Please refer to NIBCO technical data sheet, valve selection guide and catalog for engineering and installation information. Choose NIBCO ball valves for the most specified, versatile and economical valve option in commercial and residential applications. NIBCO specialty valves are backed by a NIBCO INC. 2-year limited warranty.
- Valve pressure rating 600 psi/41.4 bar non-shock cold working pressure (1/4" to 2")
- Valve pressure rating 400 psi/27.6 bar non-shock cold working pressure (2-1/2" to 4")
- Full port
- Blowout-proof stem
- Standard lever handle
- Threaded end connections
- IAPMO listed to NSF/ANSI-61-8, NSF/ANSI-372 and UPC-IGC-157
- CSA ANSI Z21.15 / CSA 9.1 (1/4" to 4")
- CSA ASME B16.44: 5 psig (maximum) (1/4" to 4")
- CSA ASME B16.33: 125 psig (maximum) (1/4" to 4")
- CSA CAN / CGA 3.16 (1/4" to 4")
- CSA CGA CR91-002: 1/2 psig, 2 psig, and 5 psig (1/4" to 4")
- FM 1140 approved 175 wwp (1/4" to 2")
- UL 1477 (YQNZ): Compressed gas shutoff valves ÃÆâ€ââ€Ã…¾¢ÃƒÆ’†â€™Ãƒâ€šÃ‚¯ÃÆâ€ââ€Ã…¾¢ÃƒÆ’¢â‚¬Å¡Ãƒâ€šÃ‚¿ÃÆâ€ââ€Ã…¾¢ÃƒÆ’¢â‚¬Å¡Ãƒâ€šÃ‚½ 250 psi (1/4" to 4")
- UL 842 (YRBX): Flammable liquid shutoff valves ÃÆâ€ââ€Ã…¾¢ÃƒÆ’†â€™Ãƒâ€šÃ‚¯ÃÆâ€ââ€Ã…¾¢ÃƒÆ’¢â‚¬Å¡Ãƒâ€šÃ‚¿ÃÆâ€ââ€Ã…¾¢ÃƒÆ’¢â‚¬Å¡Ãƒâ€šÃ‚½ 250 psi (1/4" to 4")
- UL 842 (YRPV): Gas shutoff valves ÃÆâ€ââ€Ã…¾¢ÃƒÆ’†â€™Ãƒâ€šÃ‚¯ÃÆâ€ââ€Ã…¾¢ÃƒÆ’¢â‚¬Å¡Ãƒâ€šÃ‚¿ÃÆâ€ââ€Ã…¾¢ÃƒÆ’¢â‚¬Å¡Ãƒâ€šÃ‚½ 250 psi (1/4" to 4")
- UL 842 (MHKZ): Manual valves ÃÆâ€ââ€Ã…¾¢ÃƒÆ’†â€™Ãƒâ€šÃ‚¯ÃÆâ€ââ€Ã…¾¢ÃƒÆ’¢â‚¬Å¡Ãƒâ€šÃ‚¿ÃÆâ€ââ€Ã…¾¢ÃƒÆ’¢â‚¬Å¡Ãƒâ€šÃ‚½ 250 psi (1/4" to 4")
- UL 125 (YSDT): LP-Gas shutoff valves ÃÆâ€ââ€Ã…¾¢ÃƒÆ’†â€™Ãƒâ€šÃ‚¯ÃÆâ€ââ€Ã…¾¢ÃƒÆ’¢â‚¬Å¡Ãƒâ€šÃ‚¿ÃÆâ€ââ€Ã…¾¢ÃƒÆ’¢â‚¬Å¡Ãƒâ€šÃ‚½ 250 psi (1/4" to 4")
- UL Subject 258 (VQGU): Trim and drain valves (1/4" to 2")
- Potable Water Code: LL Compliant NSF/ANSI 372
- Classification: CPVC-CTS Ball Valves [Alias]
- All Basic Material: Lead-Free Brass
- Type of Valve: Ball Valve
- Nominal Size 1: 1/2 in.
- Valve Ball Body Type: Two-Piece
- Valve Ball Operator: CS Standard Lever Handle
- Valve Ball Port Style: Full Port
- Valve End Connection Type: T -- Female NPT Thread (FIPT)
- Turns Operations: Quarter-Turn
