NL9500A - 1" Threaded Two-Piece Full Port Bronze Ball Valve - T58570
No reviews
In stock
Regular price
$46.24
Free Shipping on all orders over $89
Most orders ship same day!
Order by phone or Questions? (800) 468 5997

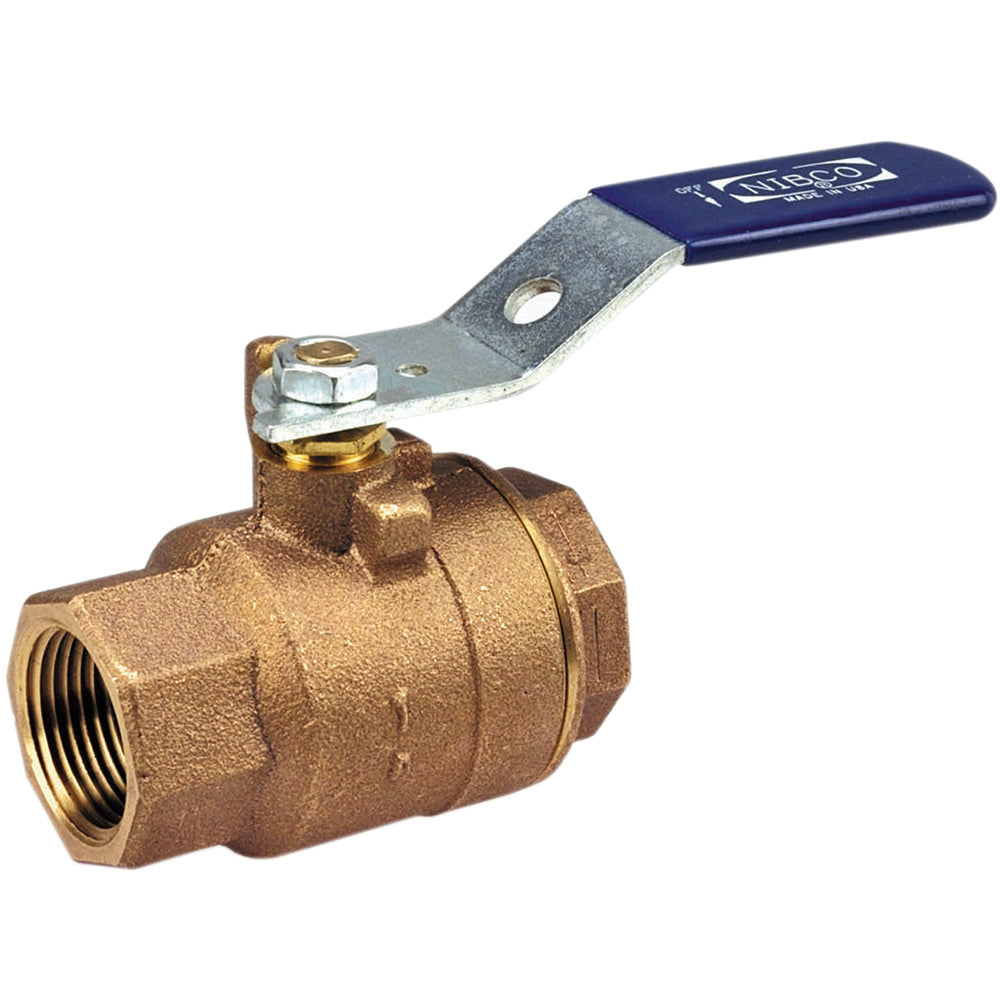

Nibco NL9500A - 1" Threaded Two-Piece Full Port Bronze Ball Valve - T58570
The Nibco NL9500A is a durable 2-piece full port bronze ball valve designed for dependable shutoff in commercial, mechanical, and industrial systems. Featuring a 1/2-inch threaded connection and full-port design for unrestricted flow, this valve provides smooth quarter-turn operation and bubble-tight sealing. The cast bronze body, reinforced PTFE seats, and blowout-proof stem ensure long service life in demanding applications such as water, air, and low-pressure steam systems.
Features
- Manufacturer: Nibco
- Part Number: NL9500A
- Size: 1/2 inch
- Connection Type: Female NPT Threaded
- Material: Bronze body with chrome-plated brass ball
- Design: Two-piece, full port
- Pressure Rating: 600 psi (non-shock, cold working pressure)
- Temperature Rating: Up to 400 degrees F
- Seat Material: Reinforced PTFE for chemical resistance
- Stem Design: Blowout-proof for added safety
- Operation: Quarter-turn handle for easy shutoff
- Application: Suitable for water, air, and low-pressure steam systems
