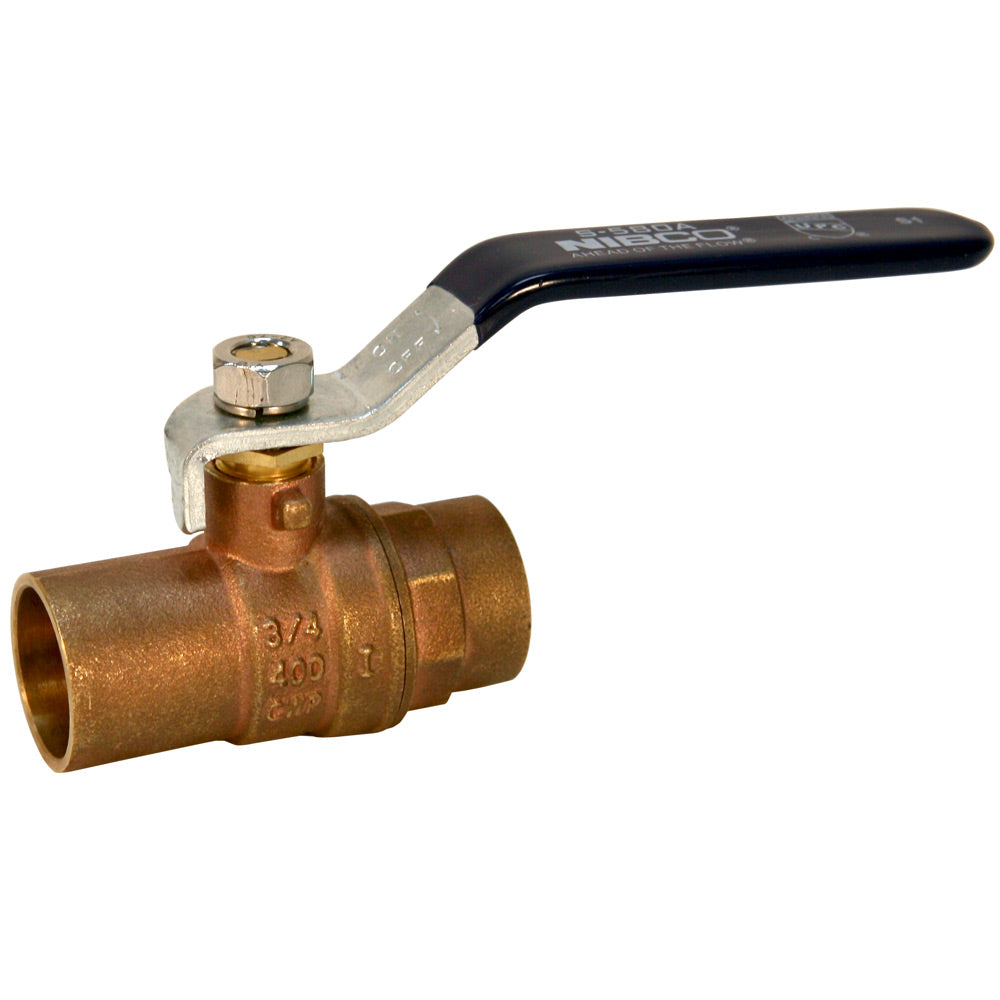

Nibco S-580-A – Two-Piece Brass Ball Valve, Standard Port, Solder-Cup Ends

The Nibco S-580-A is a reliable two-piece brass ball valve designed with standard (conventional) porting and female solder (sweat) cup connections. Engineered for general plumbing and light commercial systems, it delivers a balance of ease of installation, effective flow control, and durable performance.

Features

• Model / Series: S-580-A
• Connection Type: Female solder (sweat) × female solder (sweat)
• Valve Design: Two-piece body
• Port Style: Standard (conventional) port
• Body Material: Forged brass
• Stem Material: Brass
• Ball Material / Finish: Brass with chrome plating
• Seat / Seal Material: PTFE
• Operation: Quarter-turn lever handle
• Pressure Rating (Cold Working): 400 PSI
• Temperature Rating: Up to 400 degrees F
• Design Features:
  • Blowout-proof stem
  • Two-piece assembly allows service of internal parts
  • Standard port bore balances flow and sealing
• Applications: Domestic plumbing, HVAC, water, compressed air, non-corrosive fluids
• Notes / Installation Tip: Suitable for soft-soldering into lines using solder with a melting point not exceeding about 470 degrees F
