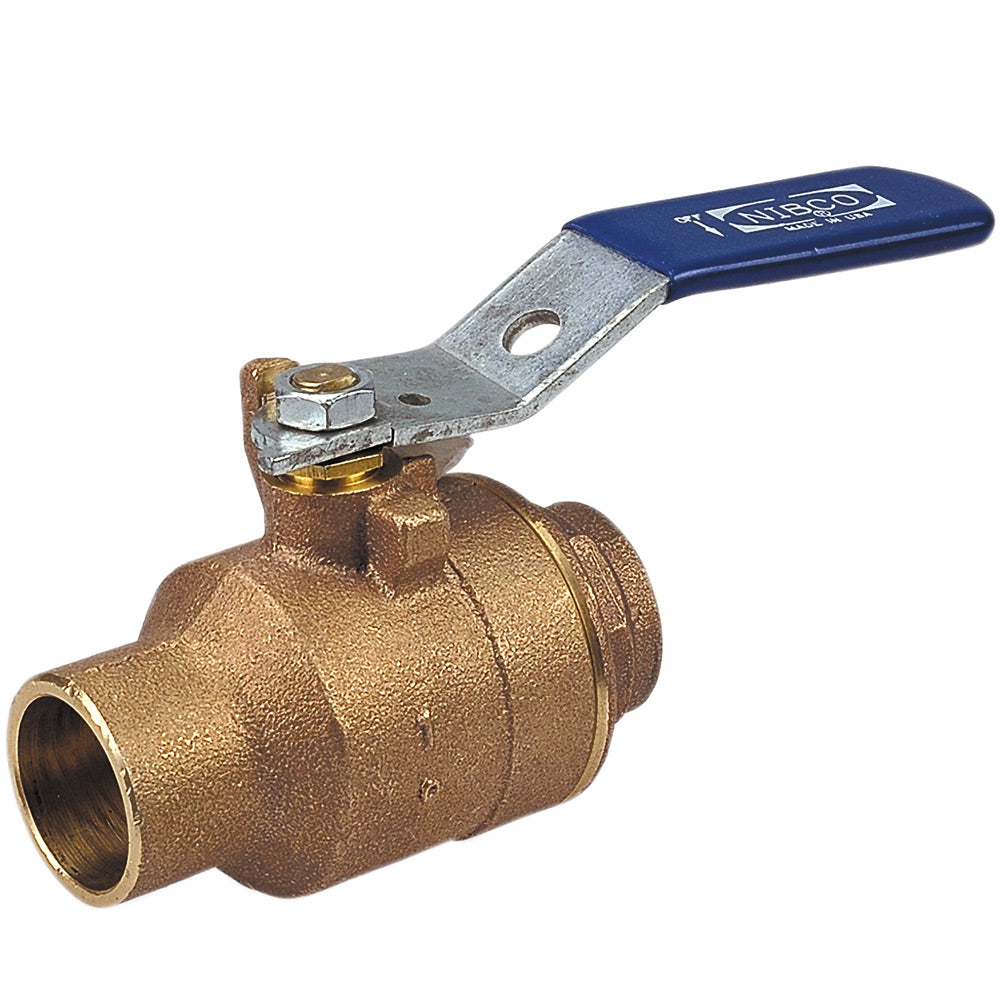

Nibco NJ83008 - 3/4" Two-Piece Full Port Bronze Ball Valve - Solder x Solder

The Nibco NJ83008, model S-585-70, is a two-piece, full-port bronze ball valve with female solder cup (sweat) end connections. It is designed for reliable, low-torque operation in plumbing, HVAC, and light industrial systems. With a robust construction and bubble-tight sealing, the valve offers long-term performance in hot and cold water, compressed air, and non-corrosive gas applications.

Features

• Model / Material Number: NJ83008 (S-585-70)
• Connection Size: 3/4" (female solder x female solder)
• Valve Type / Body Style: Two-piece body design
• Port Style: Full port (unrestricted flow through the bore)
• Body Material: Dezincification-resistant cast bronze
• Stem Material: Silicon bronze
• Seal / Seat Material: Reinforced PTFE (RPTFE)
• Ball Material / Finish: Brass with hard chrome plating
• Operation: Quarter-turn
• Shutoff Performance: Bubble-tight sealing
• Pressure Rating (Cold Working): 600 psi
• Working Temperature: Up to 400 degrees F
• Blowout-proof stem
• Bronze trim
• Two-piece construction for servicing internal parts (seats/ball)
• Applications: Hot and cold domestic water, HVAC systems, low-pressure steam, compressed air, natural gas (non-corrosive), and other commercial / light industrial uses
• Standards / Compliance: MSS SP-110 compatibility
• Warranty / Assurance: Backed by Nibco limited warranty
