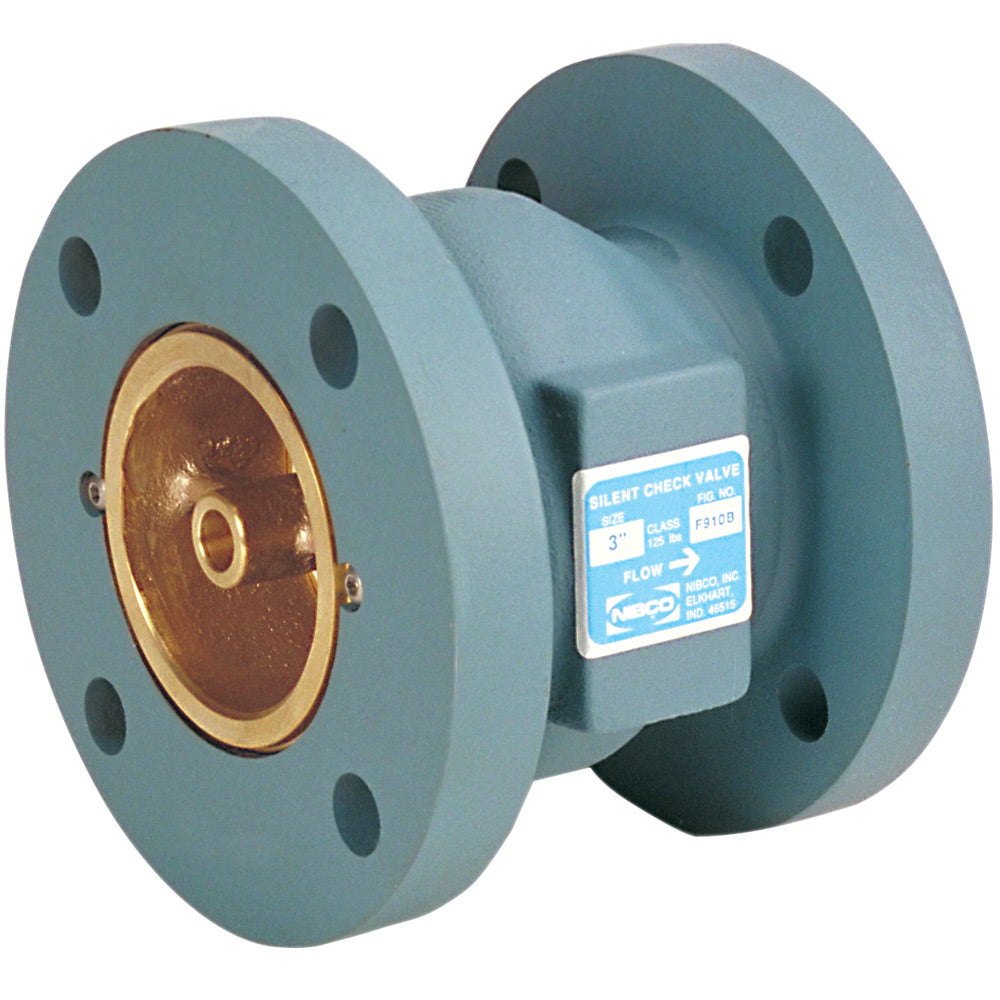

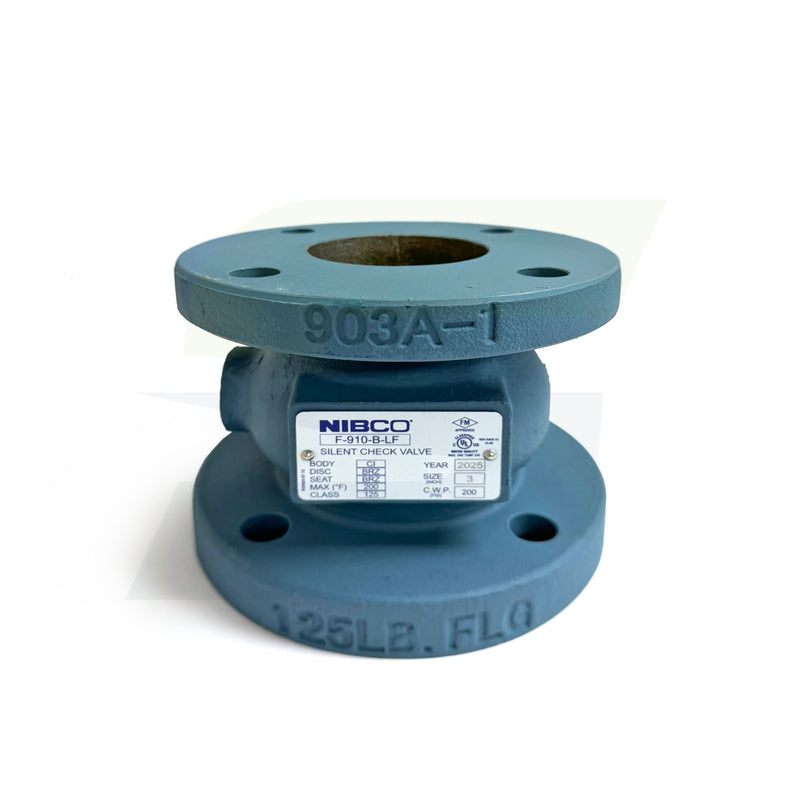

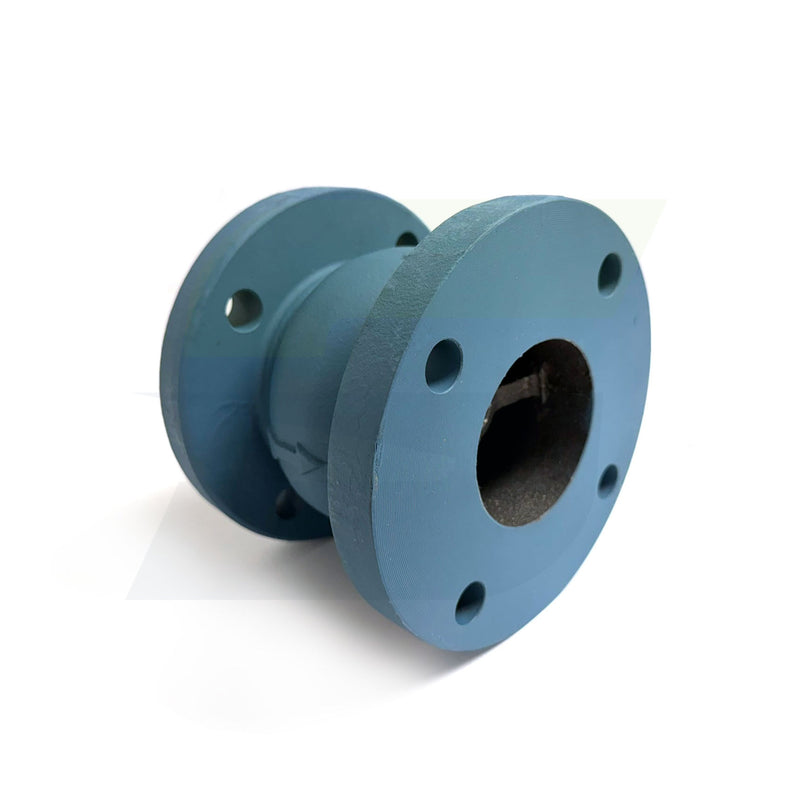

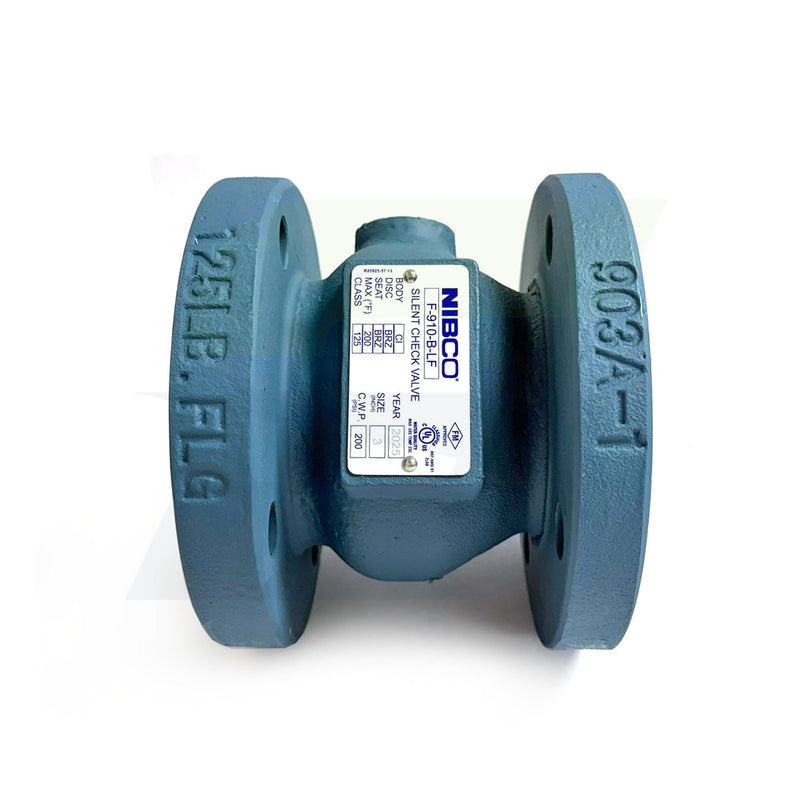

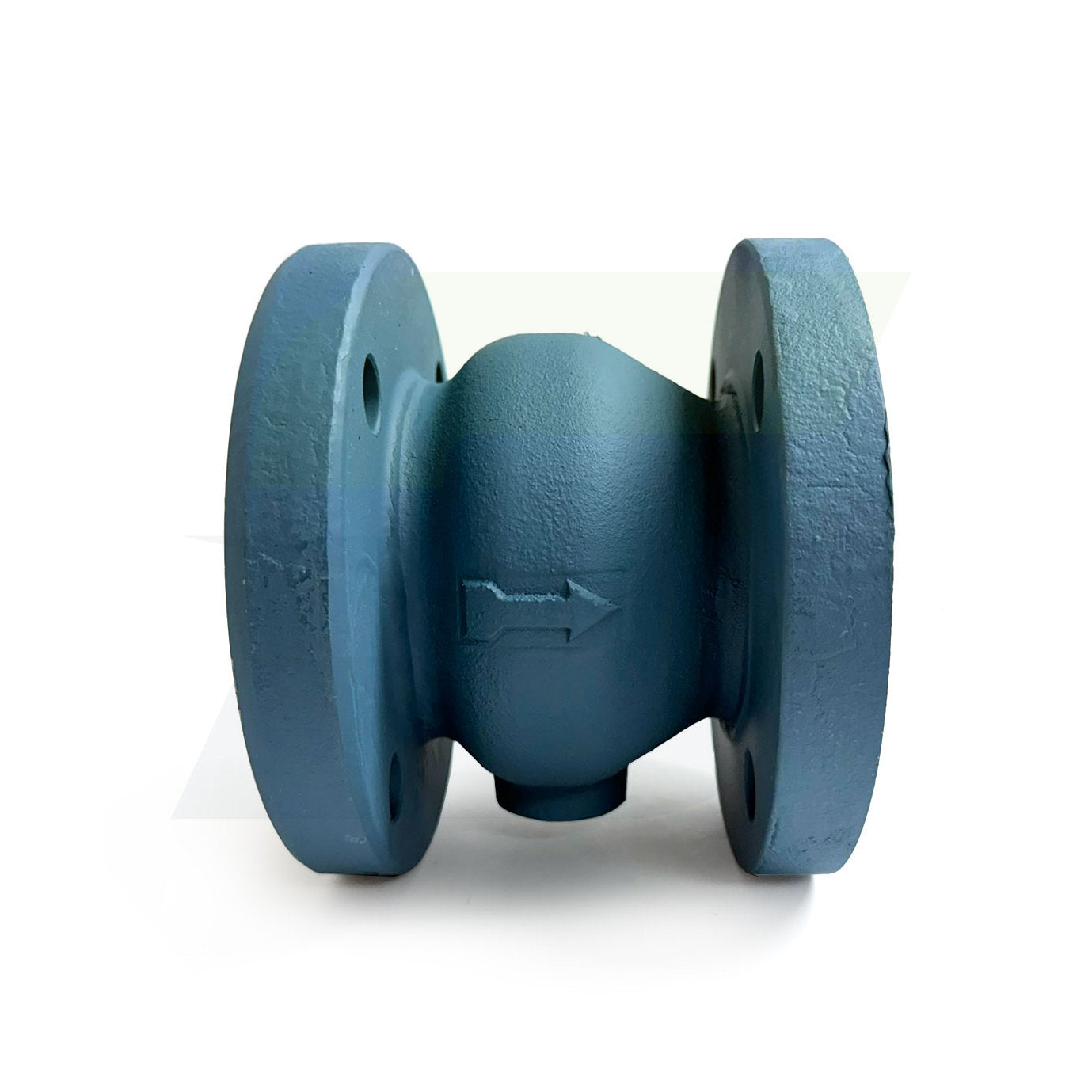

NHDY0XF - 3" Flanged Silent Check Valve - F-910B-LF
Free Shipping on all orders over $89
Most orders ship same day!
Order by phone or Questions? (800) 468 5997
I recently purchased a 3” Flanged Silent Check Valve from SupplyStop and couldn’t be more pleased. Not only was I able to find it at a considerably lower price compared to other online competitors, but the savings were significant. The ordering process was simple, and everything arrived as expected. I truly appreciate the value and service SupplyStop provides and look forward to continuing my business with them. Thank you, SupplyStop!
Wonderful business partner, everything was completed with no delays."SUPURB"
Check valves prevent backflow by automatically closing when fluid reverses direction. Wafer checks may be installed in horizontal positions (or vertical with flow moving up). Please refer to NIBCO technical data sheets, chemical resistance guides and catalogs for engineering and installation information. Choose NIBCO check valves for the most specified, versatile and economical valve option in commercial, mechanical and industrial applications. NIBCO check valves are backed by the NIBCO 5-year 125% limited warranty.
- Valve pressure rating 200 psi/13.8 bar non-shock cold working pressure
- Maximum temperature 200 degree F/ 93 degree C
- Renewable seat and disc
- Spring actuated (1/2 psi cracking pressure)
- Class 250 flanged end connections
- Lead-free*
- Conforms to MSS SP-125
- Conforms to MIL-V-18436F
- FM approved (2-1/2" to 10")
- NSF/ANSI 61 and NSF/ANSI 372
- Potable Water Code: LL Compliant NSF/ANSI 372
- Classification: Push Metal Couplings
- All Basic Material: Cast Iron
- Type of Valve: Check Valve
- Nominal Size: 3 in.
- Seat Seal Material: Bronze
- Valve End Connection Type: F -- Flanged
- Valve Pressure Rating (CWP): 200 PSI / 13.8 Bar CWP
- Turns Operations: Non-Manual
