60-103901-01 - 140,000 BTU Gas Valve - 1/2" NPT x 1/2" NPT - 1 Stage
60-103901-01 - 140,000 BTU Gas Valve - 1/2" NPT x 1/2" NPT - 1 Stage
1 review
In stock
Regular price
$49.10
Couldn't load pickup availability
Free Shipping on all orders over $89
Most orders ship same day!
Order by phone or Questions? (800) 468 5997
J
James M.M. (Las Cruces, US) When ordered it was apparently wrong one?
Different outlet connection to the control valve ?

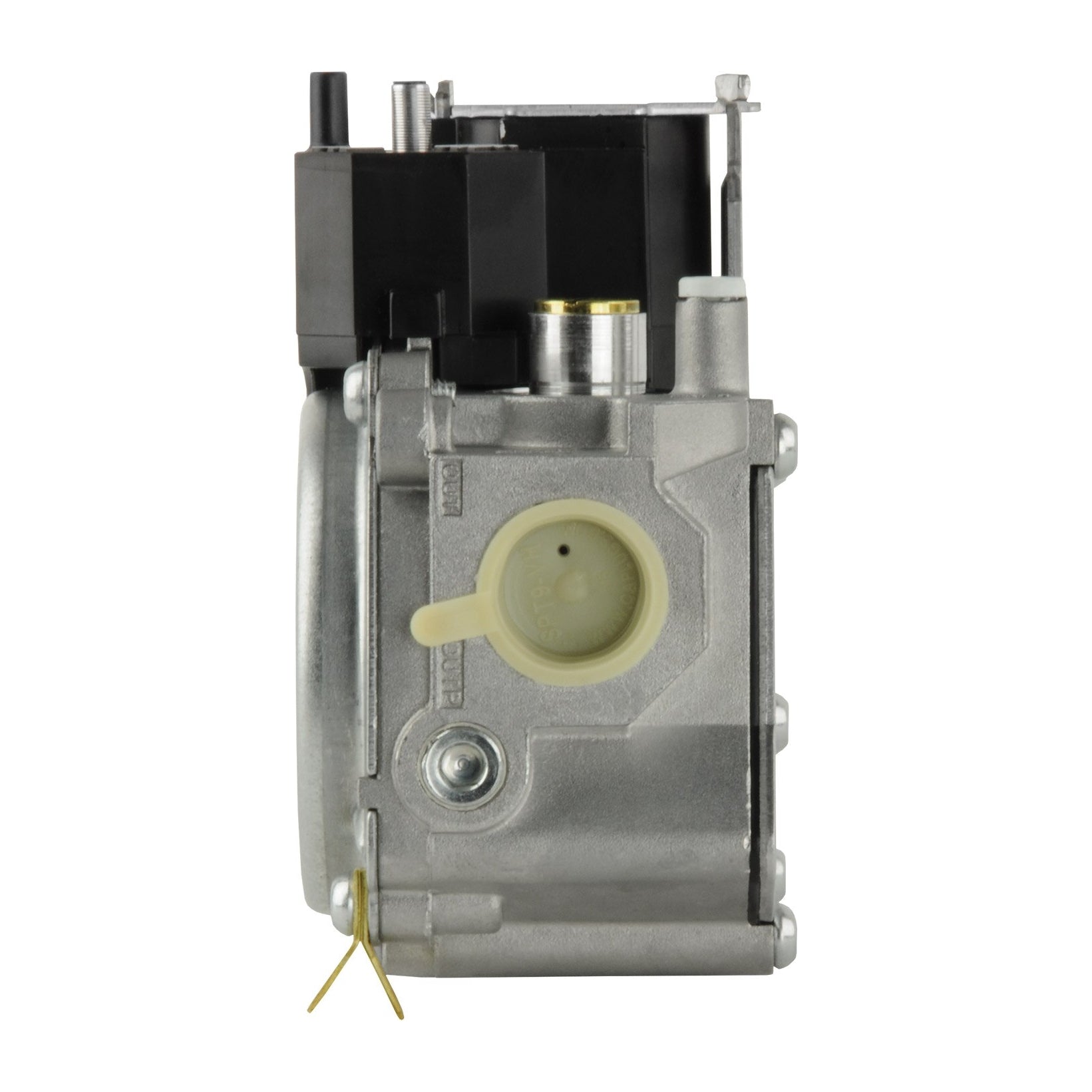

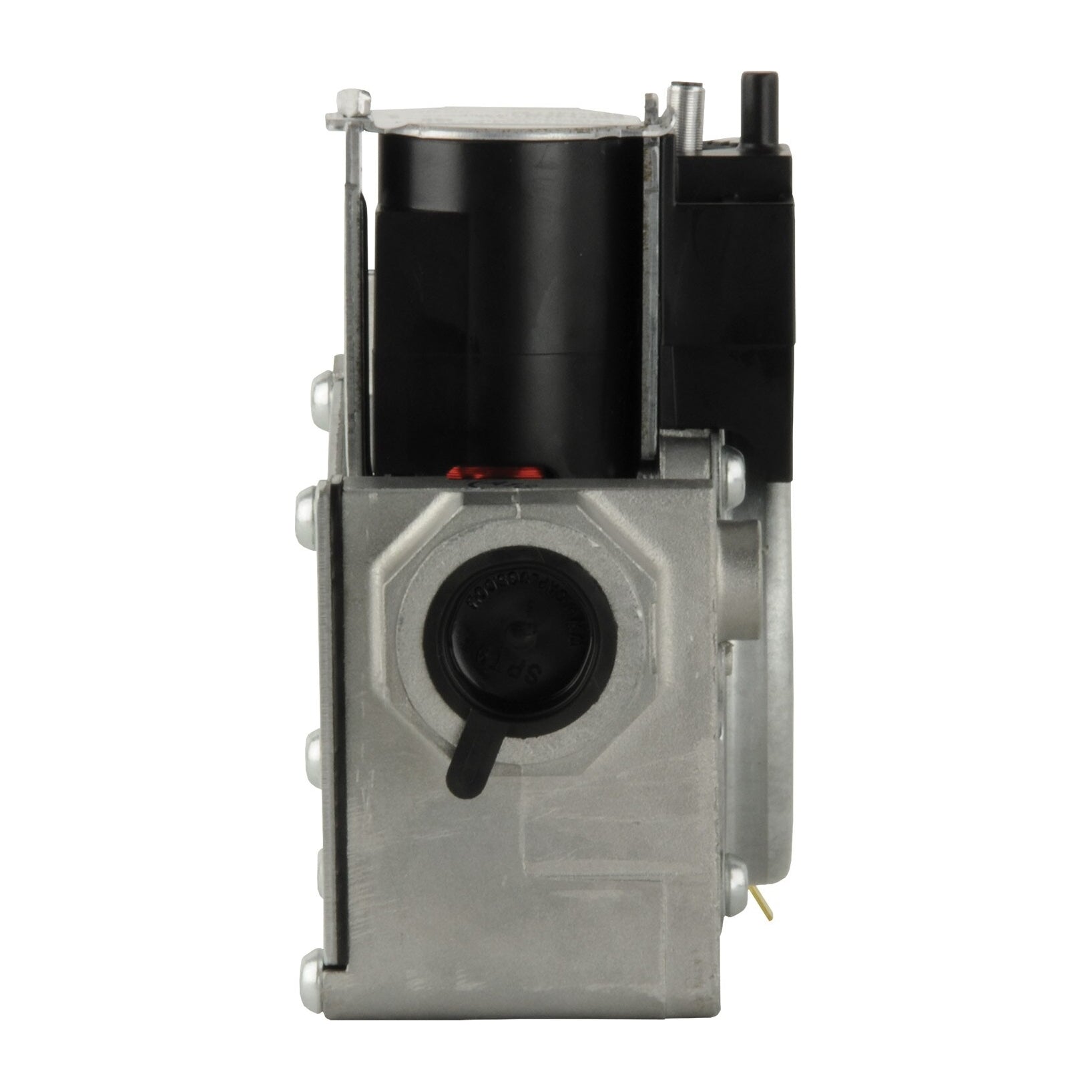

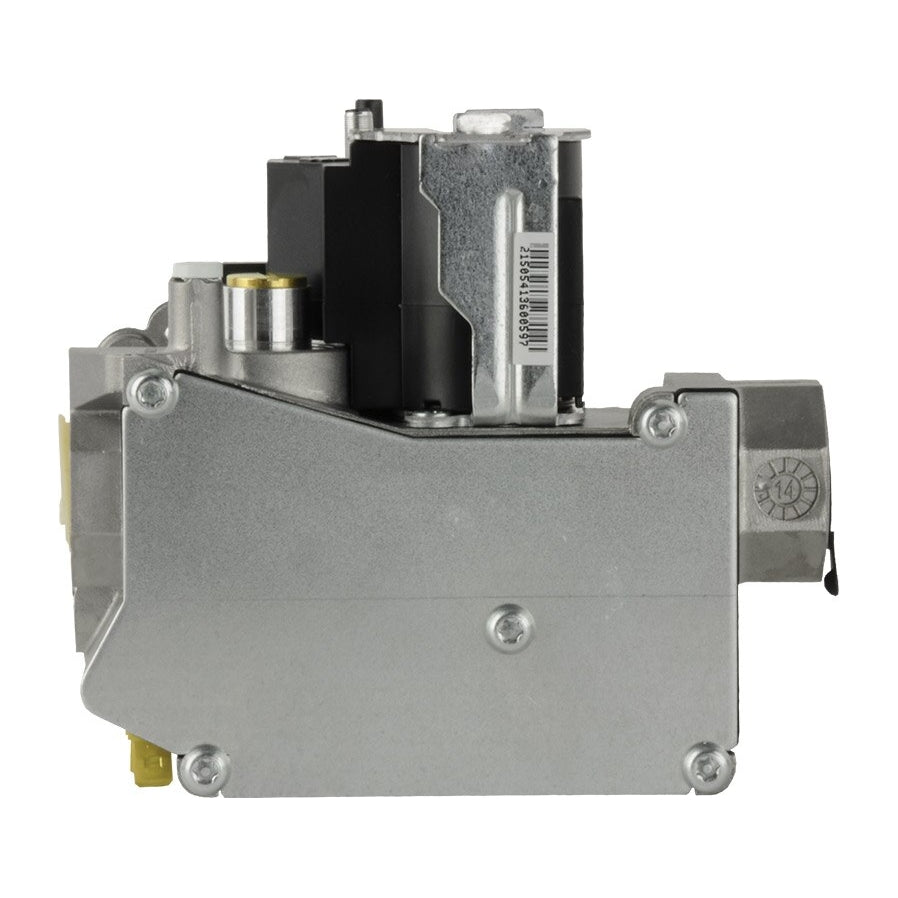

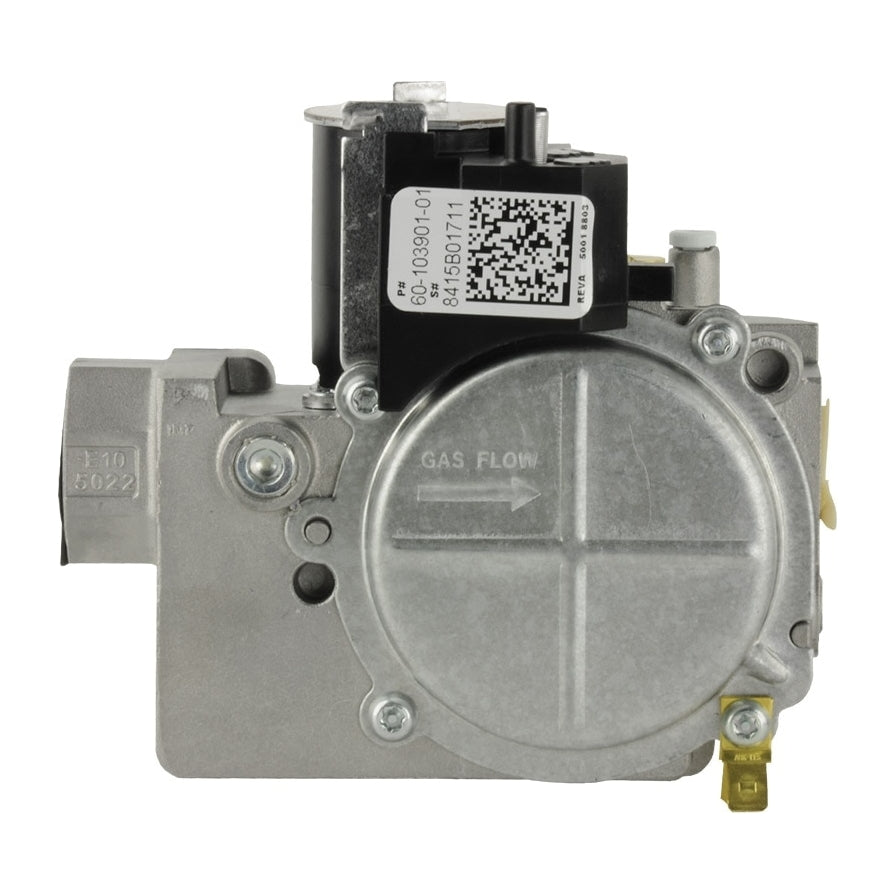

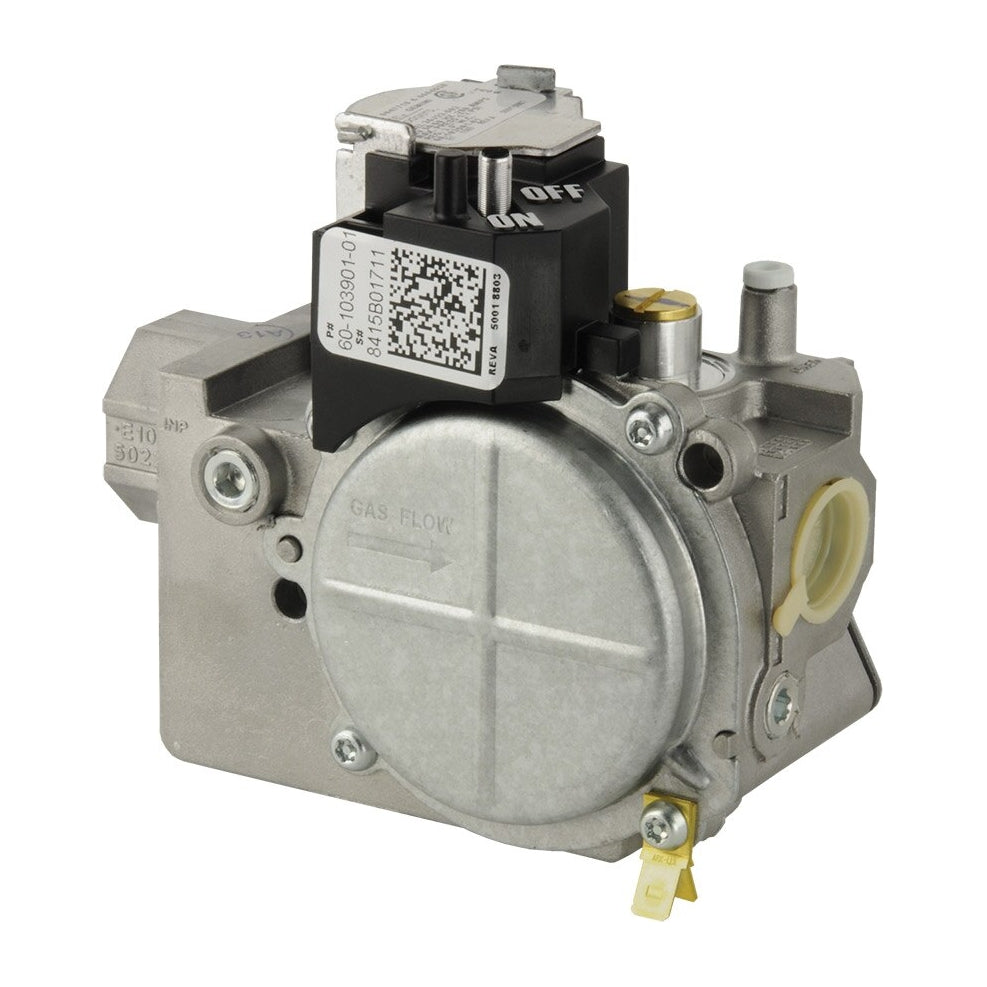

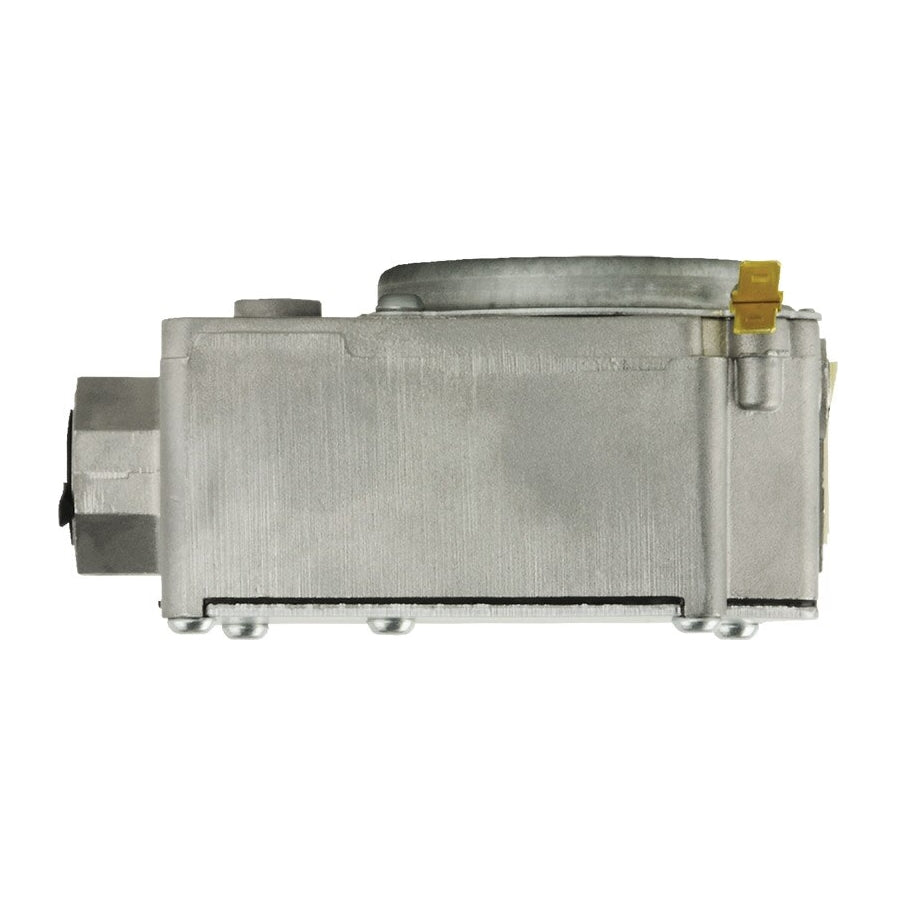

Rheem / White Rodgers 60-103901-01 Gas Valve - 140,000 BTU/HR, Natural Gas, 1/2 In. NPT Input X 1/2 In. NPT Output, 1 Stage
Electronic Ignition Gas Valve. The Versatile 36J Series Combination Gas Valve covers a wide range of applications. Designed for use with common ignition systems (HSI/DSI).
Features
- Convertible natural or LP gas
- Adjustable regulator(s)
- Inlet/outlet screens
- Electric on-off switch
- Pressure taps
- CSA approved
Specifications
- Capacity (BTU/HR @ 1 in. W.C. Pressure Drop): 140,000
- Fuel Type: Natural Gas
- Ignition System: Hot Surface / Direct Spark
- Input Fitting Size NPT (in.): 1/2
- LP Conversion Kit Included: No
- LP Spring Kit: 60-21193-01
- Natural Gas Spring Kit: 60-21193-02
- No. of Stages: 1
- Output Fitting Size NPT (in.): 1/2
- Valve Body Height (in.): 4-1/4
- Valve Body Length (in.): 4-3/4
- Valve Body Width (in.): 2-3/8
- Valve Series: 36J
Where Used
- 90RJ
- 90RS
- 90RT
- 90TJ
- 90TS
- R921T
- R921V
- R92PA
- R92TA
- R951T
- R951V
- R95PA
- R95TA
- R95TB
- R95TC-W95TC
- RGDG
- RGDJ
- RGEA13
- RGEA15
- RGLG
- RGLH
- RGLS
- RGPS
- RGRA
- RGRB
- RGRC
- RGRJ
- RGRS
- RGRT
- RGSA
- RGTA
- RGTC
- RGTJ
- RGTS
- RKMA
- RKNL-A
- RKPL-A
- RKPN-A
- SGDG
- SGPN
- SKKL-B
Replaces
- 60-100394-02
- 60-100394-03
- 60-22866-01
- 60-25077-02
- 60-22447-07
- 60-100394-01
- 60-104158-01
