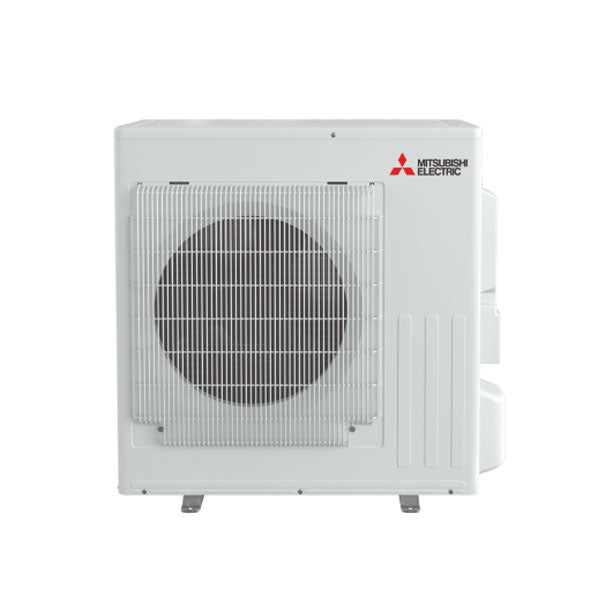

Mitsubishi MUZ‑GS30NA2‑U1 – 2.5‑Ton Ductless Heat Pump Outdoor Unit

The Mitsubishi MUZ‑GS30NA2‑U1 is a robust 2.5‑ton outdoor heat-pump unit designed for single-zone ductless systems. Delivering up to 30,600 BTU/h cooling and 32,600 BTU/h heating with SEER2 18.1 efficiency, it handles line runs up to 100 ft and vertical lifts up to 50 ft. Featuring inverter-driven compressor technology, Blue-Fin-coated coils, and a wide operating range (cooling down to ~14 °F and heating to −4 °F), this unit ensures reliable, year-round comfort with low sound levels (~57 dB(A)) in most installations.

Features

• Capacity: 30,600 BTU/h cooling; 32,600 BTU/h heating (in optimal conditions)
• Efficiency: SEER2 18.1; EER2 9.2
• Voltage & Phase: 208/230 V, 1-phase, 60 Hz
• Minimum Circuit Ampacity: ~22 A; Recommended Breaker: 25 A
• Refrigerant: R‑410A
• Maximum Line Length: 100 ft; Vertical Separation: 50 ft
• Dimensions (W×H×D): 33‑1/16" × 34‑5/8" × 13"
• Net Weight: ~138 lb (shipping 138–140 lb)
• Sound (max): ~57 dB(A)
• Ambient Range: Heating down to −4 °F; cooling down to ~14 °F
• Coil Protection: Blue-Fin anti-corrosion coating
• Compressor Type: Inverter-driven with hot-start and auto restart features

HMIT201072
