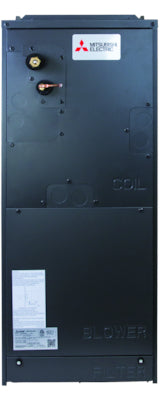

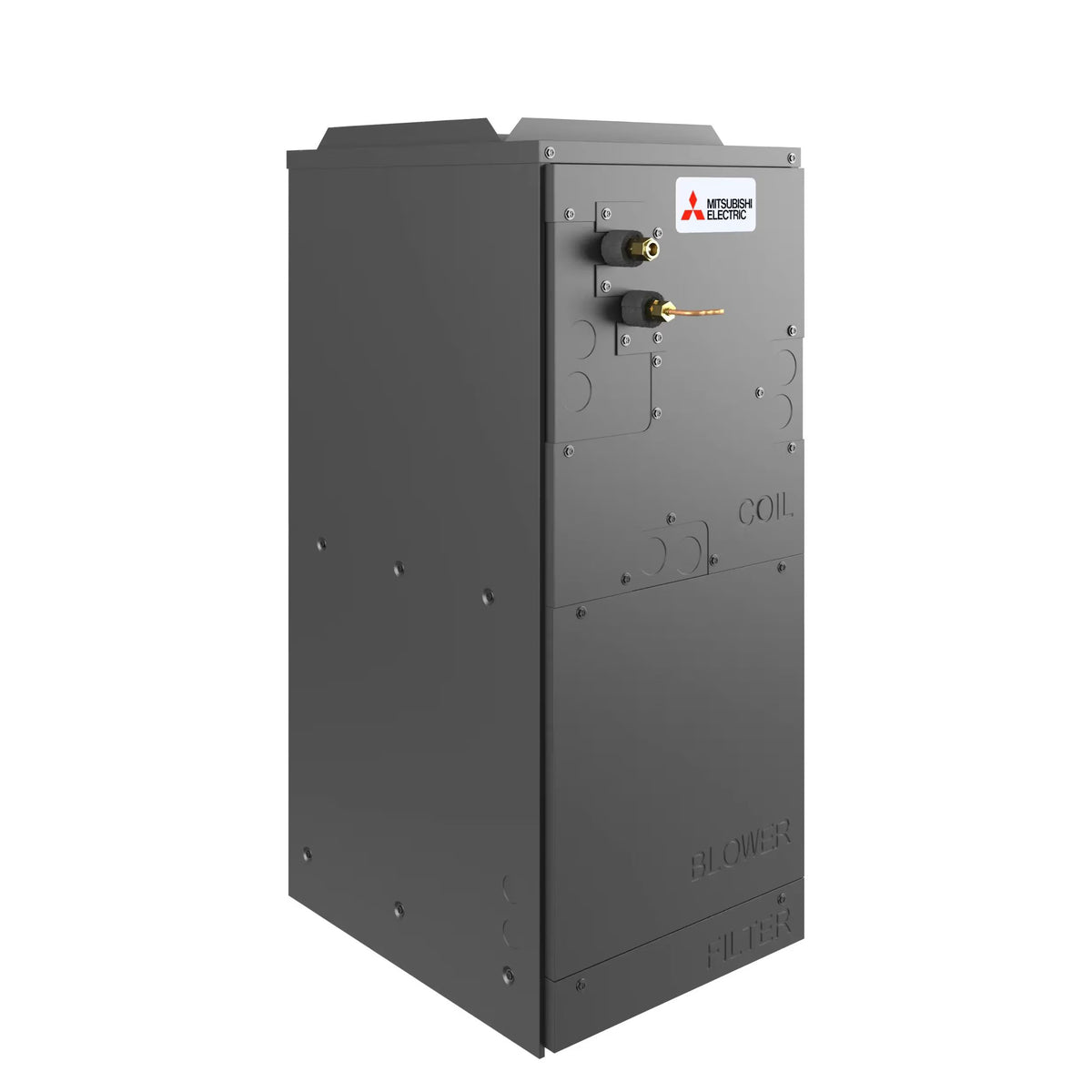

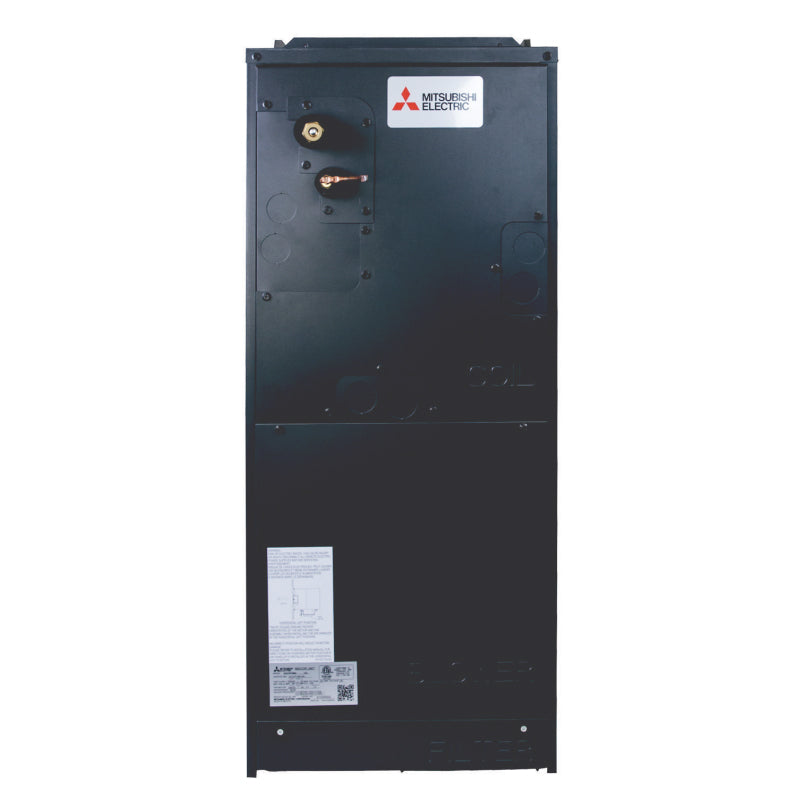

Mitsubishi SVZ-KP30NA - 30,000 BTU 2.5 Ton Multi-Position Air Handler - R-410A

The Mitsubishi SVZ-KP30NA is a 30,000 BTU, 2.5-ton multi-position ducted air handler designed for use with compatible Mitsubishi Electric M-Series heat pump systems. Its flexible cabinet supports horizontal left, horizontal right, and vertical upflow installations, with downflow installation available using an optional kit. A high-efficiency EC blower motor, selectable external static pressure, and multiple fan speeds provide flexible airflow for whole-home and larger-zone ducted heating and cooling applications.

Features

• 30,000 BTU/H nominal class multi-position ducted air handler
• 2.5 Ton nominal capacity
• Cooling Capacity: 27,000 BTU/H
• Heating Capacity: 30,000 BTU/H
• Designed for use with compatible Mitsubishi Electric M-Series heat pump systems

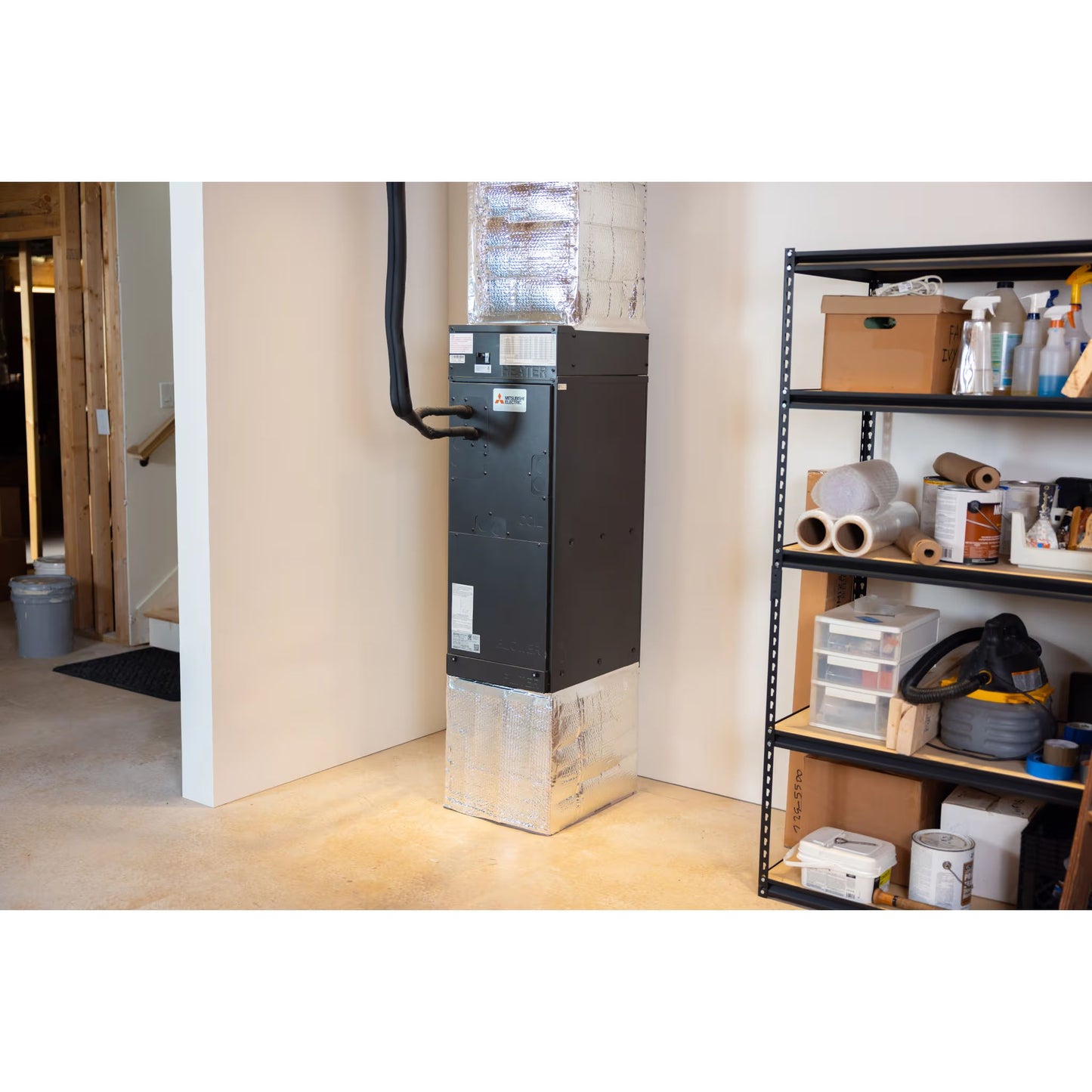

• Multi-position installation supports horizontal left, horizontal right, and vertical upflow configurations
• Optional downflow kit allows vertical downflow installation
• High-efficiency, completely enclosed EC blower motor
• Three selectable external static pressure settings: 0.30", 0.50", and 0.80" W.G.
• Dry Airflow Range: 613-875 CFM
• Wet Cooling Airflow Range: 552-788 CFM
• Quiet operation with sound levels as low as 32 dB(A)
• Positive-pressure cabinet designed for less than 2% air leakage at 1.0" W.G.
• 1" R-4.2 fiberglass-free insulation helps reduce condensation and improve efficiency

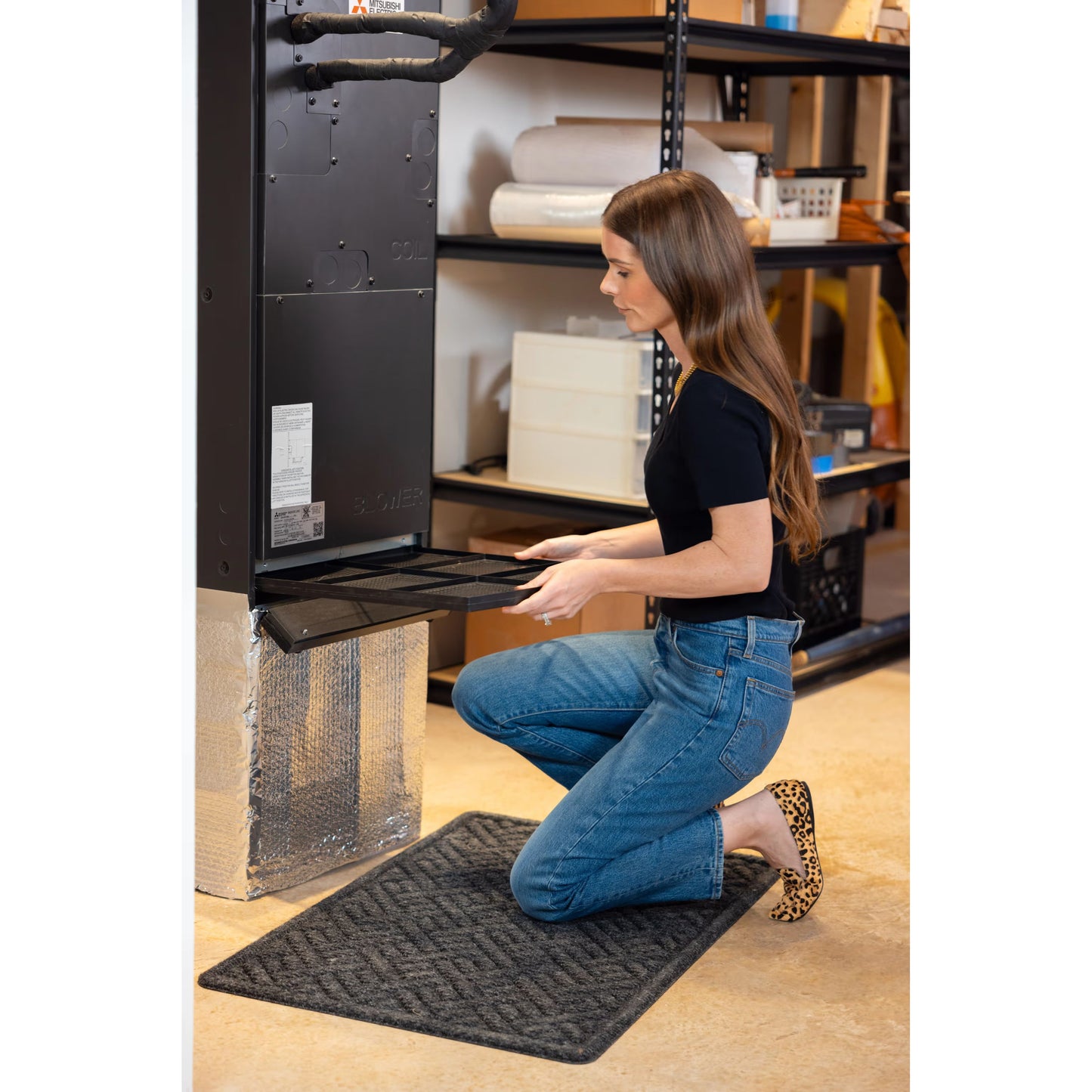

• Blow-through design provides convenient access to the coil for cleaning and service
• Built-in humidifier, ERV, and auxiliary heat controls
• Optional electric heat kits available for supplemental heating
• Power Supply: 208/230V, 1 Phase, 60 Hz
• Minimum Circuit Ampacity: 4.13A
• Refrigerant: R-410A
• Liquid Line Connection: 3/8" OD Flare
• Gas Line Connection: 5/8" OD Flare
• Drain Connection: 3/4" FPT
• Dimensions: 21" W x 21-5/8" D x 43-3/4" H
• Unit Weight: 119 lb
• Manufacturer: Mitsubishi Electric
• Part Number: SVZ-KP30NA
