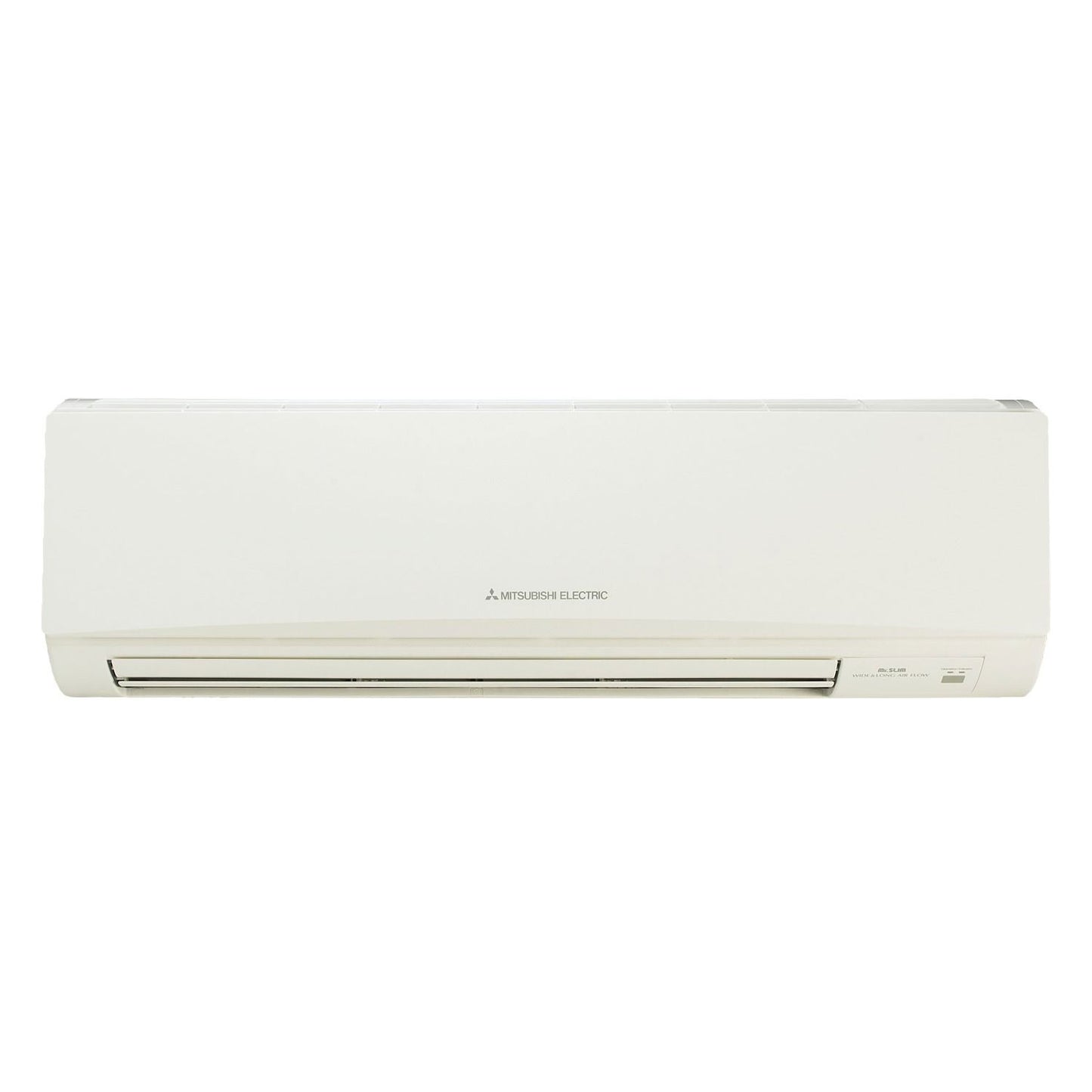

Mitsubishi MSZ-GS36NA2-U1 - 36,000 BTU Ductless Mini Split AC Wall Mounted Indoor Unit
The Mitsubishi MSZ‑GS36NA2‑U1 is a high-performance 36.000 BTU wall-mounted ductless mini-split indoor unit. offering efficient cooling and heating with SEER 16.2 and HSPF 10.0. Its slim profile and four-speed DC fan ensure even airflow and whisper-quiet operation (32–53 dB(A)). Equipped with Dual Barrier Coating. intelligent heating/cooling modes. and comprehensive control options—including wireless remote and Kumo Cloud—it delivers reliable. convenient comfort for single-zone living spaces.
Features
- Indoor unit only
- Dual Barrier Coating
- Slim wall-mounted indoor units provide zone comfort control
- The outdoor unit powers the indoor unit, and should a power outage occur, the system is automatically restarted when power returns
- Multiple fan speed options: Low, Medium, High, Super High
- Hand-held Remote Controller (provided with unit)
- Hot-Start Technology: no cold air rush at equipment startup or when restarting after defrost cycle
- Powerful Operation: quickly cools or heats the room by automatically adjusting fan speed and set temperature for 15 minutes
- Smart Set: recalls a preferred preset temperature setting at the touch of a button
- Wide Vane mode provides 150° of airflow
- Auto and Powerful modes available in addition to the four fan speeds
- Cooling capacity: 33,200 BTU/h rated (range: 10,300–33,200 BTU/h)
- Heating capacity: 35,200 BTU/h rated at 47 °F (range: 9,800–35,200 BTU/h); max 36,000 BTU/h at 47 °F
- Efficiency: SEER 16.2; EER 8.8; HSPF 10.0; COP ~2.76 at 47 °F
- Electrical: 208/230 V. 1‑phase. 60 Hz; indoor MCA 1.0 A; outdoor MOCP 20 A; recommended wire AWG 14
- Dimensions / Weight: 46‑1/16" W × 11‑5/8" D × 14‑3/8" H; 45 lb / 20 kg
- Fan & airflow: DC motor with four speeds (Low‑Med‑High‑Super‑High); Cooling airflow: 374–915 CFM; Heating: 374–803 CFM
- Sound levels: Cooling: 32–42–49–53 dB(A); Heating: 34–42–49–50 dB(A)
- Refrigerant piping: 1/4" liquid and 5/8" gas lines; Max refrigerant line run: 100 ft; vertical separation: 50 ft
- Controls: Includes handheld remote; compatible with wired/wireless remotes. Kumo Cloud app. and third‑party interfaces
- Smart modes: Features Auto. Powerful. Smart Set. Smart Dry. Hot‑Start. and 150° airflow vane
