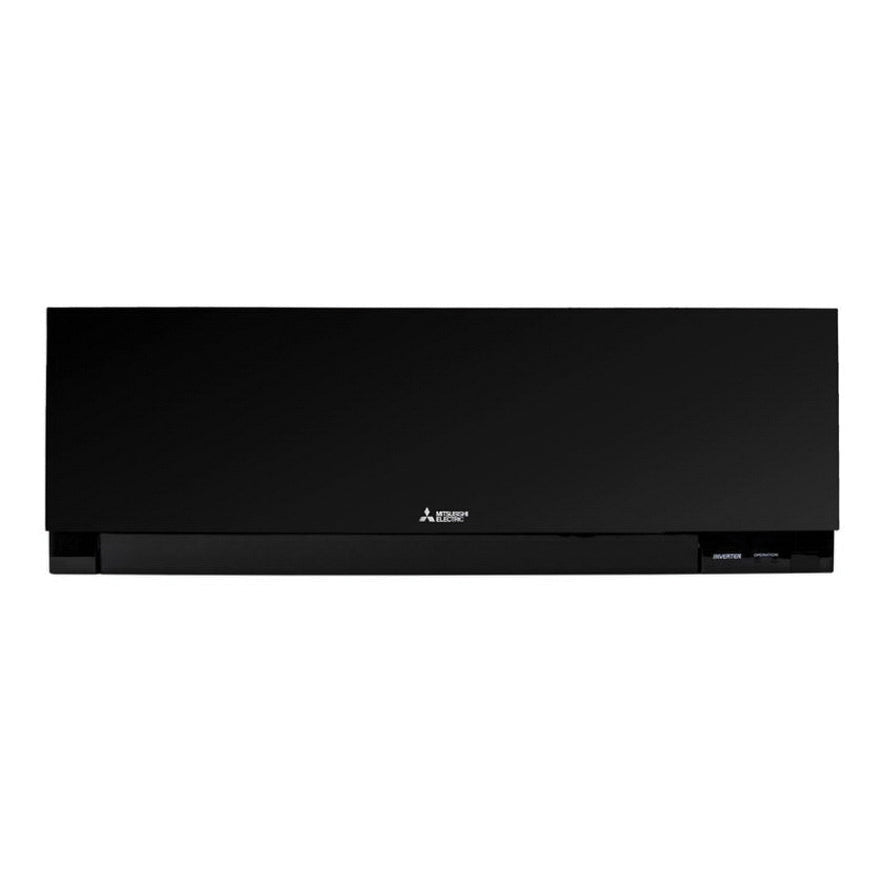

Mitsubishi MSZ-EF09NAB-U1 - 9,000 BTU Designer Wall-Mounted Indoor Unit - Black

The Mitsubishi MSZ-EF09NAB-U1 is a 9,000 BTU designer wall-mounted indoor unit featuring a sleek, slim-profile design with a glossy black finish. Designed for use with compatible Mitsubishi Electric MXZ multi-zone heat pump systems, this M-Series unit combines quiet operation with multiple airflow settings and efficient heating and cooling. Its low-profile appearance makes it particularly well suited for modern residential and light commercial spaces where the indoor unit will remain visible. A handheld wireless remote controller is included.

Features

• 9,000 BTU/H nominal cooling capacity
• 10,900 BTU/H rated heating capacity at 47°F when used in an applicable system
• 0.75 Ton designer wall-mounted indoor unit
• Glossy black finish with sleek, flat-panel design
• Designed for connection with compatible Mitsubishi Electric MXZ multi-zone outdoor units
• Wireless handheld remote controller included
• Five airflow settings: Low, Medium, High, Super High, and Powerful
• Cooling Airflow: 141-371 CFM dry / 121-319 CFM wet
• Heating Airflow: 141-420 CFM dry
• Ultra-quiet operation with sound levels as low as 21 dB(A)
• ECM blower motor for efficient airflow operation
• Anti-allergy enzyme filter available as an optional accessory
• Optional kumo cloud, wired controller, and thermostat interface compatibility with appropriate accessories
• Moisture Removal: 0.6 pt/hr
• Power Supply: 208/230V, 1 Phase, 60 Hz
• Minimum Circuit Ampacity: 1A
• Refrigerant: R-410A
• Liquid Line Connection: 1/4" OD Flare
• Gas Line Connection: 3/8" OD Flare
• Drain Connection: 5/8" OD
• Dimensions: 34-13/16" W x 7-11/16" D x 11-3/4" H
• Unit Weight: 26 lb
• Manufacturer: Mitsubishi Electric
• Part Number: MSZ-EF09NAB-U1
