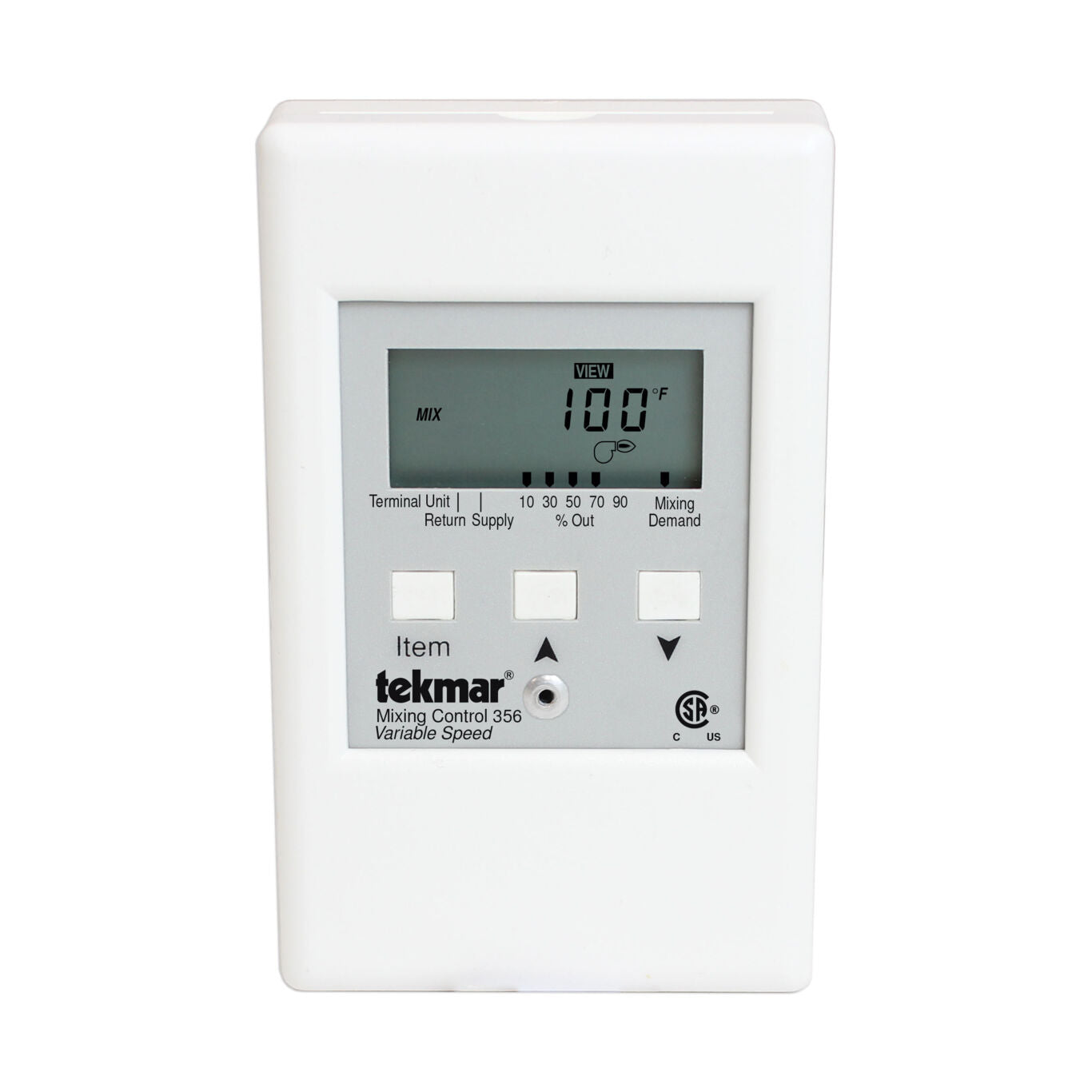

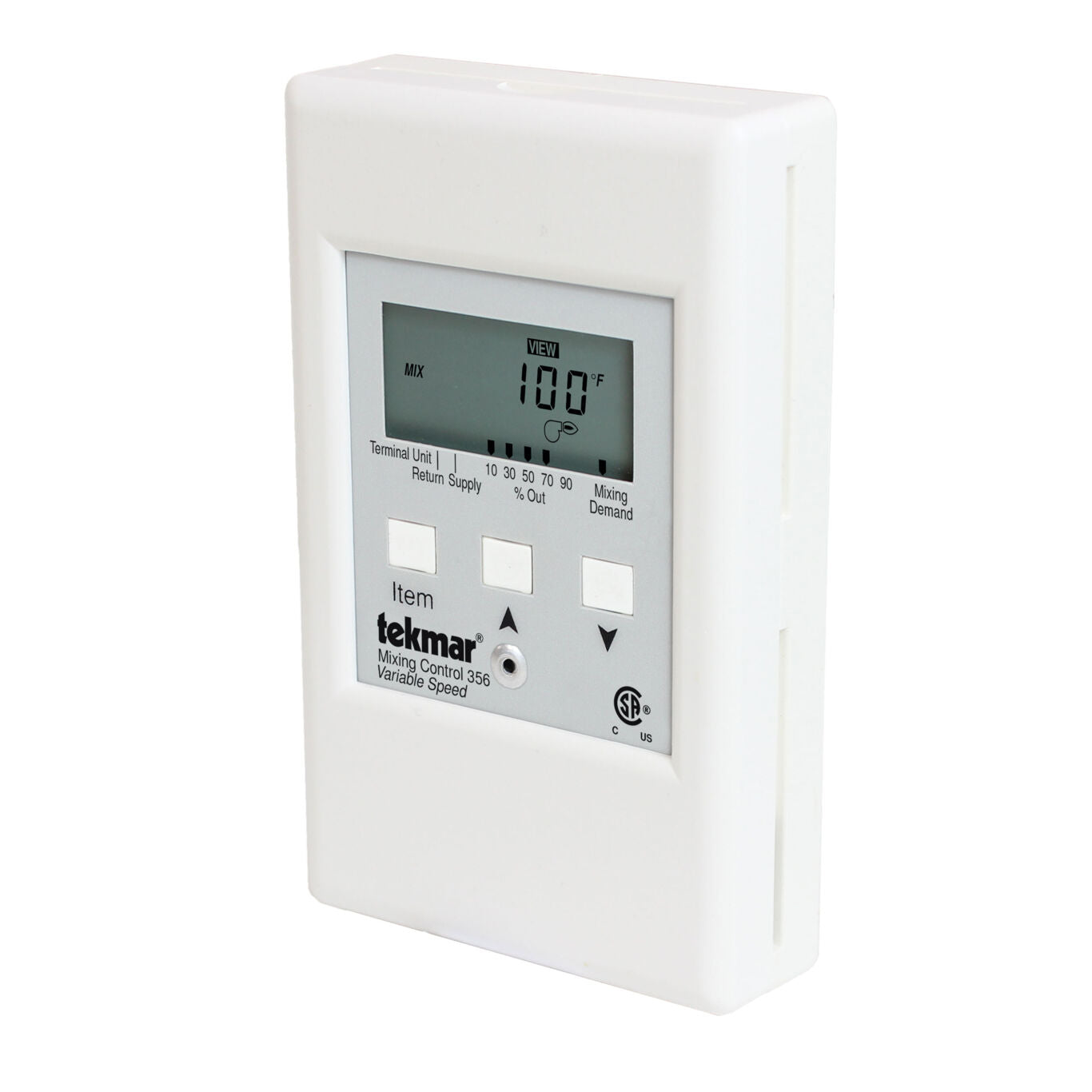

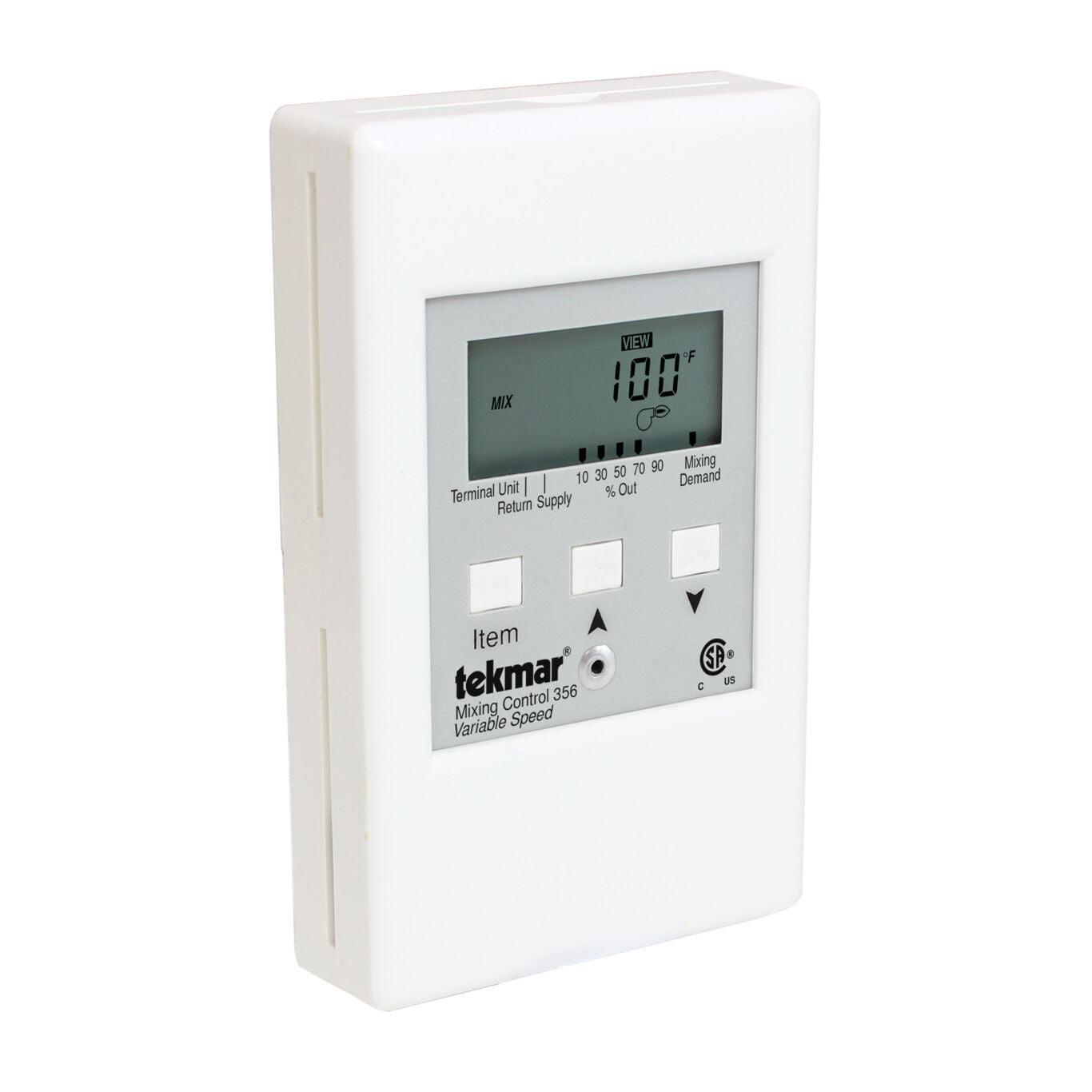

Tekmar 356 Mixing Control, Variable Speed

The Mixing Control 356 is designed to operate a mixing pump to control the temperature in a hot water heating system using Outdoor Temperature Reset. It can be used in applications ranging from in-floor radiant to commercial baseboard systems for boiler protection with full reset. This control regulates a single heating water temperature through Outdoor Temperature Reset. It provides mixing by speeding up or slowing down a single permanent capacitor (standard wet rotor) circulator.

Features:

  • User comfort adjustment to increase or decrease building space temperature
  • Outdoor temperature reset, warm weather shut down
  • Advanced settings to fine-tune building requirements
  • Variable speed pump control
  • Test sequence to ensure proper component operation
  • Boiler load reset
  • Automatic boiler differential
  • CSA C US certified (approved to applicable UL standards)
  • Quick setup for easy installation and programming of control

Specifications:

  • Agency Approvals: CSA C US, meets class B: ICES & FCC Part 15
  • Ambient Conditions: Indoor use only, 32 to 104 degrees F (0 to 40 degrees C), RH less than or equal to 90 percent Non-condensing
  • Control Type: Microprocessor control, this is not a safety (limit) control
  • Demand: Mixing demand 24 V (ac) 2 VA

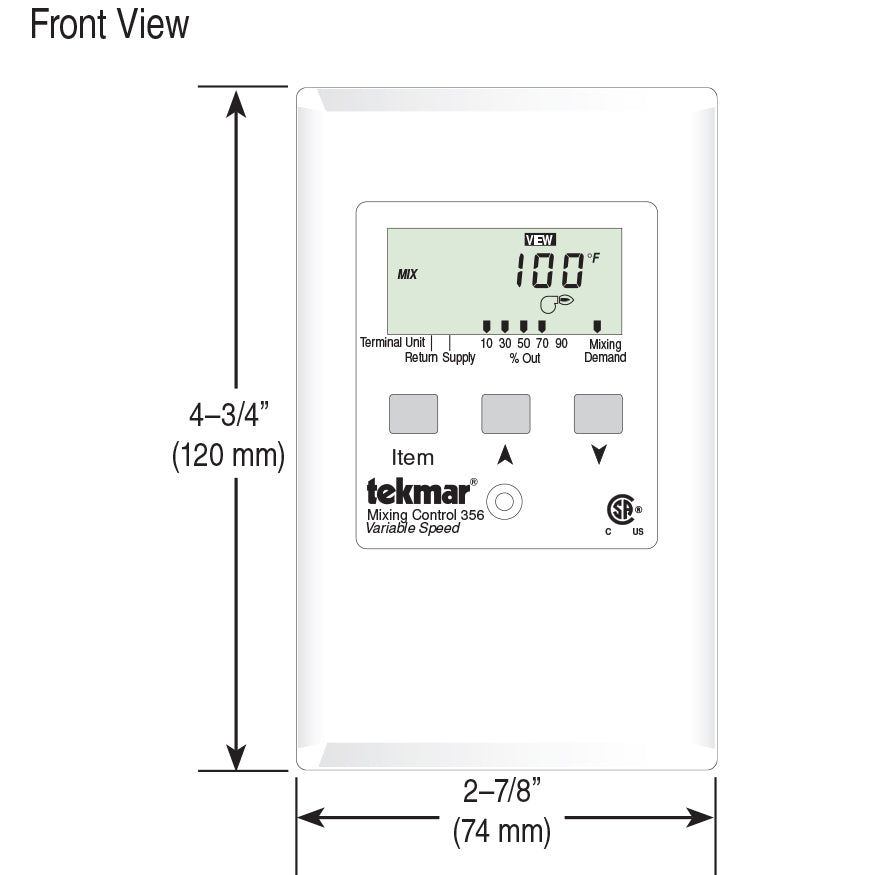

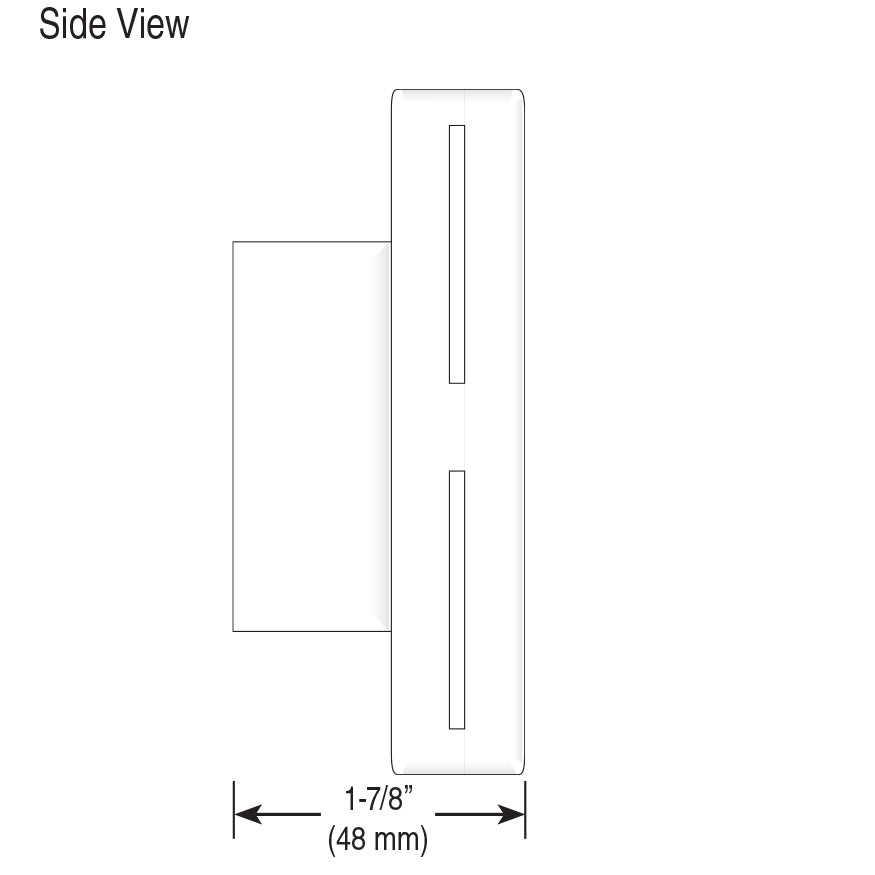

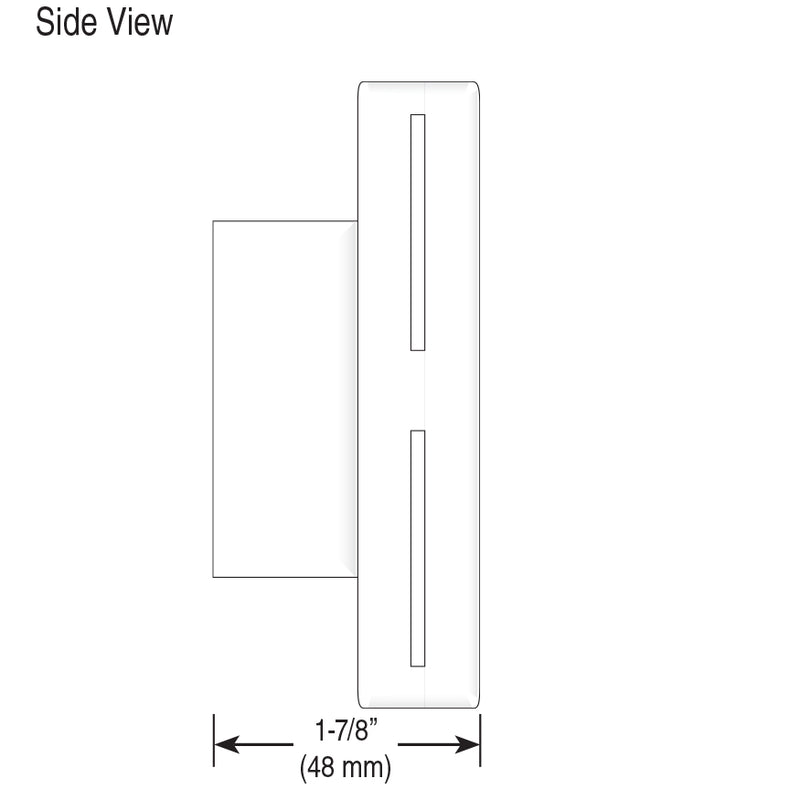

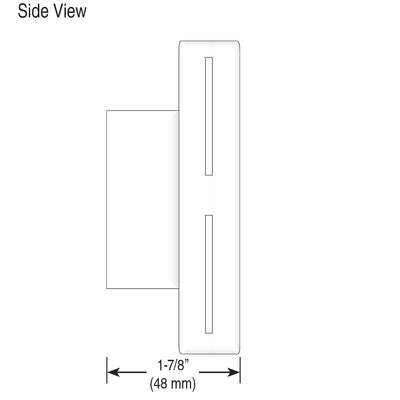

  • Dimensions: 4-3/4" H x 2-7/8" W x 1-7/8" D (120 x 74 x 48 mm)
  • Enclosure Material: White PVC plastic
  • Enclosure NEMA Rating: NEMA 1
  • Hydronic - HVAC Control Type: Mixing Control
  • Power Supply: 24 V (ac) plus / minus 10 percent, 50/60 Hz, 3 VA
  • Relay: 120 V (ac) 5 A, 1/6 hp
  • Sensor: NTC thermistor, 10 k ohms at 77 degrees F (25 degrees C plus / minus 0.2 degrees C) Beta=3892
  • Variable Pump: 120 V (ac) 2.4 A, 1/6 hp
