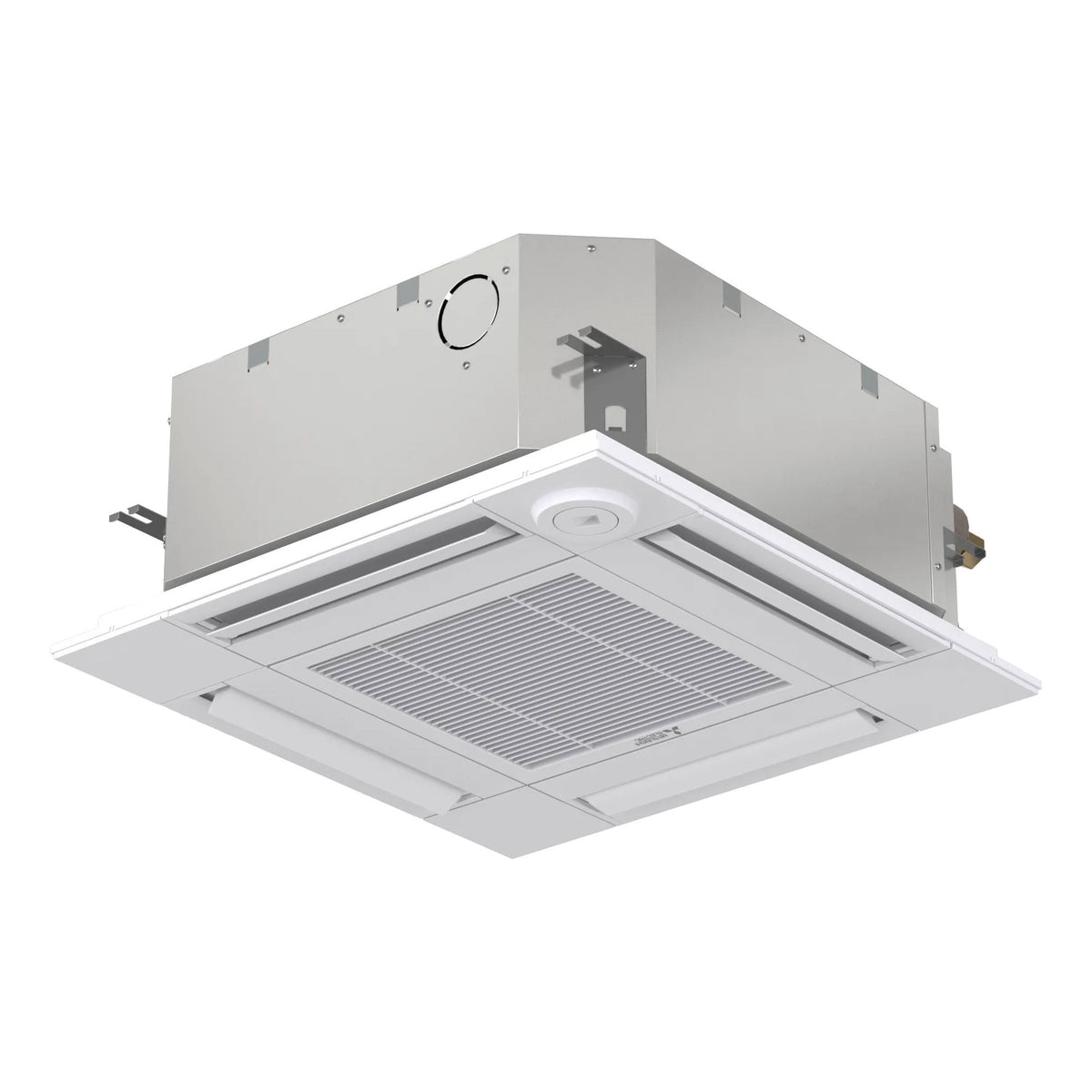

Mitsubishi PLFY-P05NFMU-ER1.TH - 5,000 BTU 4-Way Ceiling Cassette Indoor Unit - R-410A

The Mitsubishi PLFY-P05NFMU-ER1.TH is a 5,000 BTU 4-way ceiling cassette indoor unit designed for compatible Mitsubishi Electric CITY MULTI systems. Its compact, ceiling-recessed design fits many 2' x 2' suspended ceiling layouts while distributing air in four directions. Individual vane settings, an optional 3D i-see Sensor, ventilation air intake capability, and a built-in condensate lift mechanism provide flexible comfort and installation options. A compatible ceiling grille is required and sold separately.

Features

• 5,000 BTU/H nominal cooling capacity
• 5,600 BTU/H nominal heating capacity
• 4-way ceiling cassette indoor unit for compatible Mitsubishi Electric CITY MULTI systems
• Compact, ceiling-recessed design fits many 2' x 2' ceiling layouts
• Individual vane settings allow airflow direction to be adjusted
• Four fan speed settings, including Auto fan mode
• Optional 3D i-see Sensor supports occupancy-based comfort features
• Supports ventilation air intake
• Built-in condensate lift mechanism provides up to 33" of lift
• Long-life PP honeycomb air filter
• Airflow: 230 / 265 / 280 CFM at the published low / medium / high settings
• Sound Pressure Level: 26 / 28 / 30 dB(A) at low / medium / high
• Power Supply: 208/230V, 1 Phase, 60 Hz
• Minimum Circuit Ampacity: 0.24A
• Recommended Fuse Size: 15A
• Refrigerant: R-410A
• Liquid Line Connection: 1/4" OD Flare
• Gas Line Connection: 1/2" OD Flare
• Drain Connection: 1-1/4" OD
• Dimensions: 22-7/16" W x 22-7/16" D x 8-3/16" H
• Weight: 28.9 lb
• Ceiling grille required and sold separately (SLP-18FAU)
• Manufacturer: Mitsubishi Electric
• Part Number: PLFY-P05NFMU-ER1.TH
