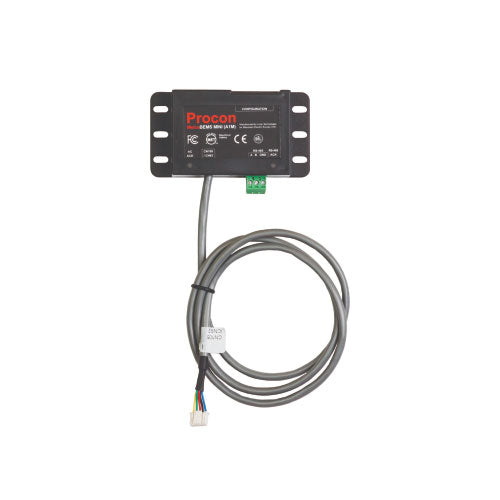

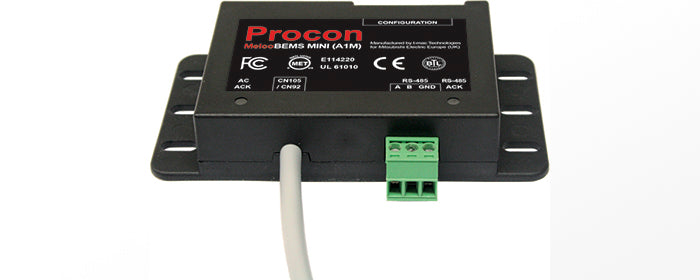

Mitsubishi PAC-UKPRC001-CN-1 - BACnet and Modbus Interface
The Mitsubishi PAC-UKPRC001-CN-1 connects a compatible Mitsubishi Electric indoor unit to a third-party building management or automation system. It supports control and monitoring through BACnet MS/TP or Modbus RTU over RS-485. The interface connects to the indoor unit’s CN105 port and draws power from the unit, so a separate power supply is not required. One interface is required per indoor unit.
Features
- Manufacturer part number: PAC-UKPRC001-CN-1
- Product type: BACnet and Modbus control interface
- Compatible with select CITY MULTI, M-Series, and P-Series indoor units
- Supports BACnet MS/TP and Modbus RTU communication over RS-485
- Allows third-party systems to control on/off, operating mode, temperature setpoint, fan speed, and air direction
- Provides monitoring of operating status, temperature, and fault codes
- Connects to the indoor unit’s CN105 port and receives 12 VDC power from the unit
- One interface required per indoor unit
- Interface dimensions: 3.74" × 2" × 0.75"
- Cable length: 37"
