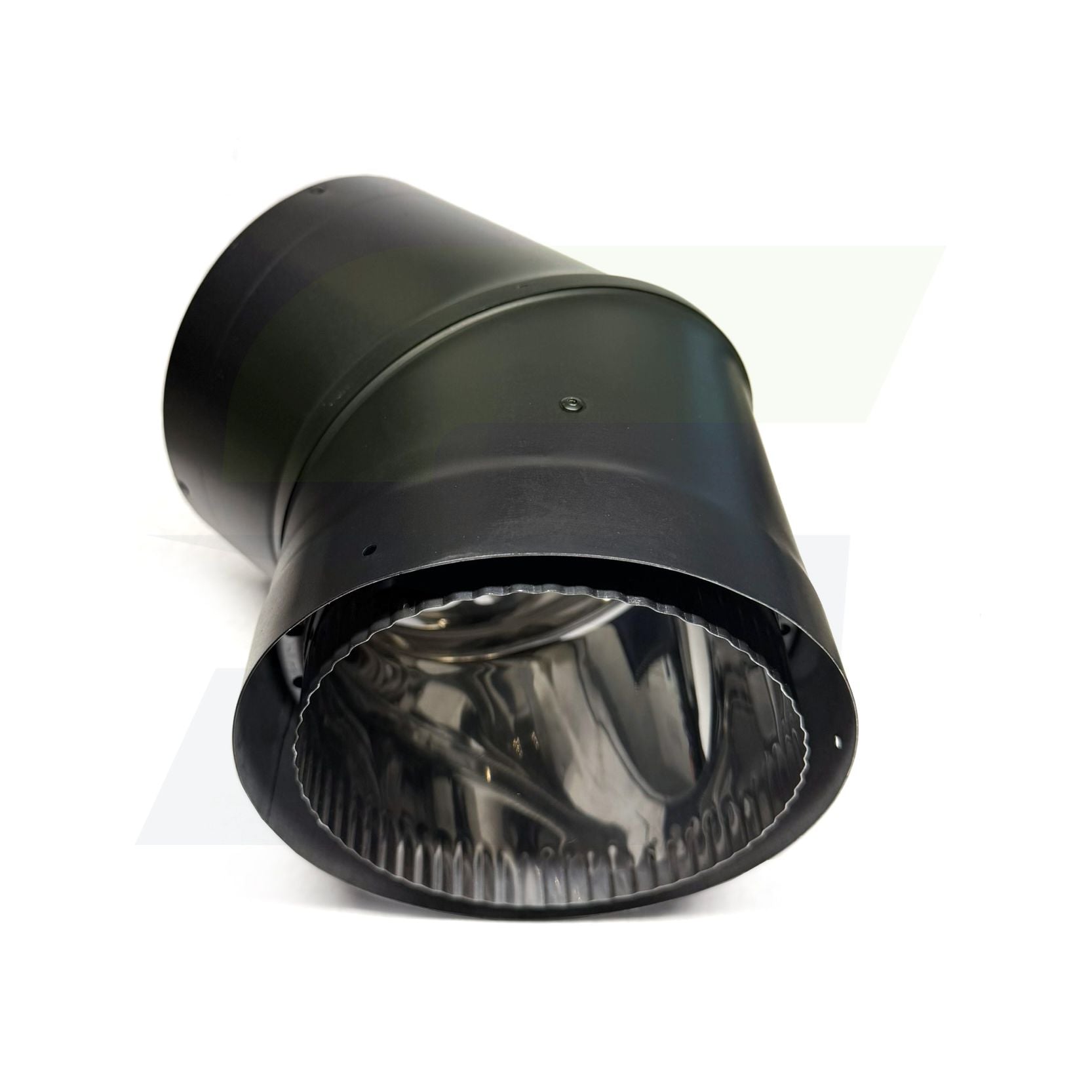

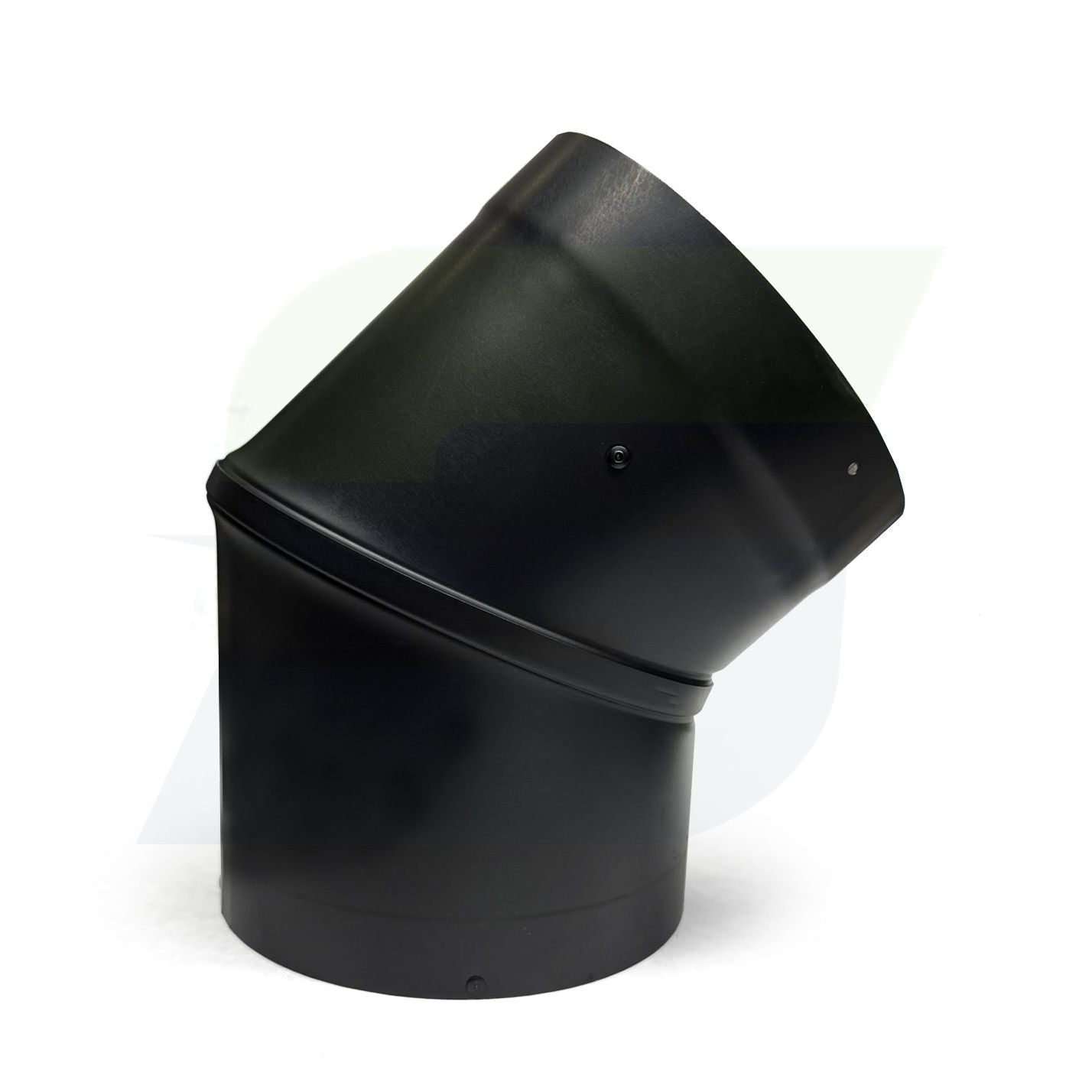

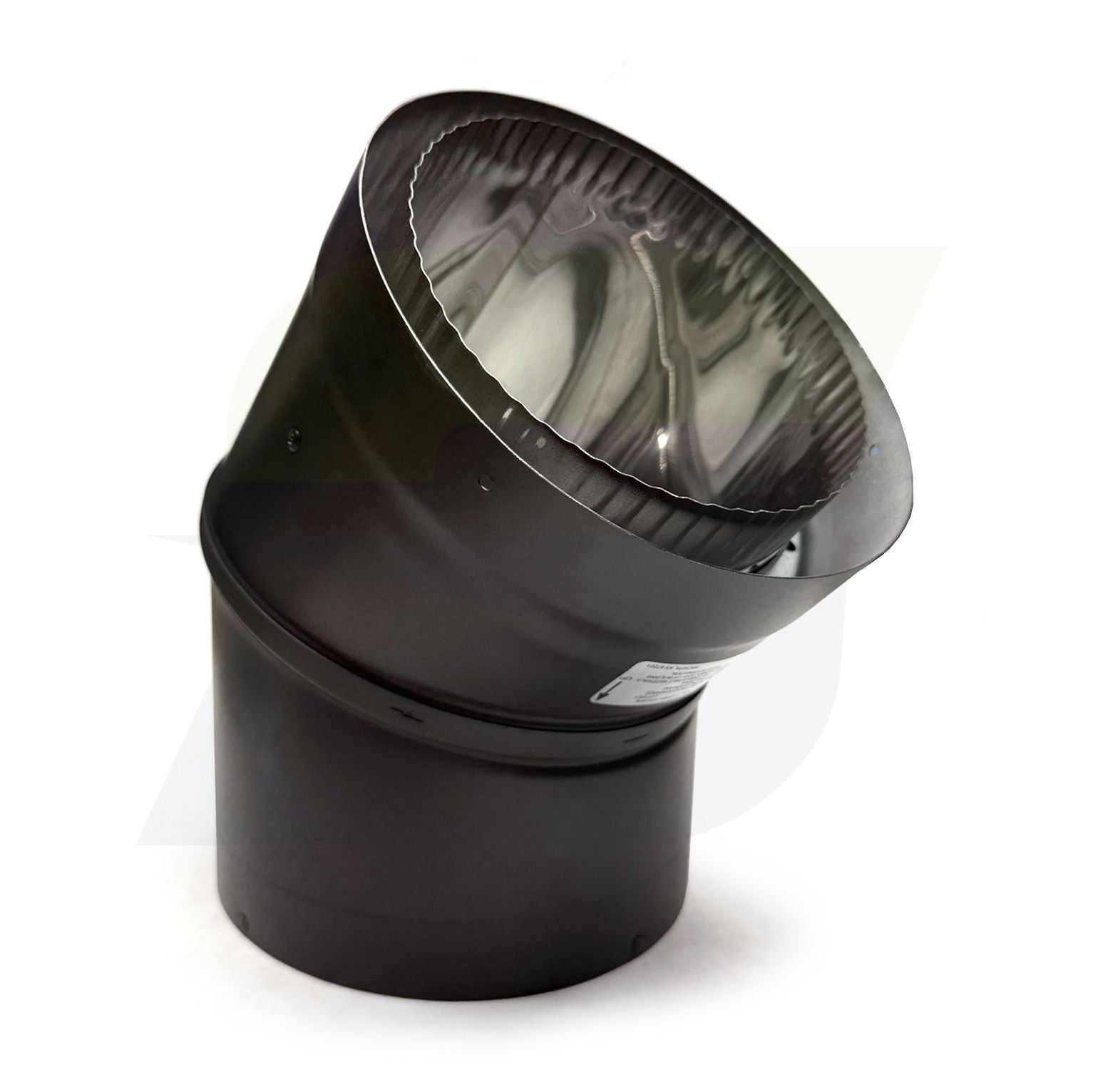

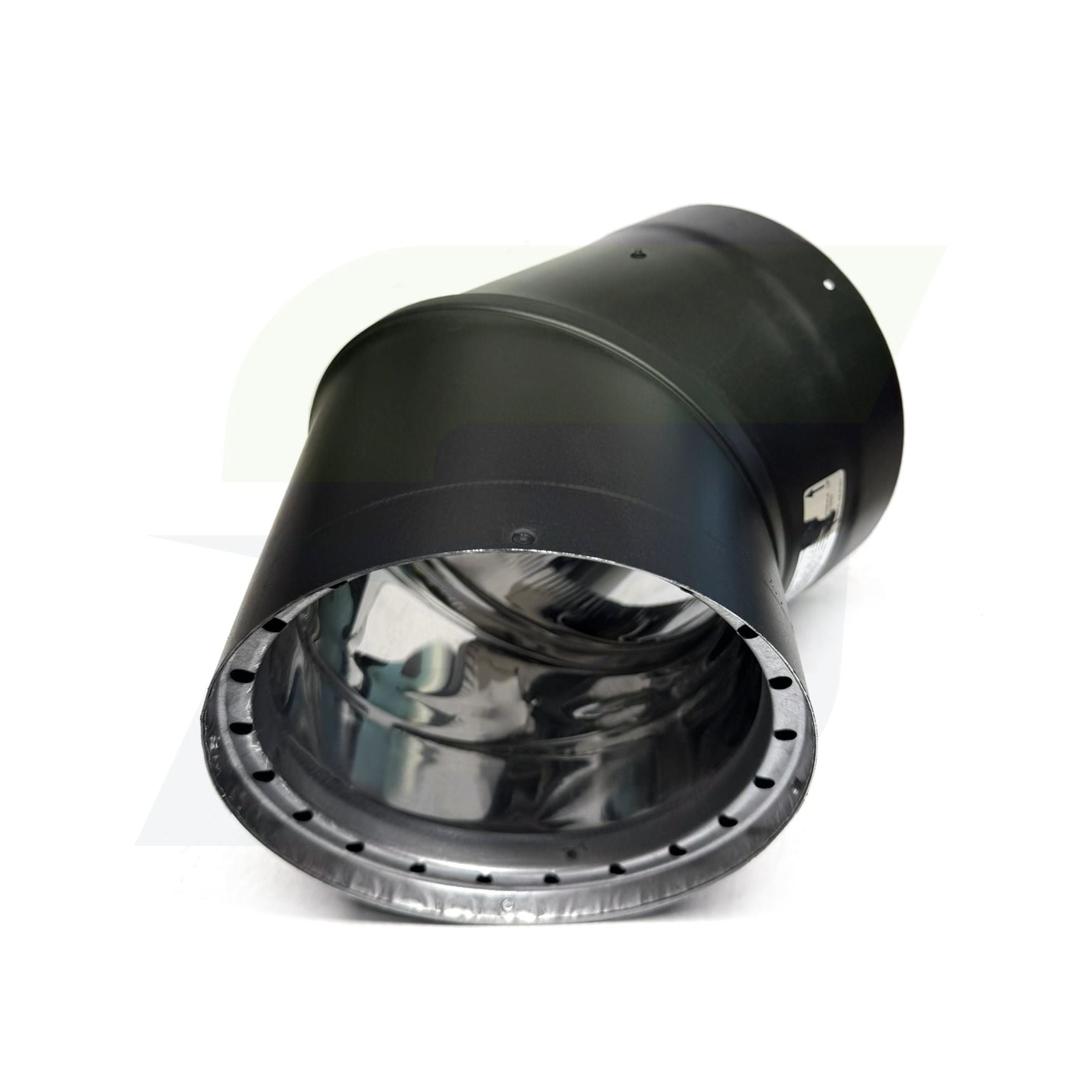

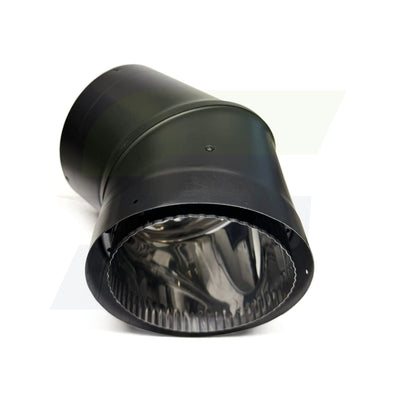

Metal-Fab 6DWB45 - 6" Black Double Wall 45 Degree Elbow

The Metal-Fab 6DWB45 is a 45-degree elbow designed for use with 6-inch double wall black stove pipe. Built with a durable double wall construction, it provides a secure and efficient connection for directing venting around obstacles or achieving the correct alignment in your installation. Its sleek black finish complements wood stoves and heating appliances while ensuring long-lasting performance and safe venting operation.

Features

• Manufacturer: Metal-Fab
• Part Number: 6DWB45
• The perfect companion to Temp/Guard Chimney
• Designed for installations from the appliance/stove to high temperature chimney products
• Stovepipe is located in the same room as the appliance/stove and is not permitted to pass through ceiling or walls
• Double Wall Warnock Hersey tested and listed to UL 103 with 6" clearance to combustibles
• Continuous laser welded flue and casing allow for clean appearance and installation
• Pipe overlaps 1-1/2" when joined together. Therefore, assembled length is 1-1/2" less than listed length.
• Casing Construction: .024 galvaneal steel
• Flue Construction: .012 430 stainless steel
• Finish: Black
• Connection Type: Double wall stove pipe connection
• 6" clearance to combustibles
• Size: 6 inch
• Angle: 45 degrees
