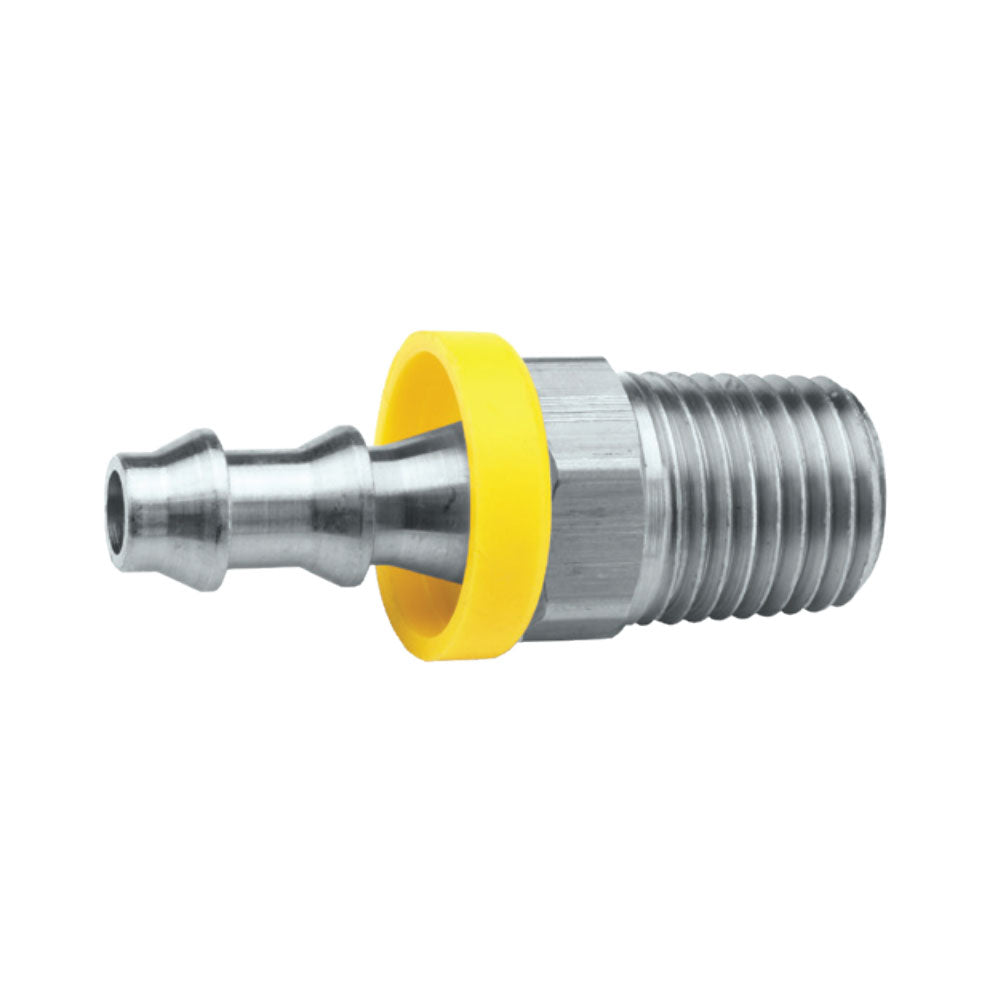

2720808SS - 1/2" Stainless Steel Push-on Hose Barb Fitting - Male NPTF x Hose Barb
2720808SS - 1/2" Stainless Steel Push-on Hose Barb Fitting - Male NPTF x Hose Barb
No reviews
In stock
Regular price
$31.26
Free Shipping on all orders over $89
Most orders ship same day!
Order by phone or Questions? (800) 468 5997
Dixon Valve 2720808SS - 1/2" Stainless Steel Push-on Hose Barb Fitting - Male NPTF x Hose Barb
Features
- Material: 303 Stainless Steel
- Component Material: Yellow Plastic Cap
- Construction: Dryseal
- Male Thread: NPT
- Male Thread Size: 1/2"-14
- Length: 2.07"
- Hose ID: 1/2"
- Hex: 7/8"
- Temperature Range: -40 to 150 degrees F
- Pressure Rating: 350 PSI
- Weight: 0.119 lbs
Assembly Instructions
- Trim hose end with smooth square cut.
- Lubricate either push-on fitting, hose or both.
- Insert push-on fitting into hose until first barb is in hose.
- Place end of fitting against a flat object (bench, wall, etc.) and grip the hose one inch from end. Push with a steady force until end of hose is covered by yellow plastic cap.
Disassembly Instructions
- Leaving push-on fitting in place, make a 1" cut in the hose along the barbed end of the fitting. Note: Be careful not to nick barbs when cutting the hose.
- With firm grip on hose, give a sharp downward pull to release the fitting from the hose.
