M19 Standard Duty Full Mortise Intermediate Pivot - 3/4" Offset
Regular price
$299.26
Free Shipping on all orders over $89
Most orders ship same day!
Order by phone or Questions? (800) 468 5997

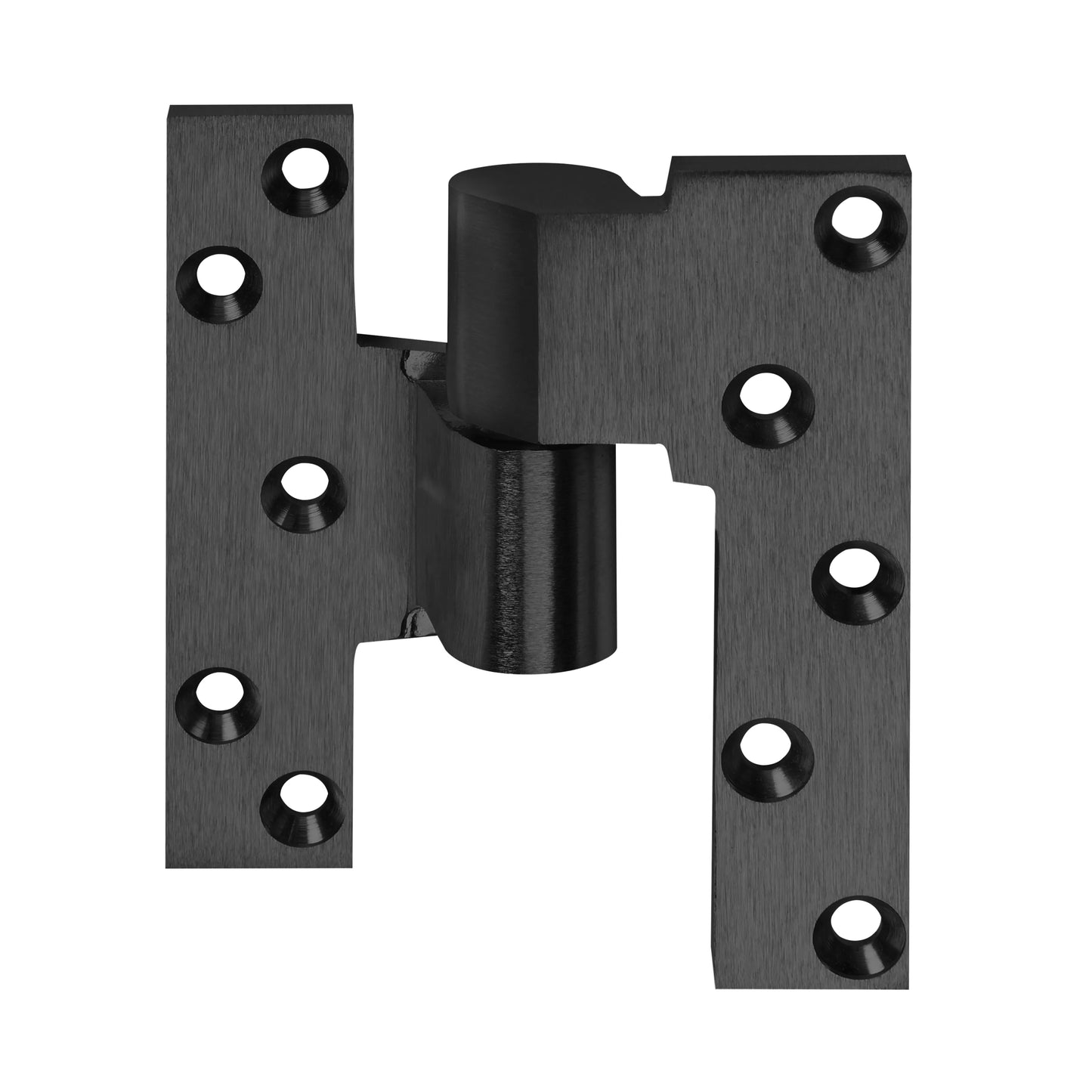

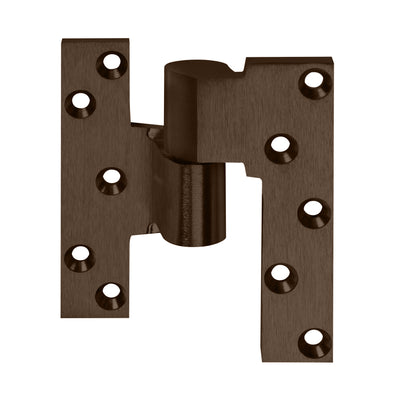

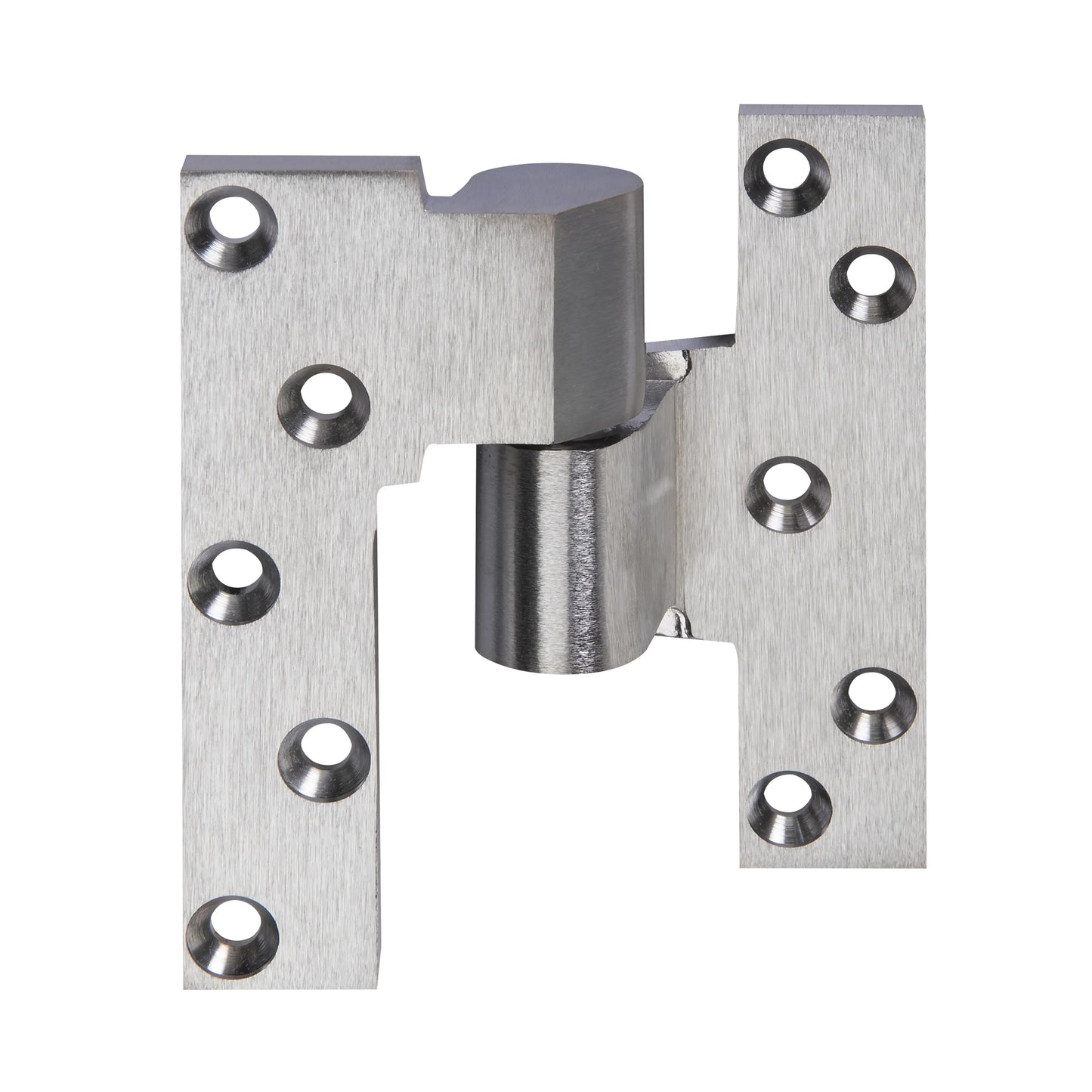

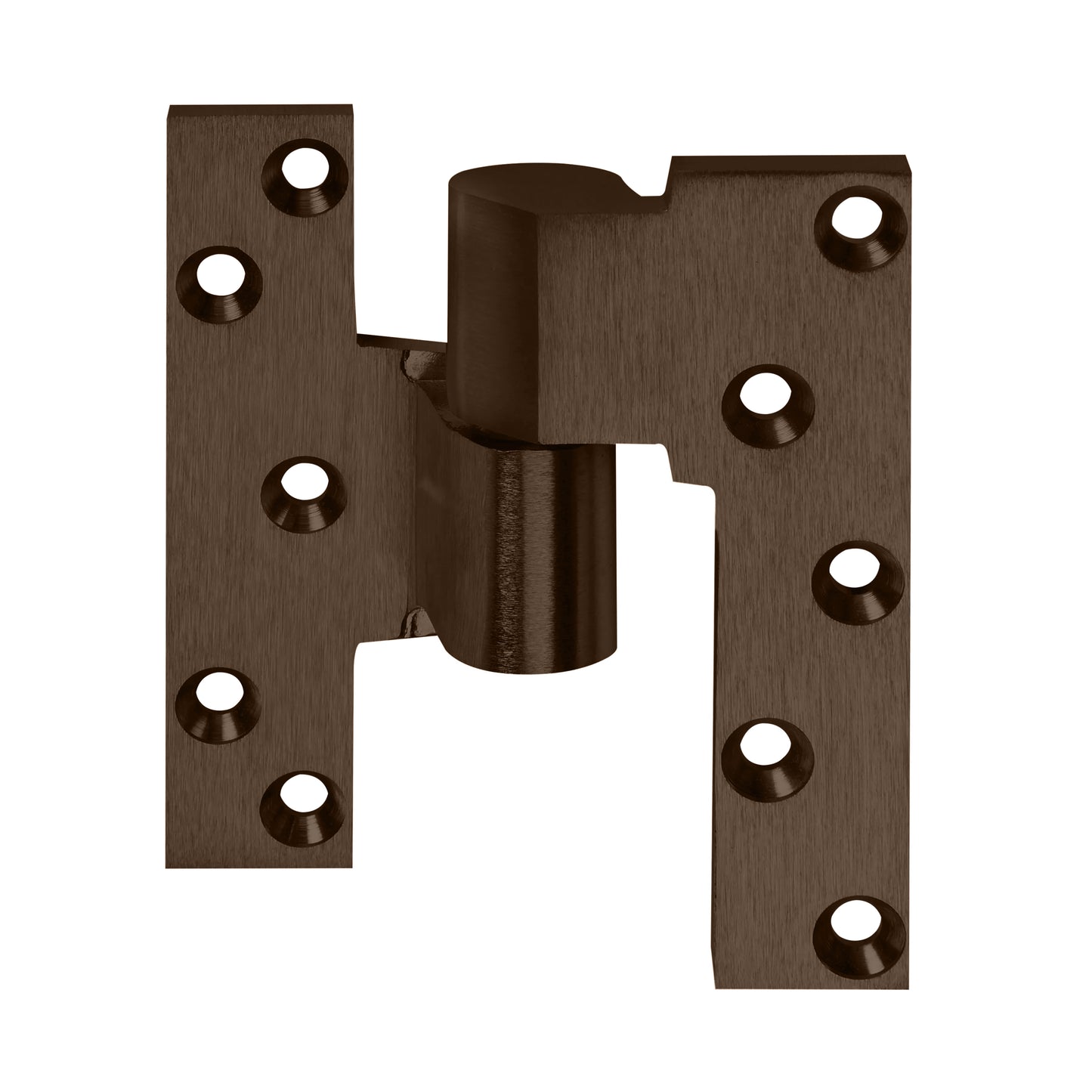

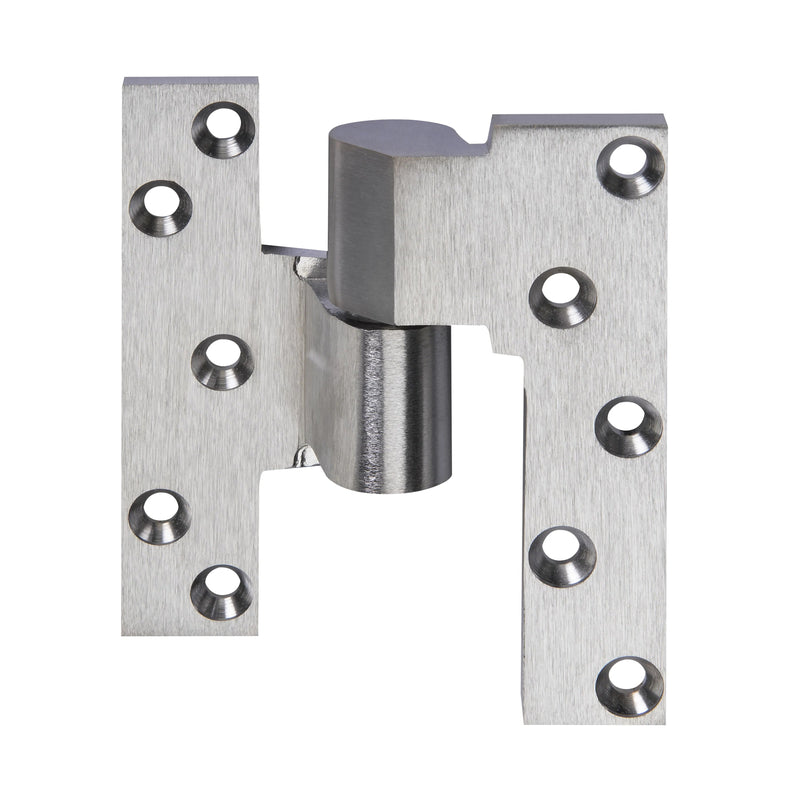

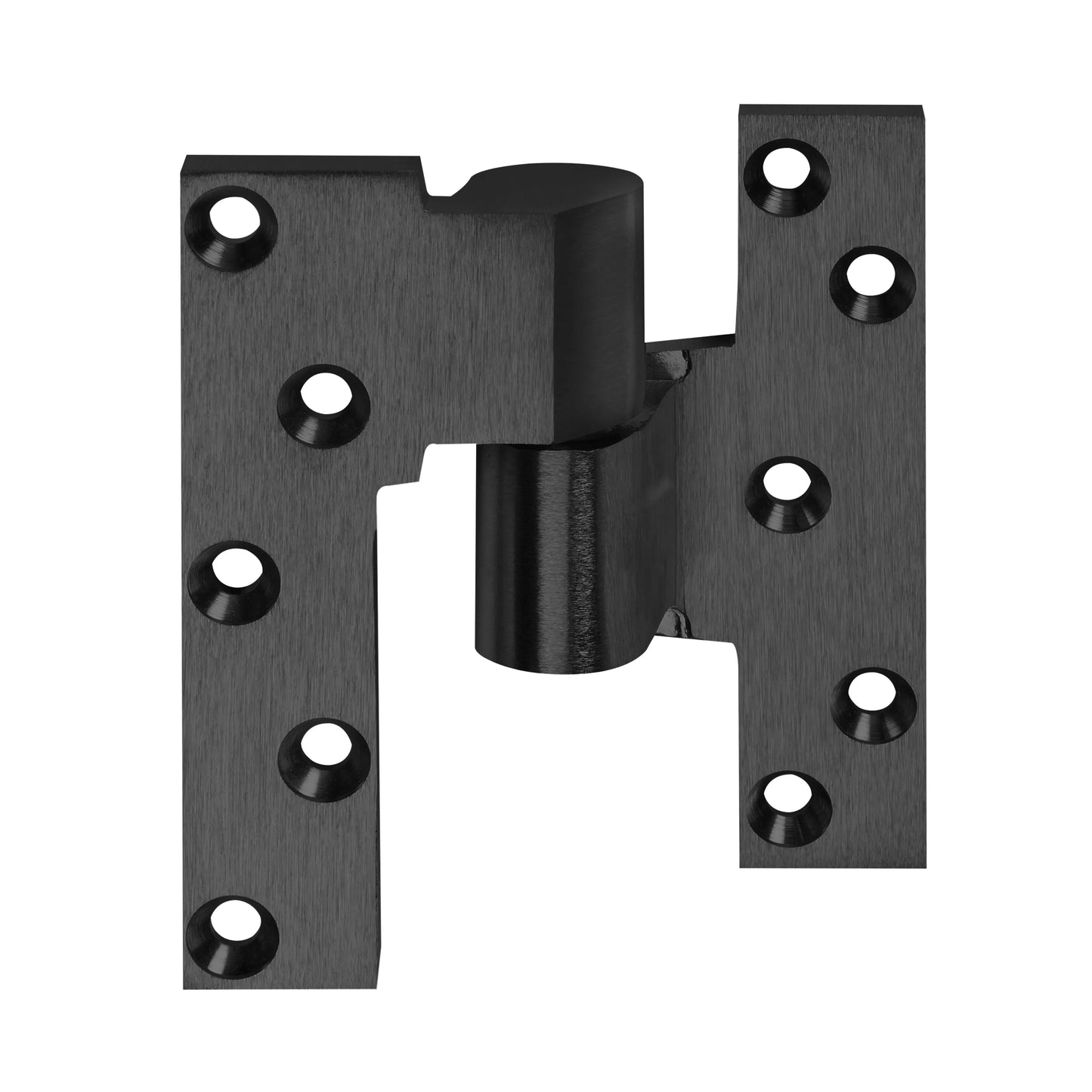

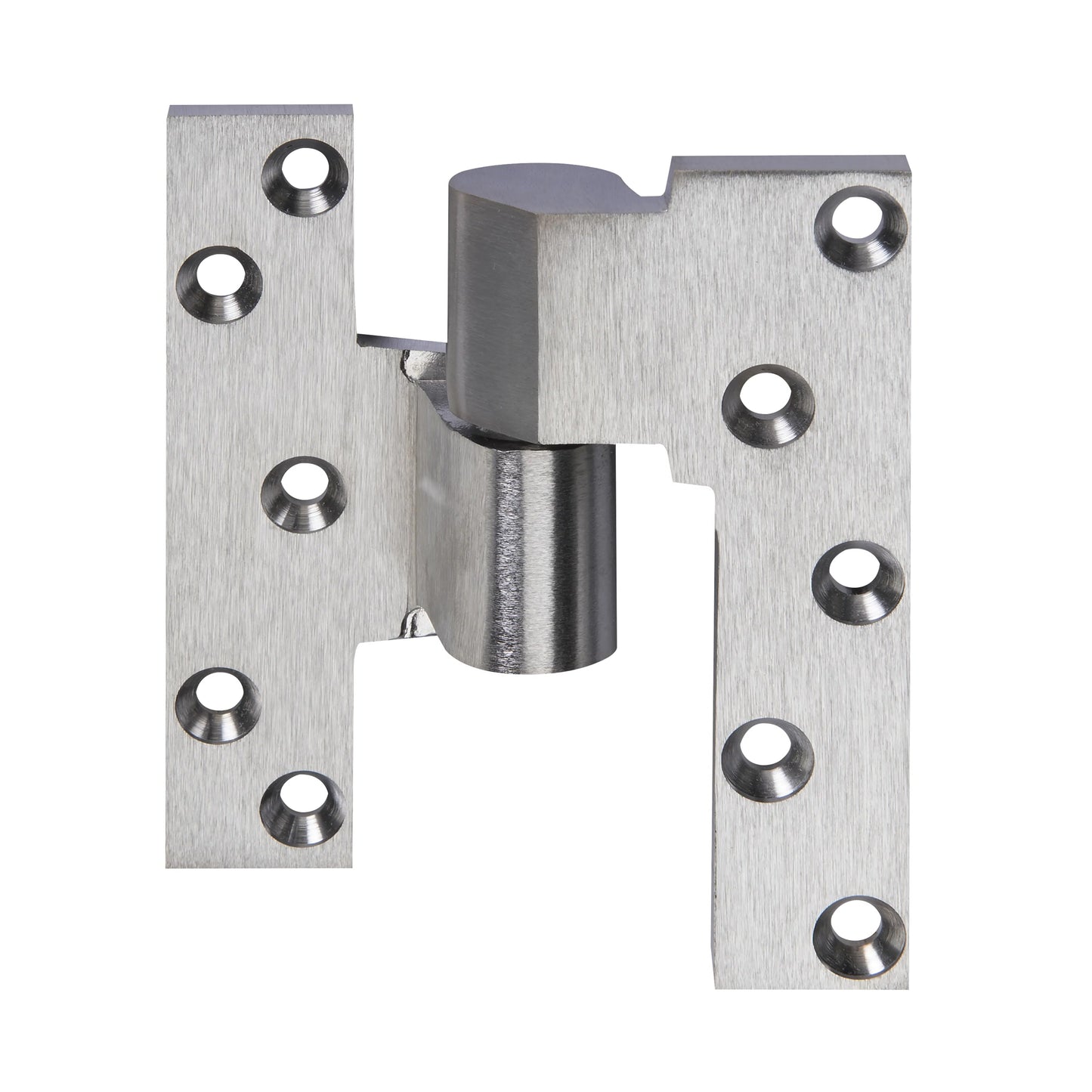

Norton Rixson M19 Standard Duty Full Mortise Intermediate Pivot - 3/4" Offset
The Norton Rixson M19 Standard Duty Full Mortise Intermediate Pivot Hinge is designed for doors with a 3/4" offset, providing smooth and reliable operation while reducing stress on the frame and hinges. Ideal for medium-duty applications, this pivot hinge enhances door alignment and longevity by evenly distributing weight. Its durable construction ensures long-lasting performance, making it a dependable choice for commercial and institutional settings.
Features
- Full mortise

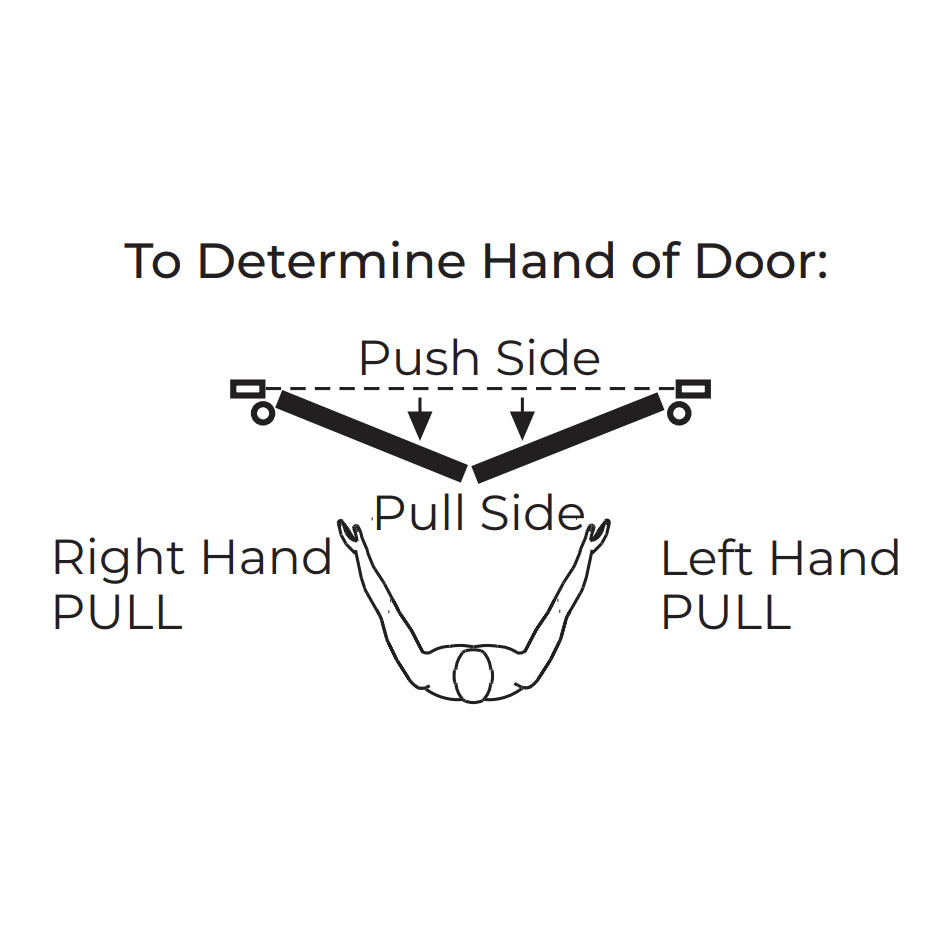

- Handed
- Not load-bearing
- Maintains door alignment
- Aids in installing floor closers and bottom pivots
- Non-ferrous base metal
- 3/4" (19mm) offset
- Available for 1-1/2" (38mm) offset
- Available for fire door assemblies (ferrous material) – specify FM19
- Doors 60" (1524mm) to 90" (2286mm) in height should use one intermediate pivot - each additional 30" (762mm) warrants another intermediate pivot
- Door edges must be beveled in 1/8" in 2"
- Furnished with wood and machine screws
