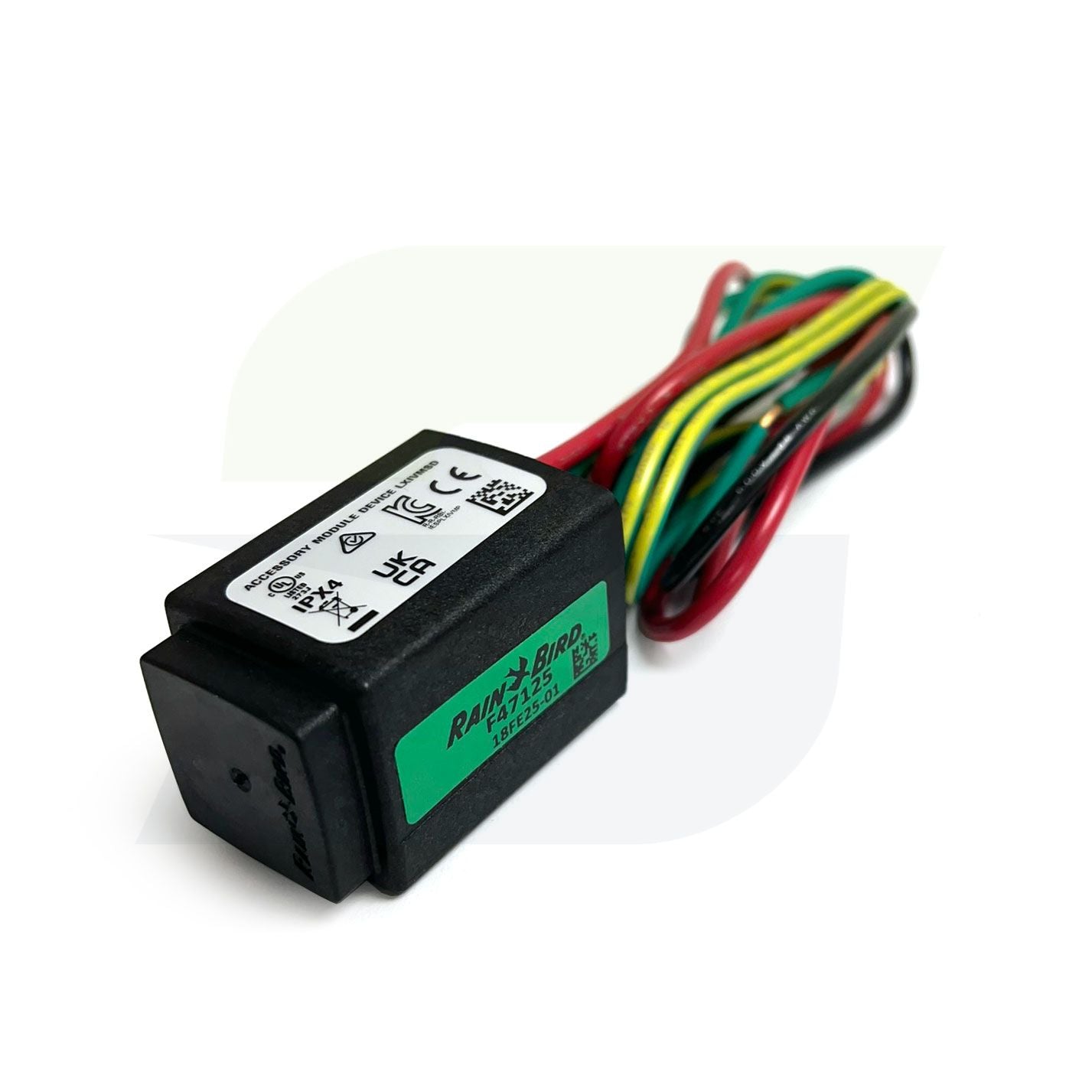

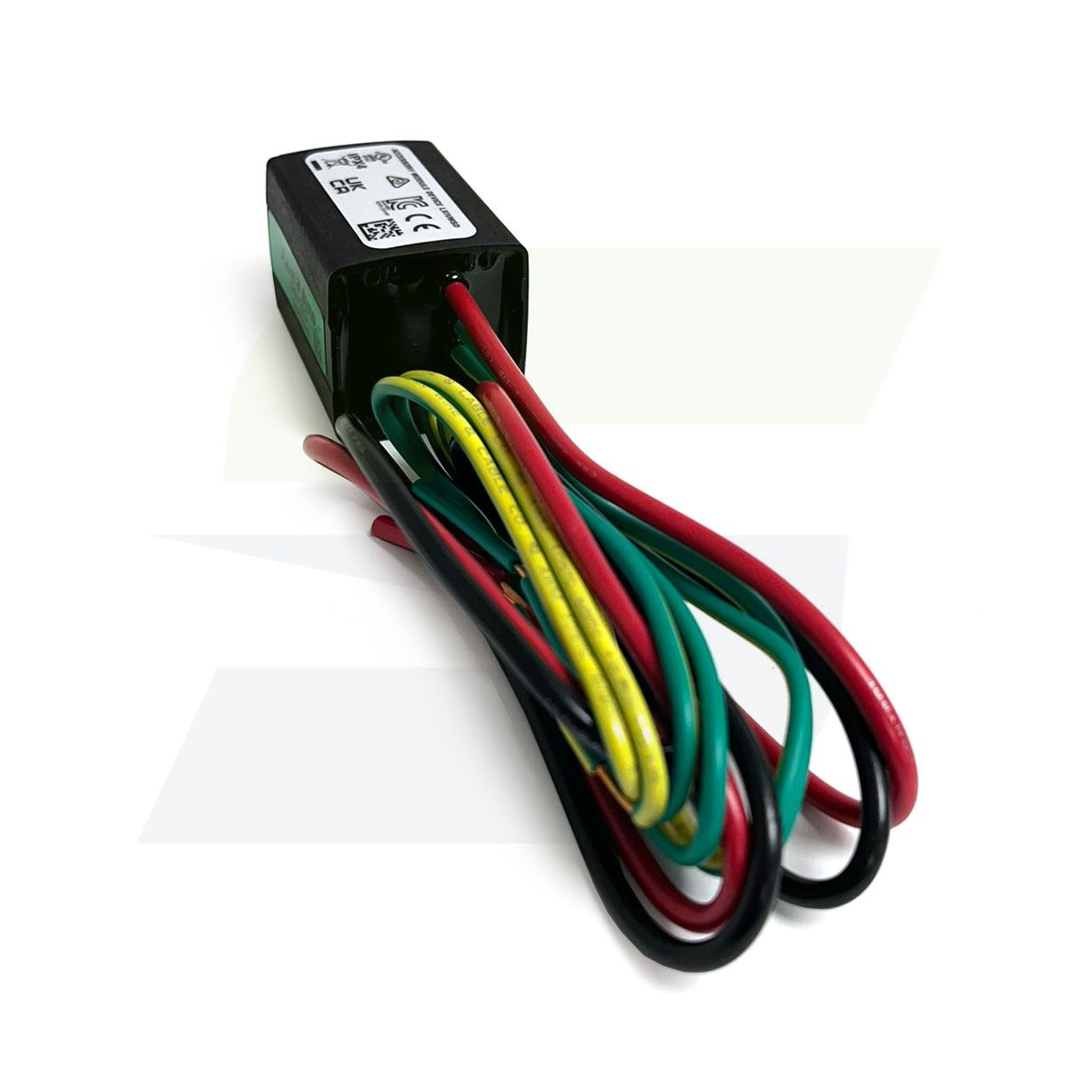

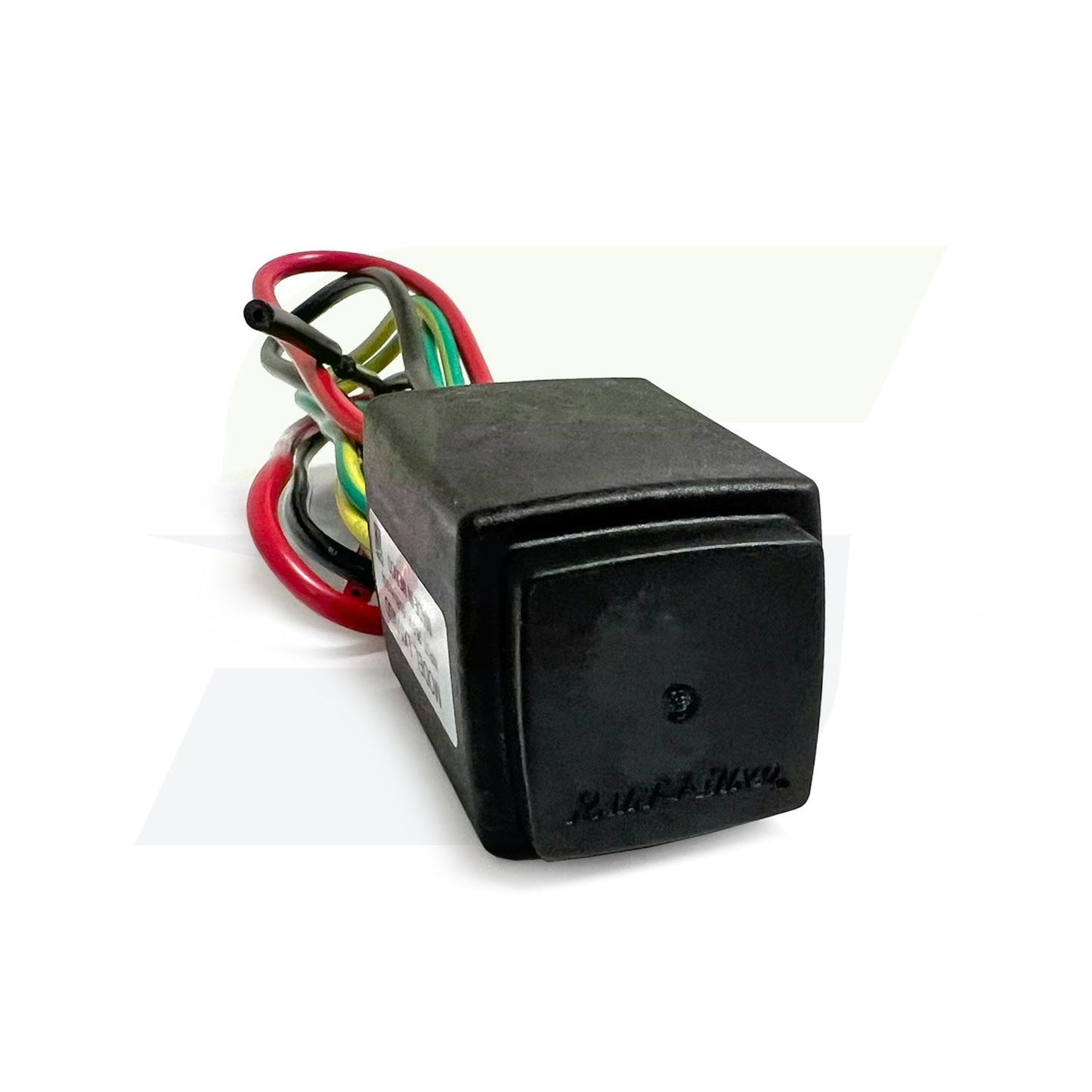

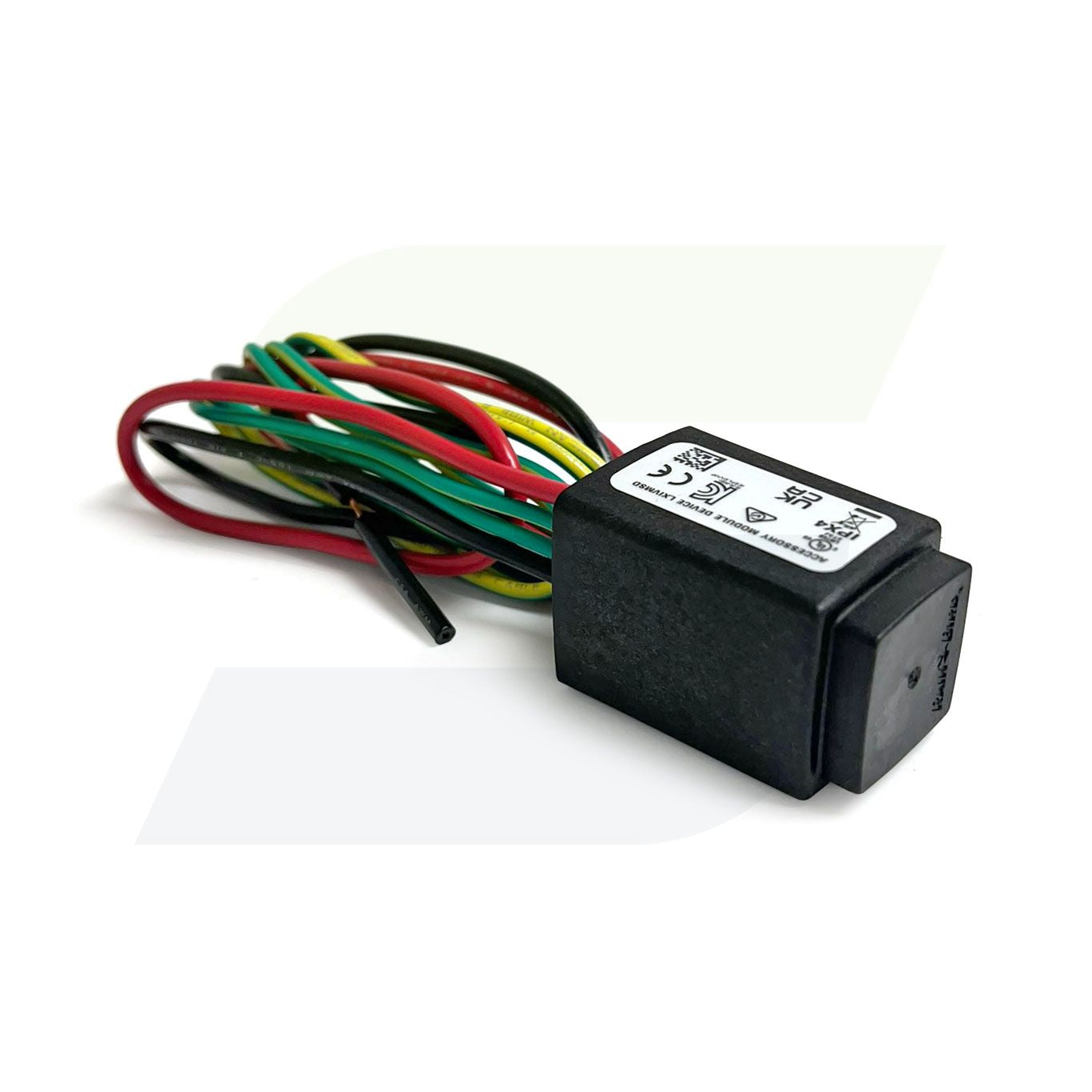

Rain Bird LXIVMSD – IVM-SD Surge Protection Device for ESP-LXIVM 2-Wire Systems

The Rain Bird LXIVMSD (IVM-SD) is a surge protection device designed for use in ESP-LXIVM 2-Wire irrigation control systems. Installed along the 2-Wire path, it safeguards the controller and all connected field devices from damaging electrical surges caused by lightning or other transient voltages. The IVM-SD must be grounded to a copper-clad rod or plate, and should be installed every 500 ft or every 15 field devices—whichever is less. It is an essential component for maintaining long-term system reliability and protecting against costly equipment damage.

Features

• Manufacturer: Rain Bird
• Part Number: LXIVMSD (IVM-SD)
• Application: Surge protection for ESP-LXIVM 2-Wire irrigation systems
• Protection Type: Diverts surge energy from the 2-Wire path to ground
• Installation Interval: Every 500 ft (150 m) or every 15 field devices, whichever comes first
• Wiring: Two wires (red/black) to 2-Wire path, one wire (green) to ground
• Grounding Requirement: Copper-clad ground rod or plate required
• Cable Allowance: Maintain at least 3 ft (1 m) of extra 2-Wire cable in valve box for service
• Splice Kit Requirement: Use WC20 waterproof connectors for all 2-Wire splices
• Configuration Use: Required at both start and end points in star configurations
