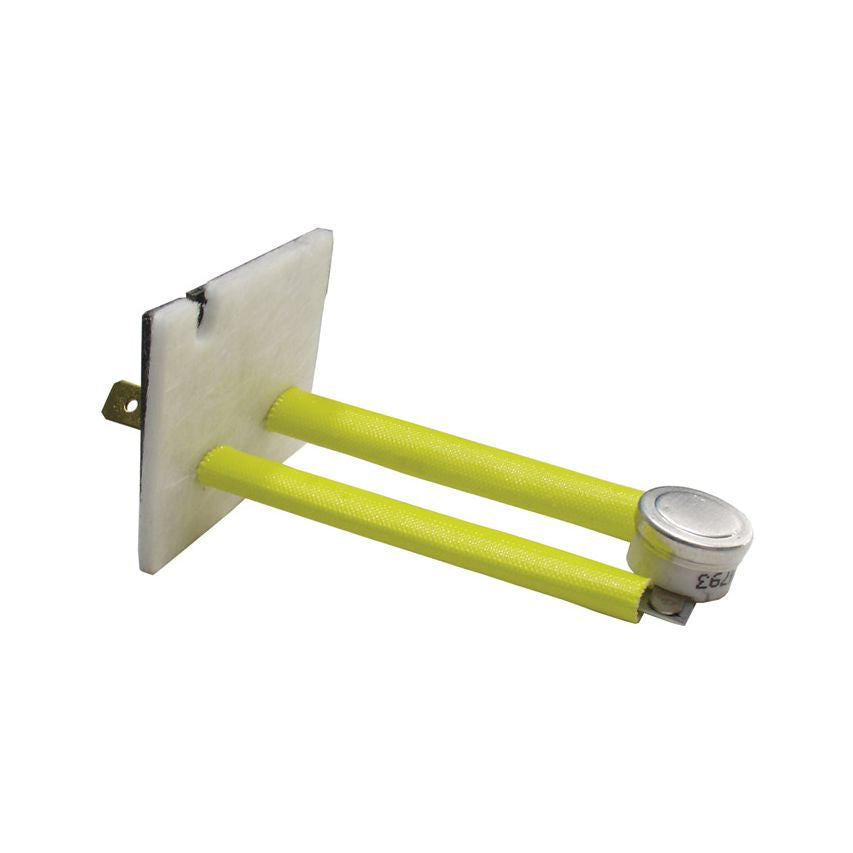

47-104990-04 - Limit Switch - Normally Closed - 130F Close - 150 Open - 120/230V

Only 1 left
SKU: 47-104990-04
Regular price $18.50

Free Shipping on all orders over $89

Most orders ship same day!

Order by phone or Questions? (800) 468 5997

Customer Reviews

No reviews yet
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

Rheem 47-104990-04 - Limit Switch - Normally Closed - 130F Close - 150 Open -  120/230V

Technical Data

  • TOD Switch Series: 36T
  • Category: General Purpose
  • Reset Mode: Auto
  • No. of Poles: 1
  • Switch Type: SPST
  • Contact Orientation: Normally Closed
  • Maximum Voltage Rating (VAC): 120 / 230
  • Maximum Current Rating (A): 15 / 10
  • Open Temperature (F): 150
  • Tolerance Open Temperature (F): +/-5
  • Close Temperature (F): 130
  • Tolerance Close Temperature (F): +/-7
  • Nominal Temperature Difference (F): 20
  • Color Code: Yellow/Yellow
  • Disc Face: Enclosed

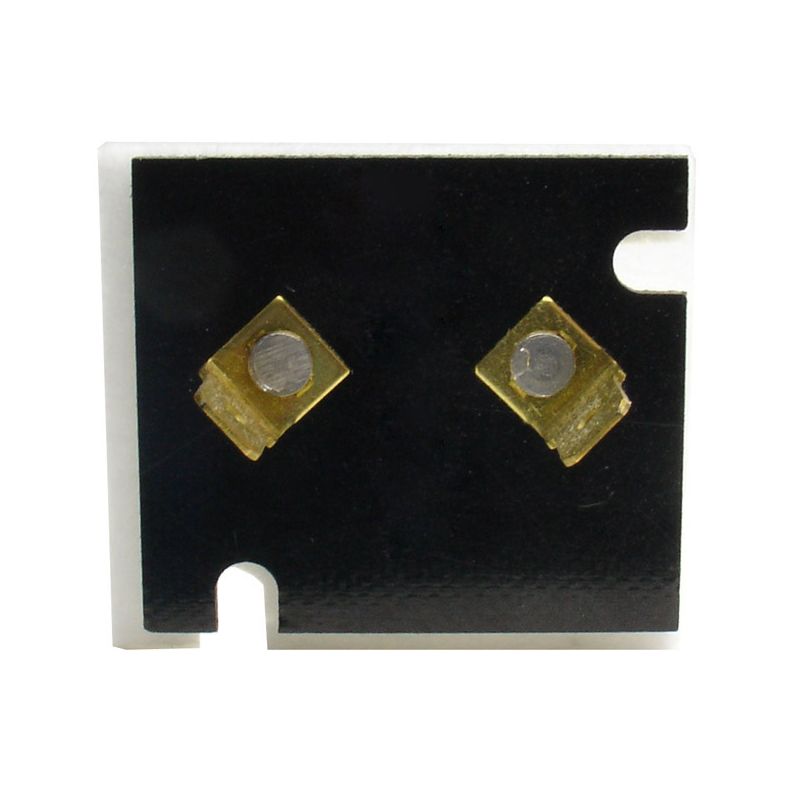

  • Mounting: Board Mount - 90 degree strap angle
  • Mounting Board Dimensions (in.): 1-9/16 x 1-3/4
  • Mounting Insertion Depth - Maximum (in.): 3
  • Connections: 3/16 in. Quick Connects

Where Used

  • R801C-MSA_MXA
  • R801P-MSA
  • R801P-MSA_MXA
  • R801S-MSA
  • R801T-UH
  • R801T-W801T-MSA_MXA
  • R801V-UH
  • R801V-ULN
  • R802P-MSA
  • R802T-MSA
  • R802V-MSA
  • R802V-UH




HUZ2010358
