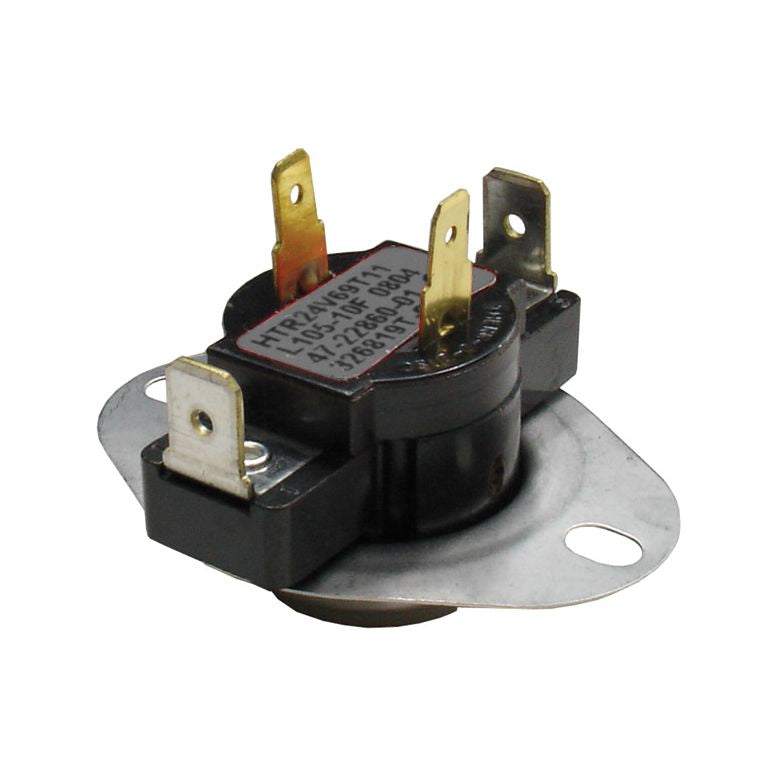

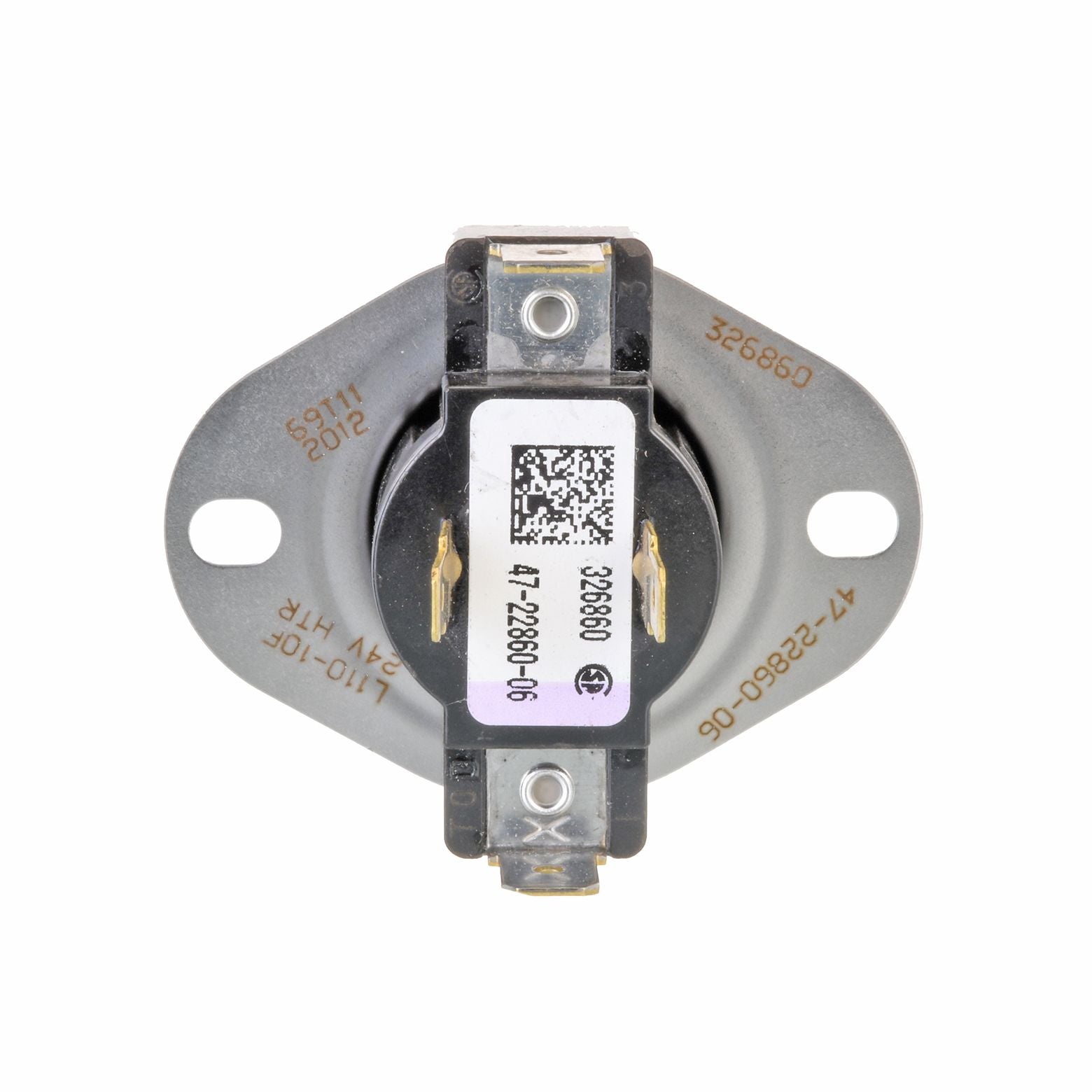

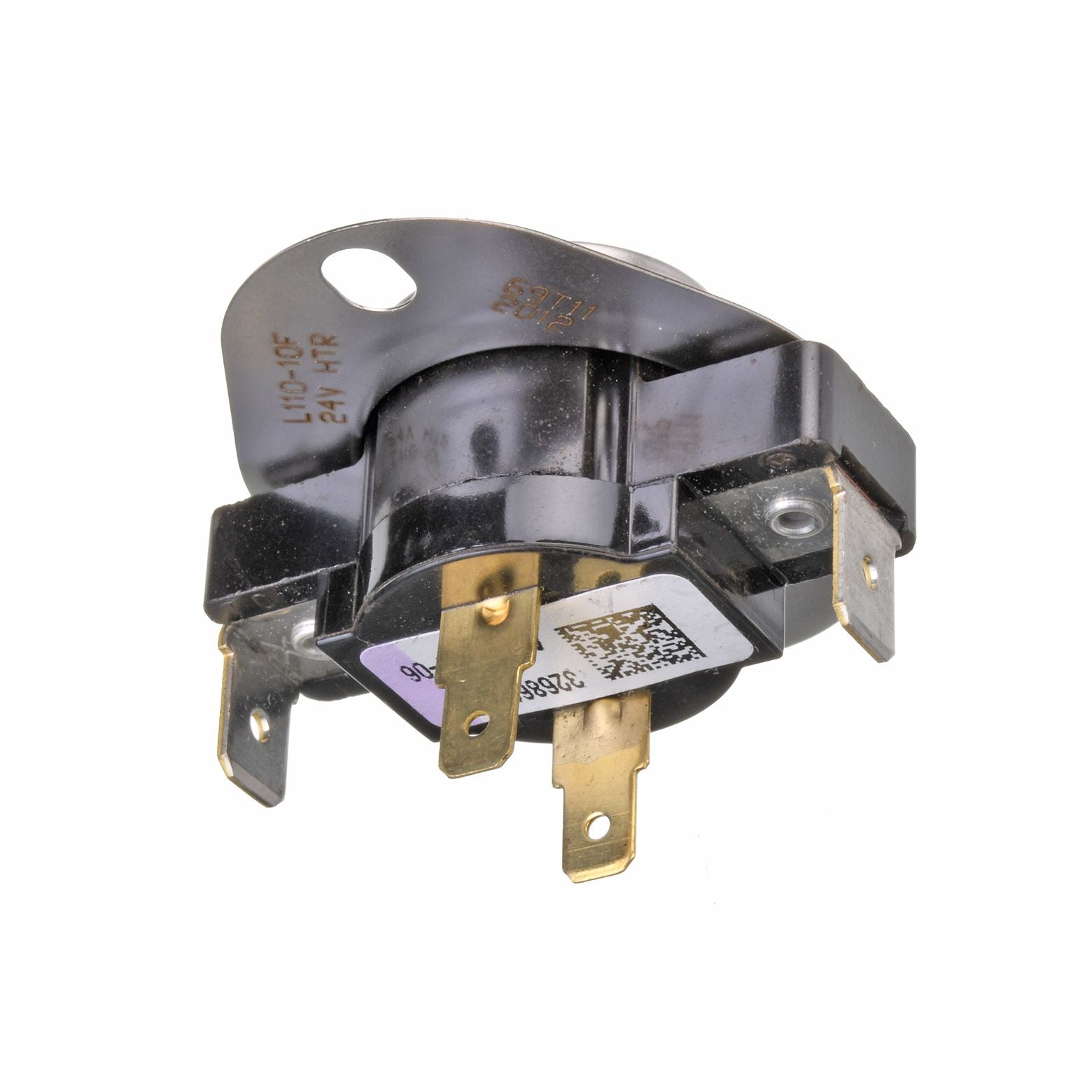

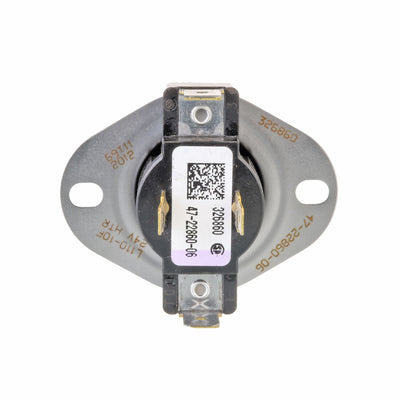

47-22860-06 - Limit Switch - Normally Closed - 100F Close - 110F Open - 230V
Regular price
$61.95
Couldn't load pickup availability
Free Shipping on all orders over $89
Most orders ship same day!
Order by phone or Questions? (800) 468 5997

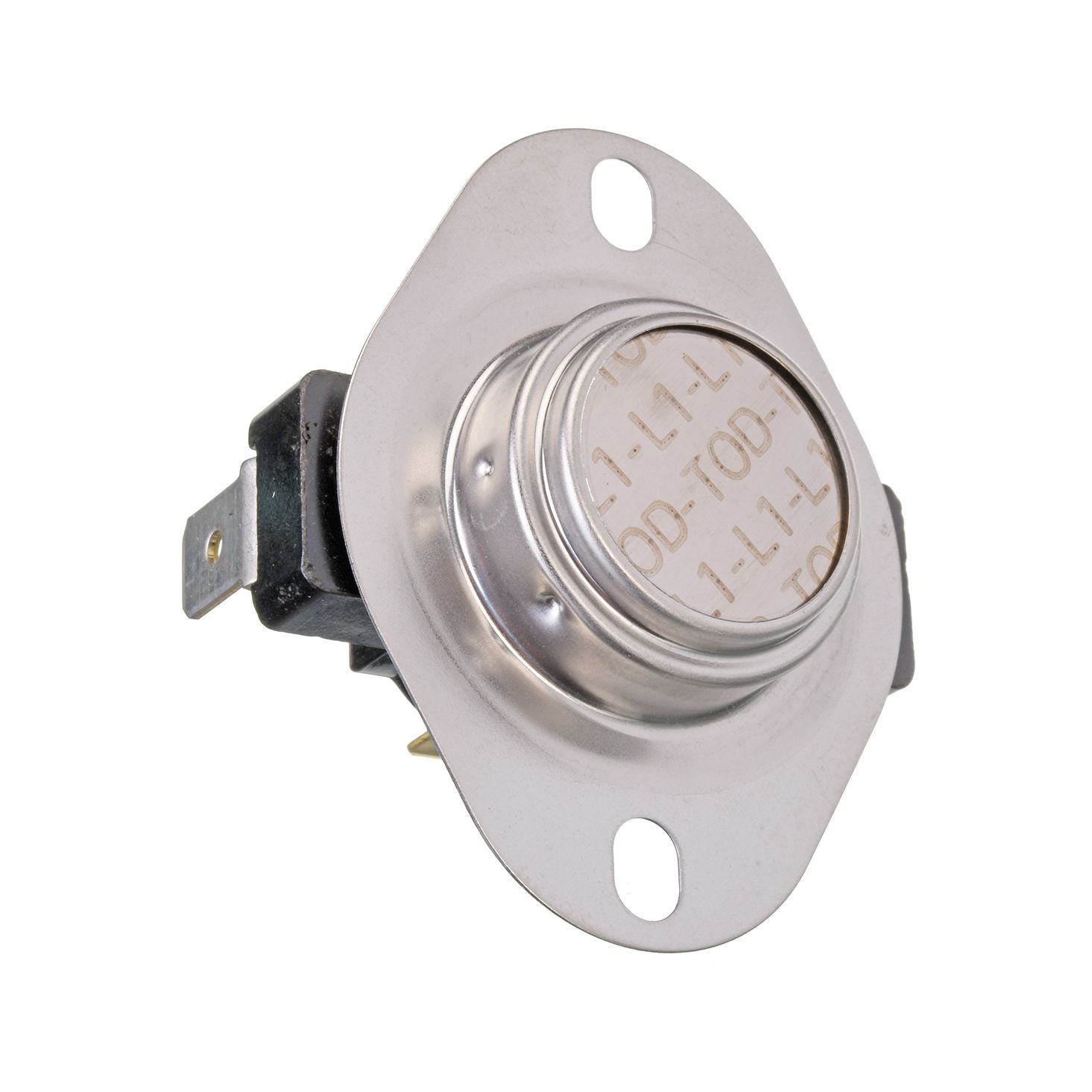

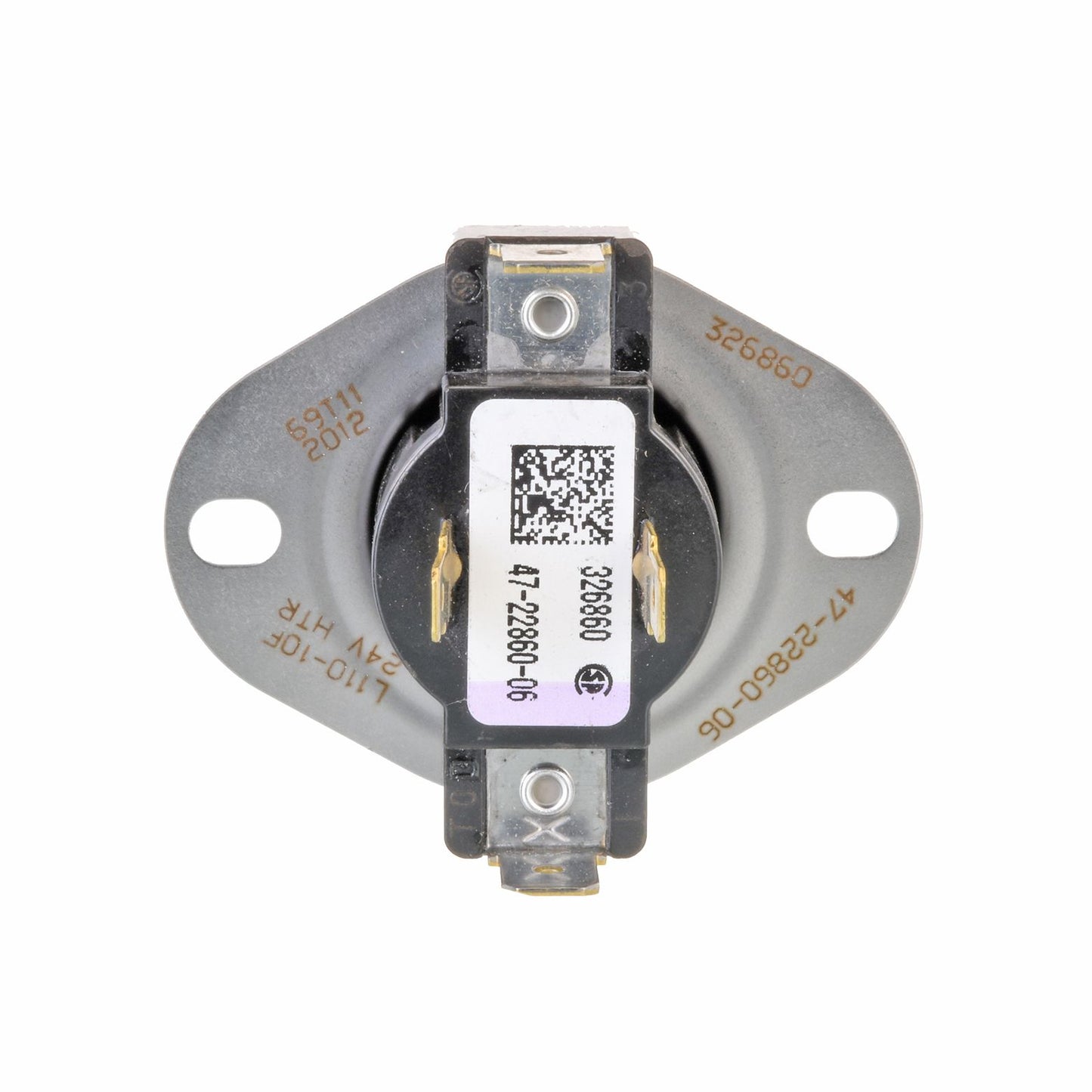

Rheem 47-22860-06 - Limit Switch - Normally Closed - 100F Close - 110F Open - 230V
Technical Data
- TOD Switch Series: 69T
- Category: General Purpose
- Reset Mode: Auto
- No. of Poles: 1
- Switch Type: SPST
- Contact Orientation: Normally Closed
- Maximum Voltage Rating (VAC): 230
- Maximum Current Rating (A): 25
- Open Temperature (F): 110
- Tolerance Open Temperature (F): +10/-0
- Close Temperature (F): 100
- Tolerance Close Temperature (F): +10/-0
- Nominal Temperature Difference (F): 10
- Color Code: Purple

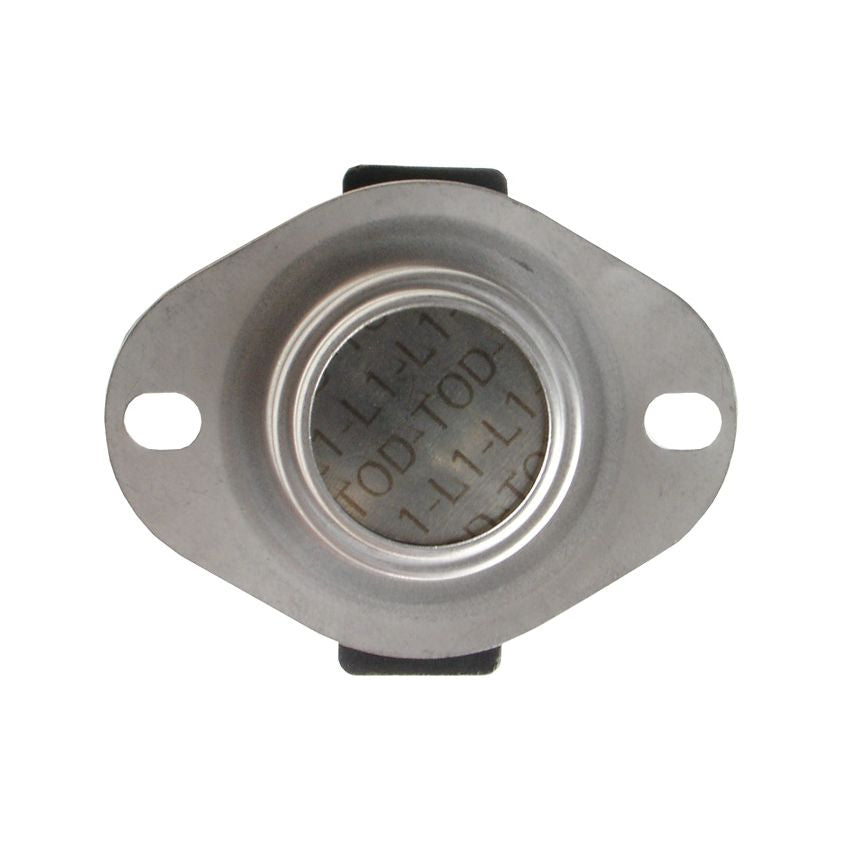

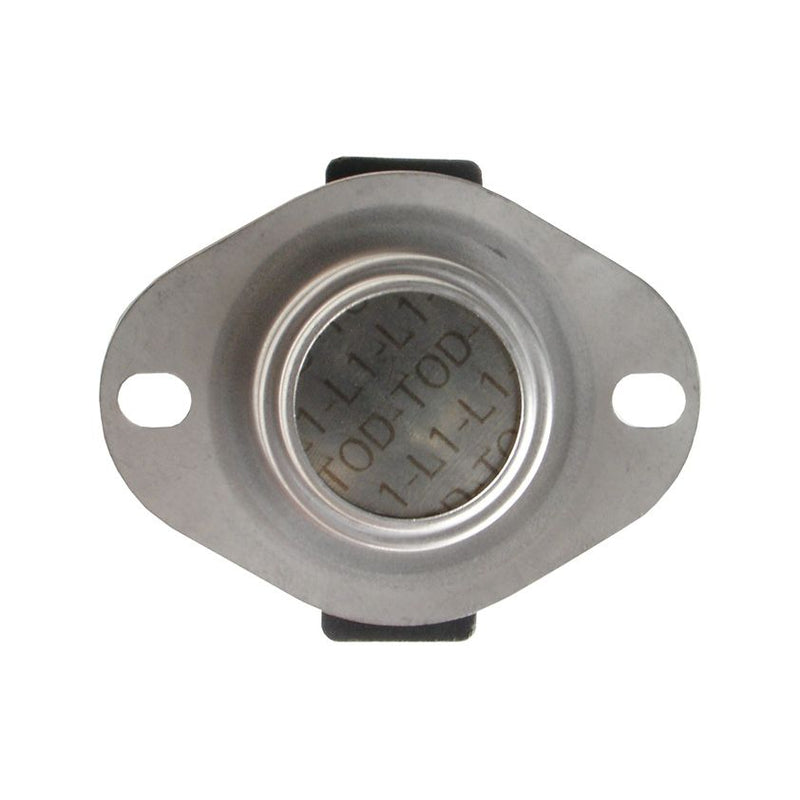

- Disc Face: Exposed
- Heater Wattage (W): 1
- Mounting: Flanged airstream
- Mounting Insertion Depth - Maximum (in.): 3/8
- Connections: 1/4 in. Quick Connects (outside) / 3/16 in. Quick Connects (inside)
Where Used
- R801C-MSA_MXA
- R801C-ZSA_ZXA
- R801P-MSA
- R801P-MSA_MXA
- R801S-MSA
- R801T-DZ
- R801T-UH
- R801T-ULN
- R801T-W801T-MSA_MXA
- R801T-W801T-MUA
- R801T-W801T-ZSA
- R801V-DZ
- R801V-MUA
- R801V-UH
- R801V-ULN
- R802P-MSA
- R802P-ZSA
- R802T-MSA
- R802V-MSA
- R802V-UH
- R802V-ZSA
- RGLE
- RGLK
- RGLL
- RGLQ
- RGLR
- RGLT
- RGPE
- RGPK
- RGPL
- RGPQ
- RGPR
- RGPT
